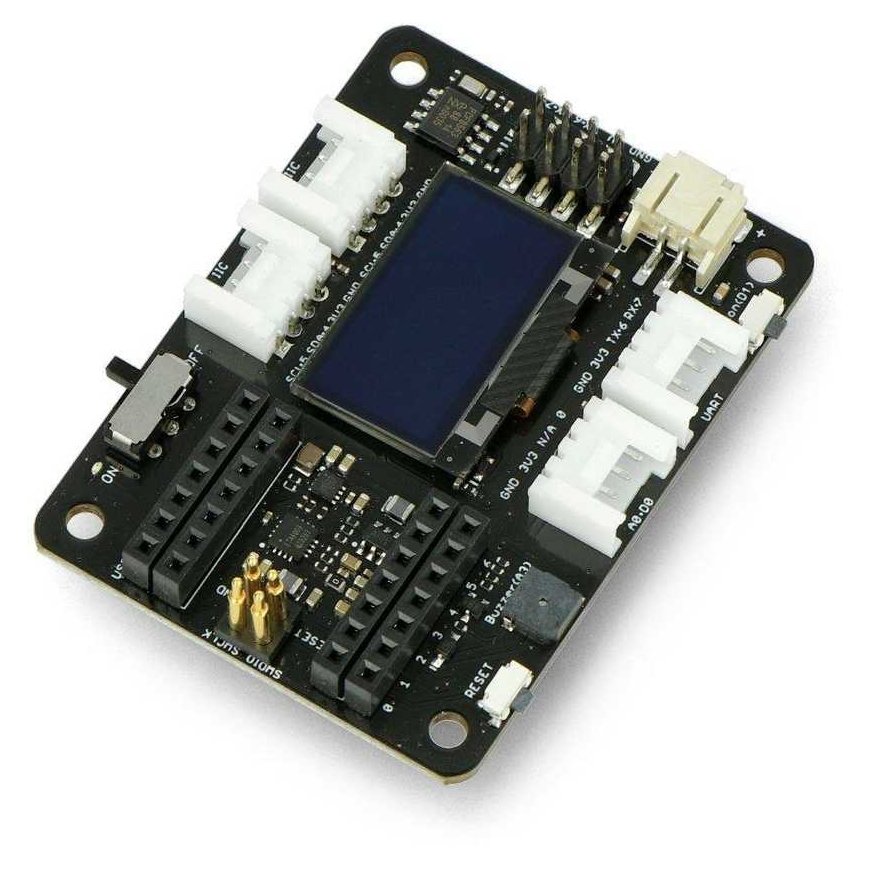

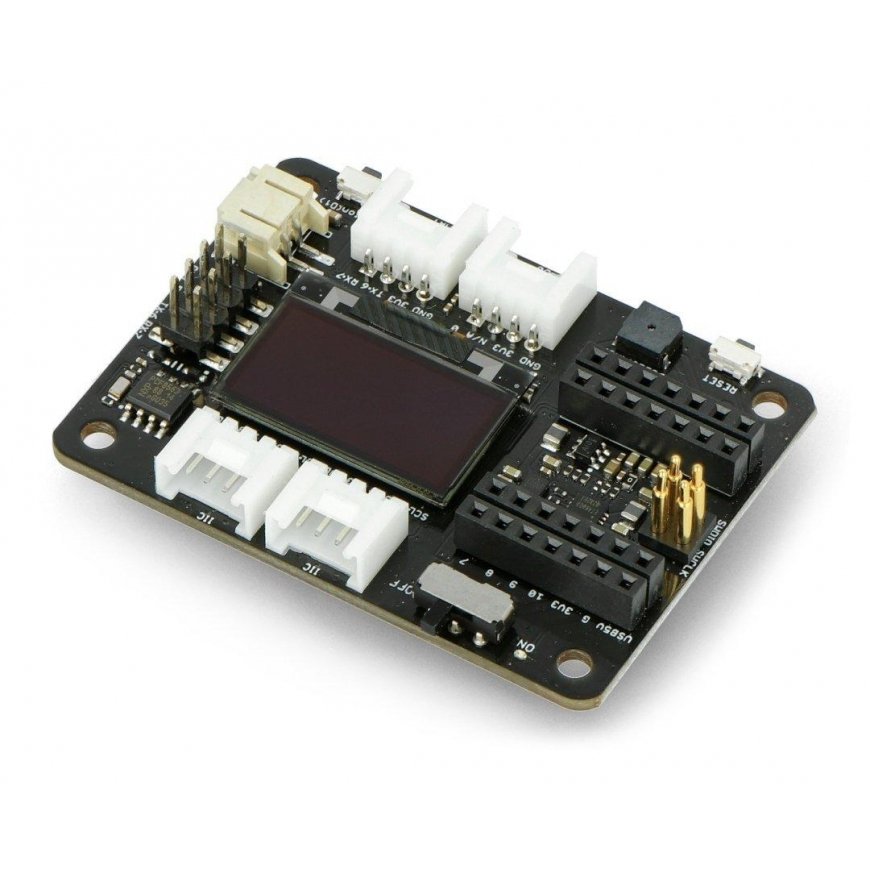

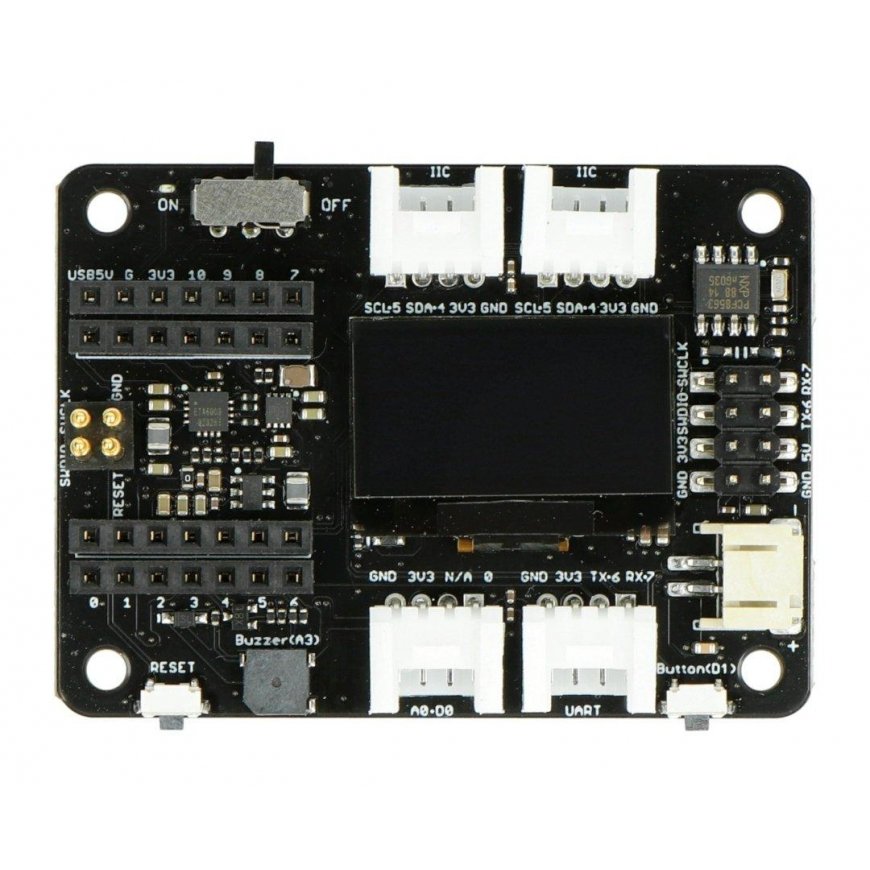

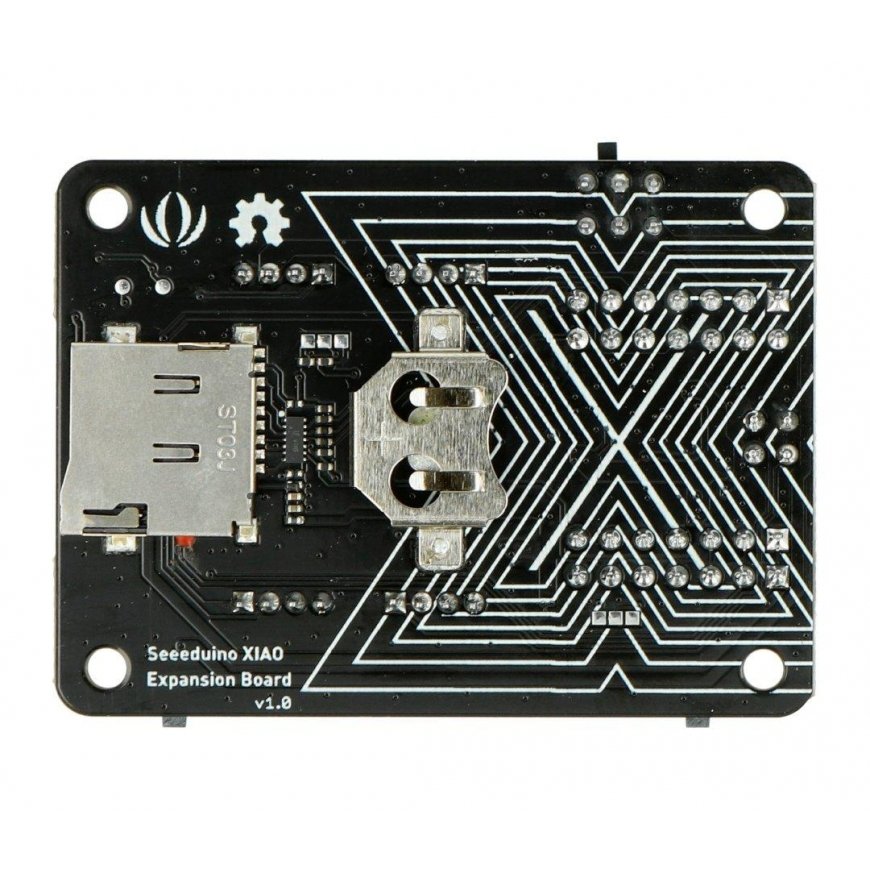

Seeed Studio Seeeduino Xiao Expansion Board, Xiao main module expansion board
3702027 AN-18652
5904422369200
Shipping 11-18 b.d.
All about the product
A board that expands the functionality of the Seeeduino Xiao module. It enables faster and simpler prototyping using this miniature main module. The board includes, among other things, Grove system connectors, a 0.96" OLED display, a 2.0 mm JST connector for connecting a Li-pol battery, an RTC clock, space for a coin cell battery, and a microSD card slot. The board and main module can be programmed using the Python language. All board connectors are removed and no additional soldering is required. The overall dimensions of the expansion board are 58 x 42.5 mm.
Key features:
- Connectors for Seeeduino Xiao
- Integrated 0.96" OLED display - allows for visual data display, making it more efficient and convenient to debug and test new solutions
- SWD pin connector - designed to connect to a programmer-debugger
- MicroSD card slot - the ability to expand memory means you won't have to worry about limited memory when programming with libraries
- Accurate real-time clock PCF8563T with an additional battery power source CR1220
- Programmable physical button
- Grove connectors - popular plug and play connectors that support protocols
- JST 2.0 mm connector for Li-Pol battery
- 5V servo connector - 5V pin connectors for servo
