PCIe to USB 3.2 adapter HUB 4x USB - compatible with Raspberry Pi CM4 - Waveshare 18899
39.00 €
Monthly payment from 1,90 €
3701244 AN-20090
5904422380090
Shipping 11-18 b.d.
You are interested in this product?
All about the product

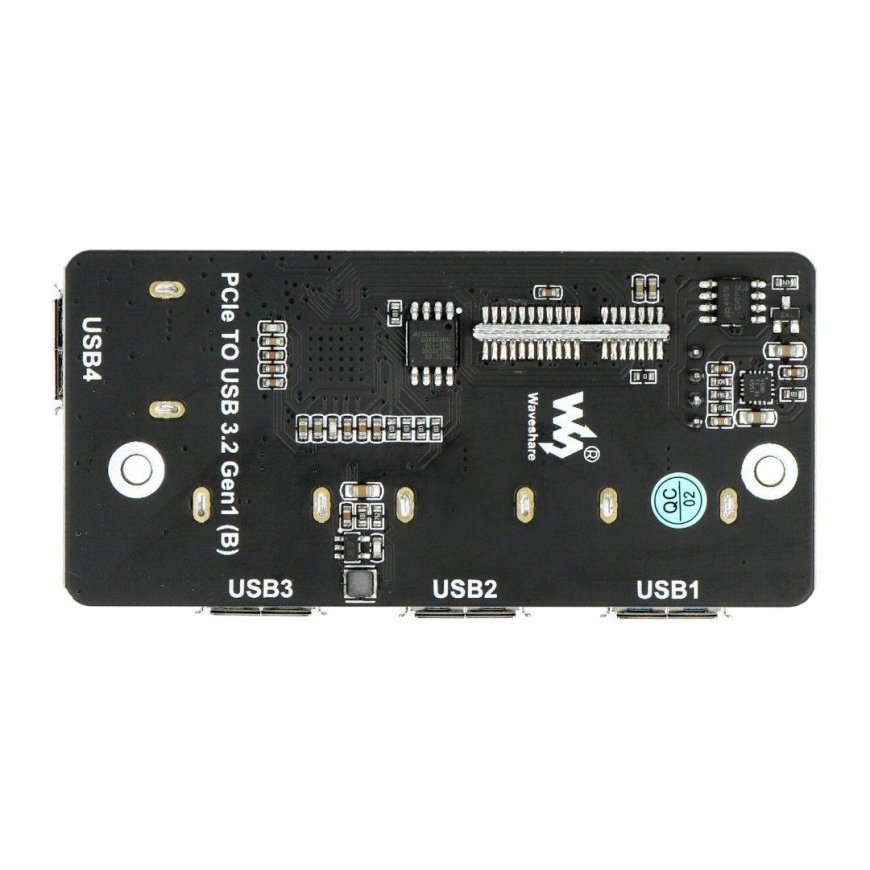

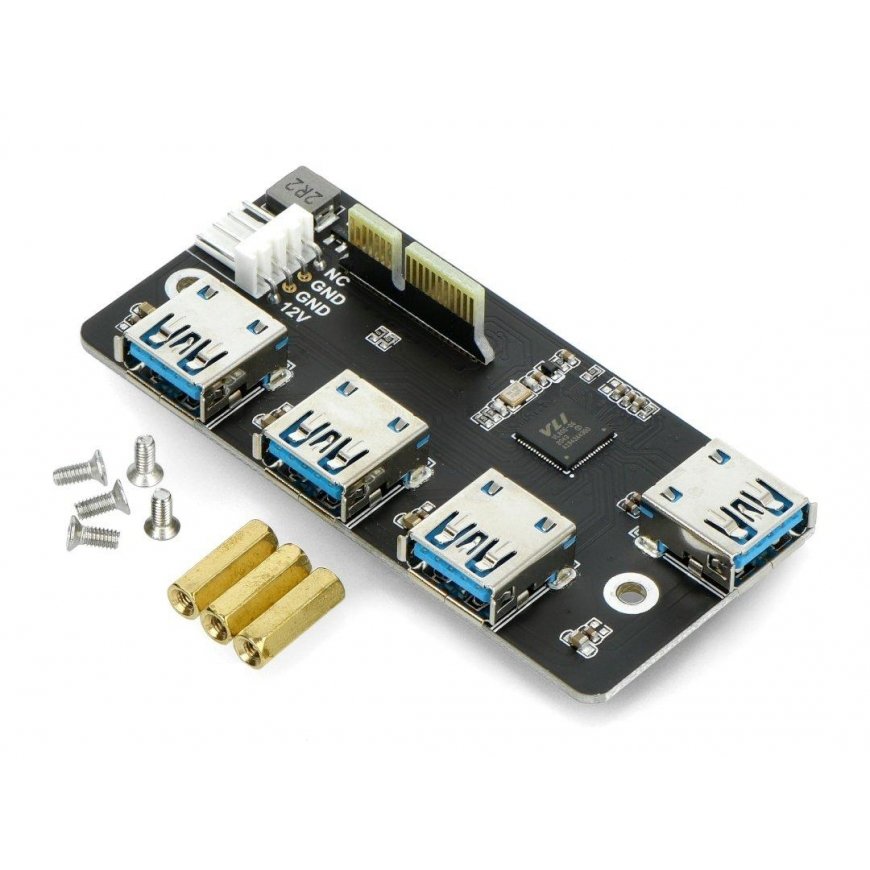

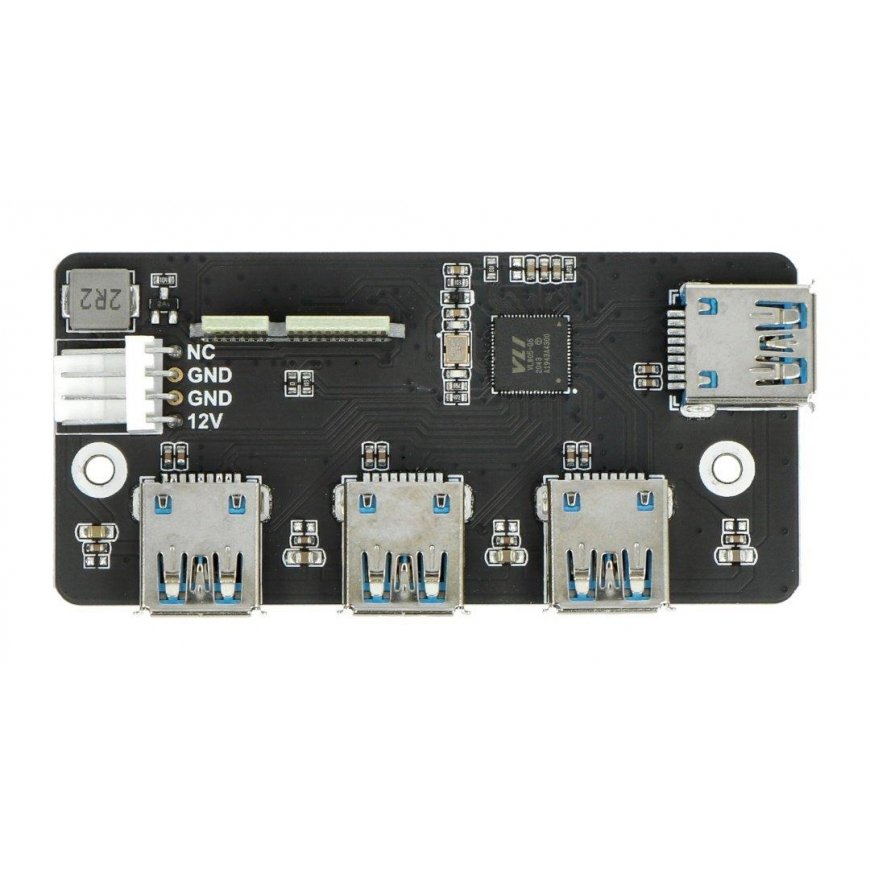

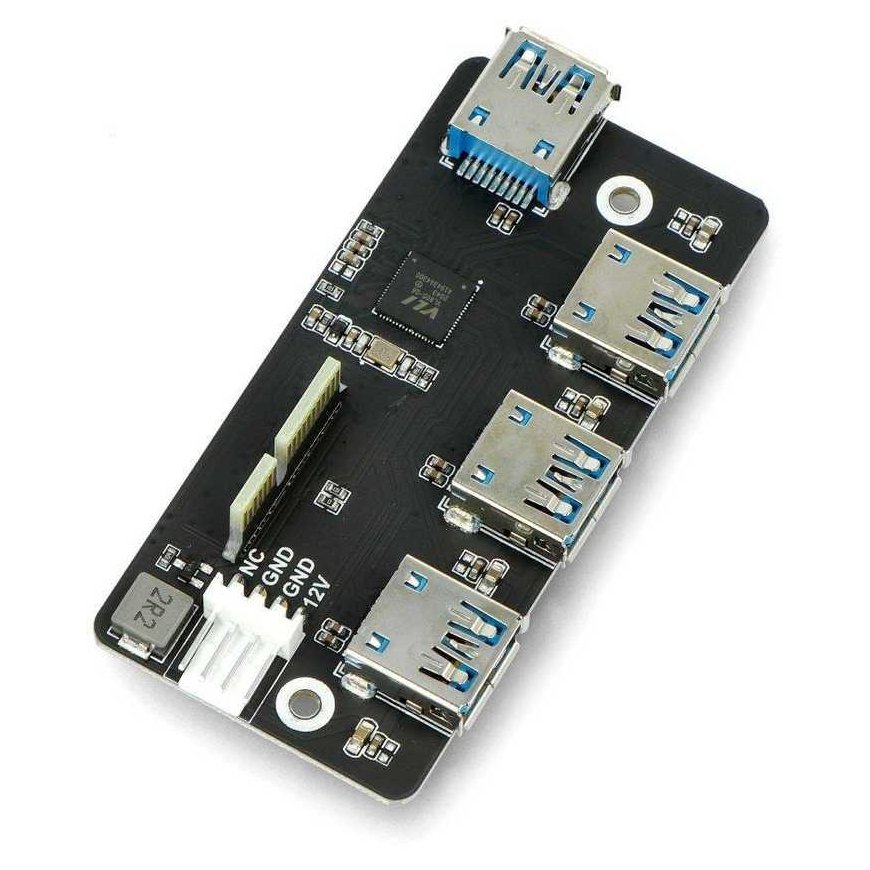

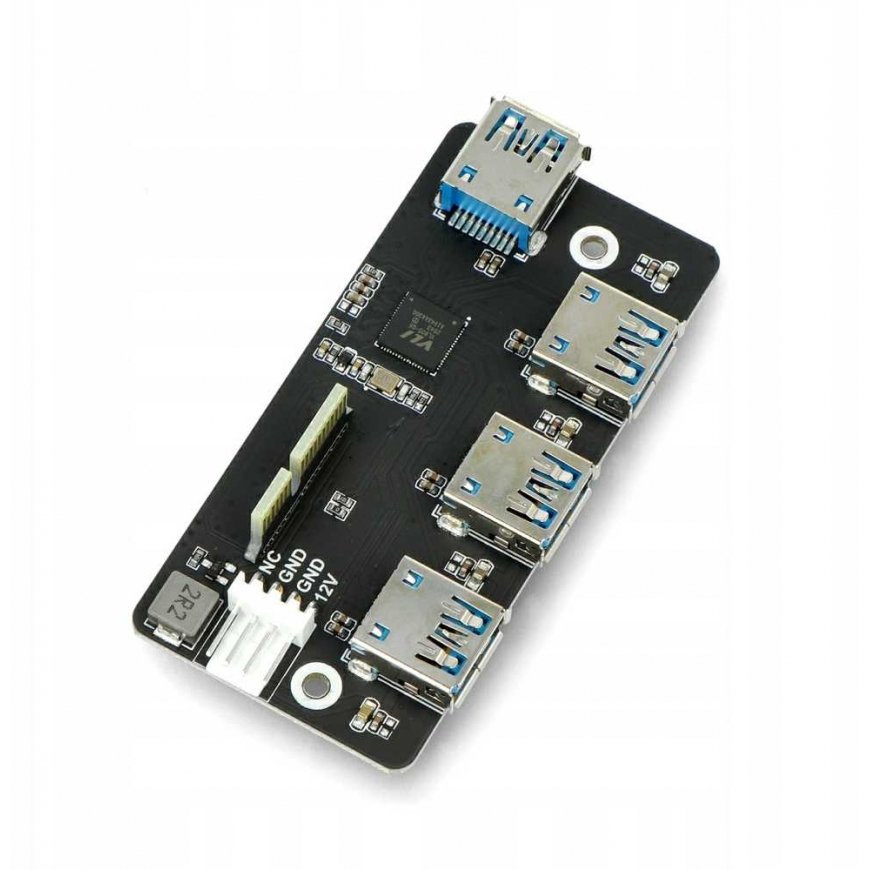

PCIe to USB 3.2 adapter created by Waveshare. When connected to a PCIe slot, the device interfaces are expanded with 4 USB 3.2 ports. The adapter is compatible with the CM4IO expansion board designed for the Raspberry Pi Compute Module 4 mini computer.
Main features:
- 4x USB 3.2 Gen 1 ports, compatible with 3.0 / 2.0 and 1.1 ports
- Powered from a 12 V PCIe port or 12 V DC connector
- Based on the VL805 chip, no drivers needed, plug and play
- Designed for Raspberry Pi CM4 IO module
- When connecting to a computer motherboard, the manufacturer recommends using a PCIe cable
- Adapter type: PCIe to USB
- Chip: VL805
- Number of USB ports: 4
- USB standard: 3.2
- Power voltage: 12 V from PCIe or external port
- Dimensions: 82 x 39 mm
- PCIe to USB adapter
- Set of screws and spacers
