DFRobot Bionic Robot Hand, bionic robot hand, right, 500g
288.99 €
Monthly payment from 8,34 €
3701064 AN-09933
6959420912360
Shipping 11-18 b.d.
You are interested in this product?
All about the product

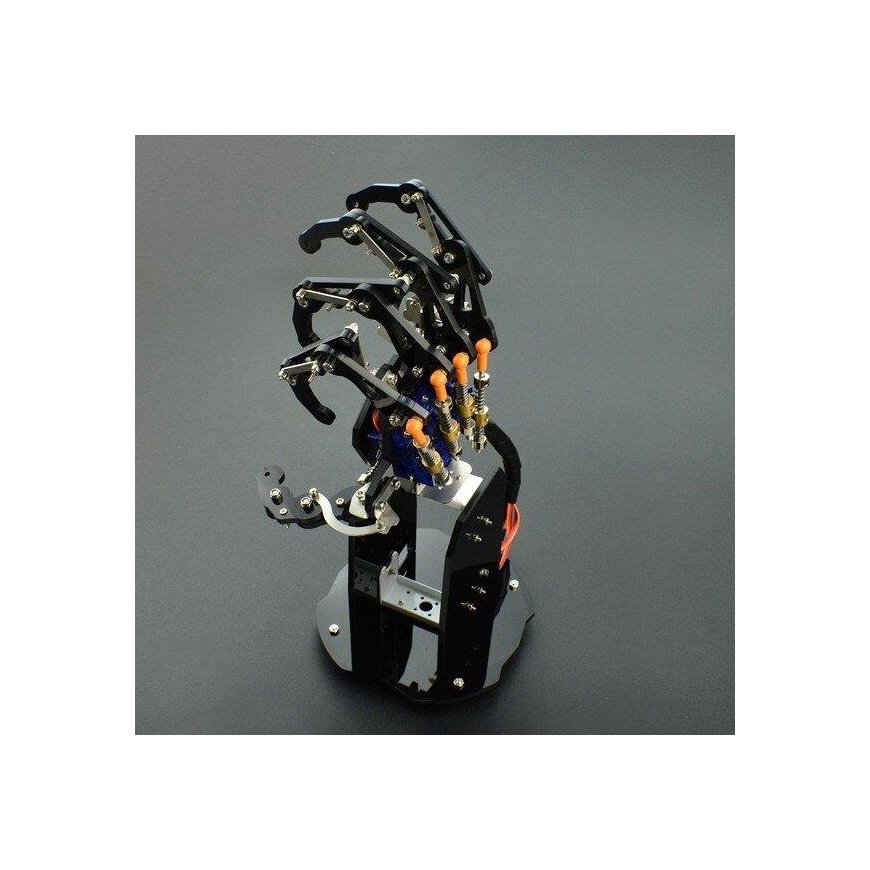

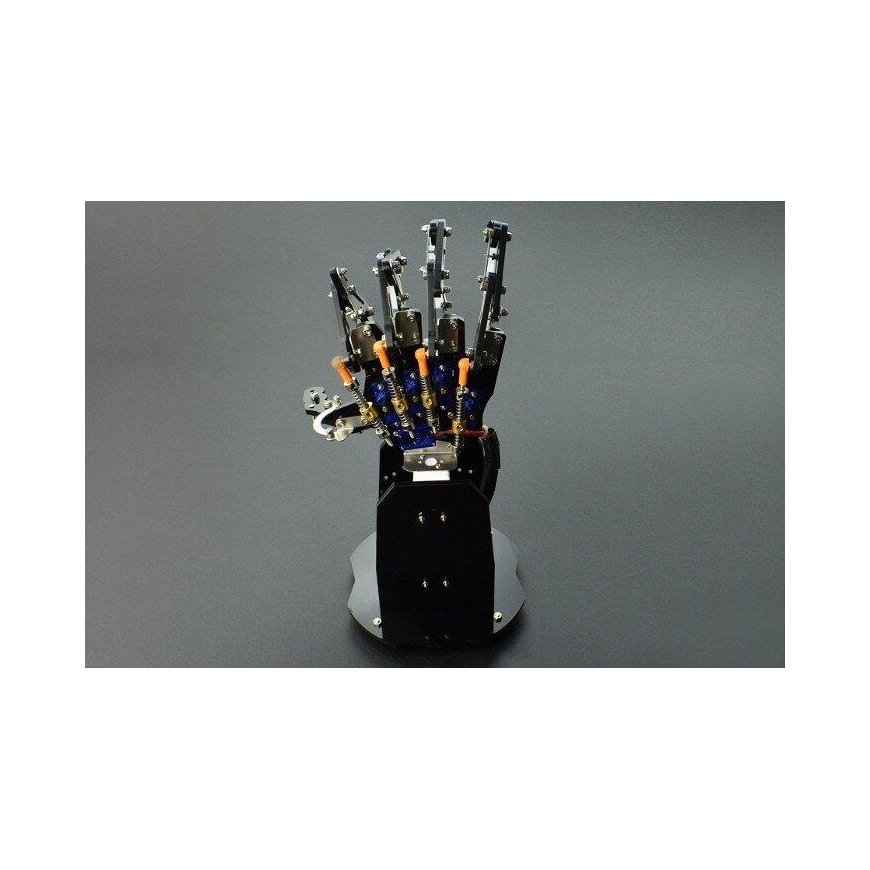

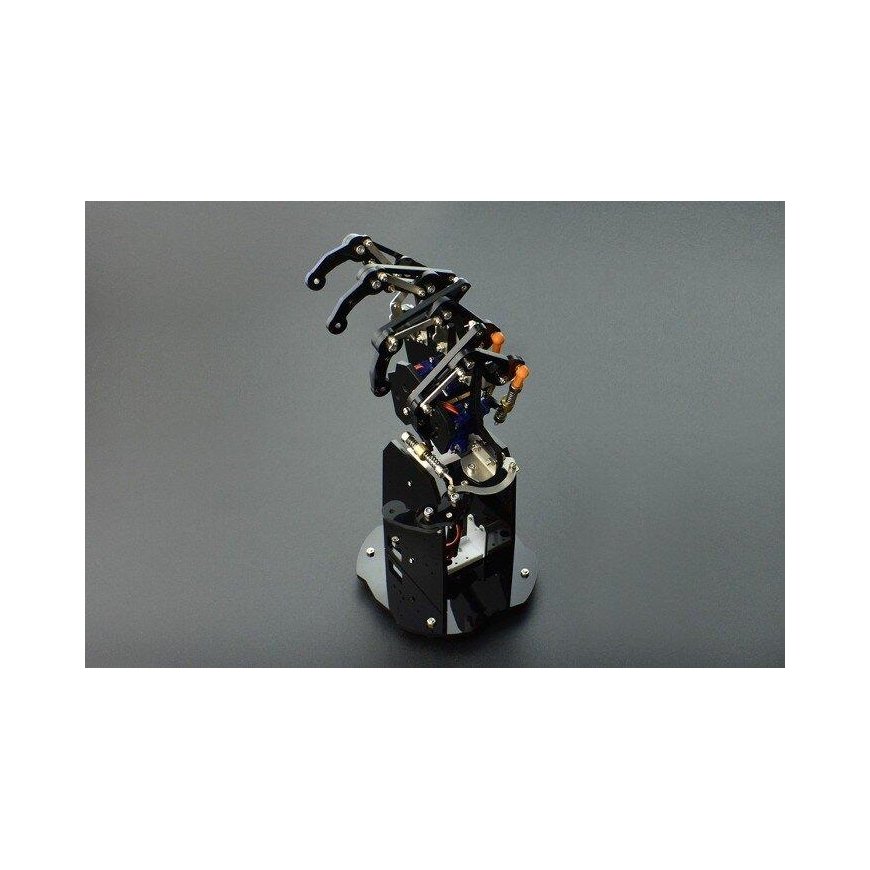

The robotic hand can be controlled using 5 micro servos. The special design allows each finger to be controlled separately. The device can lift up to 500 g. The length of the arm is 330 mm.
Product features:
- Each finger is controlled separately

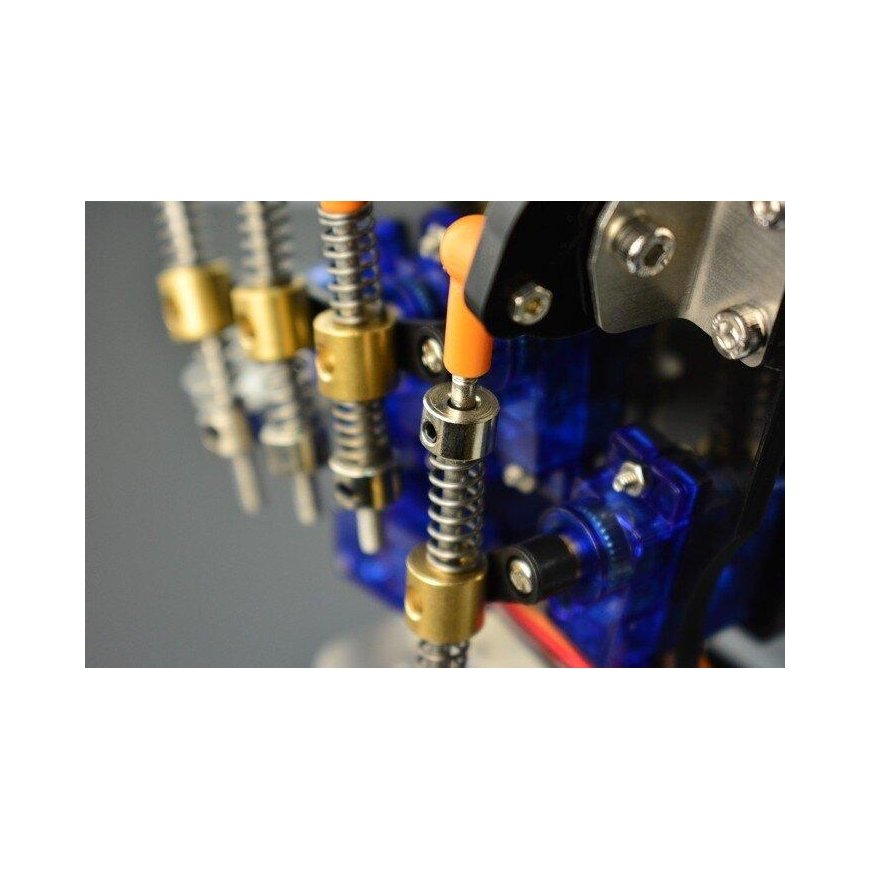

- Dampened springs for protection against mechanical damage
- Material: acrylic
- Assembled, ready to use
- Compatible with Arduino and other microcontrollers
- Recommended power supply voltage 5 V / 2 A
Specifications:
- Power supply voltage: from 4.8 V to 6 V
- Control signal from 1.0 MS to 2.0 MS (from 45° to 135°)
- Maximum current: 2 A
- Lifting capacity: 500 g
- Servo torque:
- 2.4 kg/cm (0.23 Nm) at 4.8 V
- 2.8 kg/cm (0.27 Nm) at 6 V
- Speed:
- 0.11s / 60° at 4.8 V
- 0.09s / 60° at 6 V
- Servo output colors:
- Brown: GND
- Red: VCC
- Orange: control signal
- Operating temperature: from 0 °C to 55 °C
- Arm dimensions: 330 mm
- Weight: 916 g
Links:
Manufacturer's page
Manual
