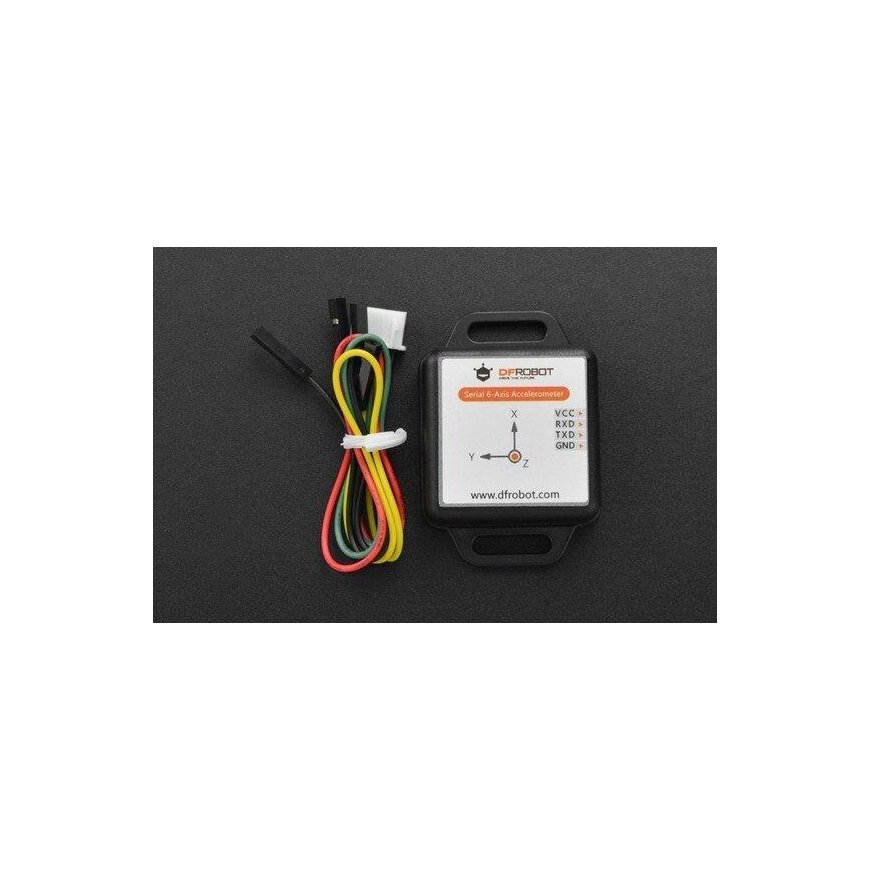

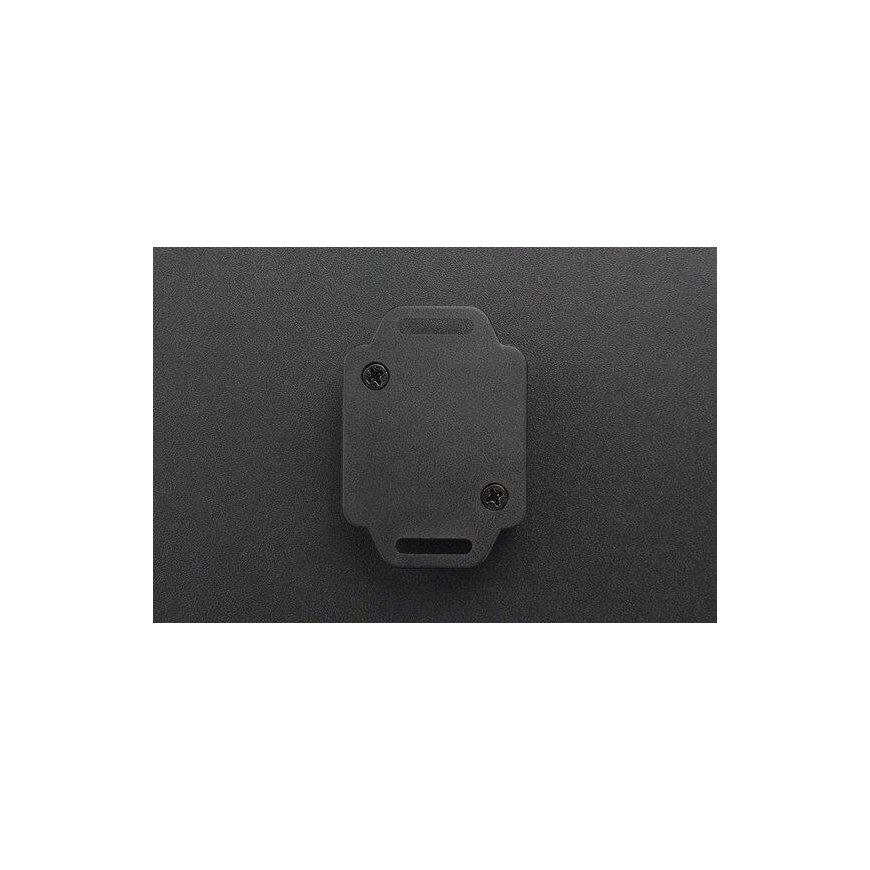

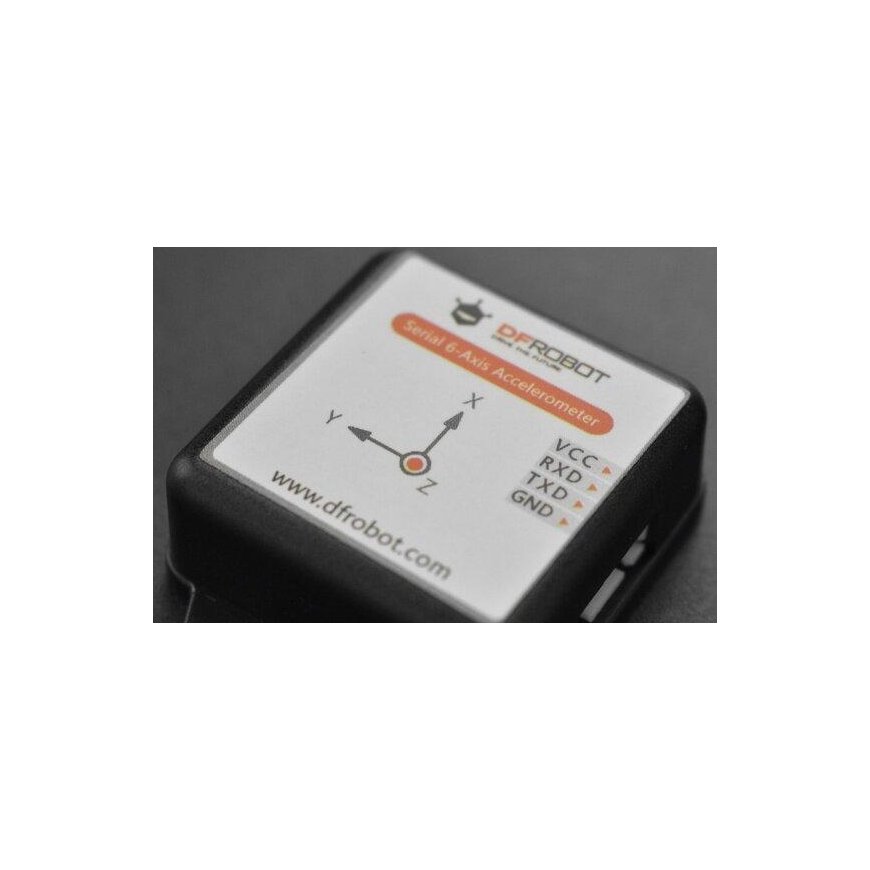

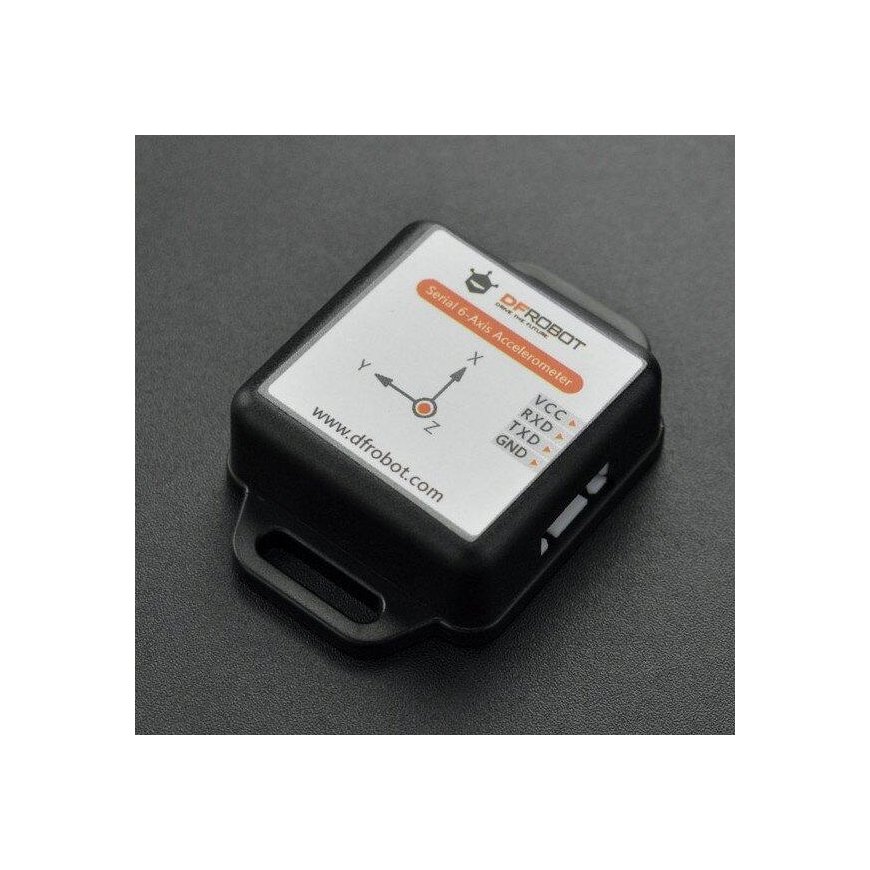

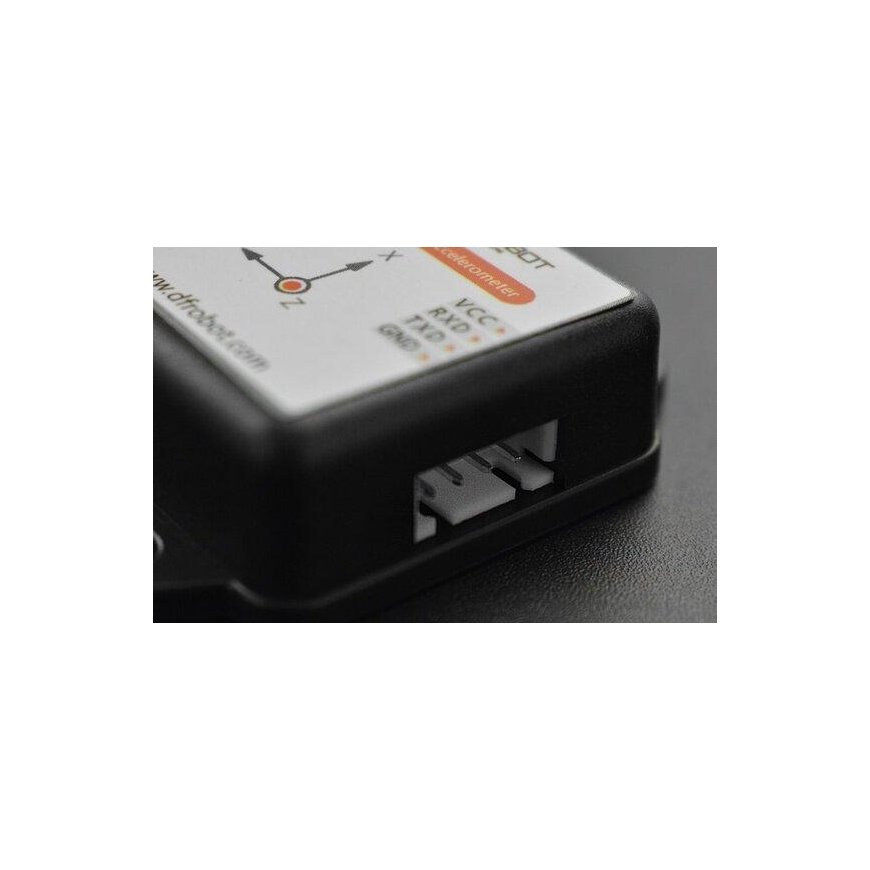

DFRobot SEN0386 6-axis motion sensor, accelerometer, and gyroscope
3700487 AN-19014
5903351240017
Shipping 11-18 b.d.
All about the product
The powerful 6-axis sensor combines an accelerometer and a gyroscope. It allows for determining the position of an object in space, measuring acceleration and angular velocity. The acceleration measurement range is ±2/4/8/16 g, and the angular velocity: ±250/500/1000/2000°/s. It uses advanced digital filtering technology that helps effectively eliminate noise and increases the accuracy of results, statistically up to 0.05 degrees. Powered by a voltage range of 3.3 V to 5 V. Compatible with popular Arduino microcontrollers and boards derived from it.
Specifications:
- Compatible with Arduino
- Supply voltage: from 3.3 V to 5 V
- Current consumption: <40 mA
- Interface: TTL
- Baud rate support: from 2400 to 921600 bps (adjustable)
- Data output: pd from 0.1 Hz to 200 Hz
- Acceleration measurement range: ±2/4/8/16 g (optional)
- Angular velocity measurement range: ±250/500/1000/2000°/s (optional)
- Detection angle: ±180°
- Dimensions: 51.3 x 36 x 10 mm
- Connection cable x1
