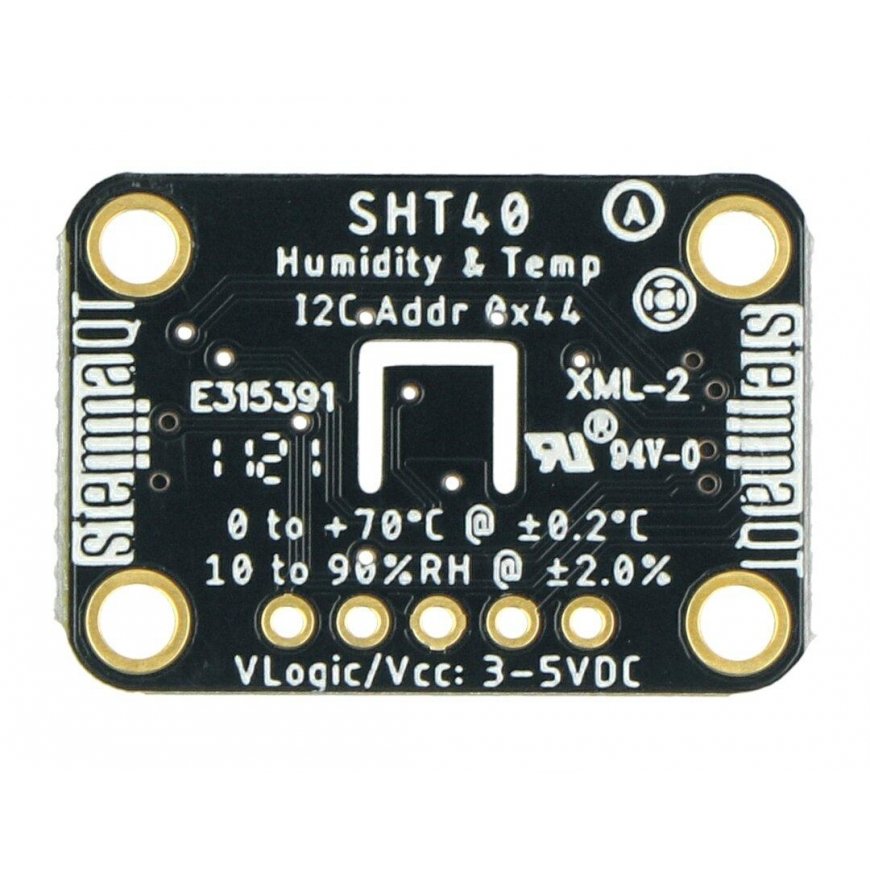

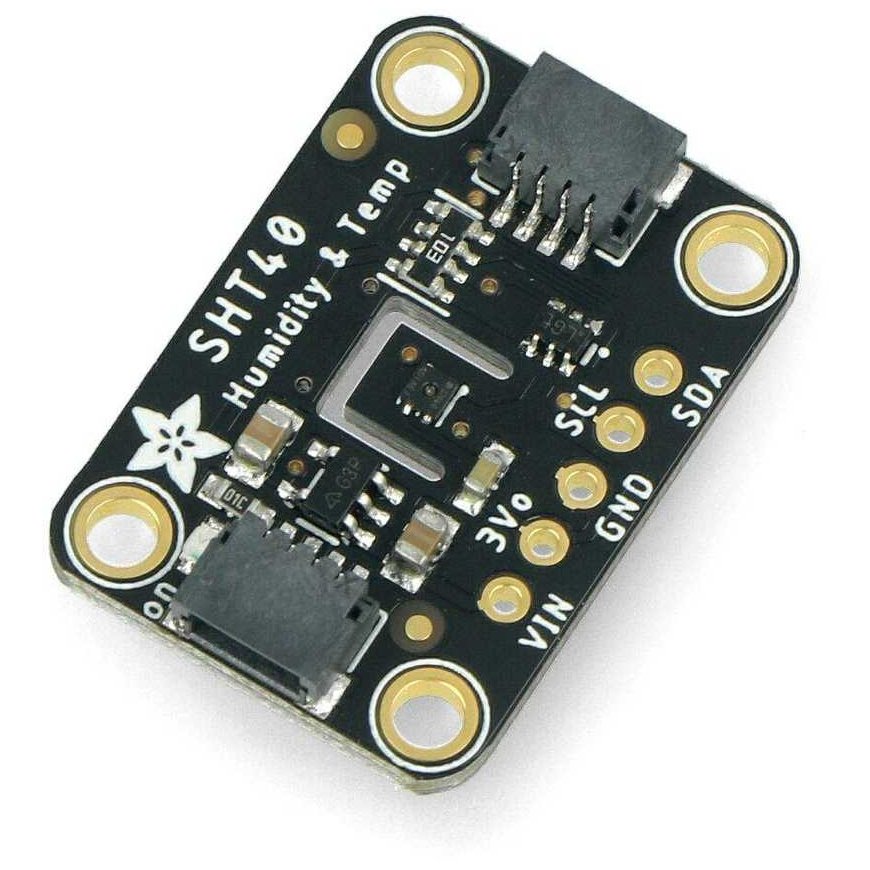

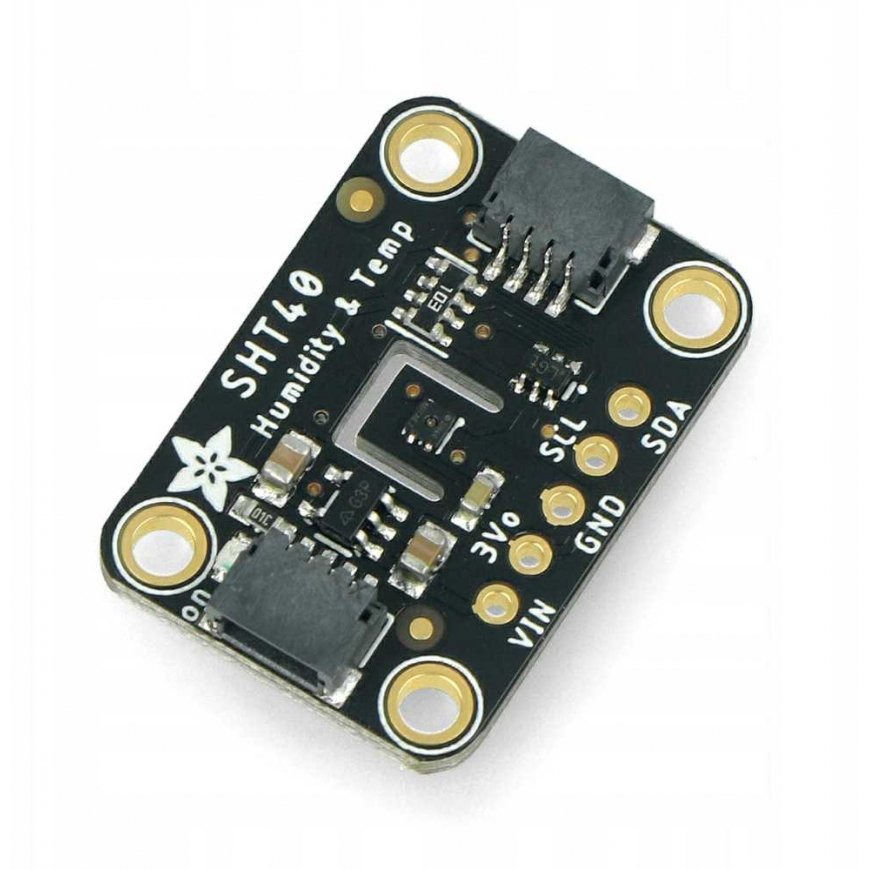

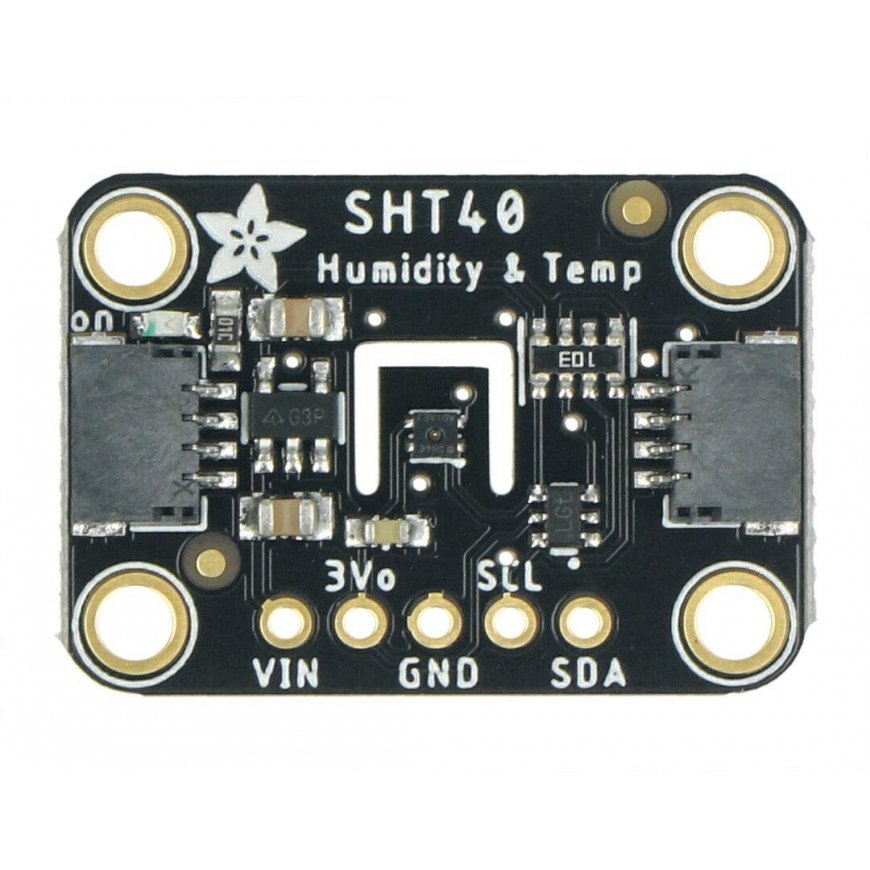

Temperature and humidity sensor, Sensirion SHT40, STEMMA AT / Qwiic, Adafruit 4885
20.04 €
3700396 AN-19254
5904422354794
Shipping 8-15 b.d.
You are interested in this product?
All about the product
Temperature and humidity sensor from Adafruit. It features an integrated Sensirion SHT40 chip and STEMMA QT / Qwiic connectors, which facilitate connecting the sensor to the controller module. This allows for temperature measurements from -40 °C to 125 °C (with an accuracy of 0.2 °C) and humidity measurements from 0% to 100% RH (with an accuracy of 1.8% RH). Powered by a voltage range of 3 V to 5 V.
Specifications:
- Chip: SHT40
- Module type: temperature and humidity sensor
- Supply voltage: from 3 V to 5 V
- Temperature measurement
- measurement range: from -40 °C to 125 °C
- accuracy: up to 0.2 °C
- Humidity measurement
- measurement range: from 0% RH to 100% RH
- accuracy: up to 1.8% RH
- Interface: I2C
- Bus address: 0x44
- Pinouts:
- soldering fields
- STEMMA QT / Qwiic connectors
- SHT40 temperature and humidity sensor module

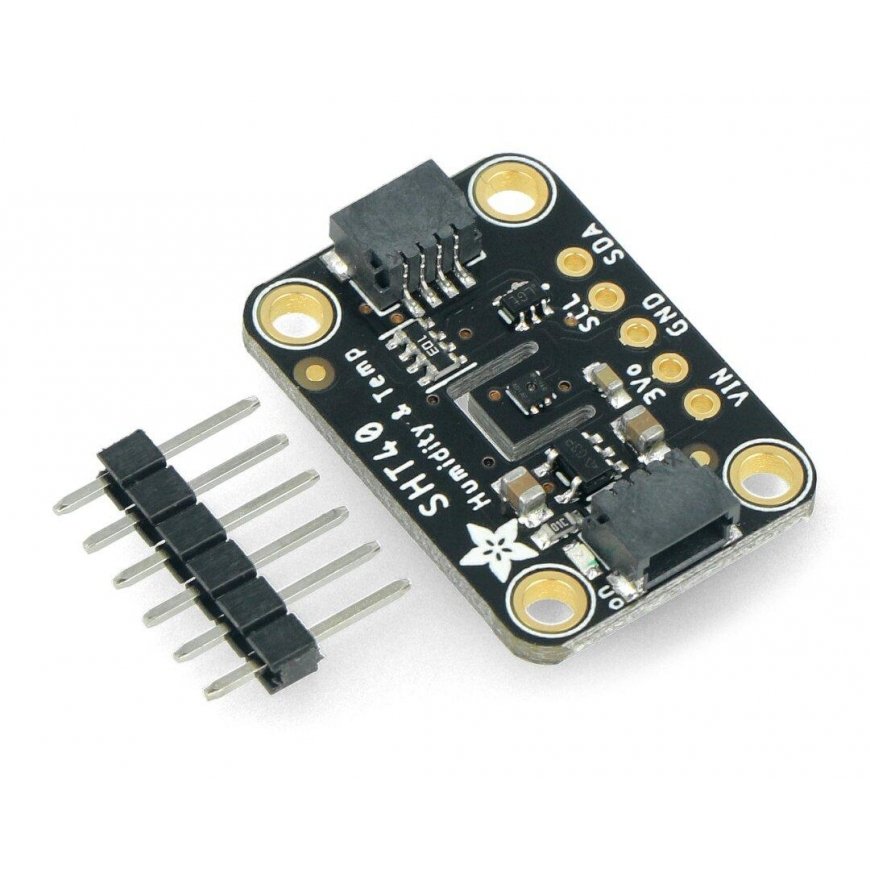

- Gold pin connectors - 2.54 mm
