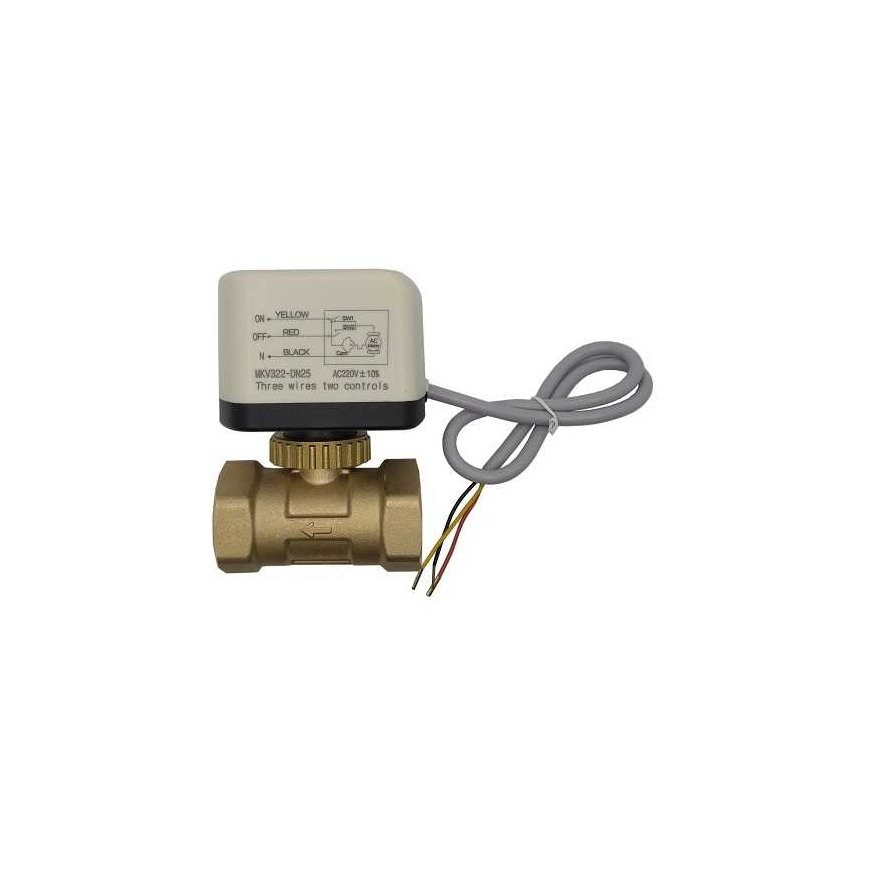

Shanghai Beok Controls Co., Ltd Electric water valve, 220V, DN25, ball valve
52.72 €
Monthly payment from 2,26 €
3699696 HT260102
9990000260102
Shipping 1-2 days
You are interested in this product?
All about the product
Electric water valve, 220V, DN25, ball
Features
- The electric valve consists of a ball valve and thermal actuator. It is designed to control the on/off operation of the water system and can be applied in various HVAC (heating, ventilation, and air conditioning) systems.
- Energy-saving design in the valve allows power to be turned off when the valve is fully open or closed. Energy consumption only when opening or closing the valve is 4W.
- Dual control, stable operation.
- Reliable and sturdy brass valve body ensures long service life.
Specifications:
- Application: water systems.
- Operating voltage: AC 220V ± 10%, 50/60Hz.
- Response time: up to 15s (valve opening); up to 15s (valve closing).
- Nominal pressure: 2.5 Mpa.
- Power consumption: 4W.
- Connection diameter: DN 25mm.
- Internal diameter: 1 inch.
- Application: cold/hot water, glycol water solution (<50%).
- Fluid temperature: 2°C ~ 90°C.
- Protection class: IP54.
- Insulation class: II (double insulation).
- Valve material: nickel-plated brass.
- Actuator housing material: ABS+PC.
