Fermion - SHT40 I2C temperature and humidity sensor - DFRobot SEN0428
3699539 AN-20673
5904422382155
Shipping 11-18 b.d.
All about the product

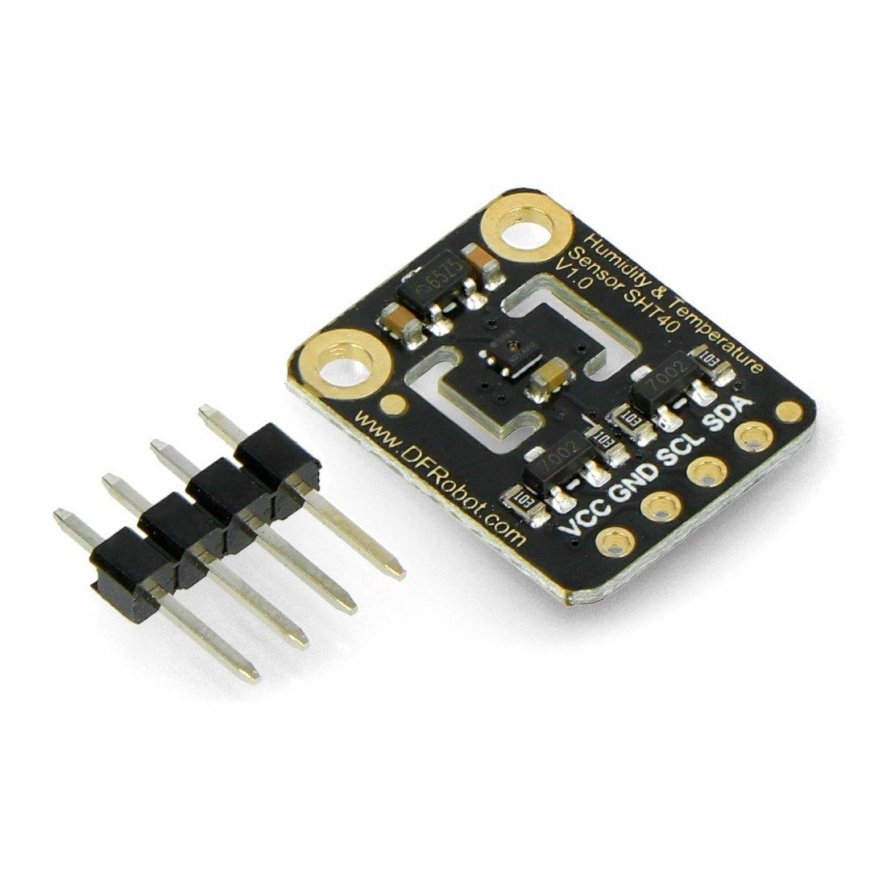

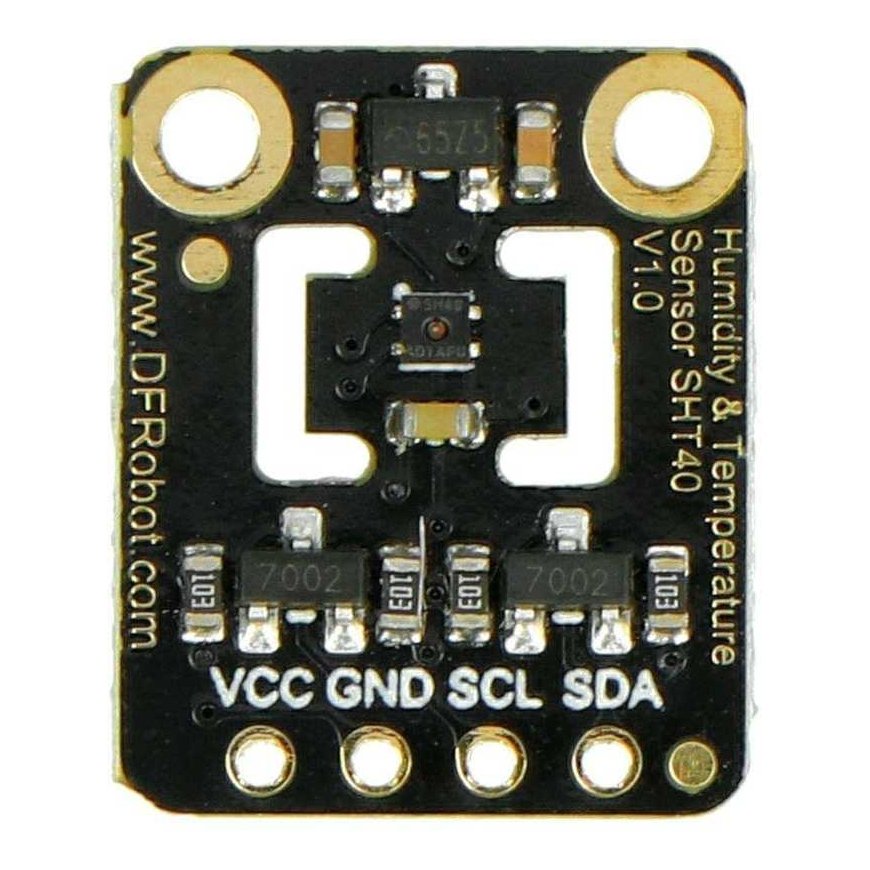

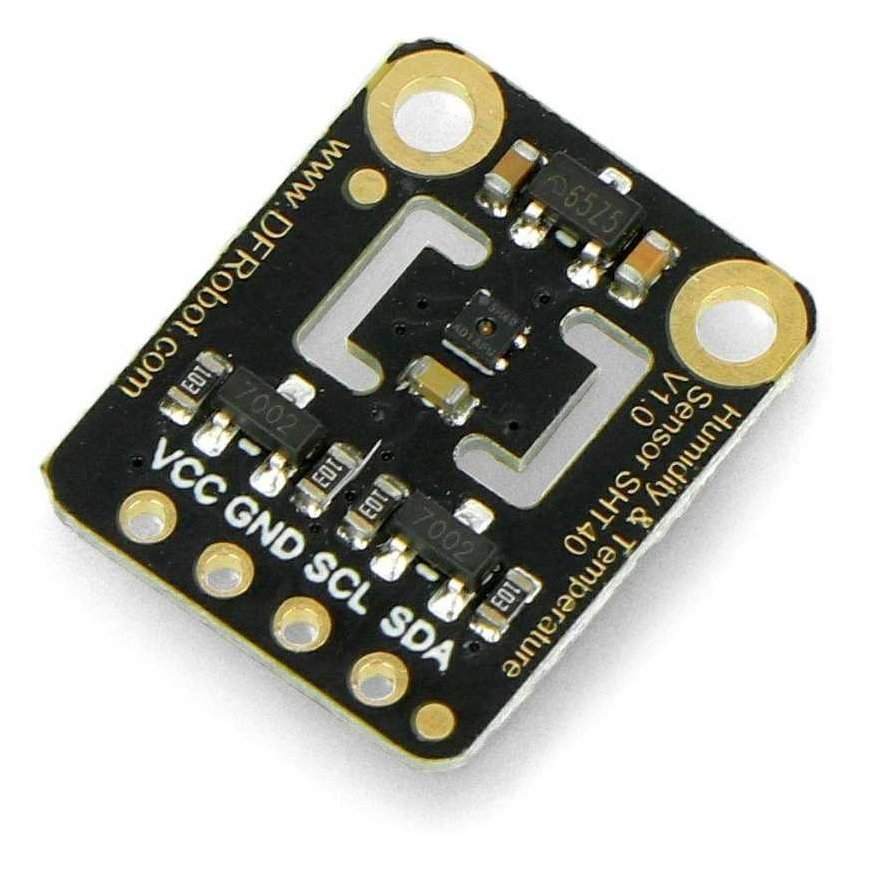

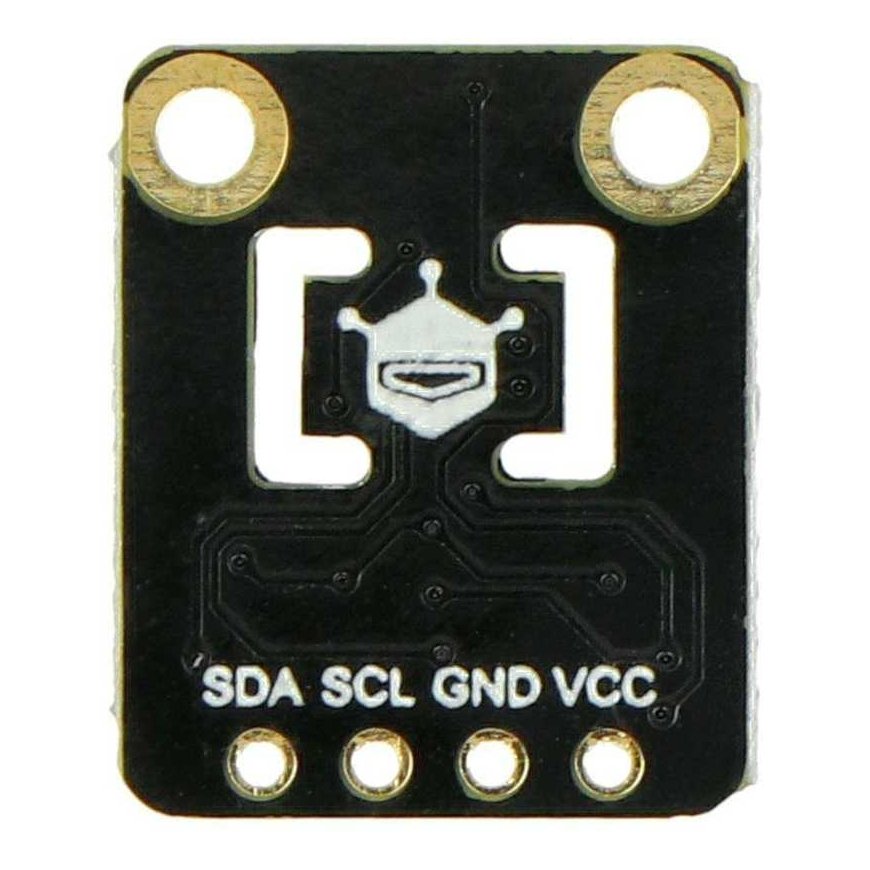

DFRobot Fermion series module with Sensirion SHT40 temperature and humidity sensor. The SHT40 sensor measures humidity from 0% to 100% RH with an accuracy of ± 1.8% and temperature from -40 °C to 125 °C with an accuracy of ± 0.2 °C. The integrated variable power heater allows it to function properly under extreme conditions, such as condensation. The module uses an I2C interface, powered from 3.3 V to 5 V, and consumes up to 0.15 mA in low power mode. The module is ideal for battery-powered mobile and wireless applications. It can be used for urban environment monitoring, smart buildings, industrial automation, and other applications.
Key features:
- High accuracy
- Low power consumption
- Small size
- Fast response time
- Supply voltage: from 3.3 V to 5 V
- Current consumption: 0.45 mA
- Interface: I2C
- Response time: 8s
- Humidity measurement range: from 0% to 100% RH
- Humidity measurement accuracy: ± 1.8% RH
- Temperature measurement range: -40 °C to 125 °C
- Temperature measurement accuracy: ± 0.2 °C
- Mounting holes: M2 (2 mm)
- Mounting hole distance: 10 mm
- Dimensions: 17 x 14 mm
