Digital distance sensor 50cm PWM, Pololu 4067
3699358 AN-19813
5904422349103
Shipping 11-18 b.d.
All about the product

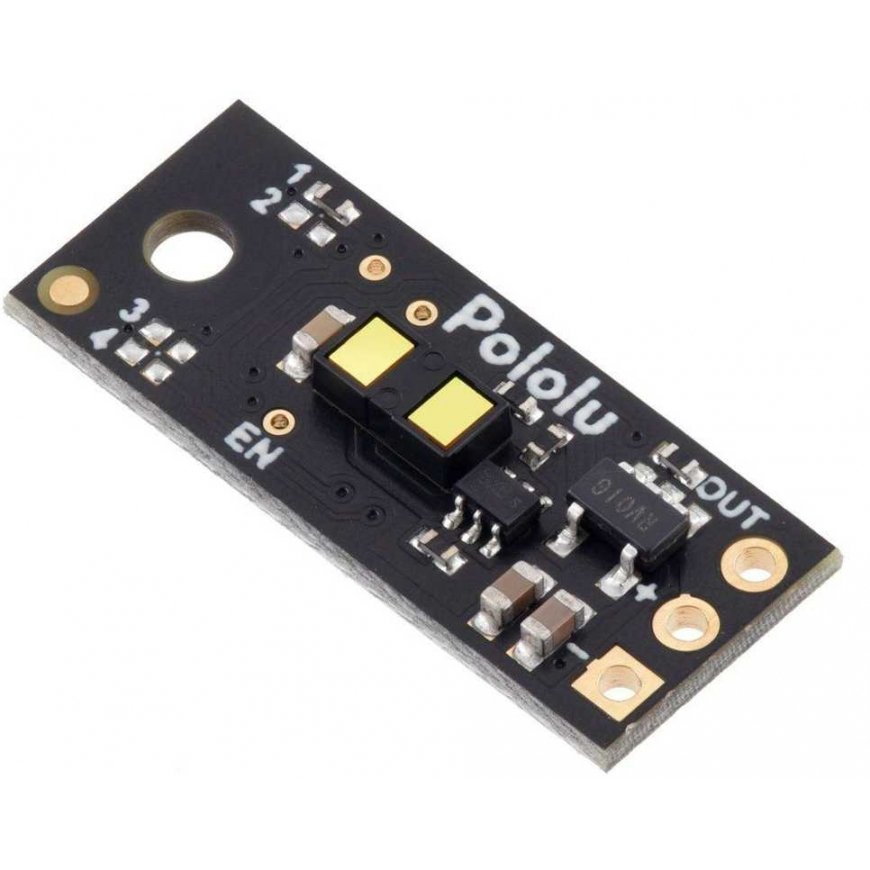

Distance sensor board based on Lidar technology. The sensor operates within a range of up to 50 cm and is powered from 3 V to 5.5 V. It has one digital output that changes its state to low when an object is detected. The sensor module does not measure distance; it only informs about obstacle detection at a distance of 50 cm with an accuracy of 1 mm. Short-range Lidar technology is used to accurately measure the time it takes for eye-safe infrared light pulses to reach the nearest object and reflect back.
Specifications:
- Supply voltage: from 3 V to 5.5 V
- Current consumption: 30 mA (typical) when on, 0.4 mA when off
- Maximum range: 50 cm
- Minimum range: up to 1 mm
- Minimum update frequency: 100 Hz (10 ms period)
- Field of view (FOV): typically 15°, may vary depending on object reflectivity and environmental conditions
- Output type: digital signal (low when an object is detected, high)

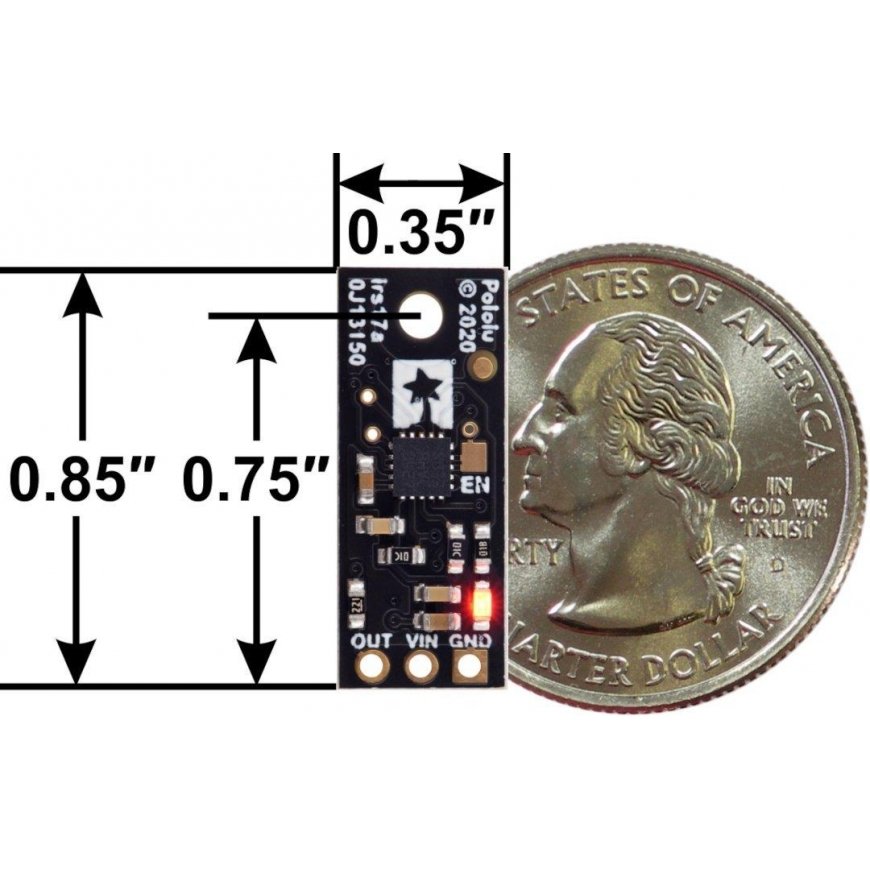

- Dimensions: 21.6 x 8.9 x 3.5 mm
- Weight: 0.4 g
