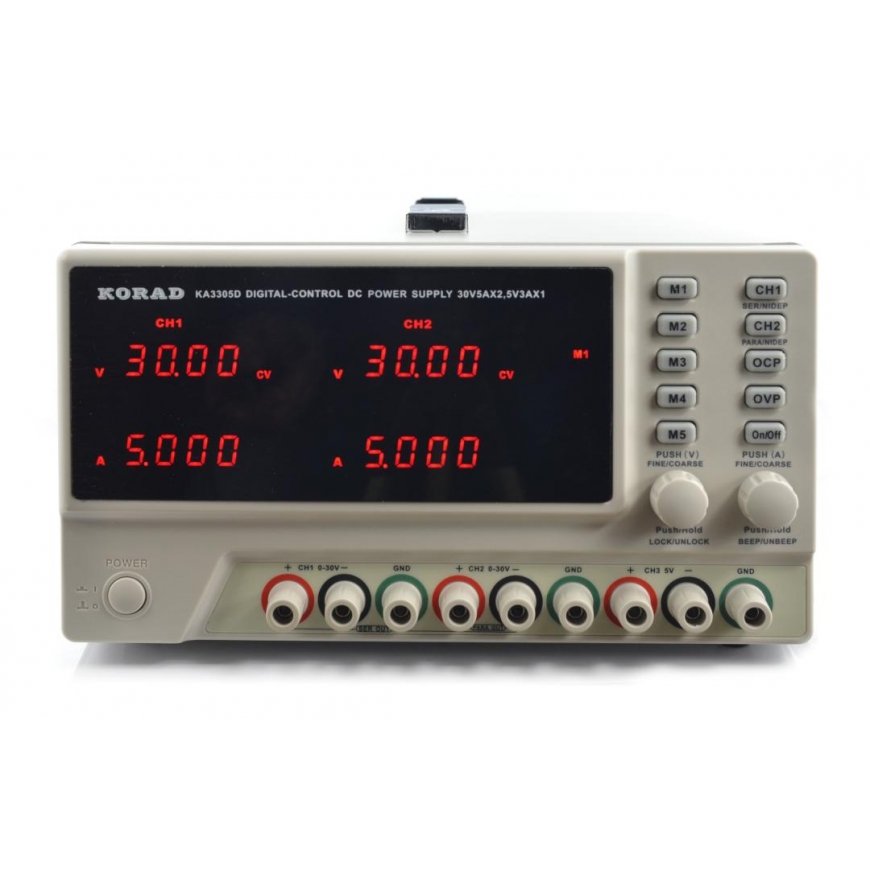

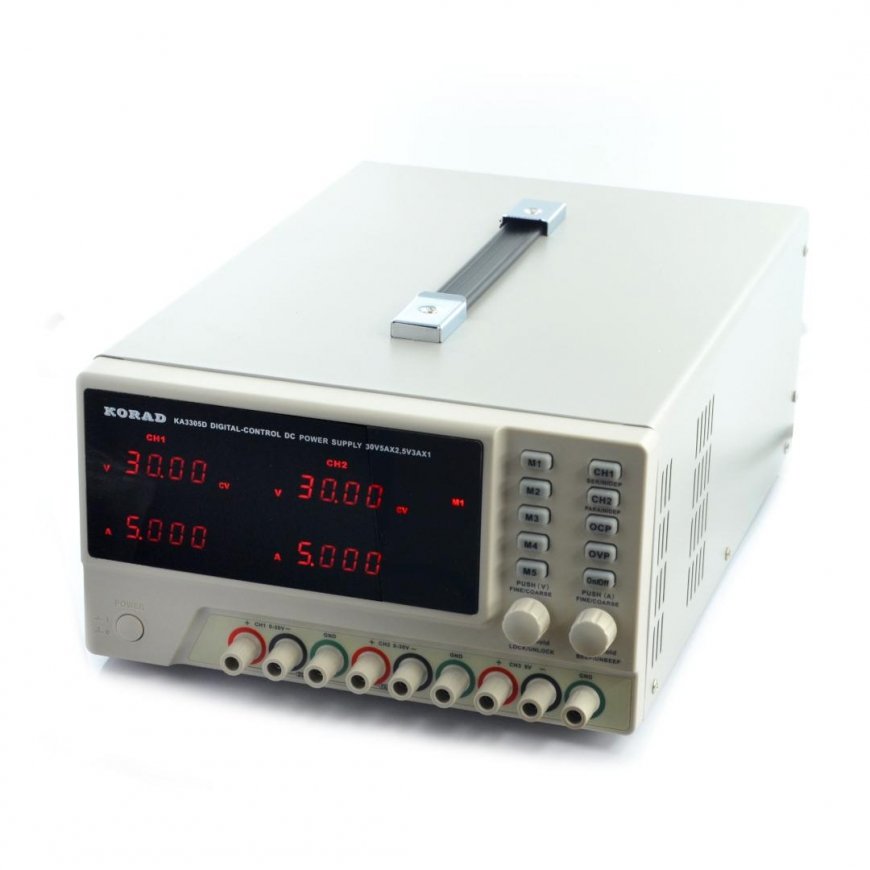

Laboratory power supply Korad KA3305D 2x 30V/5A + 5V/3A
259.00 €
Monthly payment from 7,57 €
3697535 AN-07713
5907558240641
Shipping 11-18 b.d.
You are interested in this product?
All about the product
KA3305D triple stabilized laboratory power supply with programmable memory and adjustable voltage regulation from 0 to 30 V range and current from 0 to 5 A.
Features:
- 2 channels with 0-30 V and 0-5 A parameters
- 1 channel with 5 V and 3 A parameters
- Transformer-based construction
- 5 memory channels
- The device can operate in the following modes:
- C.V. - constant output voltage
- C.C. - constant load current
- The system has protection against short circuit and overload
- Information via sound signal
- Series connection (60 V / 5 A)
- Parallel connection (30 V / 10 A)
- Power supply based on transformer
- Its accuracy is 10 mV / 1 mA
- Two types of safety:
- OVP (overvoltage protection)
- OCP (overcurrent protection).
Specifications:
- Voltage range: 2 x 0 - 30 V
- Current range: 2 x 0 - 5 A
- Additional channel: 5 V / 3 A
- Parameter adjustment
- Voltage: = <0.01% +5 mV
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Ripple voltage
- Voltage: = <2 mVrms
- Current: = <3 mArms
- Response time
- Voltage rise time: = <100 ms (rated load 10%)
- Voltage drop time: = <100 ms (rated load 10%)
- Size: 380 x 250 x 140 mm
- Weight: 9.1 kg
Included:
Laboratory power supply Korad KA3305D

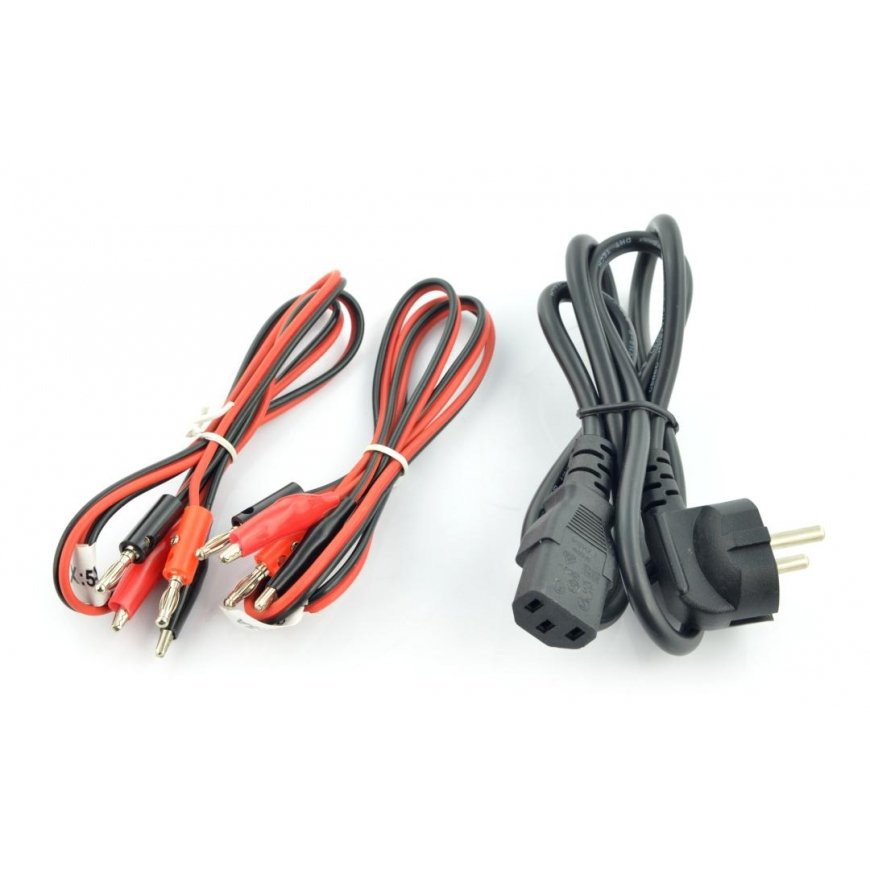

Power cable
2 sets of wires
User manual
