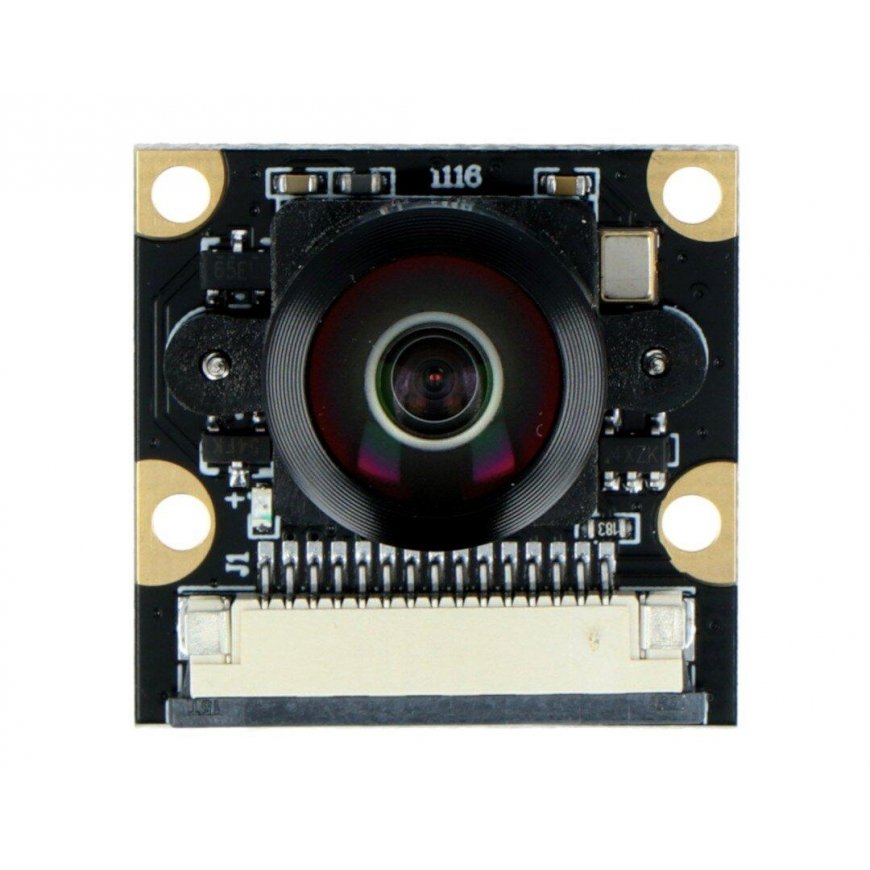

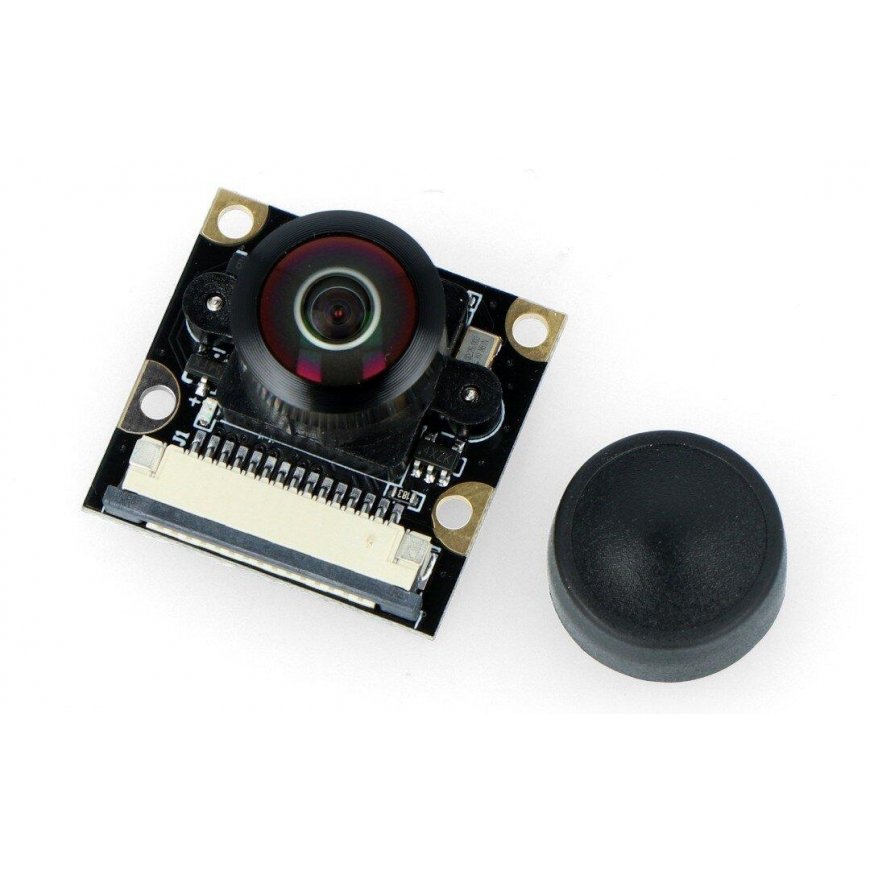

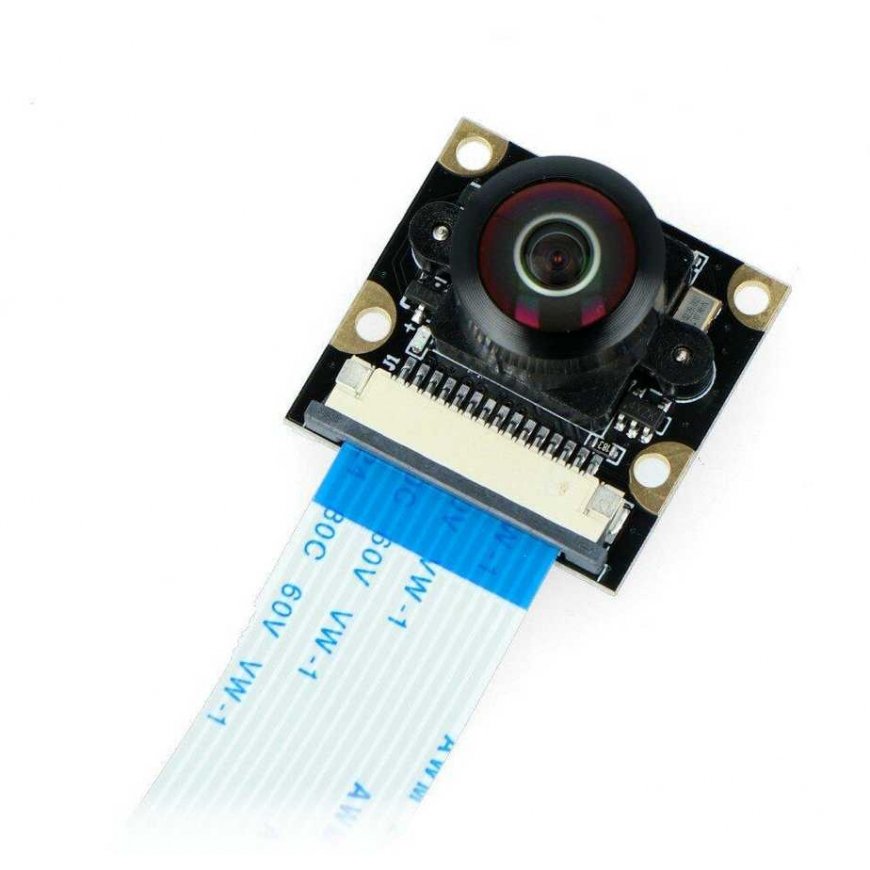

HD G camera OV5647 5Mpx, wide angle, designed for Raspberry Pi, Waveshare 14037
42.41 €
Monthly payment from 1,99 €
3697429 AN-15130
5904422323301
Shipping 11-18 b.d.
You are interested in this product?
All about the product

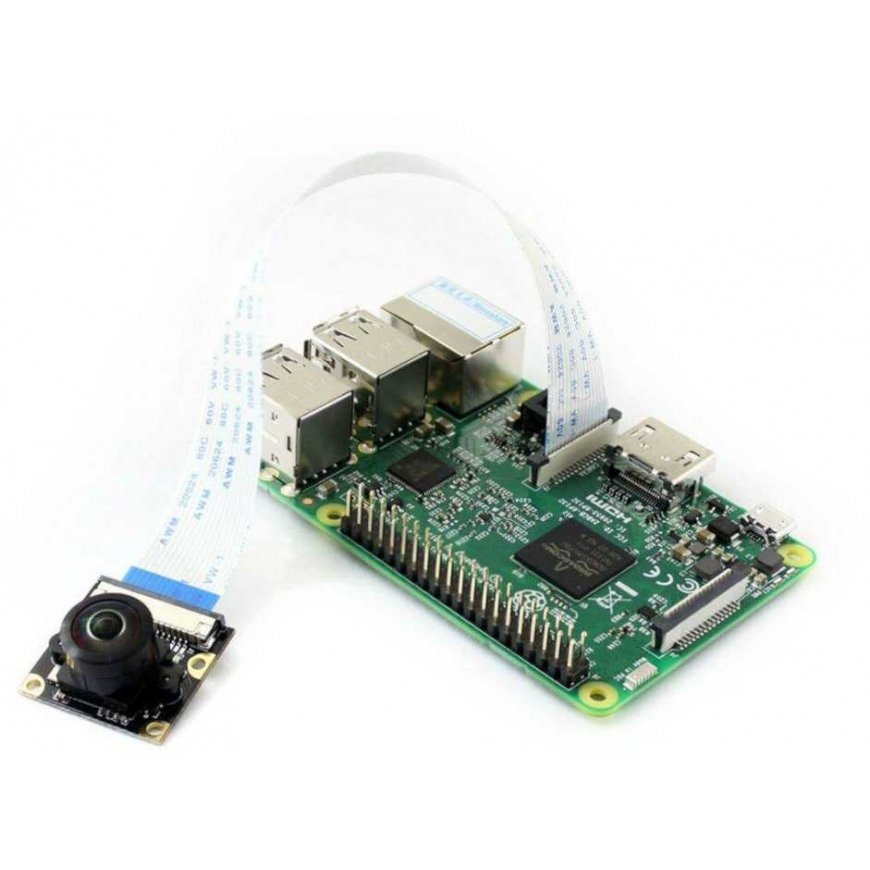

Module with a wide-angle camera (200°), connected to a special mini-computer interface Raspberry Pi version 4B, 3B+, 3B, 2B, B+, A+ and older A and B. The device has a 1/4" CCD sensor with 5 MP resolution and supports 1080p HD mode. The Raspberry Pi has the hardware to support this camera, so the device does not consume CPU computing power.
Specifications:
- Raspberry Pi camera compatible with 4B, 3B+, 3B, 2B, B+, A+ and older A and B versions
- Sensor: 5 MP
- Sensor: OV5647
- CCD sensor: 1/4"
- Field of view: 200°
- Focal length: 0.87 mm
- Adjustable autofocus distance
- It has 4 mounting holes
- Output voltage: 3.3 V
- Supports external LED connection
- Photo resolution: 2592x1944px
- Video resolution:
- 1080p 30 frames per second
- 720p 60 frames per second
- 640x480px 60/90 frames per second
- Dimensions: 25 x 24 mm
Included:
- 5 MP camera
- 16 cm ribbon for connecting to Raspberry Pi
