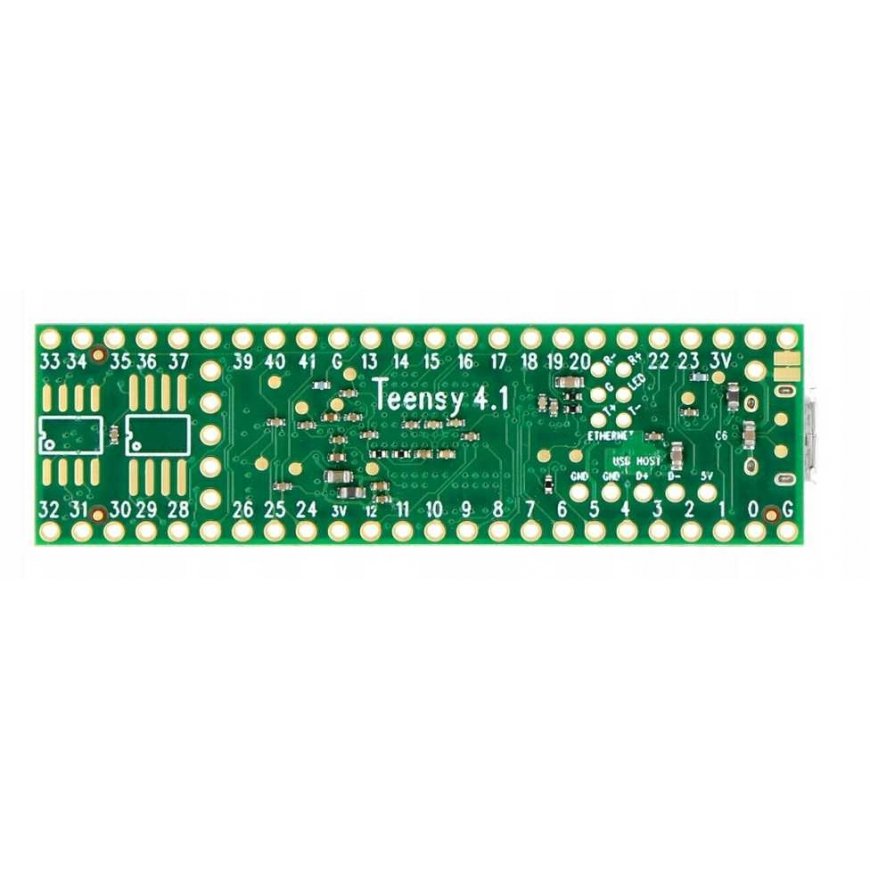

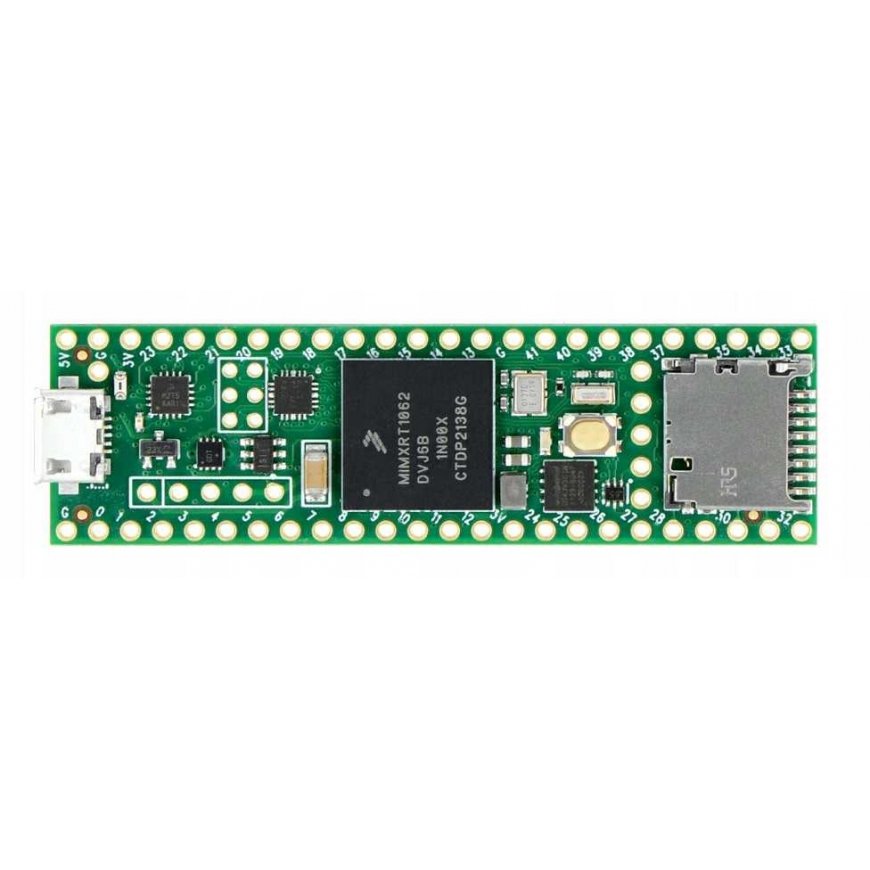

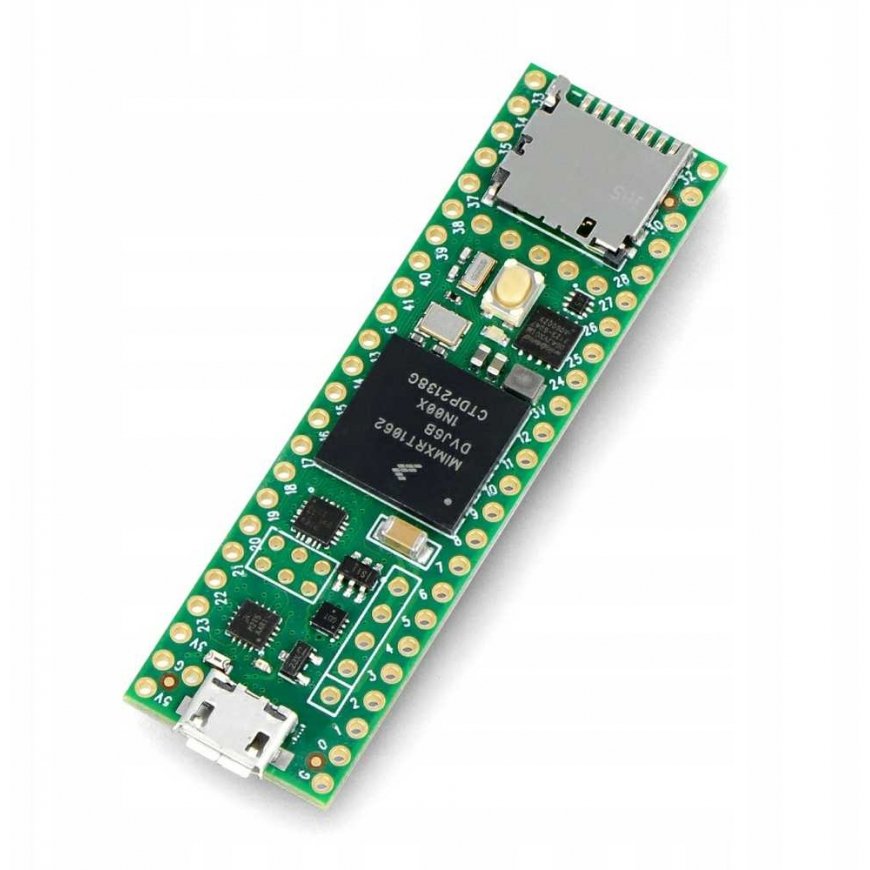

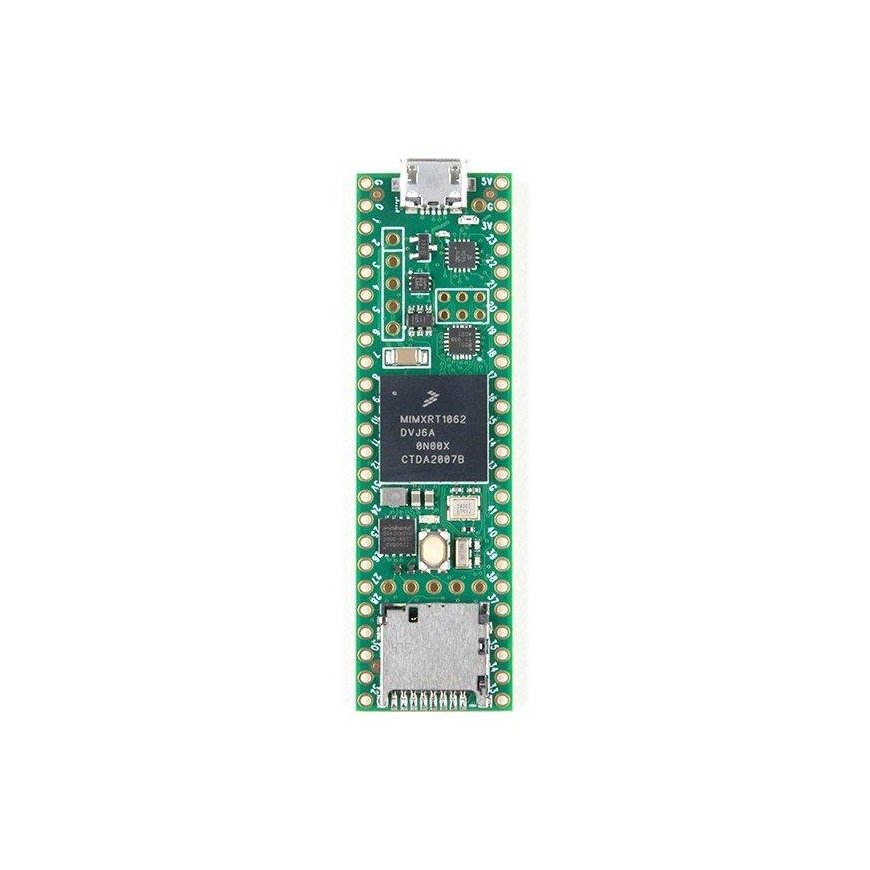

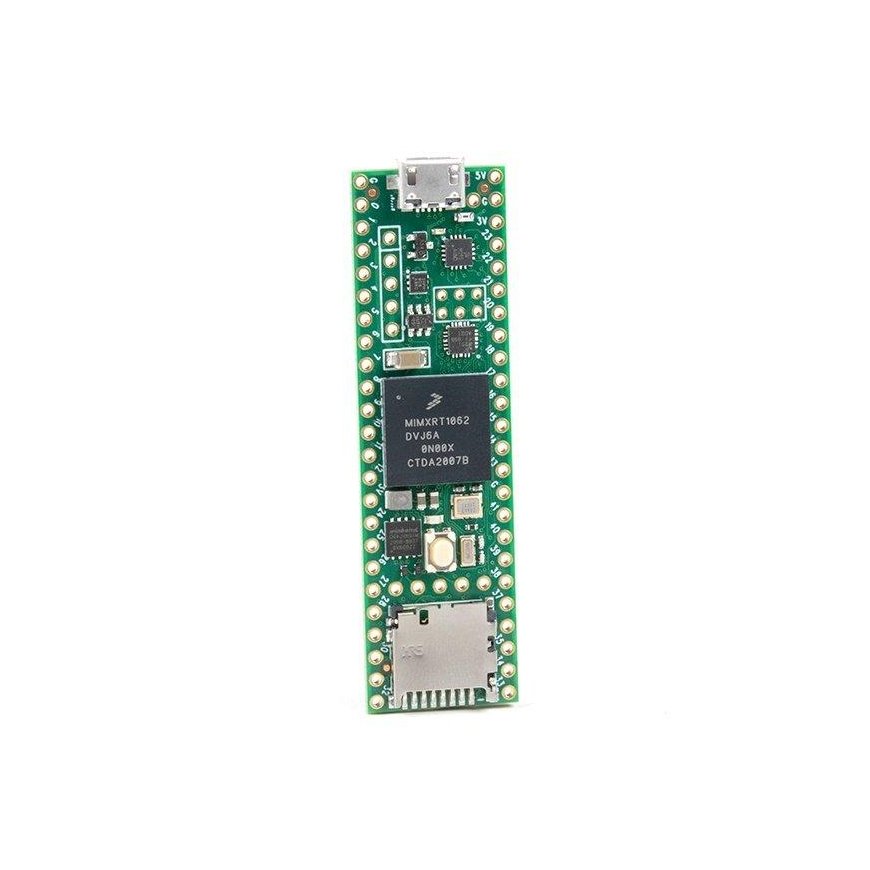

Teensy 4.1 ARM Cortex M7 - compatible with Arduino - SparkFun DEV-16771
69.01 €
Monthly payment from 2,68 €
3697255 AN-20917
5904422382858
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Teensy 4.1 is a SparkFun product. It features a dual-core ARM Cortex-M7 processor with a clock speed of 600 MHz, using the NXP iMXRT1062 chip. The board's flash memory is 8 MB, which is four times more than the previous Teensy 4.0 version, and it provides more input/output capabilities, including Ethernet PHY, a microSD card slot, and a USB host port. This version does not have soldered gold pin connectors.
Specifications:
- Processor: ARM Cortex-M7 600 MHz dual-core
- RAM: 1024 kB
- Flash memory: 8 MB (64 kB allocated for recovery memory and EEPROM)
- USB host port
- 2 chips for additional program memory
- 55 I/O pins
- 3x CAN bus (1x CAN FD)
- 2x I2S digital audio
- 1x S/PDIF digital audio
- 1x SDIO (4-bit) SD
- 3x SPI, all with 16 FIFO
- 7 SMT bottom signal pads
- 8 serial ports
- 32 general-purpose DMA channels
- 35 PWM pins
- 42 I/O with board pin connector
- 18 analog inputs
- Cryptographic acceleration
- Random number generator
- RTC date/time chip
- Programmable FlexIO
- Pixel processing stream
- Cross-triggering of peripherals
- 10/100 Mb DP72714 PHY (6 pins)
- MicroSD card slot
- Power on/off control
