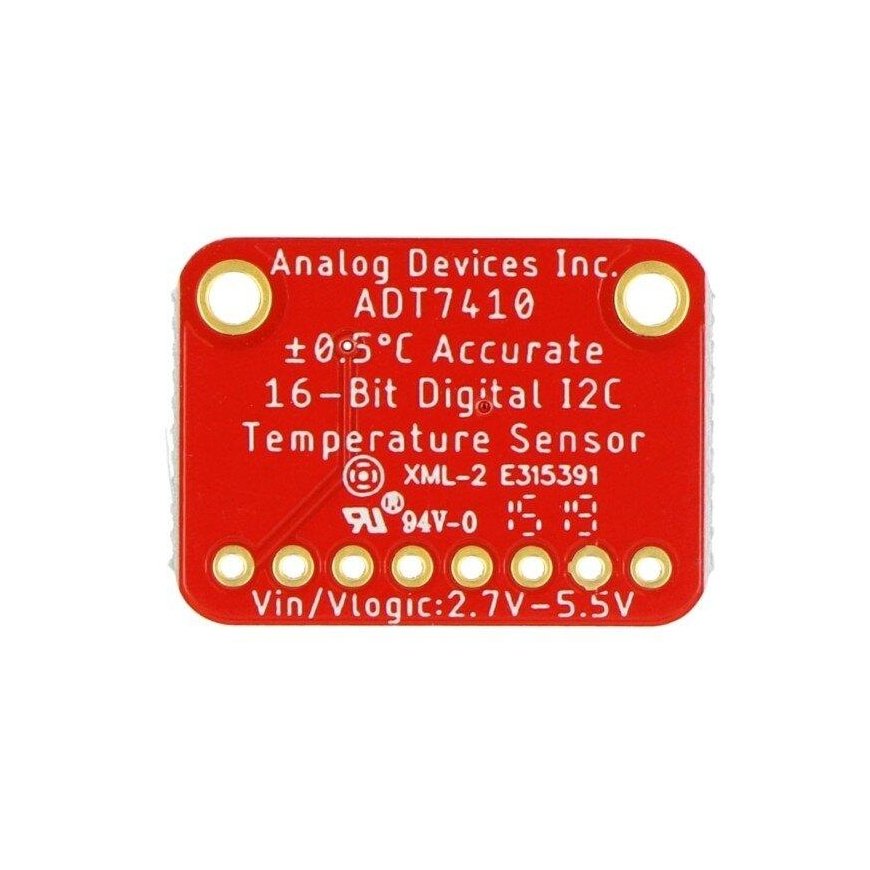

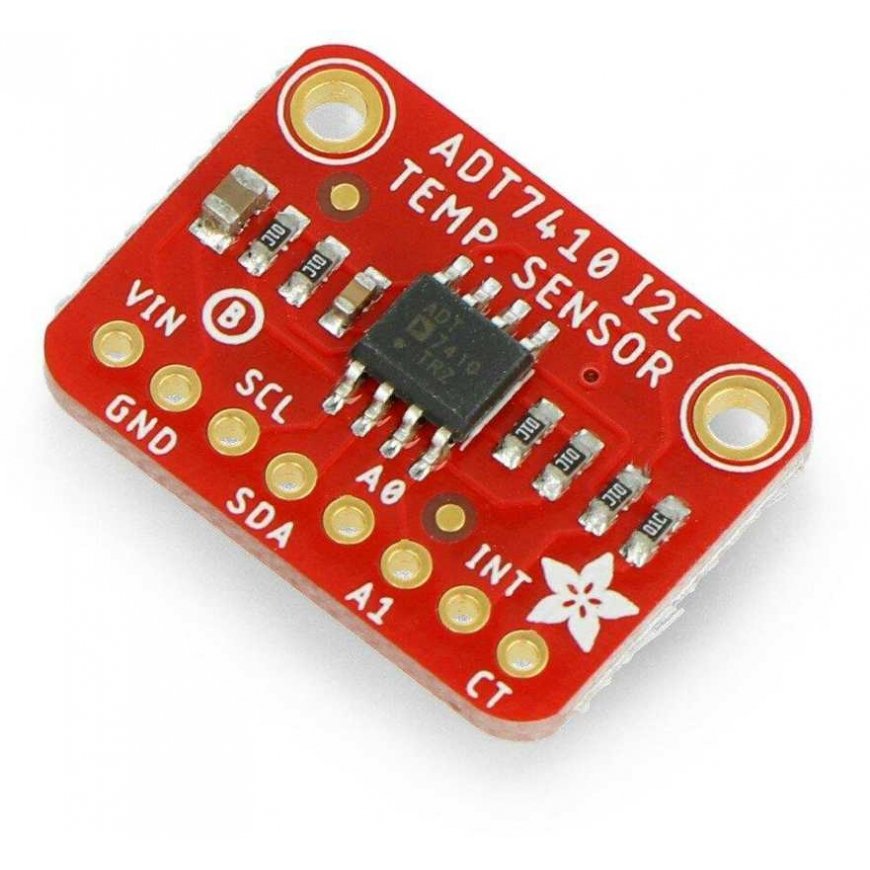

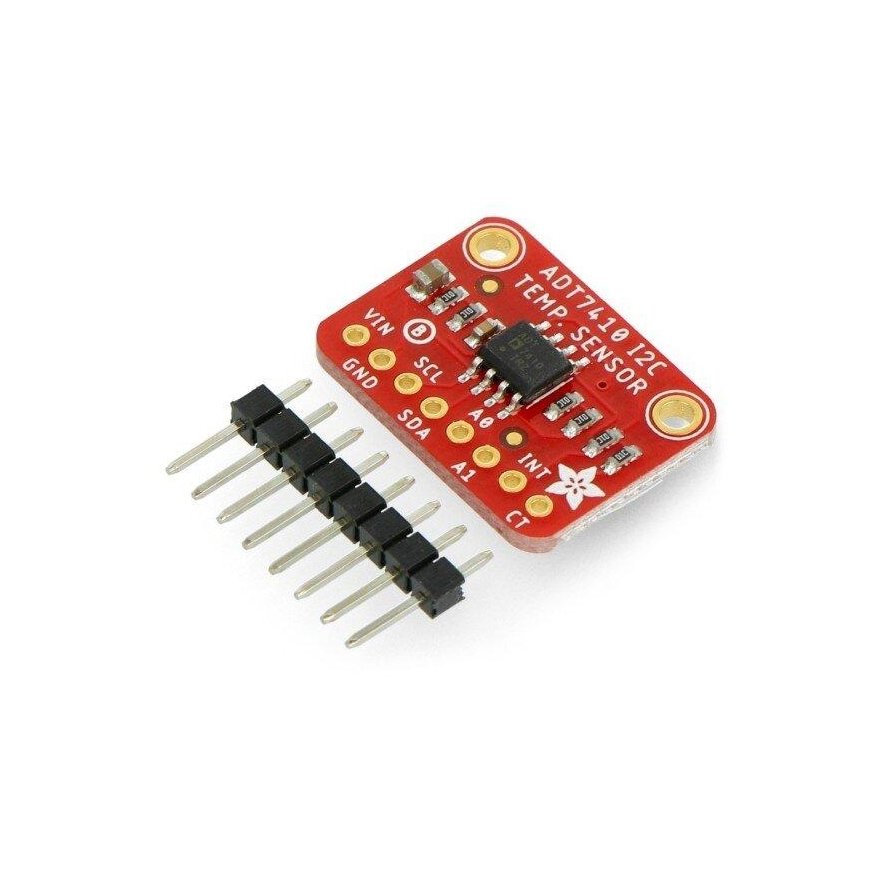

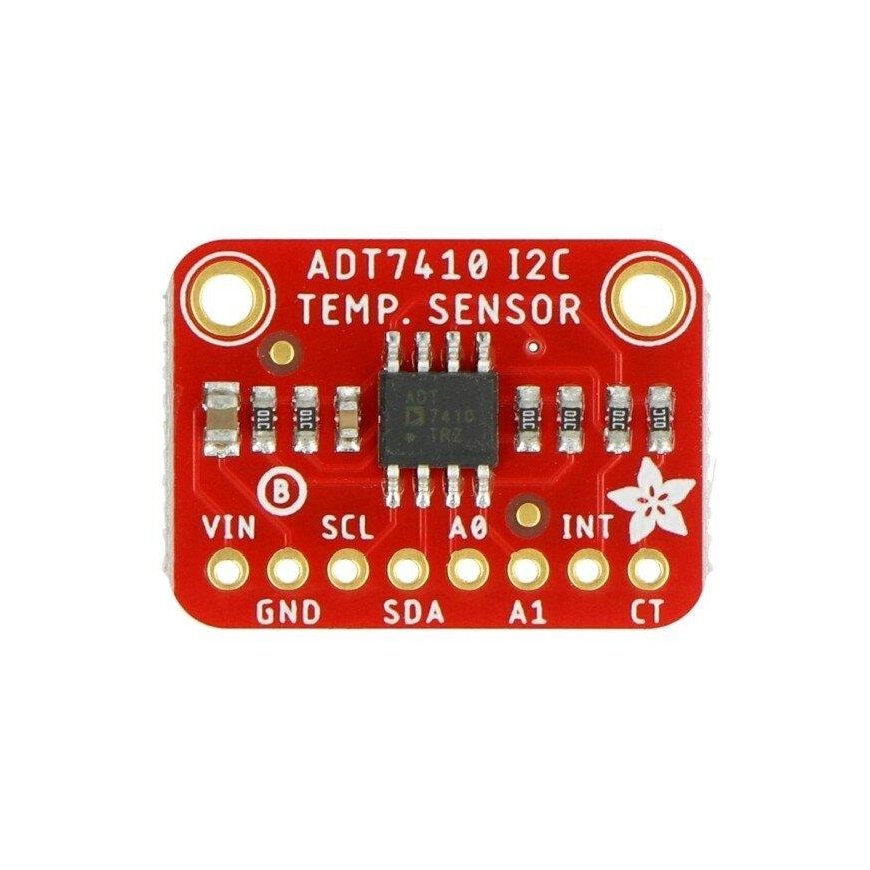

ADT7410, high precision I2C temperature sensor with interrupt, Adafruit 4089
3697096 AN-13951
5903351240277
Shipping 11-18 b.d.
All about the product
Analog Devices, known for reliable and well-documented microchip sensors, offers an accurate and high-resolution digital temperature sensor ADT7410. It is an Arduino-compatible temperature sensor designed for easy use. Powered by a voltage range of 2.7 V to 5.5 V. It supports 16-bit resolution (0.0078 °C/lsb) over the I2C bus or a default 13-bit resolution (0.0625 °C/lsb).
The ADT7410 has 2 address pins, allowing you to have up to 4 sensors on the same I2C bus. It also features emergency pins with interrupt and critical temperature.
Specifications:
- Wide input voltage range: from 2.7 to 5.5 V
- Up to 16-bit temperature resolution (0.0078 °C/lsb), default setting is 13-bit (0.0625 °C/lsb)
- Very accurate temperature deviations:
- ±0.5 °C from −40 °C to 105 °C (from 2.7 V to 3.6 V)
- ±0.4 °C from −40 °C to 105 °C (3.0 V)
- Configurable I2C address allows for up to four sensors on the I2C bus
- Operates over I2C, requiring only two common lines
- Product dimensions: 23.3 mm x 16.5 mm x 3.2 mm
- Product weight: 1.4 g
Links:
Manufacturer's page
