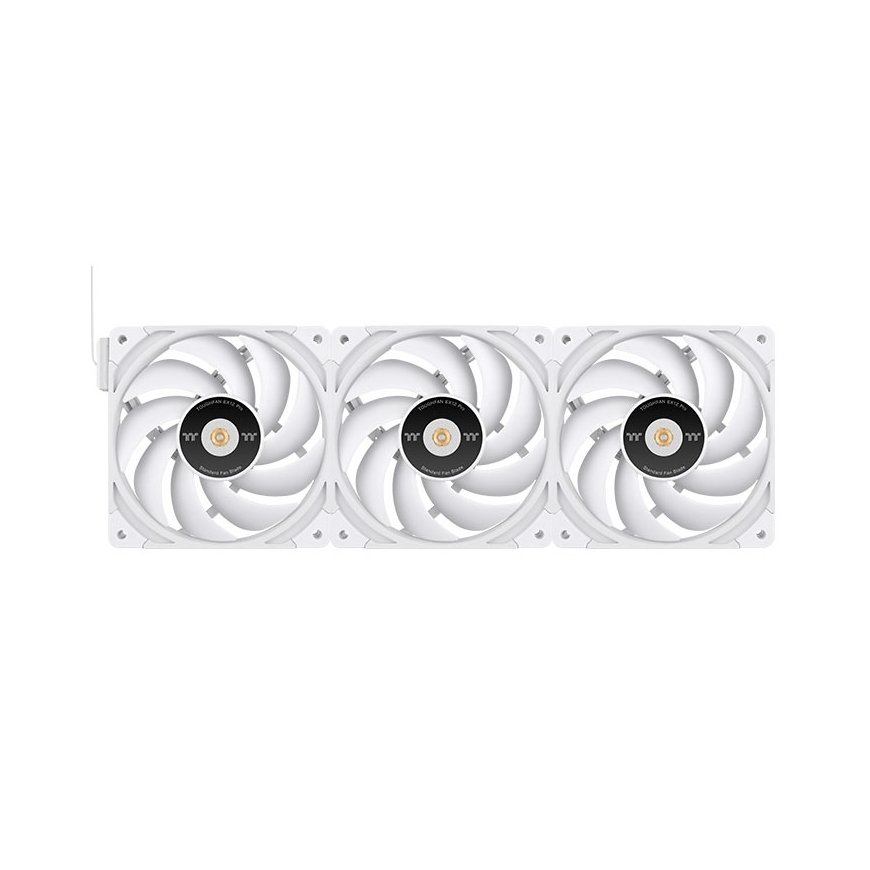

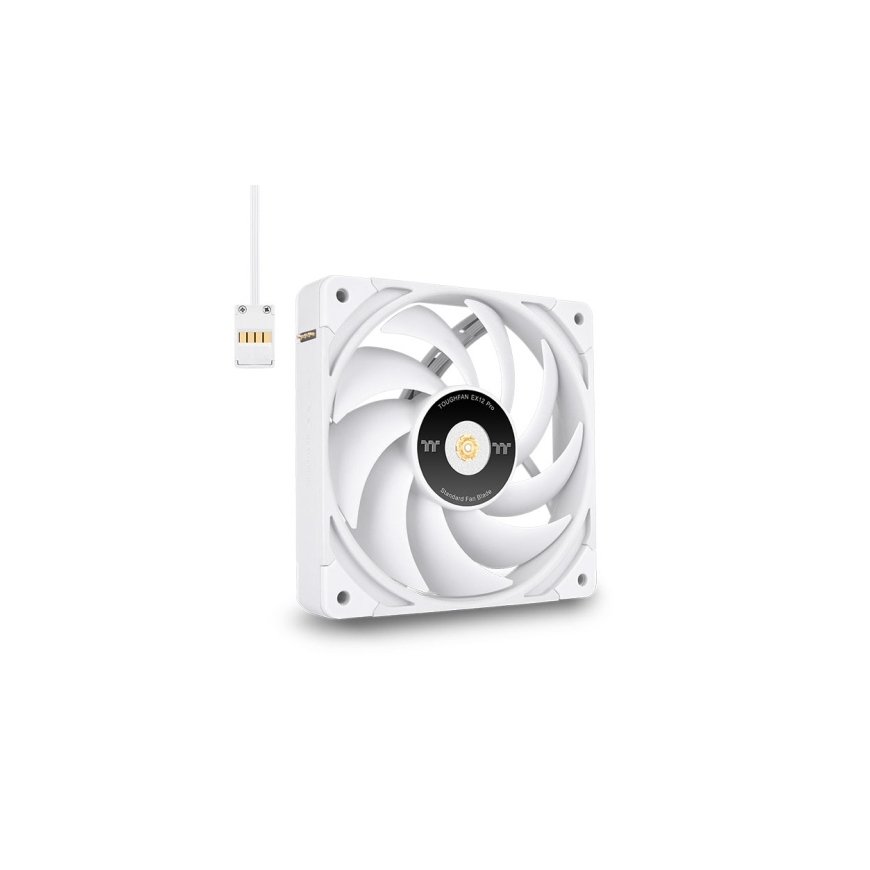

Thermaltake TOUGHFAN EX12 Pro Computer case Fan 12 cm White 3 pc(s)
109.00 €
Monthly payment from 3,71 €
3696576 CL-F171-PL12WT-A
4711475644830, 0841163094846
Shipping 12-13 b.d.
You are interested in this product?
All about the product

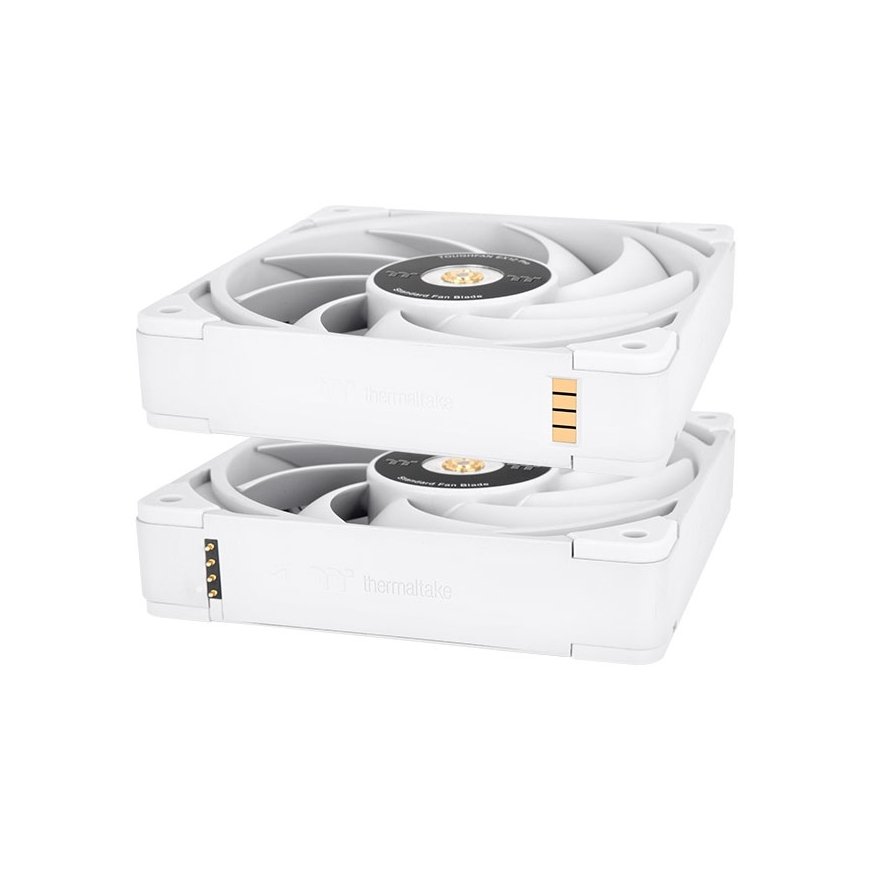

Steady Connection with MagForce 2.0Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!
Specially Engineered Fan blade
TOUGHFAN EX Pro White incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.

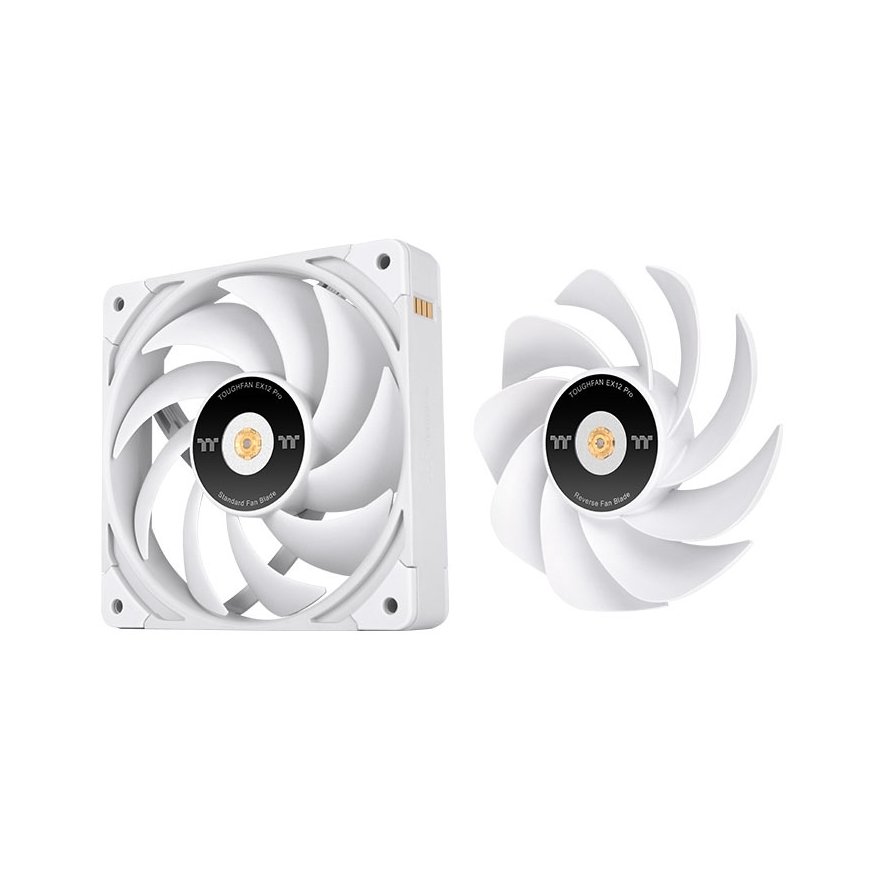

Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
Stronger than Ever With new technology and craftsmanship, the TOUGHFAN EX12 Pro White has a maximum operating speed of 2000 RPM.
Standard Fan Blades can provide an static pressure of 3.19 mmH20 and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.
Improved Structure for Superior Performance
The TOUGHFAN EX Pro White is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.
Stare No More at the Back of the Fan!
Never compromise aesthetics for airflow direction ever again!
TOUGHFAN EX Pro White’s design allow your fans to always face forward!
Cleaning Made Easy!
You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.
Anti-vibration Mounting System
The TOUGHFAN EX Pro White is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.
Performance | |
| Type | Fan |
| Fan diameter | 12 cm |
| Minimum airflow (imperial) | 64.21 cfm |
| Maximum airflow | 70.8 cfm |
| Minimum air pressure | 2.6 mmH2O |
| Maximum air pressure | 3.19 mmH2O |
| Noise level (low speed) | 22.6 dB |
| Noise level (high speed) | 29.8 dB |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Hydraulic |
| Quantity per pack | 3 pc(s) |
| Fan's mean time to failure (MTTF) | 40000 h |
| Suitable location | Computer case |
Design | |
| Product colour | White |
| Material | Plastic, Liquid Crystal Polymer (LCP) |
| Number of fan blades | 9 |
Power | |
| Rated current | 0.17 A |
| Rated voltage | 12 V |
| Starting voltage | 6 V |
| Fan power consumption | 2.04 W |
Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Technical details | |
| Compliance certificates | CE, RoHS, UKCA |
