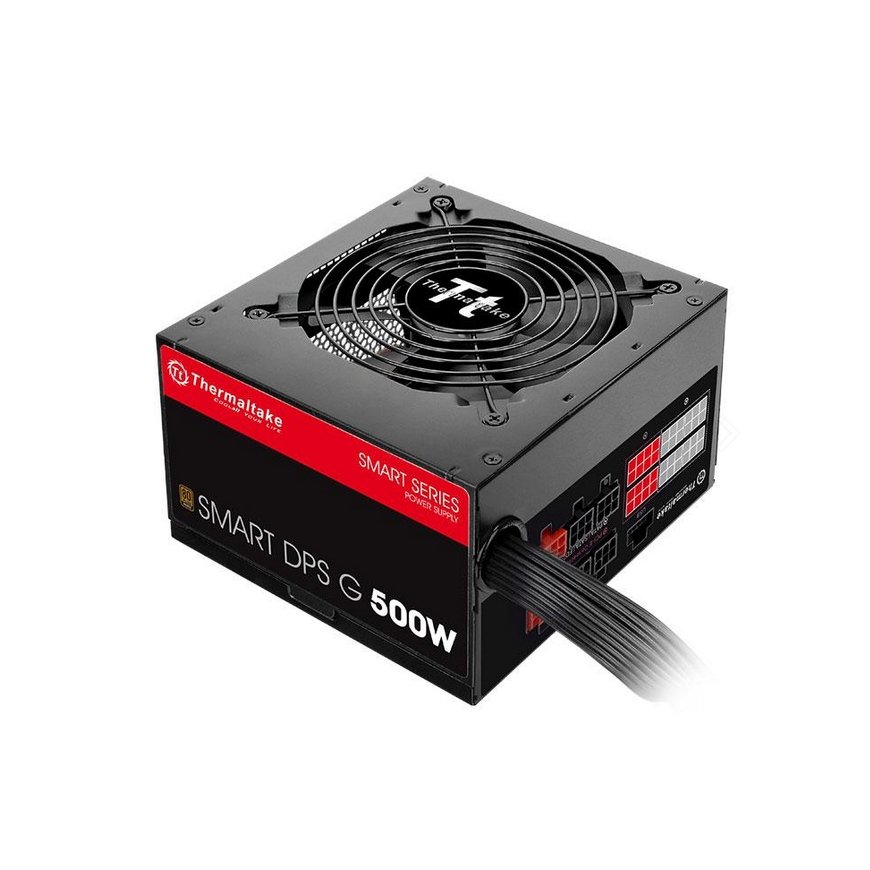

Thermaltake Smart DPS G power supply unit 500 W 24-pin ATX ATX Black
90,71 €
87.71 €
Monthly payment from 3,16 €
3696418 PS-SPG-0500DPCBEU-B
4717964403643
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The Thermaltake SMART DPS G Bronze Series are smart power supply units that incorporate various high-tech components, leading technology and Eco-friendly commendations, featuring 80 PLUS Bronze certification with a semi-modular that always accommodate any mainstream build under any circumstance.The combination of Smart DPS G Bronze and three intelligent platforms – DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but also save the energy, reduce CO2 emission, and eventually protect the Earth.
Smart Power Management (SPM)
Out of all the PSU monitoring software applications on the market, Thermaltake DPS G Smart Power Management (SPM) is the most powerful, flexible, universal and easy-to-use monitoring tool that provides digital solution together with PC software and mobile application.
On the basis of DPS G Smart Power Management Cloud 1.0, users can access the PSU/VGA/CPU data via PC or mobile devices. By uploading the data onto the smart power management cloud every 6 hours, users are capable of monitoring multiple PSUs via their mobile devices and achieving IT cost reduction while monitoring the PSU. Additionally, users are capable of accessing data as well as doing PSU management on different devices – PC or mobile devices – anytime anywhere.
Security Protection – Warning Alert & PC Off Remote Control
The SPM platform provides three alert functions: fan failure, over temperature (over 140℉/60℃), and abnormal voltage level (over/under 5% of normal level) warning alert. That will help users to reduce the possibility of overheating your internal components and burning the PC. When the abnormal activities occur, the warning message will be pushed to the mobile devices and email. The SPM platform allows users to turn off the computer remotely via mobile app when users receive the warning message.
Security Protection – Scheduled Shutdown
The SPM platform allows users to arrange a scheduled shutdown for the system remotely through the Mobile APP or the Cloud Management. For example, when the process is complete, users can schedule a time for the system to switch off automatically via their mobile devices in order to save the energy and electricity cost.
High Quality Japanese Main Capacitors
The Smart DPS G Bronze Series features Japanese main capacitors, which greatly improves the durability and offers the highest stability and reliability. No more capacitor explosion and leakage.

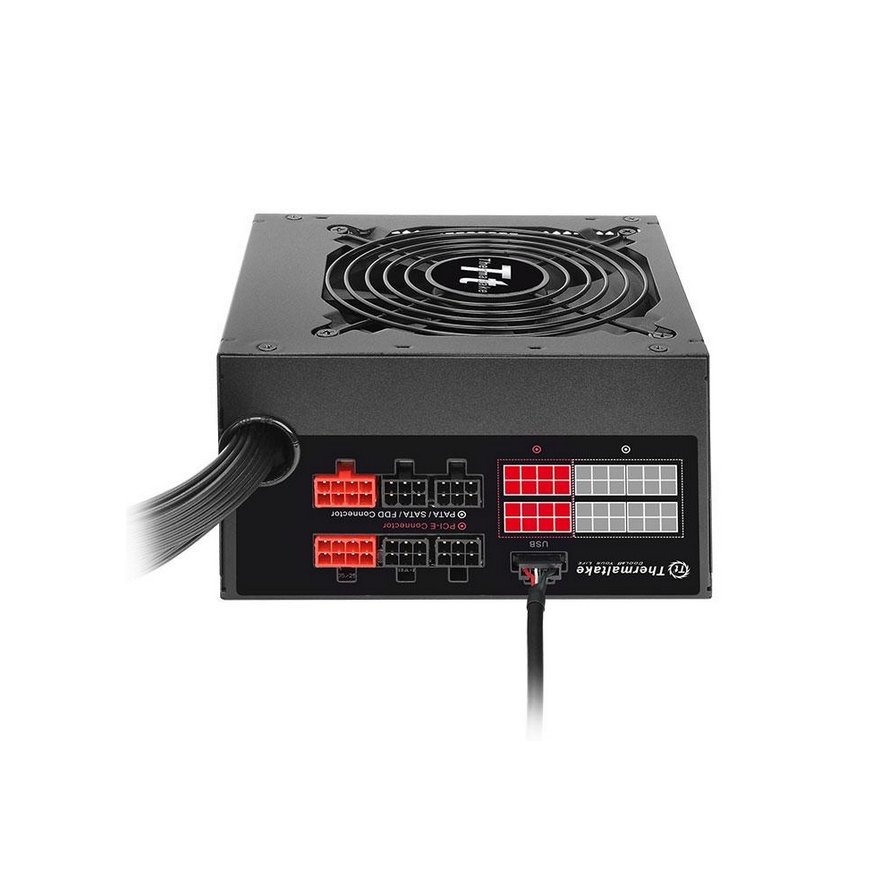

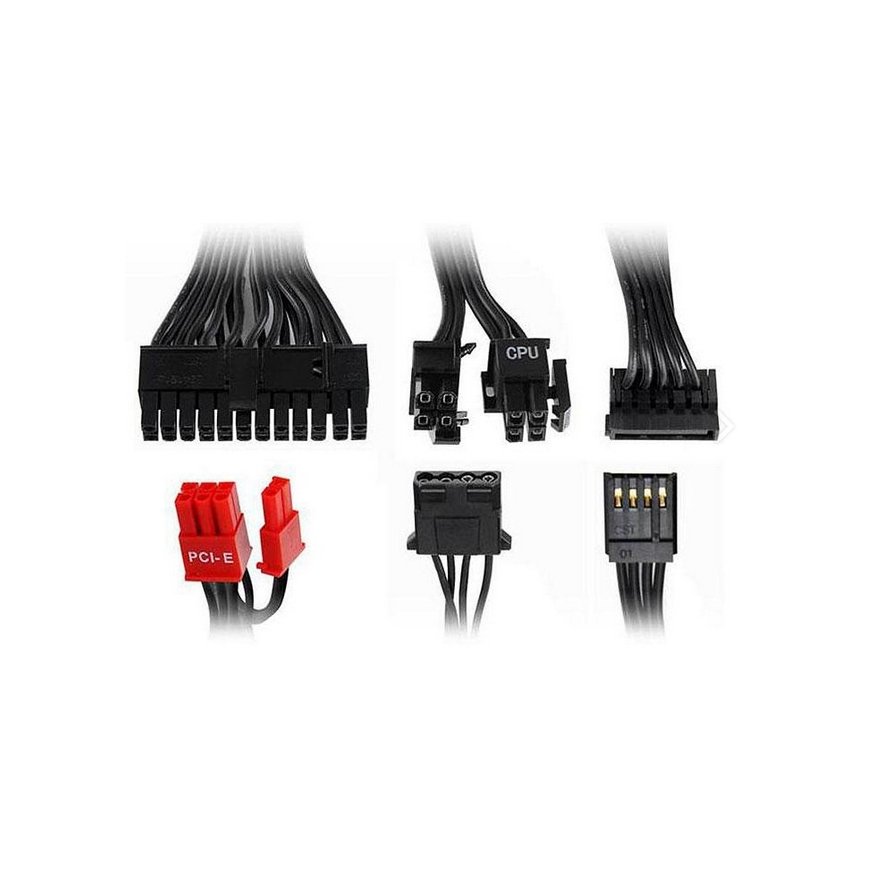

Flat Modular Cables
Smart DPS G Bronze Series is semi-modular power supply that offers cable selection for users while powering the system at an advantageous voltage. All new low-profile flat modular cables enhance the airflow as well as improve the thermal performance of the chassis. Moreover, flat cables are softer which make cable routing easier to install.
80 PLUS Bronze-certified and Skylake-Ready
Smart DPS G Power Supply with DPS G software delivers up to 86% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Smart DPS G Bronze Series has been optimized to work with Intel’s new, sixth-generation Skylake processors to achieve maximum energy savings.
DPS G PC APP 2.0: Smart Zero Fan
Aside from the silent and performance mode, DPS G PC APP 2.0 comes with the new Zero Fan mode to minimize the audible noise of your PC. The fan will be turned on around 30% of rated load to optimize the thermal performance and minimize the audible noise.

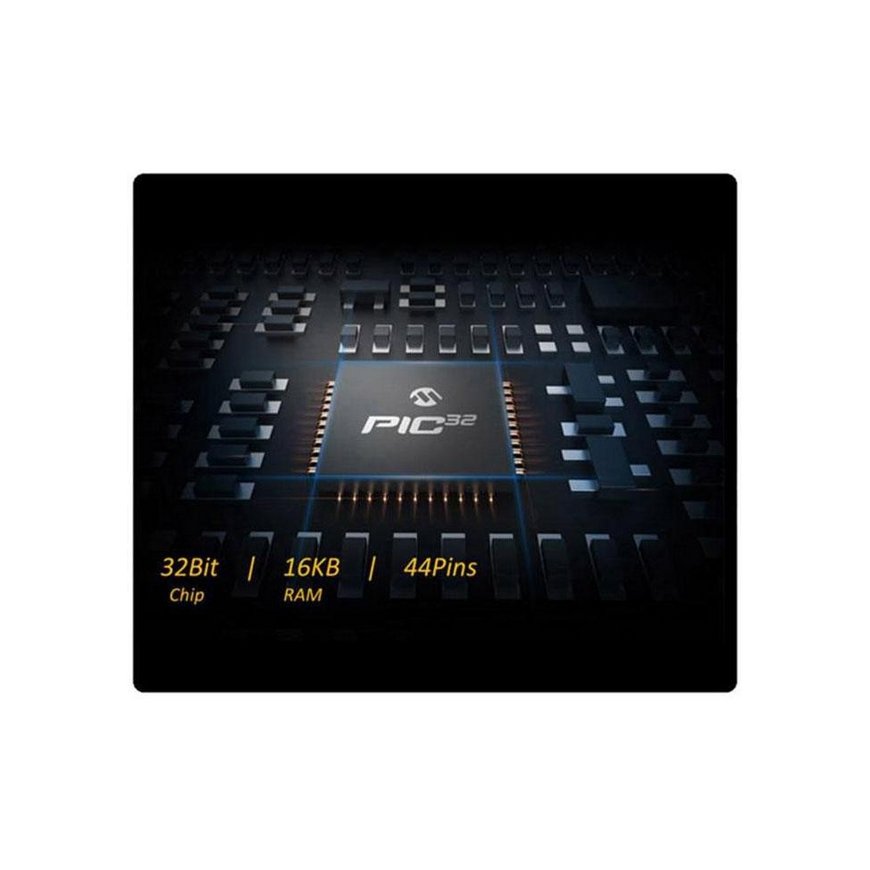

Core Component: MCU
Smart DPS G Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit Microcontroller Unit is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
High Current Single +12V Rail
Smart DPS G Bronze Series is equipped with a powerful single +12V rail.
80 PLUS Bronze-certified and Skylake-Ready
Smart DPS G Power Supply with DPS G software delivers up to 86% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Smart DPS G Bronze Series has been optimized to work with Intel’s new, sixth-generation Skylake processors to achieve maximum energy savings.
DPS G PC APP 2.0: Smart Zero Fan
Aside from the silent and performance mode, DPS G PC APP 2.0 comes with the new Zero Fan mode to minimize the audible noise of your PC. The fan will be turned on around 30% of rated load to optimize the thermal performance and minimize the audible noise.
Power | |
| Hold time | 10 ms |
| Efficiency | 86% |
| Input current | 8 A |
| Peak power | 600 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Good signal delay range | 100 - 500 ms |
| Total power | 500 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Semi-Modular |
| Floppy disk drive connector | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Other features | |
| Power management | Yes |
Certificates | |
| Certification | CE/FCC/UL/TUV/CB/EAC/BSMI |
