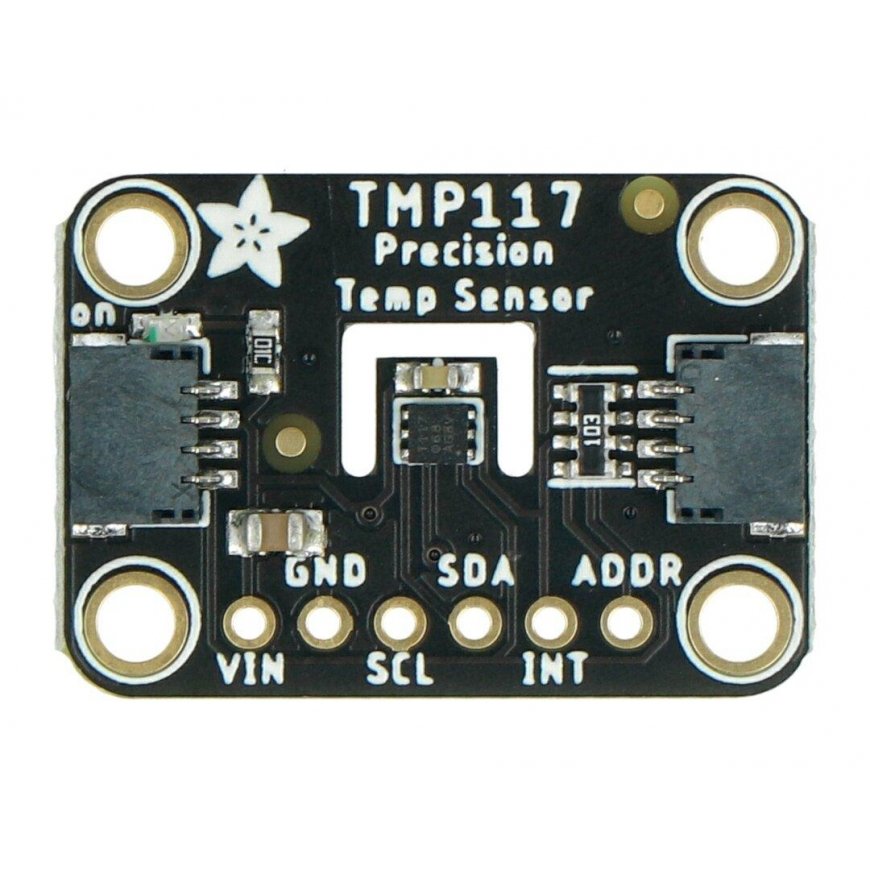

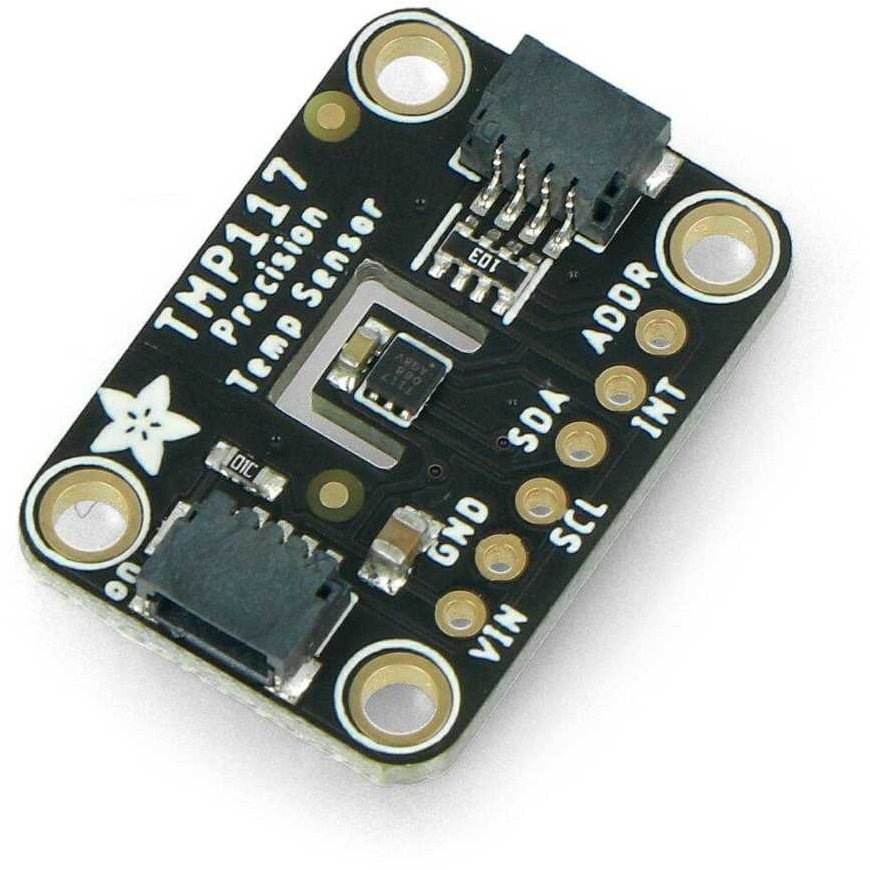

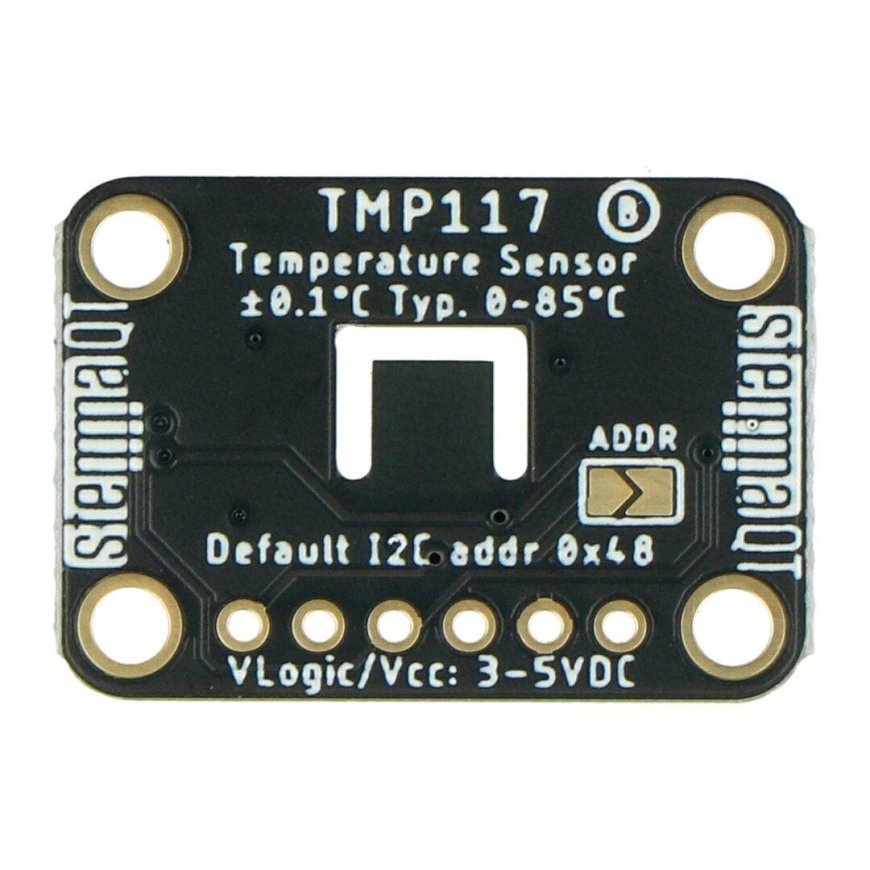

TMP117, I2C temperature sensor, high precision, STEMMA QT / Qwiic, Adafruit 4821
30.34 €
3696244 AN-18997
5904422379292
Shipping 11-18 b.d.
You are interested in this product?
All about the product
High precision Adafruit temperature sensor. It features an embedded TMP117 chip that provides accurate measurements in the range of -55 °C to 155 °C, with an accuracy of 0.1 °C to 0.3 °C (depending on the temperature value). Powered from 3 V to 5 V DC. The sensor is compatible with Arduino and Raspberry Pi, and can be programmed using the Arduino IDE environment or using the Python language.
Specifications:
- Module: high precision temperature sensor
- Chip: TMP117
- Compatible with Arduino and Raspberry Pi
- Supply voltage: from 3 V to 5 V
- Temperature measurement range: from -55 °C to 155 °C
- Measurement accuracy:
- ± 0.1 °C (maximum) from -20 °C to +50 °C
- ± 0.15 °C (maximum) from -40 °C to +70 °C
- ± 0.2 °C (maximum) from -40 °C to +100 °C
- ± 0.25 °C (maximum) from -55 °C to +125 °C
- ± 0.3 °C (maximum) from -55 °C to +150 °C
- Resolution: 16 bits
- Communication interface: I2C
- Interface address: 0x48
- Connections:
- STEMMA QT / Qwiic
- Solder pads for gold pins
- Dimensions: 25.5 x 17.7 x 4.6 mm

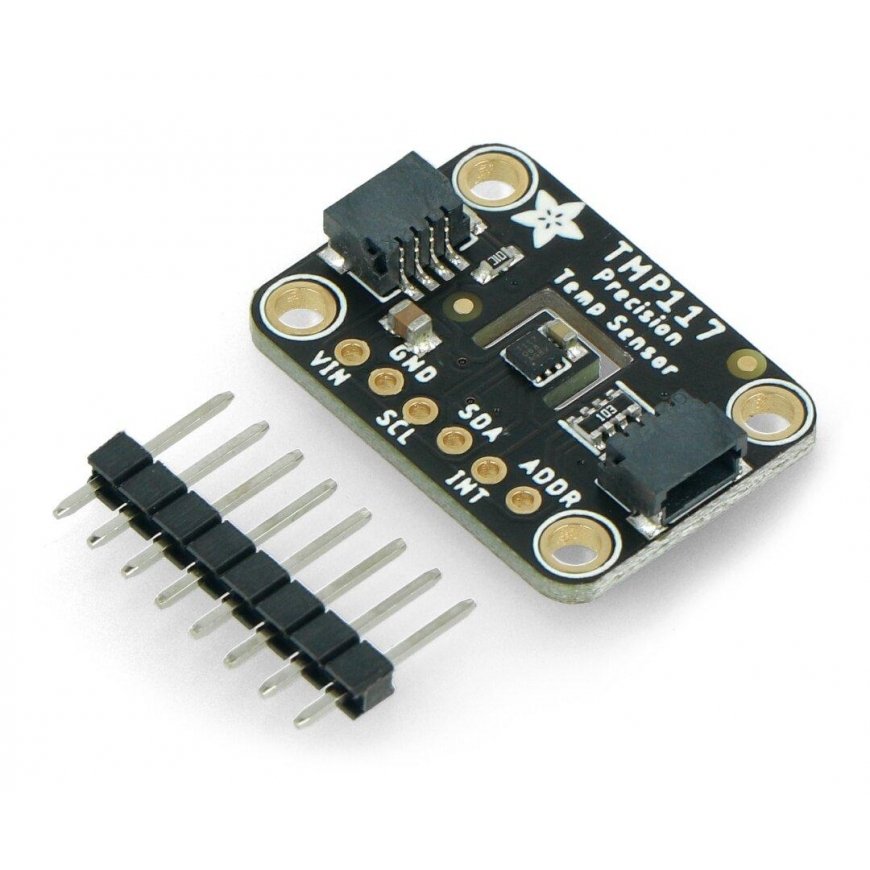

- TMP117 temperature sensor
- Goldpin strip - 2.54 mm
