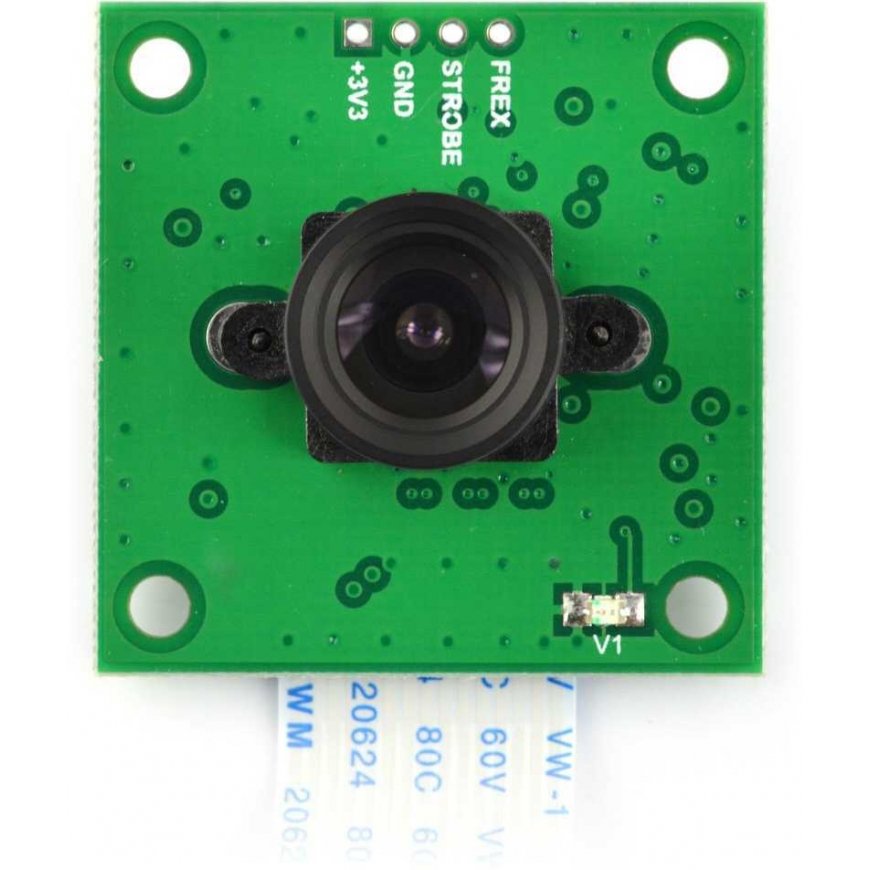

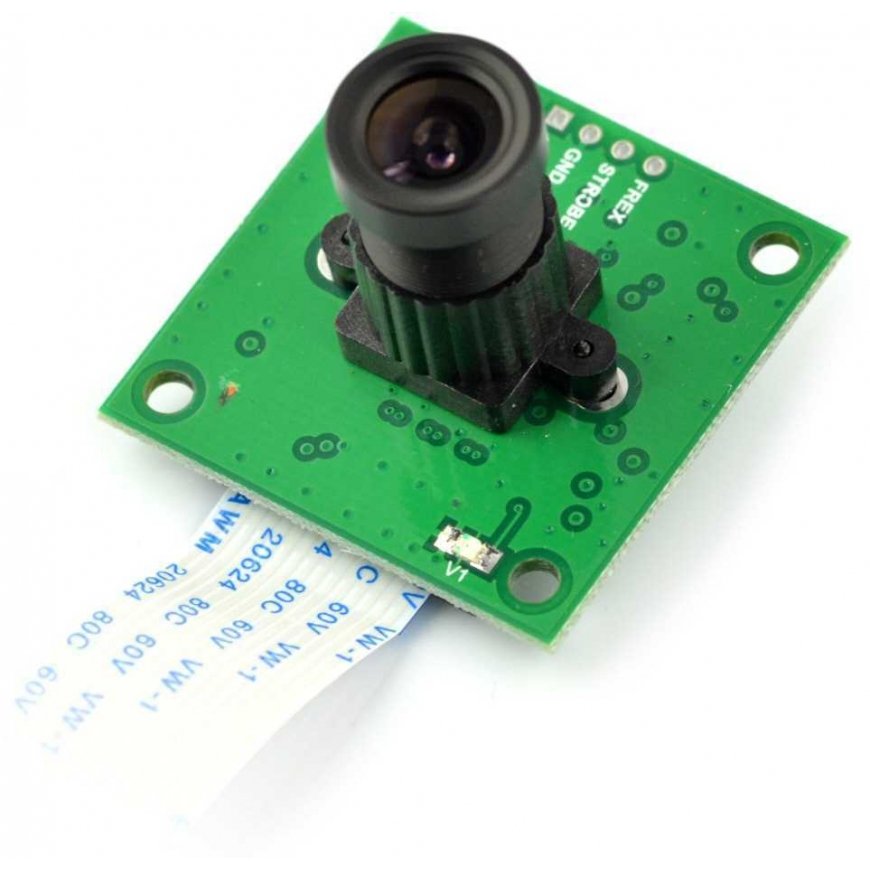

ArduCam OV5647 5Mpx camera with HX-27227 M12x0.5 lens, designed for Raspberry Pi
31.21 €
3695675 AN-06634
5904422375171
Shipping 11-18 b.d.
You are interested in this product?
All about the product

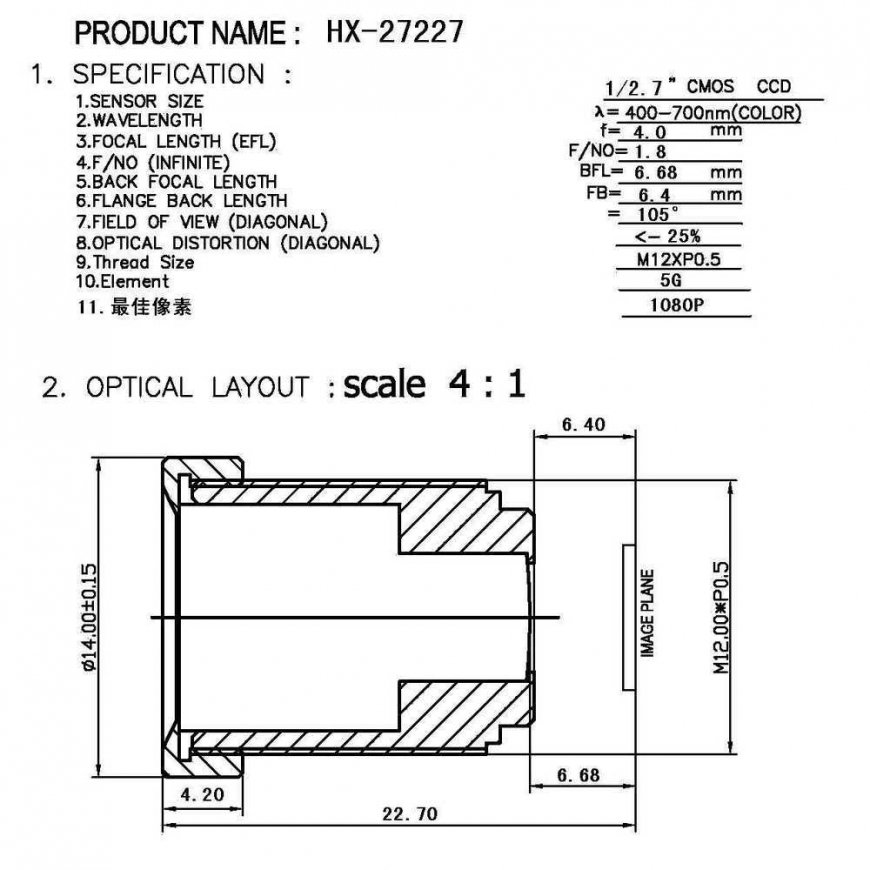

Camera module with OV5647 sensor and HX-27227 M12x0.5 lens, featuring the following parameters: focal length 4.0 mm, angle 105°, aperture 1.8, format 1/2.7”. It connects to a special Raspberry Pi mini-computer connector for versions 3, 2, B+, A+. The device has a matrix with a resolution of 5 Mpx, supports HD mode 1080px / 30 fps.
Specifications:
- Camera compatible with Raspberry Pi versions 3, 2, B+, A+
- Matrix: 5 MPx
- Sensor: OV5647
- Lens mount: CS-mount or M12x0.5
- Lens: HX-27227
- Focal length: 4.0 mm
- Aperture: 1.8
- Field of view: diagonal: 105° (camera does not support this angle)
- Format: 1/2.7"
- Has 4 mounting holes
- Module dimensions: 36 x 36 mm
Included:
- 5 MPx camera with LS-40180 lens
- Cable for connecting to Raspberry Pi
