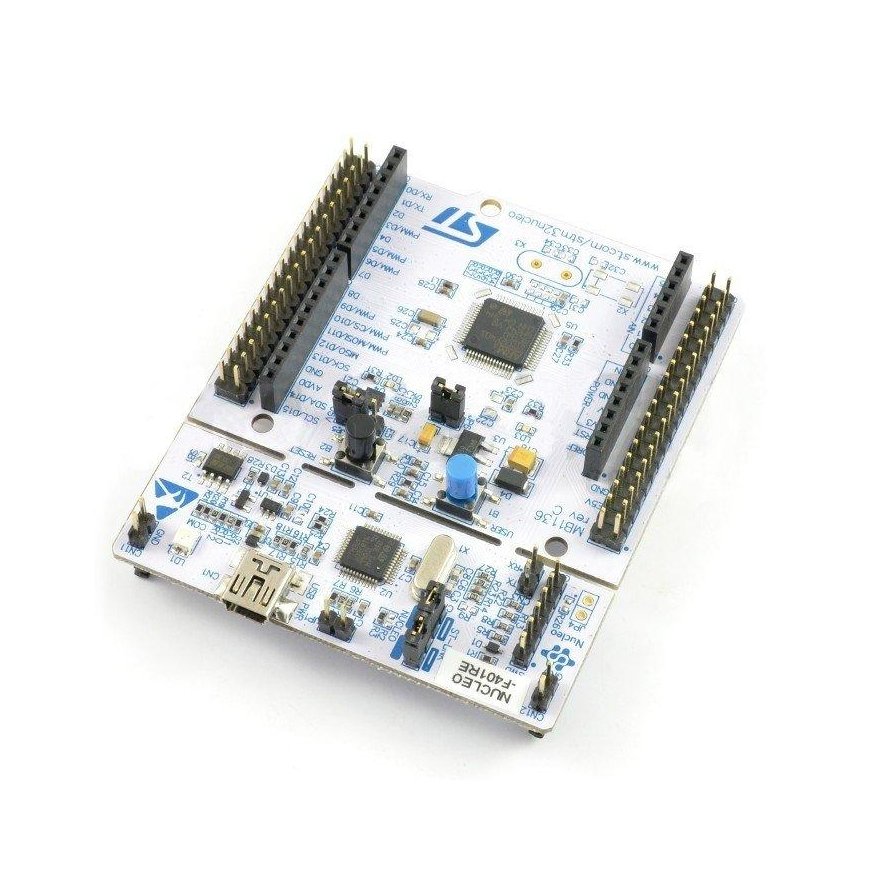

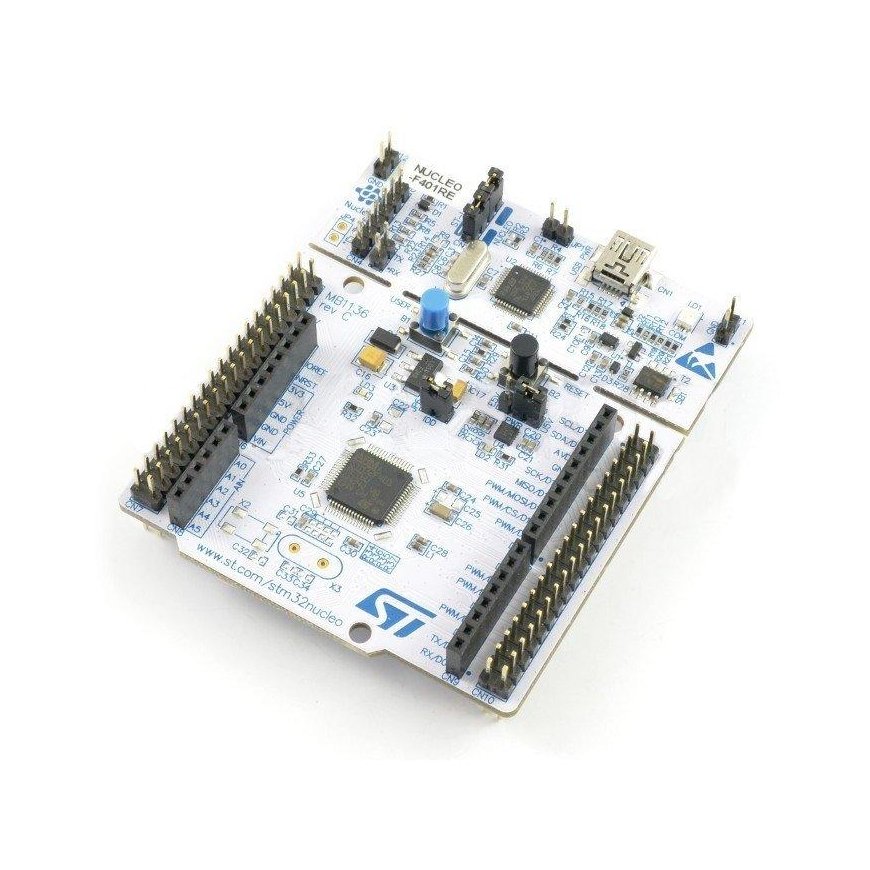

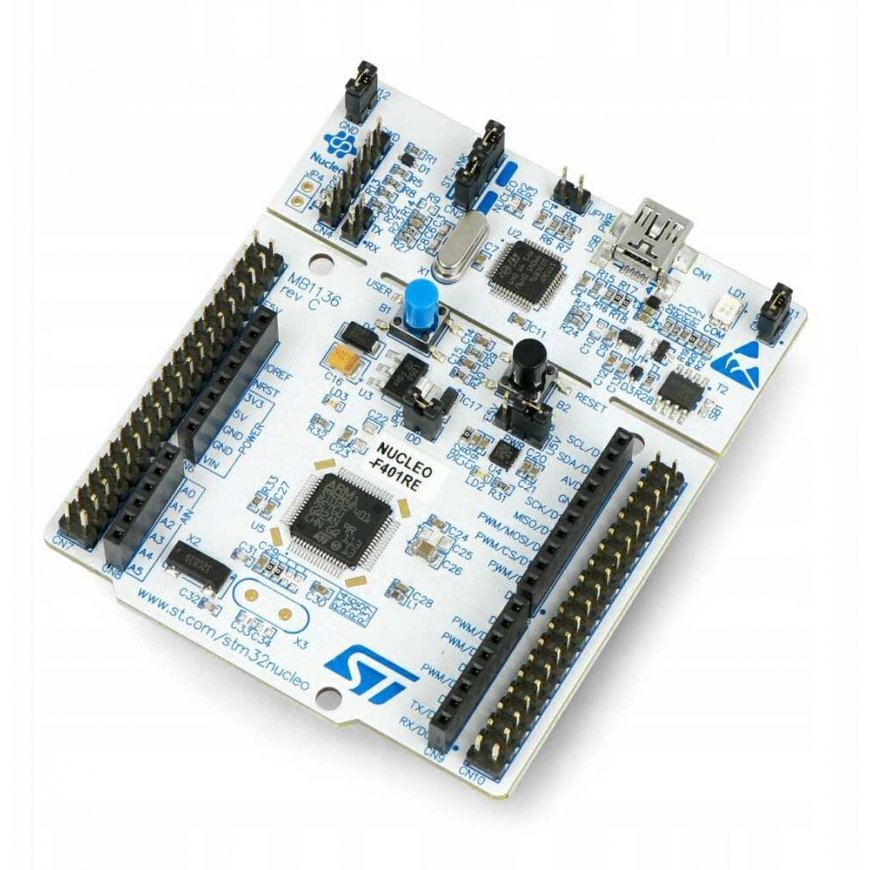

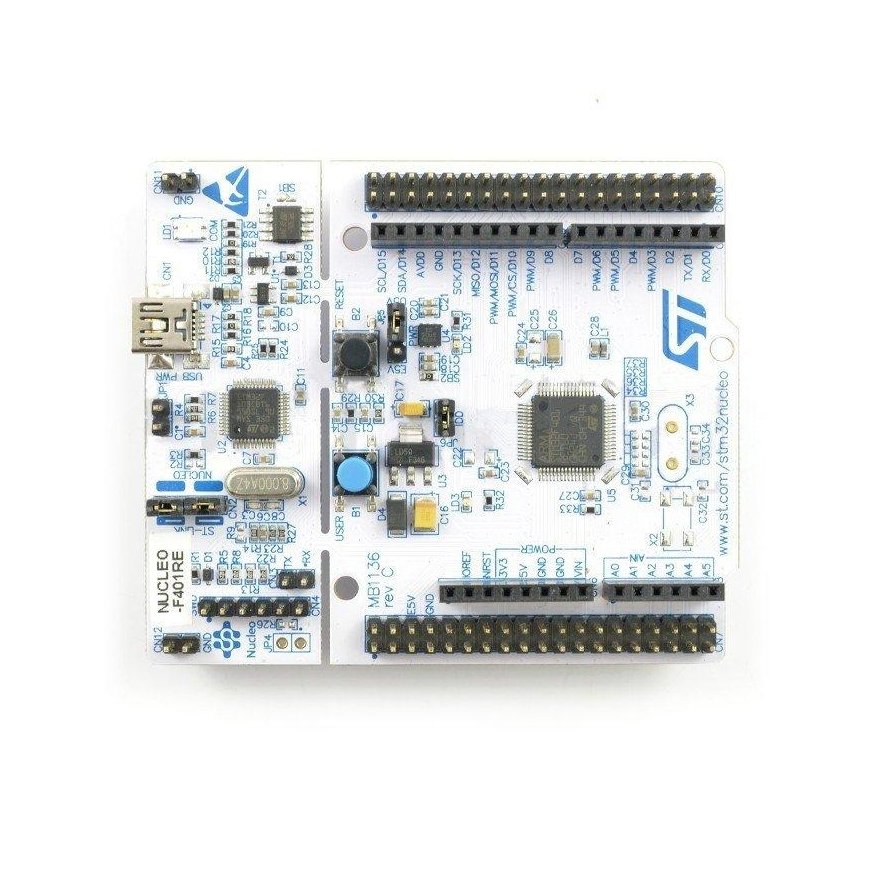

Stmicroelectronics STM32 NUCLEO-F401RE module - STM32F401RE ARM Cortex M4
40.15 €
Monthly payment from 1,93 €
3693713 AN-02217
5904422330613
Shipping 9-14 b.d.
You are interested in this product?
All about the product
Module with a 32-bit microcontroller with ARM Cortex M4, 84 MHz, 512 KB Flash, 96 KB SRAM. Nucleo is compatible with the mbed platform and has connectors for Arduino shields.
Specifications:
- Microcontroller: STM32 LQFP64 package
- Core: ARM Cortex M4 32-bit
- Clock frequency: 84 MHz
- Flash memory: 512 KB
- SRAM: 96 KB
- Analog to digital converter: 12-bit, 10 channels
- Number of timers: 10
- Number of programmable I/Os: 81
- Interfaces: 3x I2C, 3x USART, 4x SPI, USB 2.0 full speed
- Two types of connectors:
- Shield connectors compatible with Arduino Uno Rev3
- Standard pins from STMicroelectronics Morpho provide access to microcontroller pins
- Module is compatible with the mbed system (mbed.org)
- ST-Link/V2 debugger is mounted on the board with the ability to operate as a standalone device with SWD output
- Ability to power via USB connector
- Three embedded LEDs:
- 1 x power voltage indication
- 1 x connection indication
- 1 x user indication
- Two buttons:
- 1 x RESET
- 1 x user indication
- Three different interfaces via miniUSB connector (USB enumeration):
- Virtual COM port
- Mass storage
- Programming/debugging port
- Module supports most popular environments, e.g.: IAR, Keil and platforms based on GCC compiler
