6 pin female-female JST SH style cable 63cm, Pololu 4769

19.00 €
3689089

AN-19491

5904422367510

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

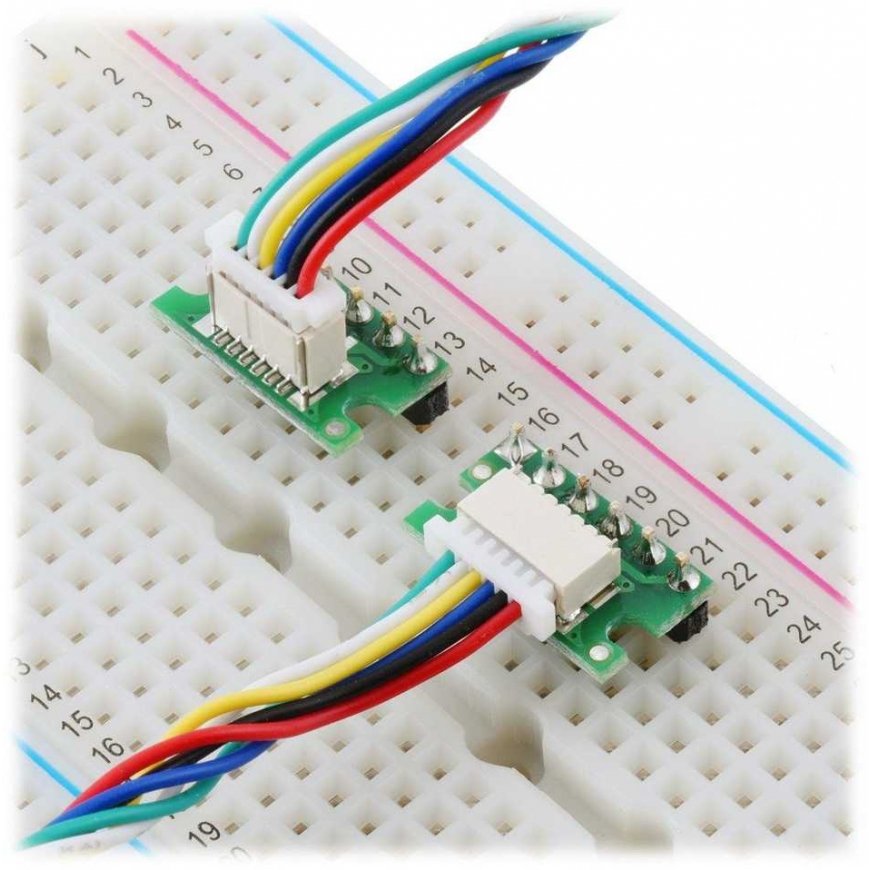

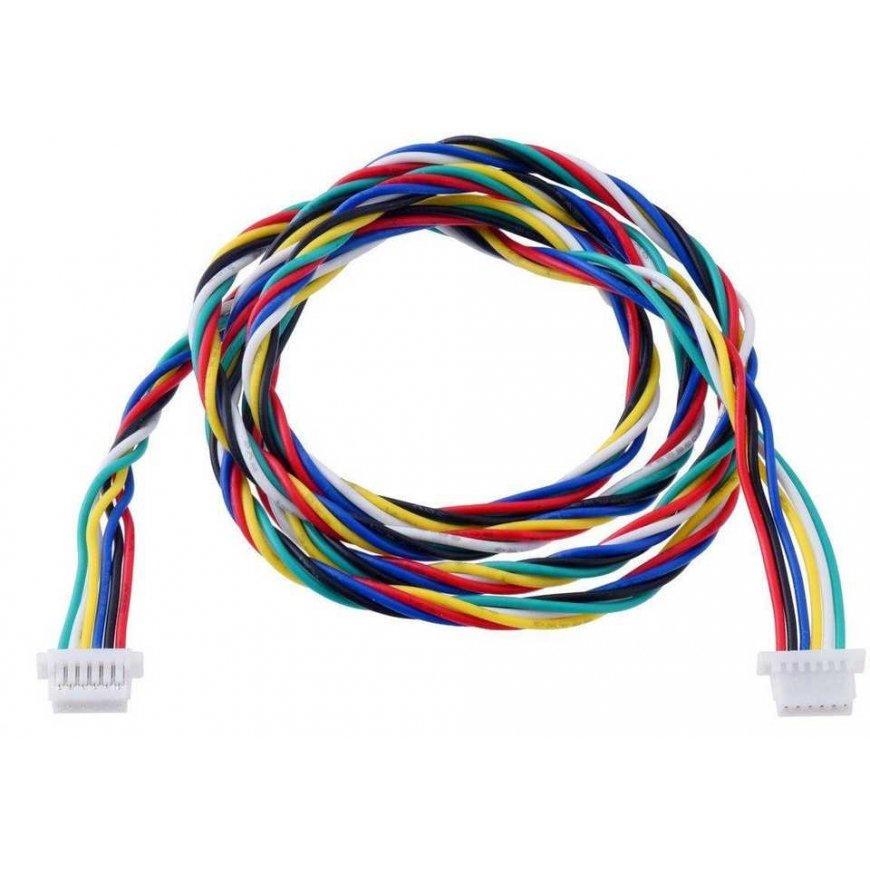

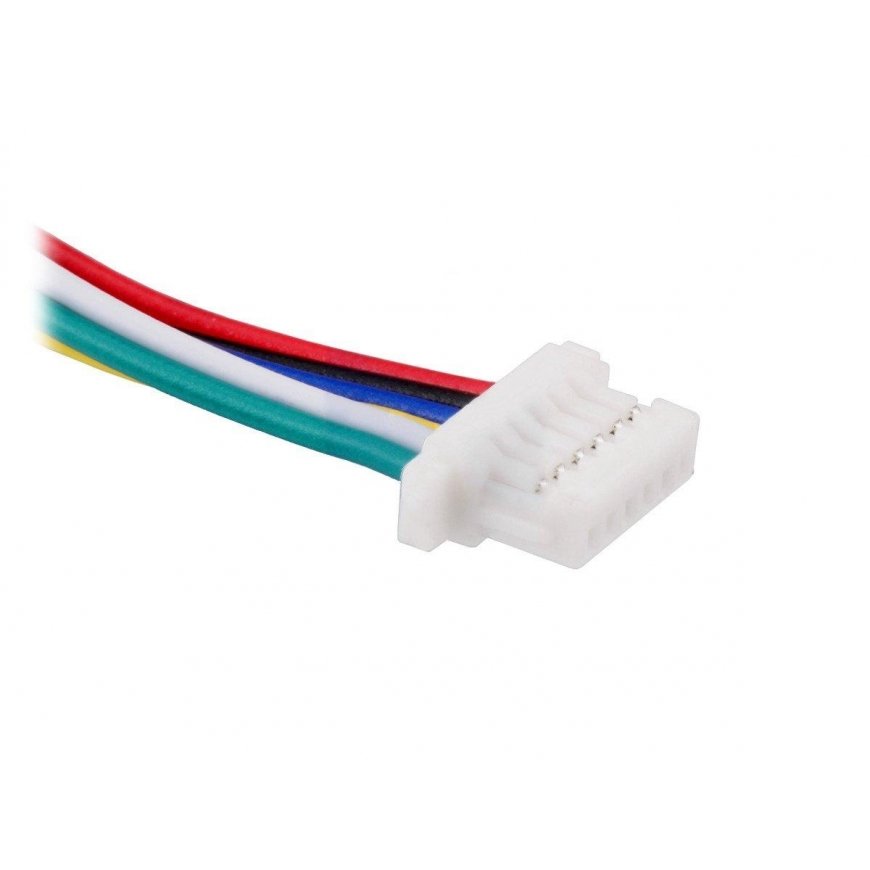

JST SH 6-pin plug with wire made by Pololu. It is 63 cm long, has a conductor diameter of 28 AWG, and a pin pitch of 1 mm. This type of wire is used in Pololu magnetic encoders. It can also be used to connect a module with a JST SH 6-pin socket, which can be connected directly to a breadboard, making it easier to prototype circuits.

Specifications:

  • Number of pins: 6
  • Pinout
    • JST SH connector: 1 mm
  • Cord length: 63 cm
  • Diameter: 28 AWG
  • Cable description:
    • Red: Motor power (voltage)
    • Black: Motor power (ground)
    • Blue: encoder power supply (voltage)
    • Yellow: Encoder A output
    • White: Encoder B output
    • Green: encoder power (ground)
  • Weight: 6 g
