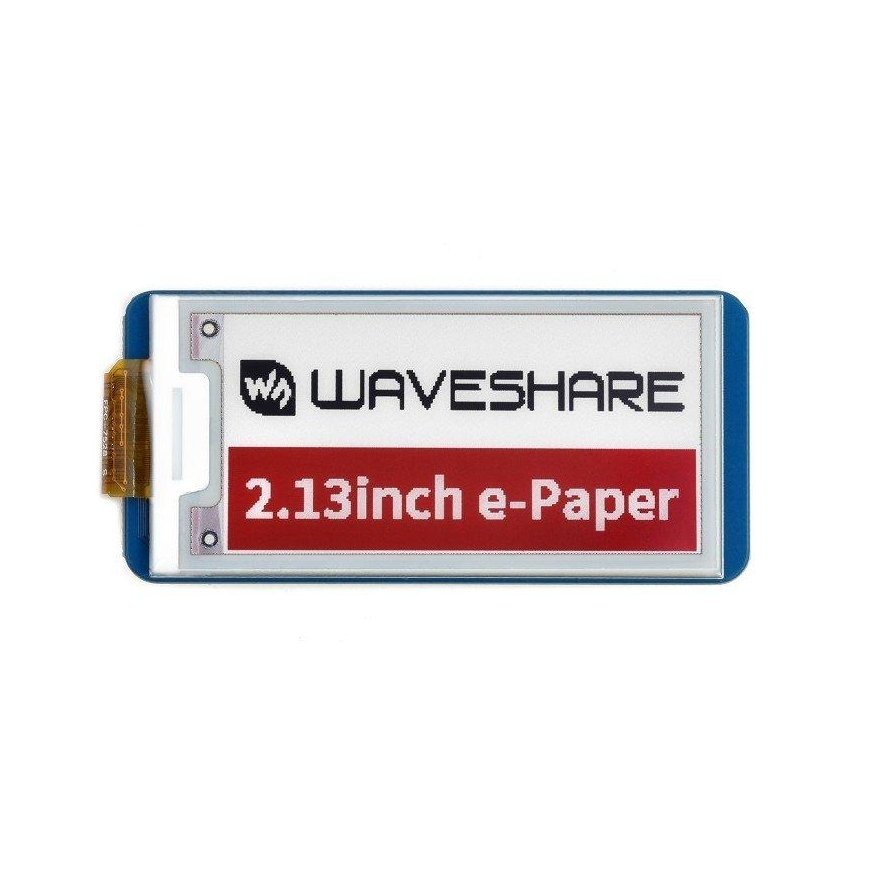

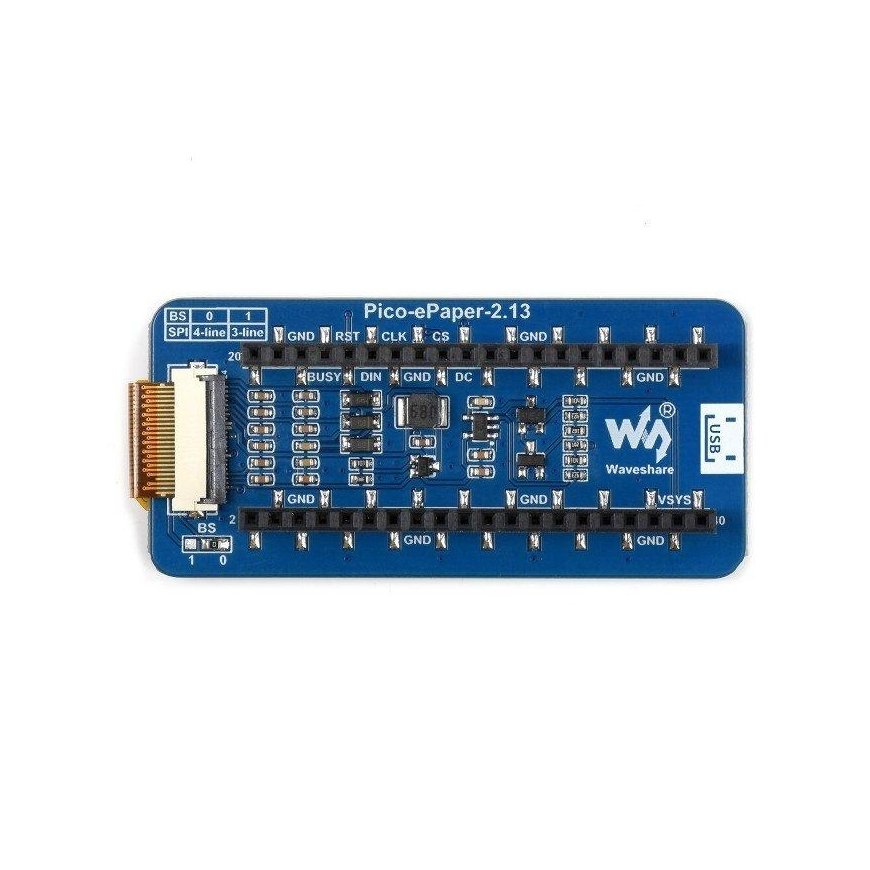

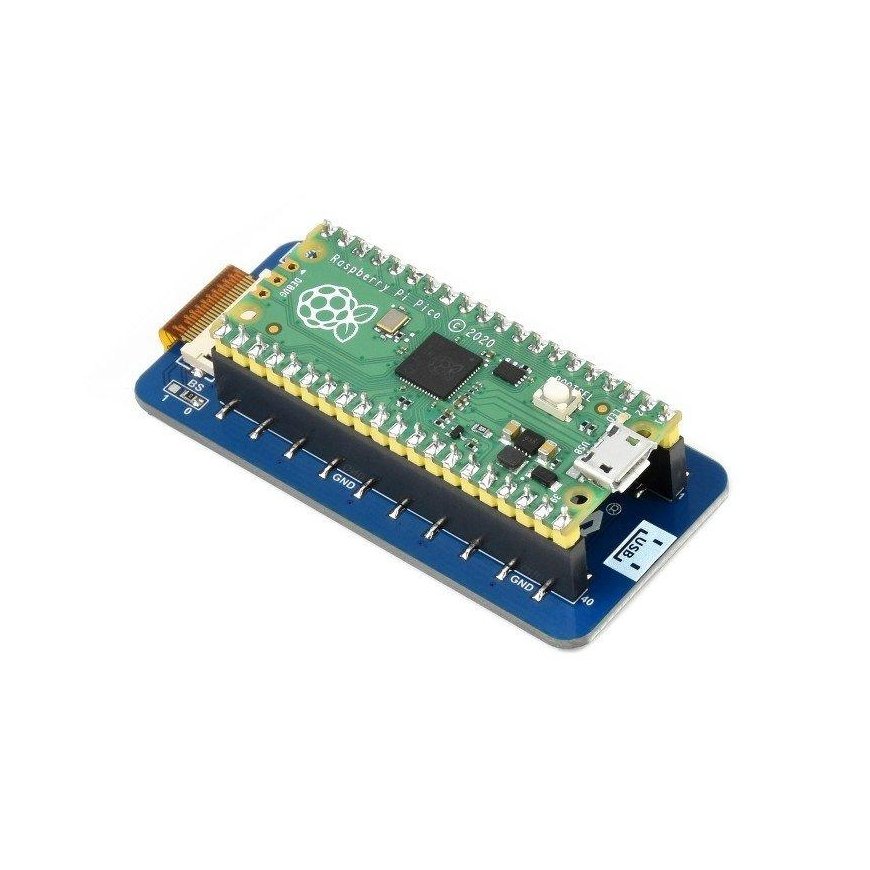

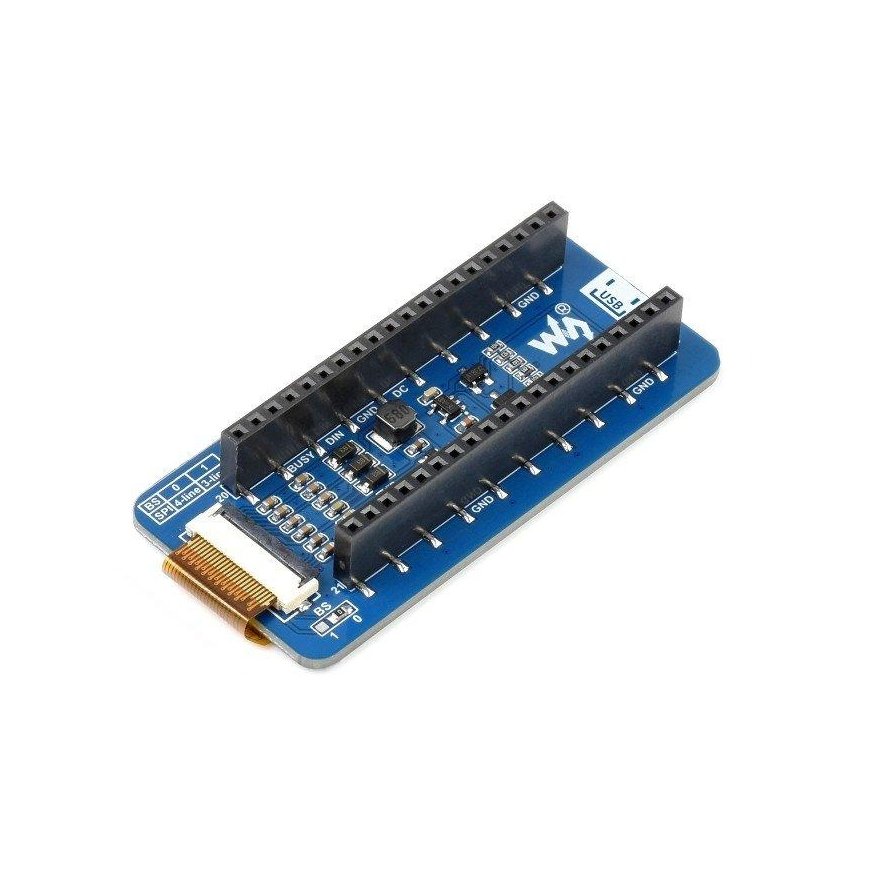

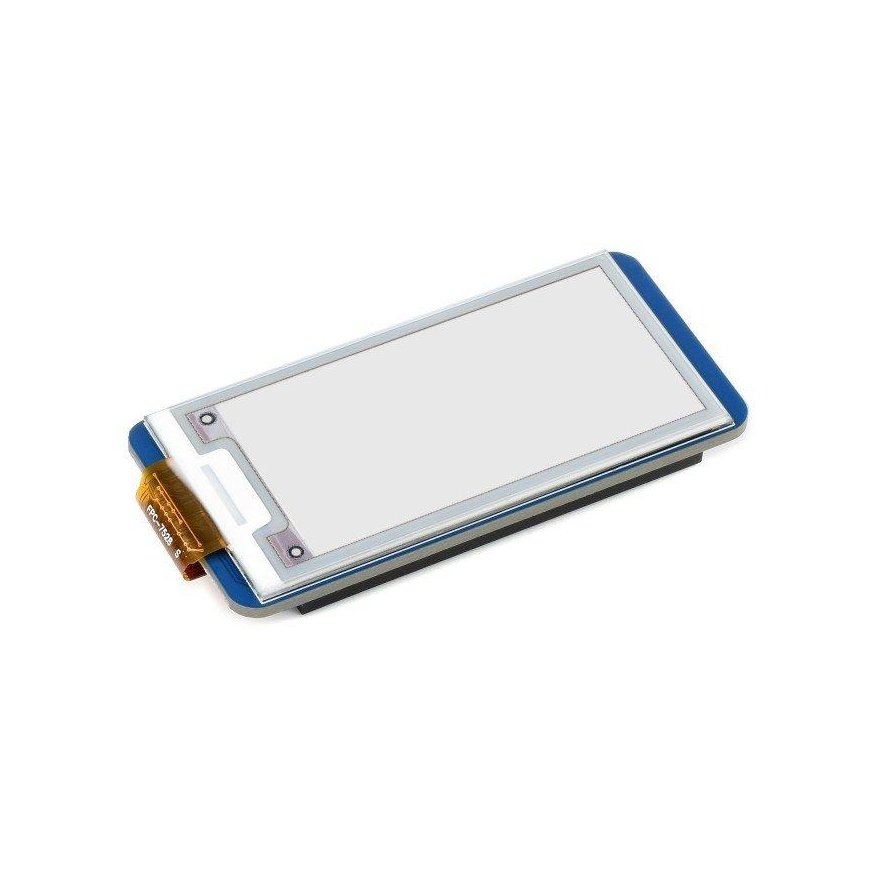

2.13” E-Paper E-Ink display 212x104px, SPI, 3 colors, for Raspberry Pi Pico, Waveshare 19588
3686010 AN-19545
5904422371821
Shipping 11-18 b.d.
All about the product
2.13” E-Paper display for Raspberry Pi Pico. Its resolution is 212x104px. The display displays images and texts in three colors: red, black and white. The module uses the SPI bus to communicate with the Raspberry Pi. The display is made using E-Ink technology - imitating a traditional sheet of paper. This type of display is used when reading e-books or e-magazines. The display does not emit a blue glow and is passively reflective. It displays recently read content even long after the power is disconnected. It is characterized by low power consumption, and energy is consumed only for updating.
Specifications:
- For Raspberry Pi Pico
- Type: E-Paper display
- Technology: E-Ink
- Interface: SPI (3-wire or 4-wire)
- Screen size: 2.13"
- Screen resolution: 212x104px
- Pixel size: 0.229 x 0.228 mm
- Display colors: red, black, white
- Viewing angle: >170°
- Grayscale: 2
- Total refresh time: 15s
- Power consumption during update: 26.4 mW
- Standby power consumption: <0.01 uA
- Supply voltage: 3.3V
- Programming language: C / C++ / MicroPython
- Screen dimensions: 48.55 x 23.71 mm
- Module dimensions: 65 x 30.5 mm
