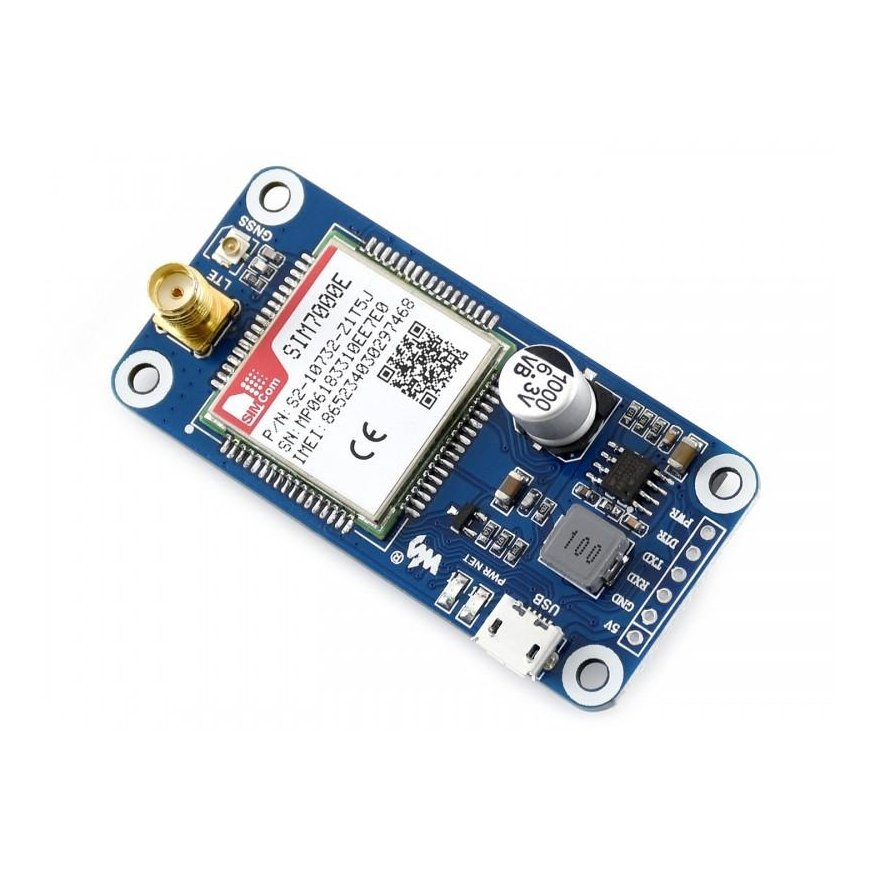

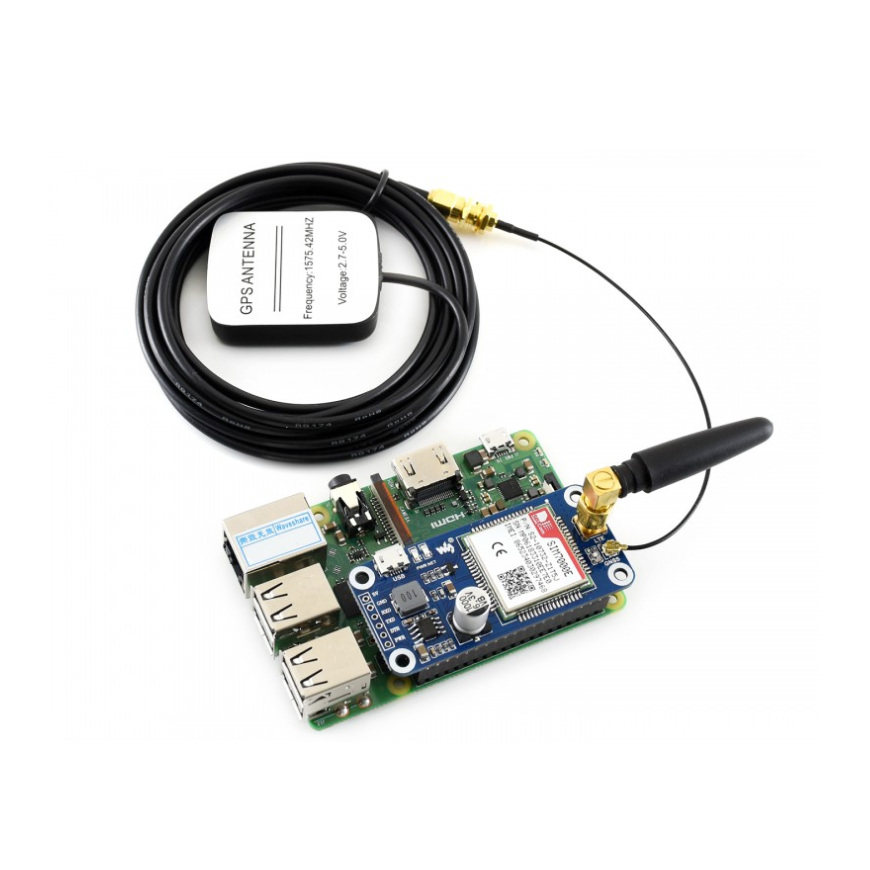

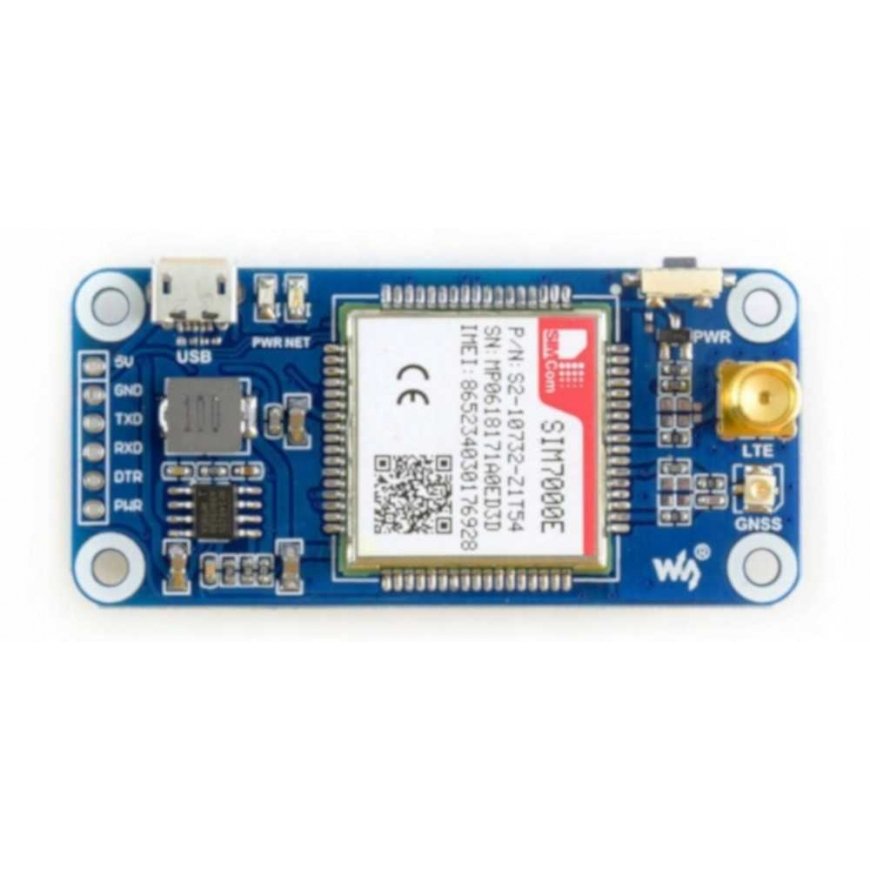

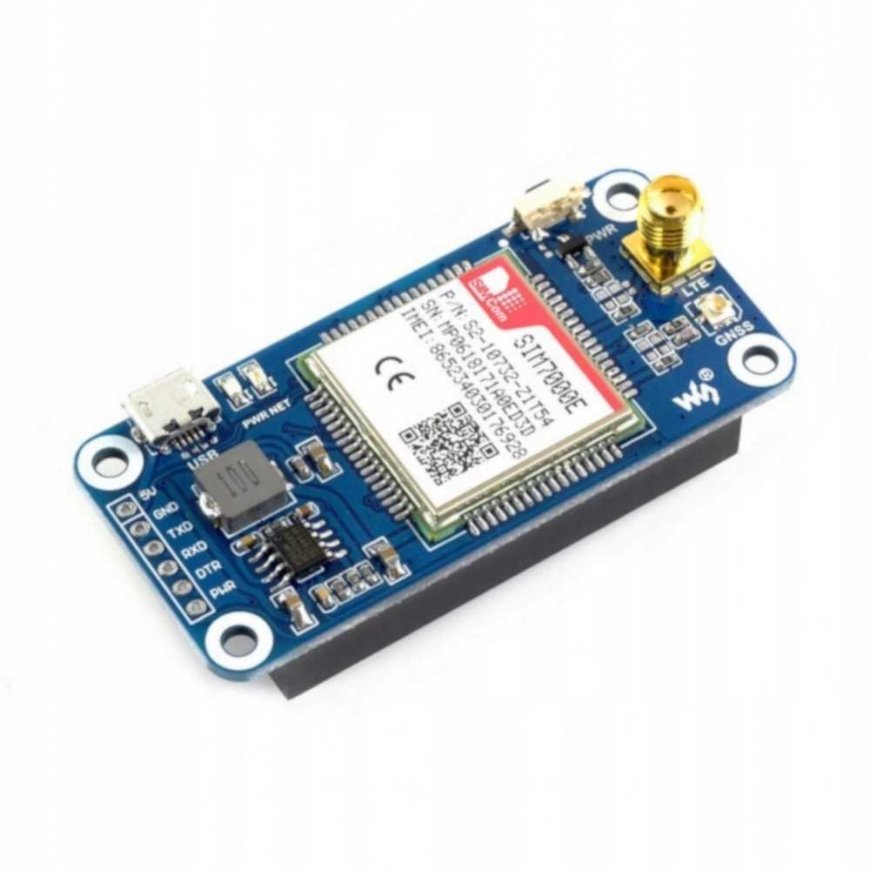

Waveshare LTE GPS HAT - NB-IoT/LTE/GPRS/GPS SIM7000E - Model For Raspberry Pi 3B+/3B/2B/Zero
79.00 €
Monthly payment from 2,93 €
3685571 AN-12531
5904422319496
Shipping 11-18 b.d.
You are interested in this product?
All about the product
This Raspberry Pi HAT features multiple communication functions: NB-IoT, eMTC, EDGE, GPRS and GNSS. Suitable for applications such as smart instruments, remote monitoring, e-health, wireless point of sale and more
Technical data:
- Raspberry Pi connector, compatible with Raspberry Pi Zero / Zero W / Zero WH / 2B / 3B / 3B +
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, GLONASS, BeiDou and Galileo)
- USB interface to test AT commands, receive GPS positioning data, etc.
- Breakout UART control pins connected to motherboards such as Arduino/STM32
- The device's voltage translator defaults to 3.3V, allowing it to be switched to 5V via a 0Ω resistor

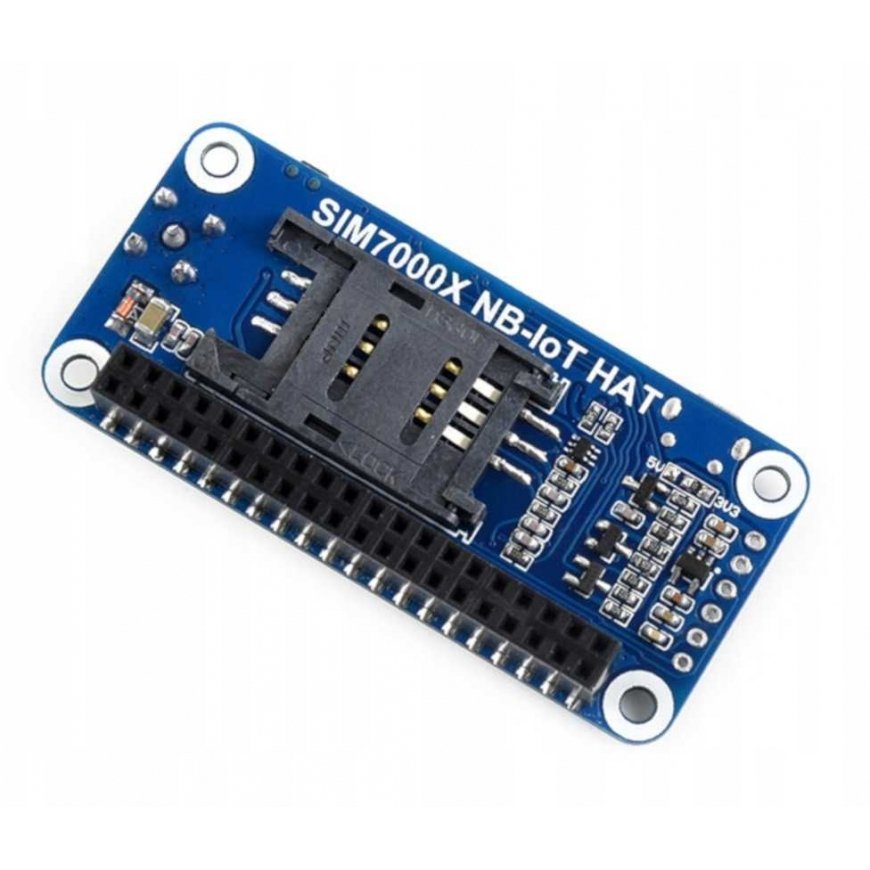

- SIM card slot compatible with regular SIM card and specific card
- 2x LED indicators for easy monitoring
- Baudrate: 300bps ~ 3686400bps
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
