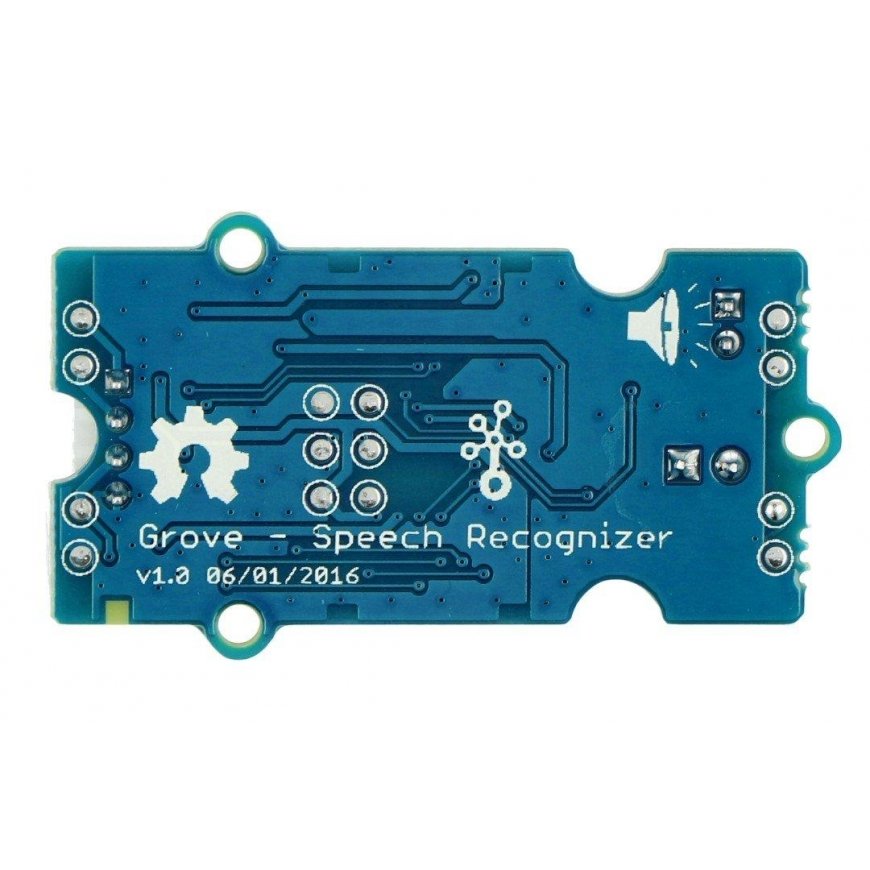

Seeed Studio Grove, speech recognition sensor, v1.0, ISD9160
3685161 AN-15327
5904422352011
Shipping 11-18 b.d.
All about the product

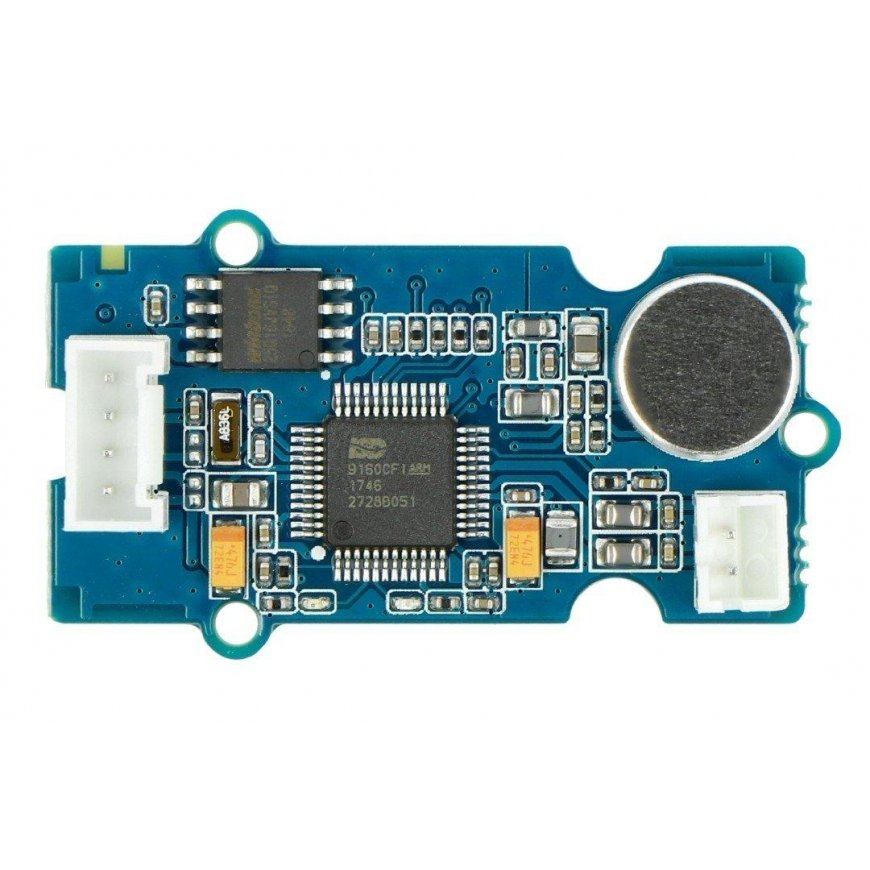

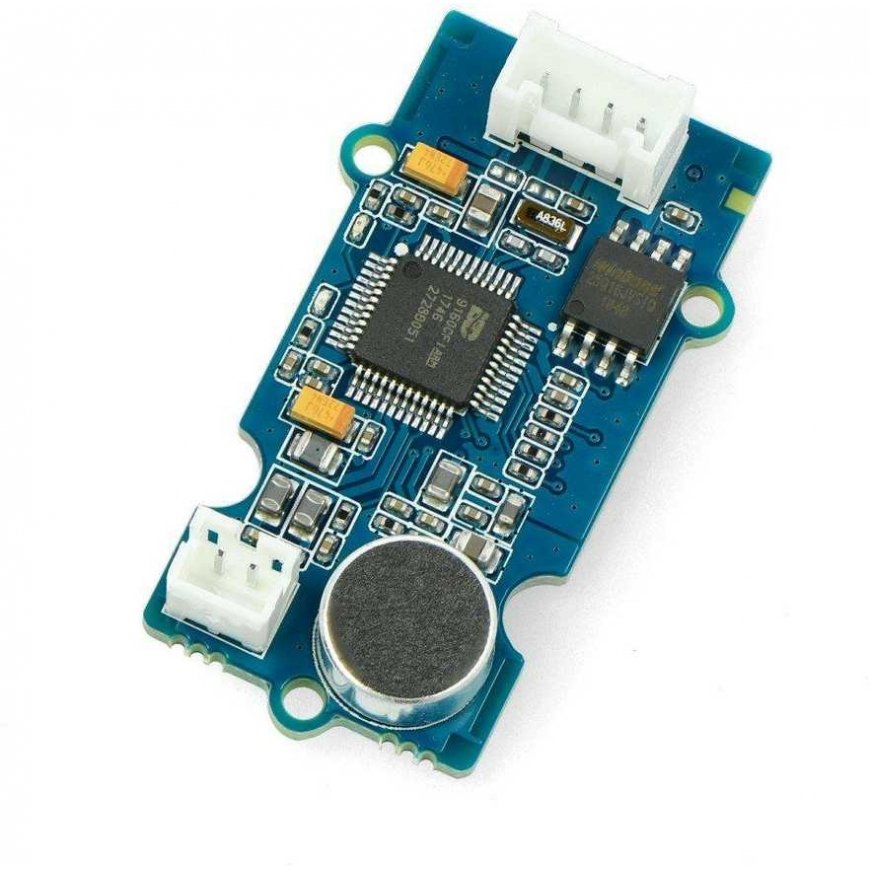

Voice recognition module with Nuvoton ISD9160 based on Cortex M0, which is responsible for speech recognition. Built-in omnidirectional microphone that will collect sound from all sides. There is also a 2-pin connector for a speaker that can respond appropriately to commands. The module has 22 English commands. The board has a Grove connector for easy connection to the motherboard. Interacts via SPI interface. The module is powered from 3 V to 5 V.
Specifications:
- Supply voltage: 3 V to 5 V
- Energy consumption during operation:
- from 25 mA to 80 mA - 3.3 V
- from 25 mA to 130 mA - 5 V
- System: ISD9160
- Processor: Cortex-M0 50 MHz
- Flash memory: 2MB
- Microphone sensitivity: -43 dB to -37 dB
- SNR microphone: 58 dB
- Speaker power: 1 W at 5 V
- Operating temperature: 0 °C to 85 °C
- Dimensions: 40 x 20 mm
- Weight: 5 g

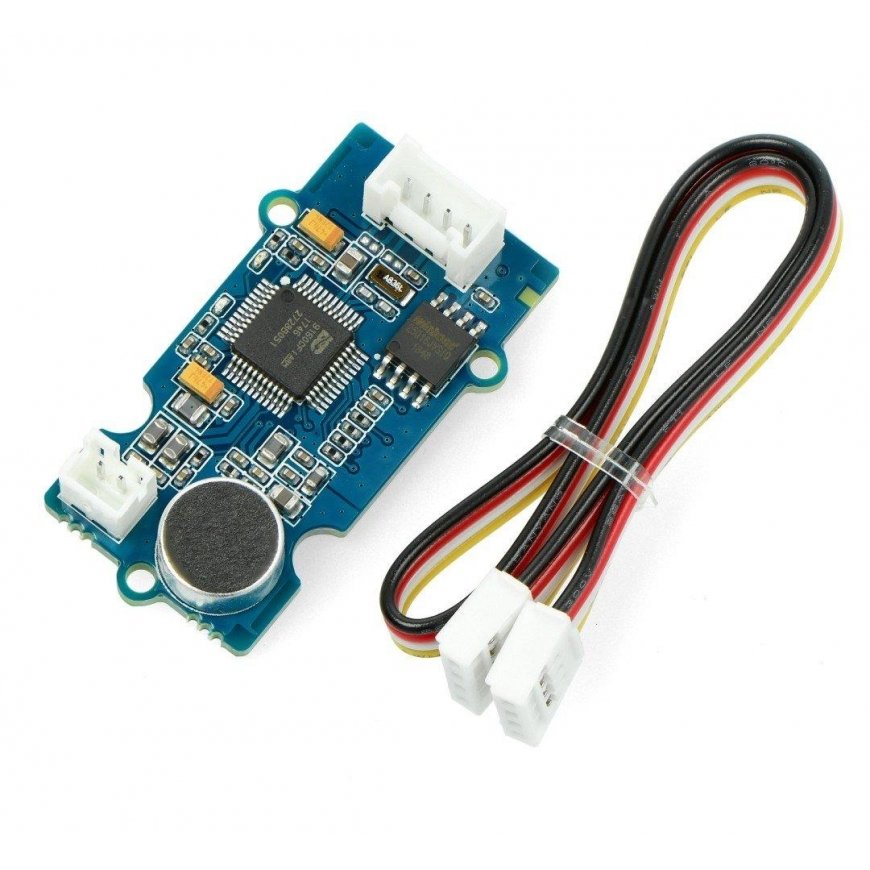

Included:
- Voice recognition module ISD9160
- Grove cable
