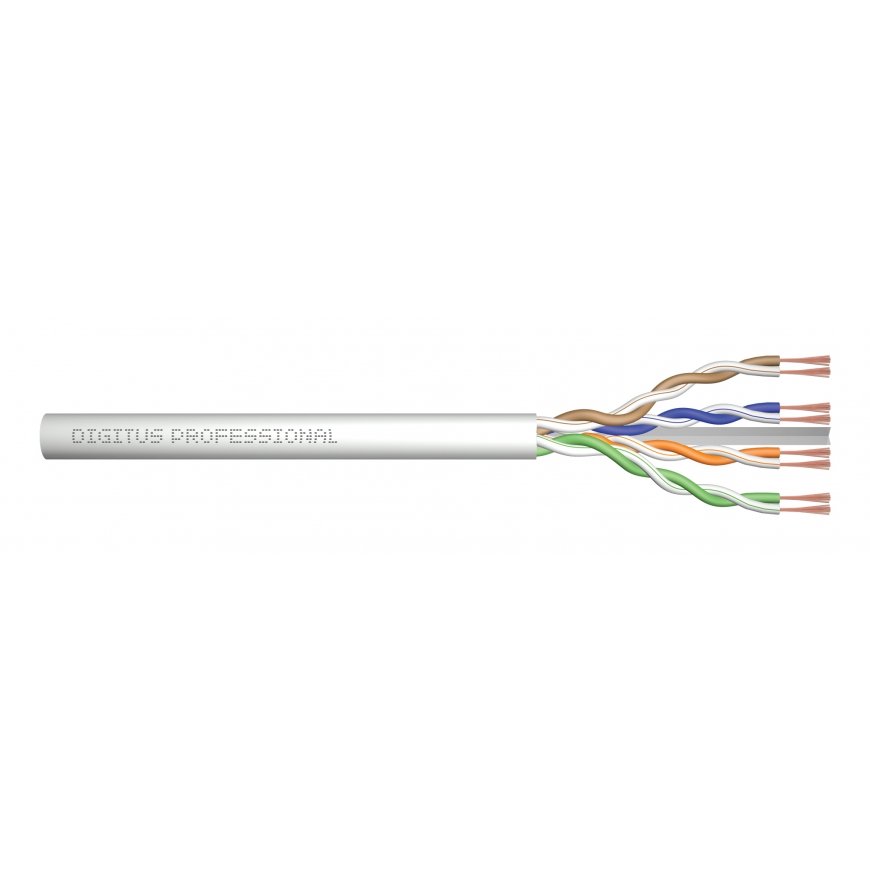

Digitus CAT 6A U/UTP twisted pair patch cord, raw
47.23 €
Monthly payment from 2,12 €
3683768 DK-1613-A-P-1
4016032425977
Shipping 11-16 b.d.
You are interested in this product?
All about the product
Future-oriented standards and high-end quality for your network.- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class EA cable lines, 500 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-11-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
Features | |
| Cable length | 100 m |
| Cabling technology | 10GBase-T |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Cable standard | Cat6a |
| Cable class | Ea |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26/7 |
| Frequency | 500 MHz |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Power over Ethernet (PoE) | Yes |
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Power over Ethernet (PoE) type supported | PoE+ |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444920 |
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8544.42 |
Packaging data | |
| Package width | 270 mm |
| Package weight | 3.27 kg |
| Package depth | 270 mm |
| Package volume | 6561 cm³ |
Weight & dimensions | |
| Outer diameter | 5.5 mm |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 75 °C |
Sustainability | |
| Doesn't contain | Halogen |
Certificates | |
| Compliance certificates | ANSI, Telecommunicatios Industry Association (TIA) |
| Certification | ISO/IEC 11801 2; IEC 60332-1; IEC 60754-2; IEC 61034 |
