Neo Hex - hexagonal 37x RGB LED board - WS2812 - M5Stack A045-B
23.45 €
3682427 AN-21477
6972934173577
Shipping 11-18 b.d.
You are interested in this product?
All about the product

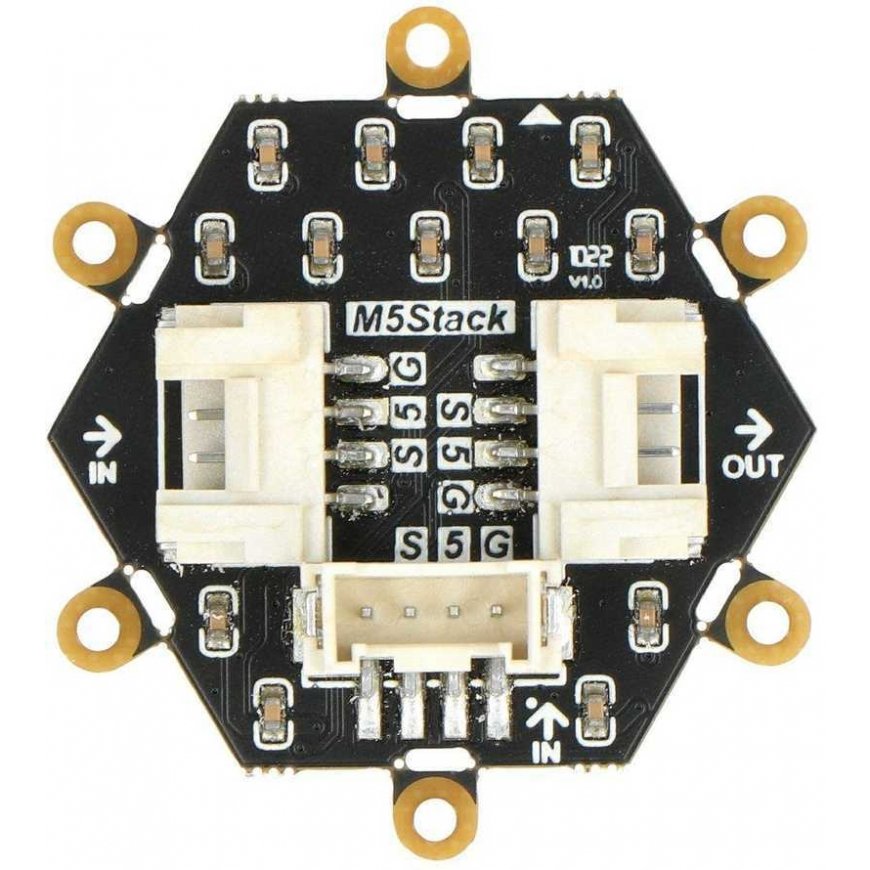

Neo Hex is a hexagonal board with 37 WS2812 RGB LEDs. It is manufactured by M5Stack and is compatible with the manufacturer's series of modules - M5Stack Core, M5StickC / Plus, M5Atom, etc. It has as many as 6 mounting holes that can be disassembled. There are three Grove connectors on the back of the module - two input connectors and one output connector.Main features:

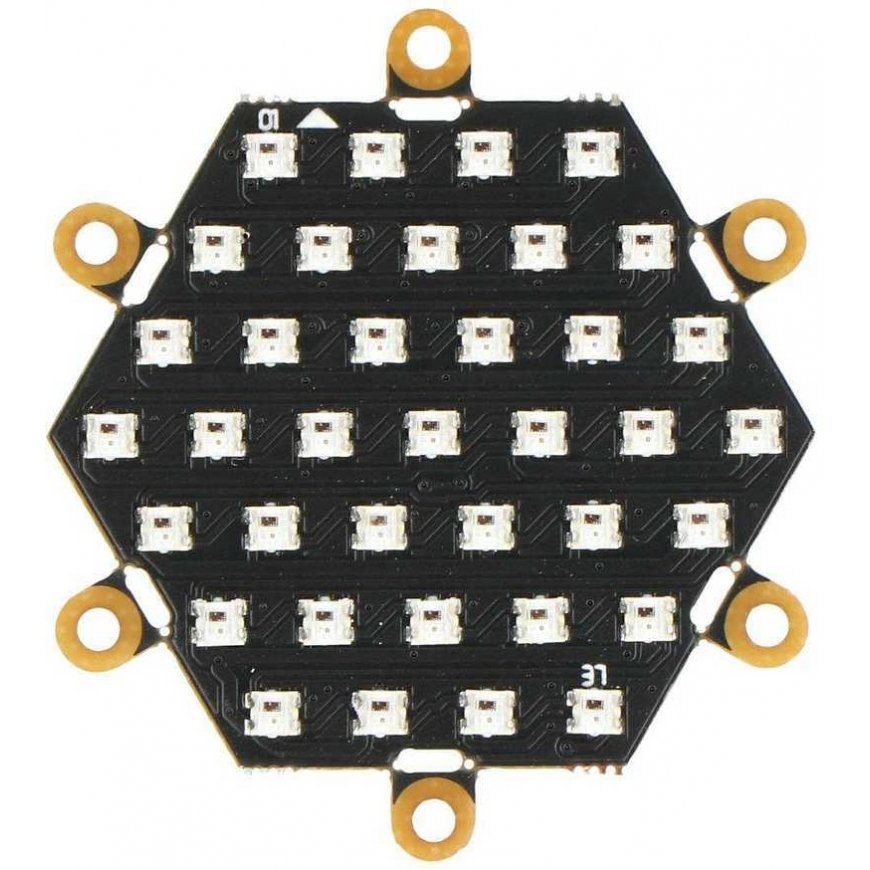

- Equipped with 37 RGB LEDs WS2812C-2020-V1
- The ability to connect multiple panels allows you to create virtually any mosaic
- Mounting lugs allow for installation in difficult conditions, and the handles can be quickly removed if the module does not need to be mounted.
- Capable of displaying up to 16,777,216 colors with 256 adjustable brightness levels
- The hexagonal shape allows for unusual compositions – you can even make an illuminated hexagon on the wall, illuminate cabinets in the kitchen or design a rainbow floor.
- LED type: RGB LED
- LED standard: WS2812C-2020-V1
- Number of LEDs: 37
- Supply voltage: 3.7V to 5.3V
- Interface: Grove
- input connector x2
- output connector x1
- Refresh rate: 30 frames (1024 cascades)
- Power consumption - actual measurement of power consumption with 37 LEDs fully illuminated, 100% brightness:
- red: DC 5V / 207mA
- green: DC 5 V / 109 mA
- blue: DC 5 V / 208 mA
- white: DC 5V / 568mA
- Adjustable brightness: 256 levels
- Number of colors displayed: 16777216
- Attachment: 6x removable ears
- Mounting hole diameter: 2 mm
- Shape: cube, hexagon
- Dimensions: 40 x 36 x 7 mm
- Weight: 3.7 g

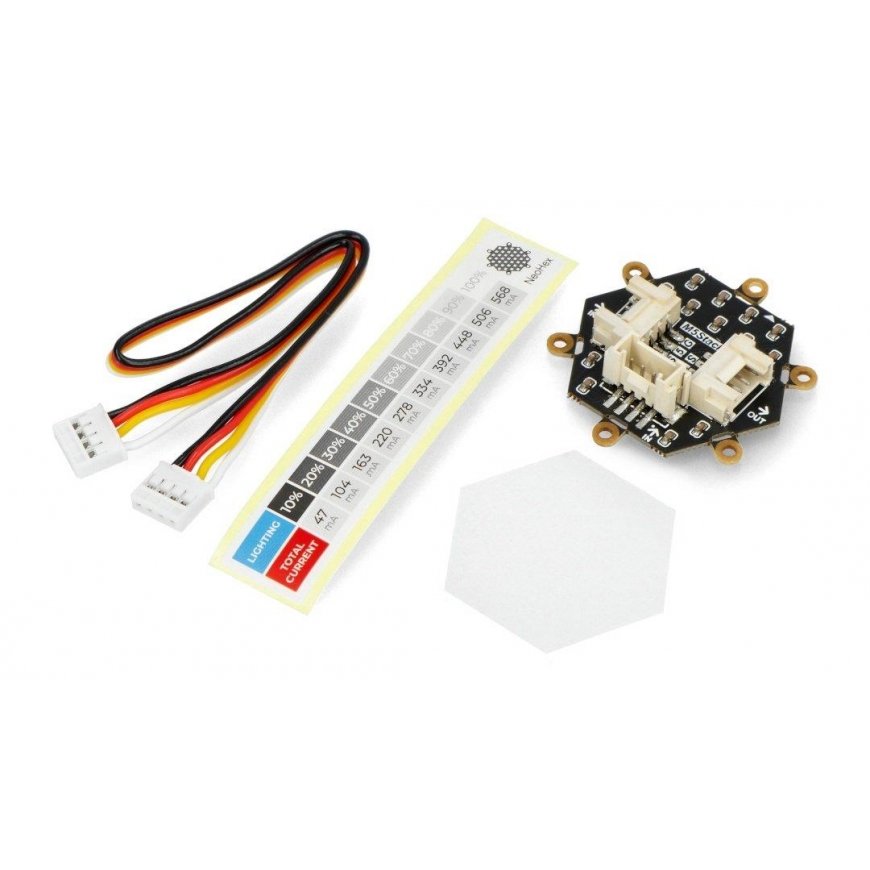

- Neo Hex board
- Transparent cover for LEDs
- Grove connecting cable, 20 cm long
- Energy consumption information card
