Servo Feetech FT5320M - standard
29.00 €
3679925 AN-17695
5904422362188
Shipping 11-18 b.d.
You are interested in this product?
All about the product

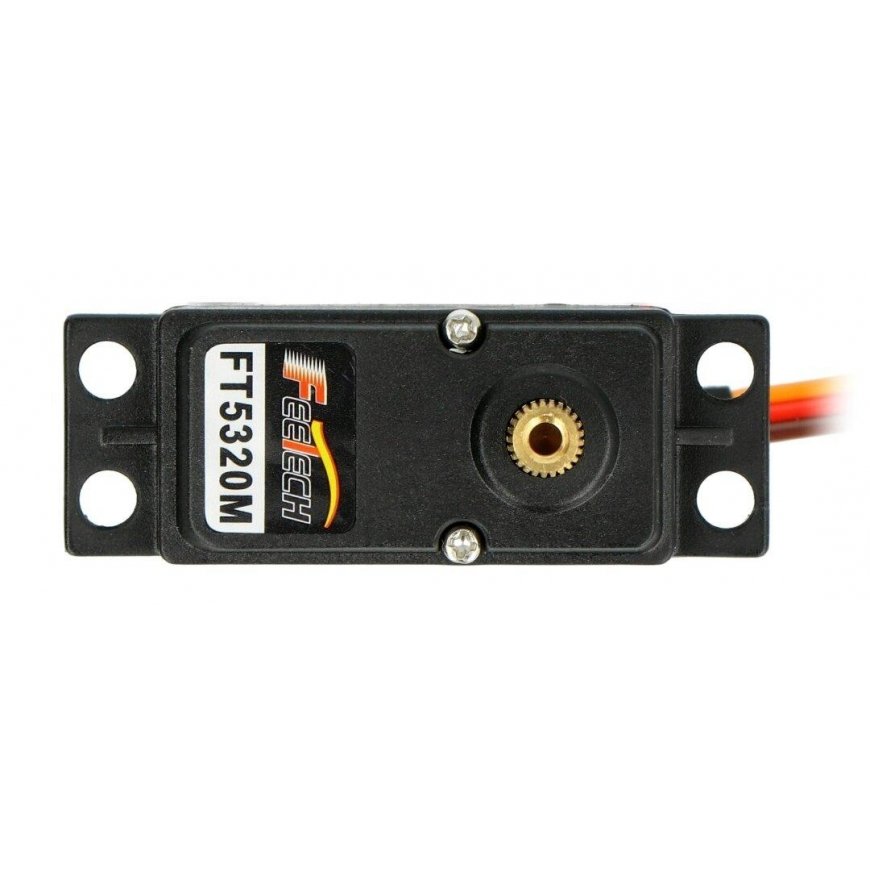

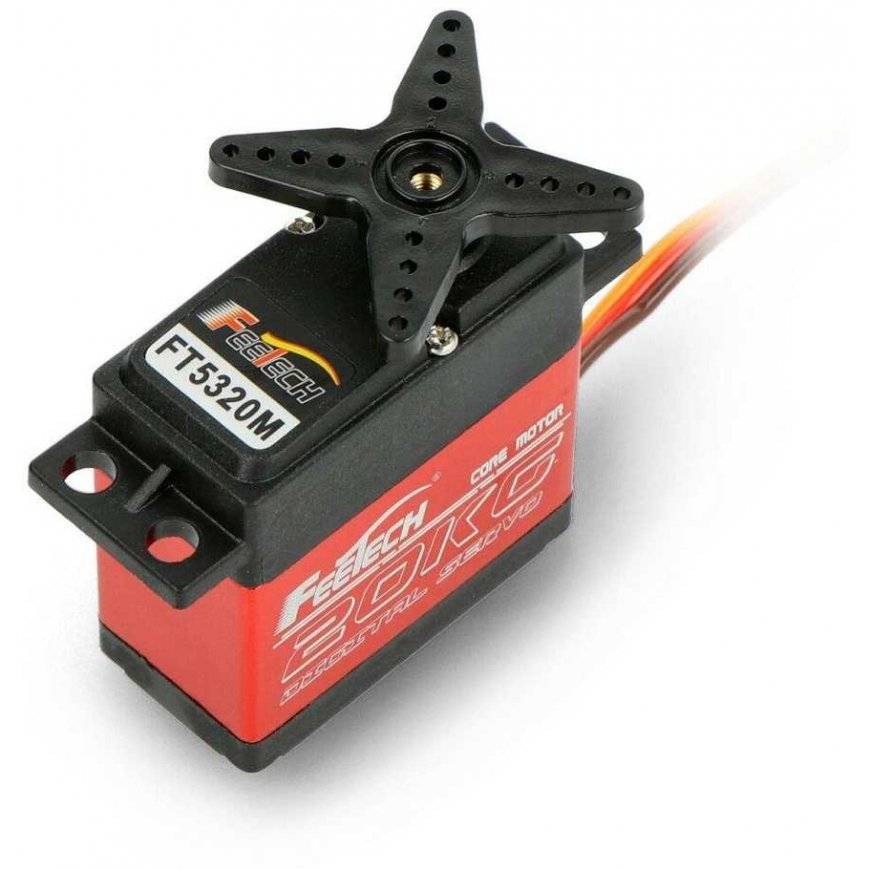

Standard type Feetech servo. It is powered from 6 V to 7.4 V. Current consumption without load is 1000 mA. The servo movement range is from 0° to 180°. It has a 300 mm long cable, which ends with a JR connector. The servo torque is 20 kg/cm. The kit includes several additional servo coils and components necessary for their installation.Specifications:
- Manufacturer: Feetech
- Model: FT5320M
- Supply voltage: 6 V to 7.4 V
- Servo type: digital
- Servo range: 0° to 180°
- Has a movement limiter
- Storage temperature: -30°C to 80°C
- Operating temperature: -20 °C to 60 °C
- Cable length: 30 cm

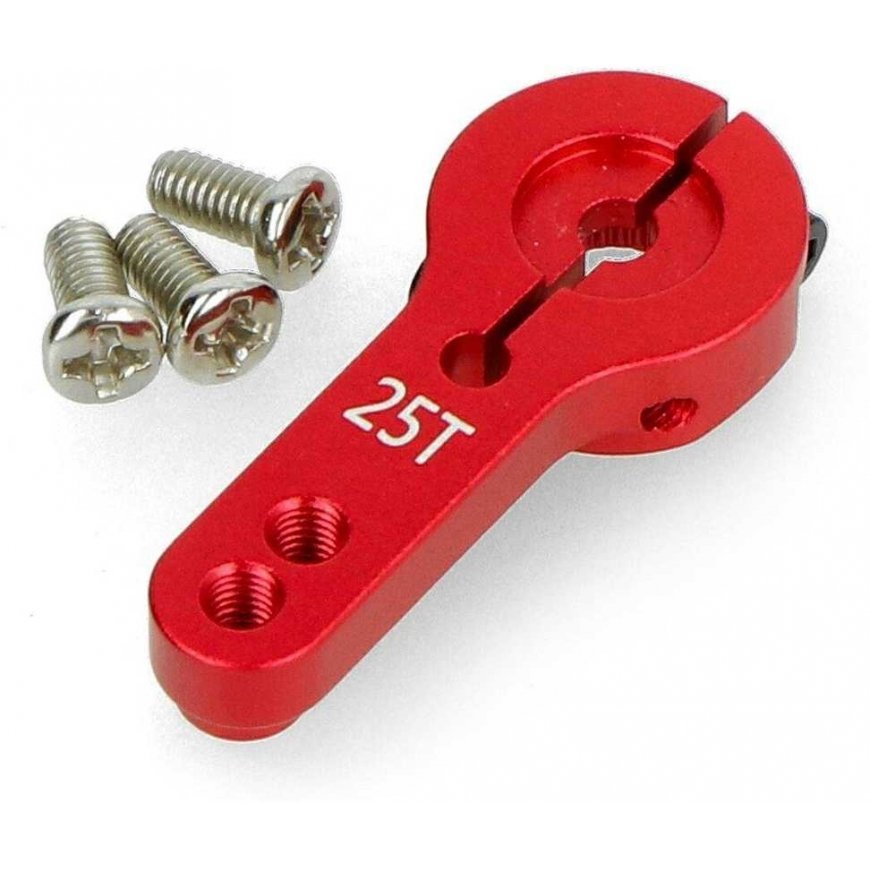

- Blade type: 25T / 9.5 mm
- Control:
- Stop position: 1500 µs
- Counterclockwise rotation: 1500 -> 2000 µs
- Maximum pulse range: 500 to 2500 µs
- Bearing: ball bearing
- Protection degree: IP54
- Connector: Standard JR connector
- Servo dimensions: 55 x 20 x 43 mm
- Weight: 67 g
- 6V specifications:
- Torque: 16.5 kg/cm
- Speed: 0.185 s/60°
- Current consumption when the spindle is stopped: 2.3 A
- Current consumption without load: 800 mA
- 7.4V parameters:
- Torque: 20 kg/cm
- Speed: 0.151 s/60°
- Current consumption when the spindle is stopped: 3 A
- Current consumption without load: 1000 mA

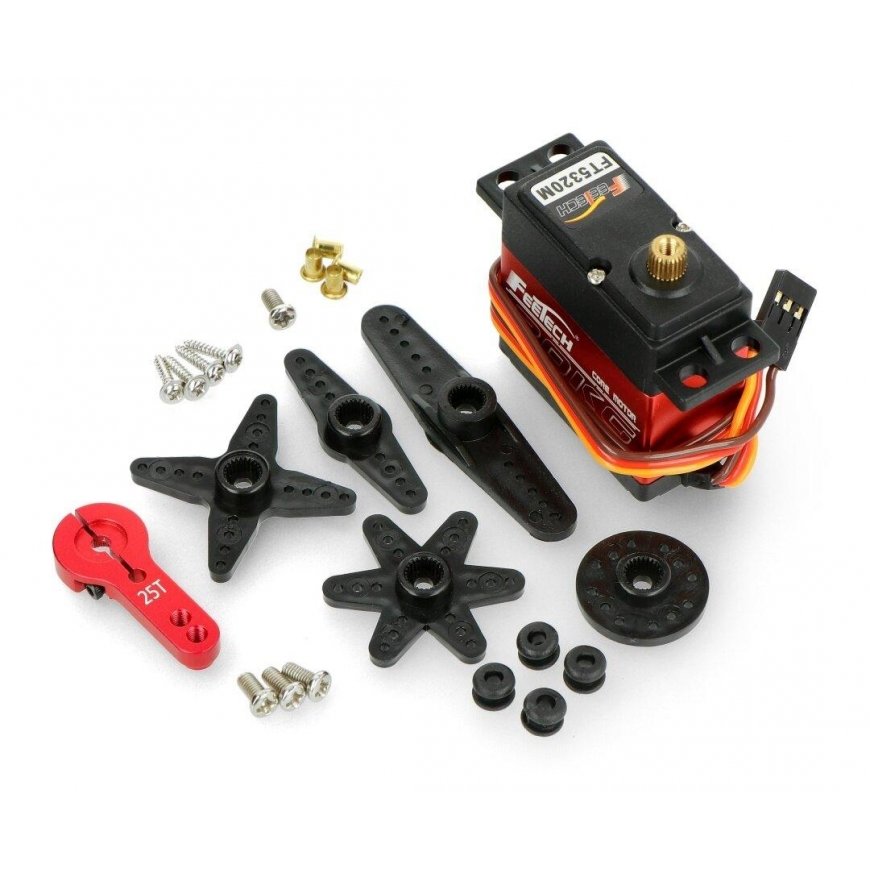

- Feetech servo FT5320M
- Blade set
- Mounting elements
