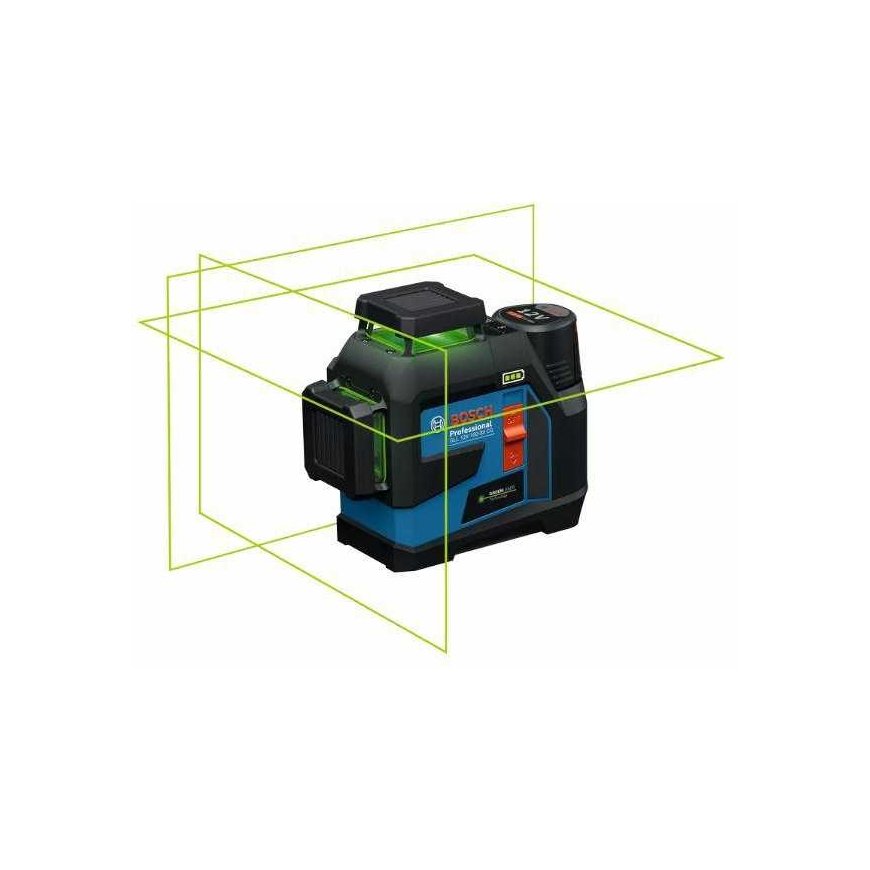

Bosch GLL 12V-100-33 CG, AA1, LB10
3678560 0601065400
4053423303285
Shipping 7-9 b.d.
All about the product
Technical data
Tripod thread 1/4", 5/8"
Battery voltage 12.0 V
Laser diode 500–540 nm, < 10 mW
Operating temperature -10–40 °C
Storage temperature -20–70°C
Laser class 2
Operating range* up to 30 m radius
Operating distance with receiver* up to 100 m radius
Leveling accuracy* ±0.3 mm/m?
Auto-leveling range ±4°
Leveling time 4 s
Dust and water protection
IP65 (excluding battery or battery adapter) Power supply
12 V lithium-ion battery, 4 x 1.5 V LR6 (AA) batteries Max. operating time 6 h (lithium-ion) and 4 h (4 x AA) in 3-line mode
Weight, approx.** 0.96 kg
Laser beam color green
Projection 3 lines 360°
Compatible LR 7 laser receivers
Operating range, value 30 m
Operating distance with receiver, value 100 m
