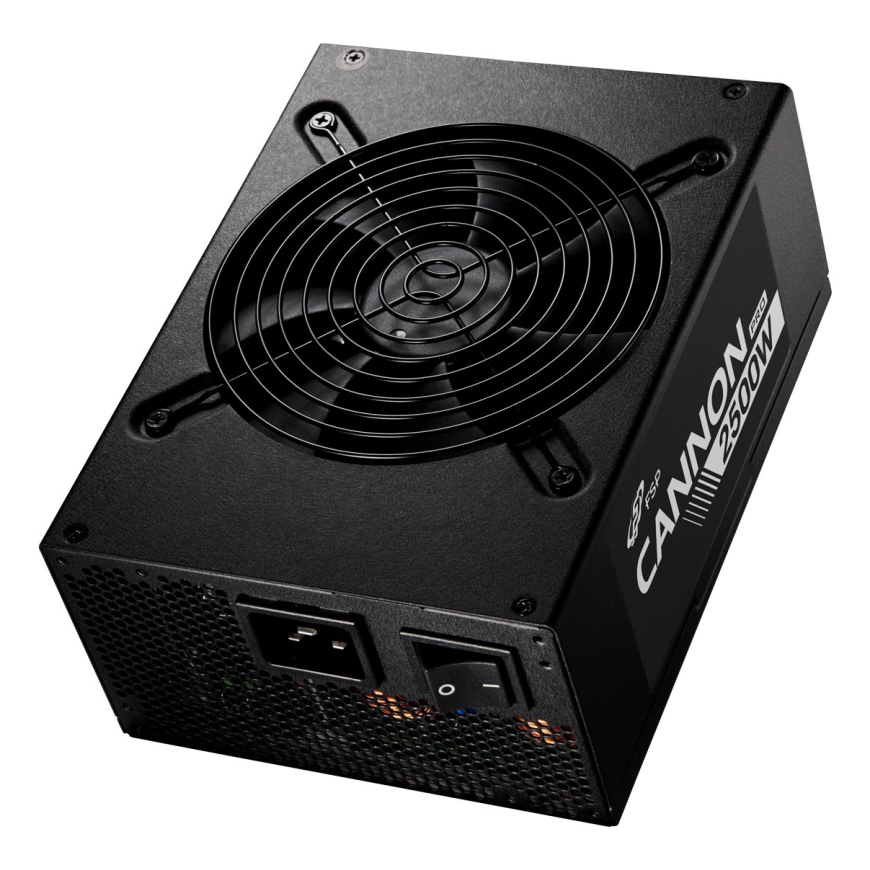

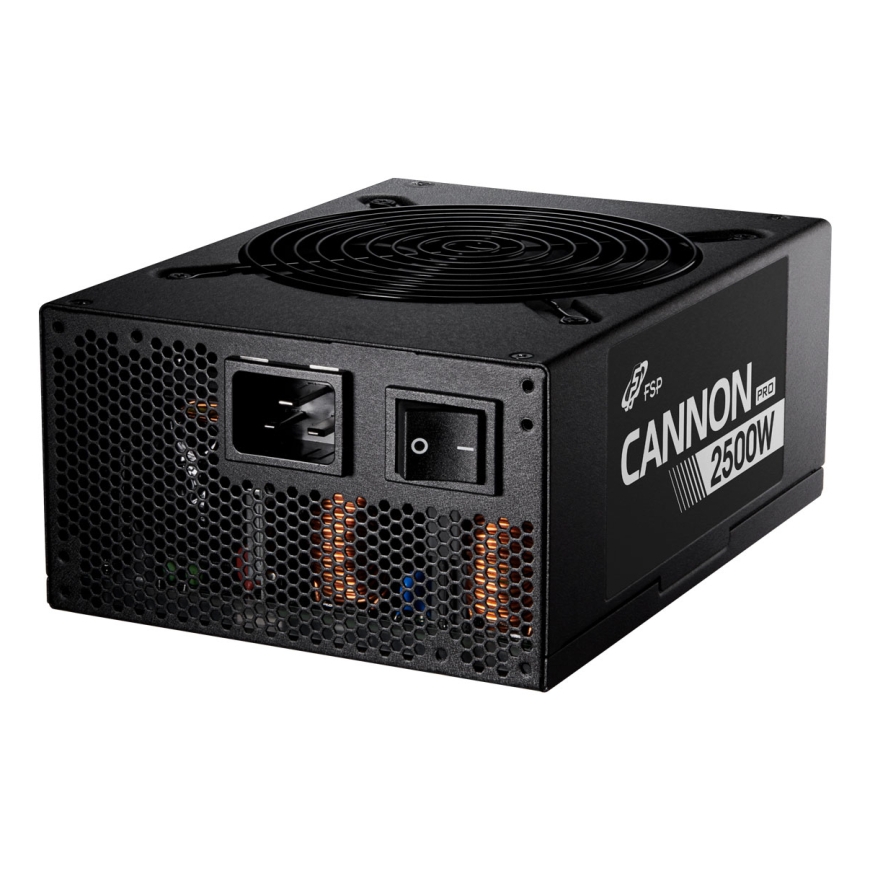

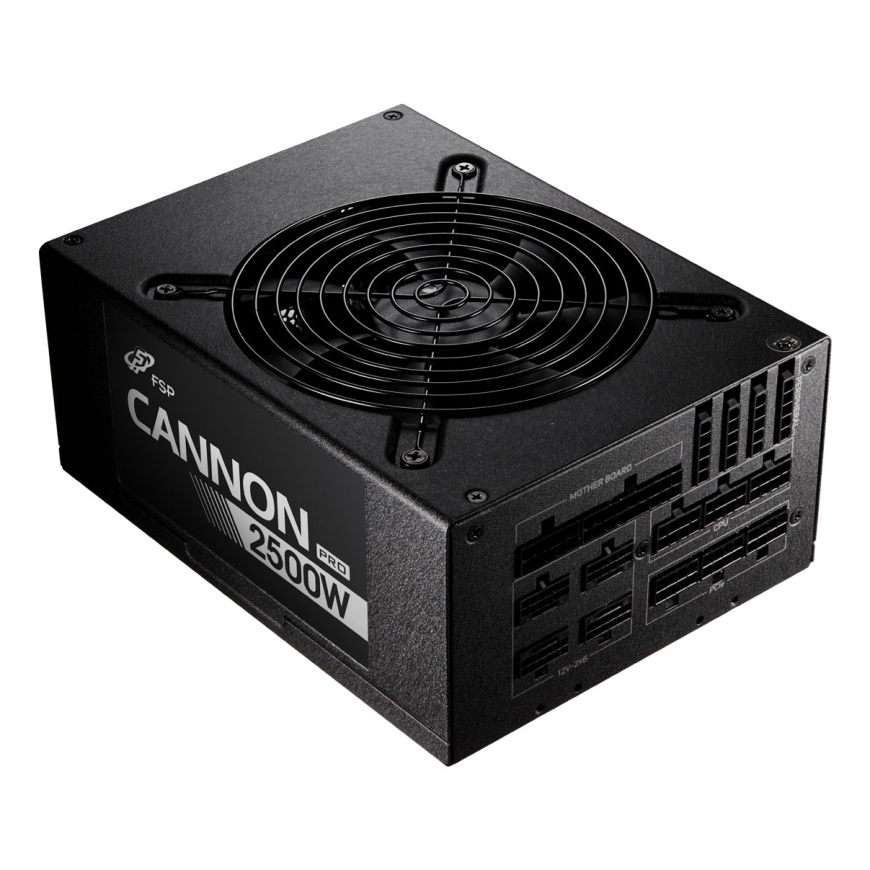

FSP CANNON PRO 2500W Power supply unit ATX ATX3.1 Black
598.99 €
Monthly payment from 16,32 €
3678386 PPA25A0102
4711498480286, 4711498480446
Shipping 3-5 b.d.
You are interested in this product?
All about the product
The Future is Now：ATX 3.1 & PCIe Gen 5.1 ReadyFollowing the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion to provide peak performance with modern hardware or future upgrades.
High efficiency in Platinum-certified
Certified by world-class organizations 80 PLUS® 230 EU platinum certification for lower power loss, less heat, and quieter operation.
Ready to Build Your Own AI PC Station

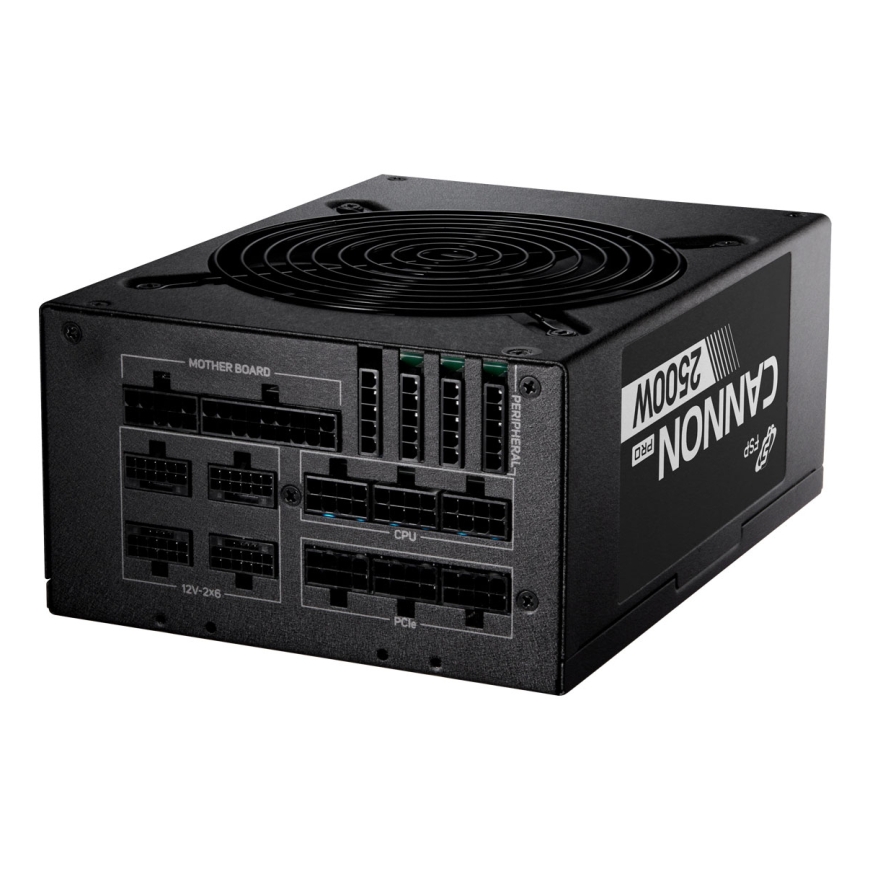

4 x PCIe 12V-2x6 and 3x PCIe 8 pin connectors
Supports four 12V-2x6 connectors and three 6+2 pin connectors, providing the power needed for high-end gaming, rendering, and multi-GPU setups.
Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
+5V & 3.3V DC to DC Circuit Design
Both of +3.3V and +5V DC – DC module combined +12V SR circuit offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation(unbalance load) mode.
105℃ Japanese Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Powerhouse Yet Energy-saving
High energy conversion up to 94% and 70% efficiency at 2% loading, with less than 0.5W consumption in standby mode, ensures an energy-efficient, cost-effective system that is also eco-friendly.

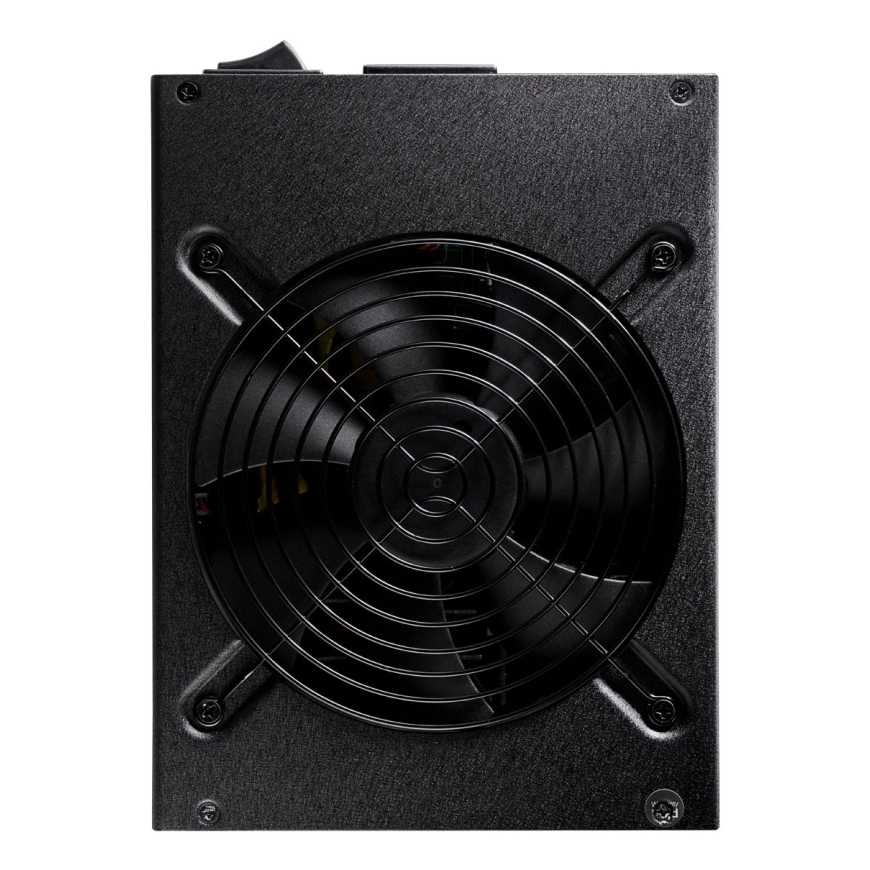

The Premium Quality FDB Fan
Built with optimized thermal solution and an advanced 135mm fluid dynamic bearing fan for cooler components and quieter operation.
Industrial – design: Conformal Coating for Rigorous Computing Environments
Provide power stably under rigorous, high-speed computing environments that need to operate 24 hours a day without interruptions.
Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.
Power | |
| Efficiency | 94% |
| Input current | 15 - 12 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage, Surge and inrush, No load operation, Under temperature |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 2499.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 208.3 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 4 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 2500 W |
Performance | |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| SATA power cable length | 965 mm |
| Peripheral (Molex) power cable length | 965 mm |
| Number of SATA power cables | 2 |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
