OLED display blue, 1.3” (B), 128x64px SPI/I2C, straight connectors, Waveshare 10451
21.35 €
3677629 AN-04441
5904422371968
Shipping 11-18 b.d.
You are interested in this product?
All about the product
OLED blue display with a diagonal of 1.3" and a resolution of 128x64px. The display is based on the SH1106 controller, operates at 3.3 V and 5 V, interacts via SPI or I2C. It has soldered straight gold pin connectors.
Specifications:
- Operating voltage: 3.3 V to 5.0 V
- Controller: SH1106
- Interface: SPI/I2C

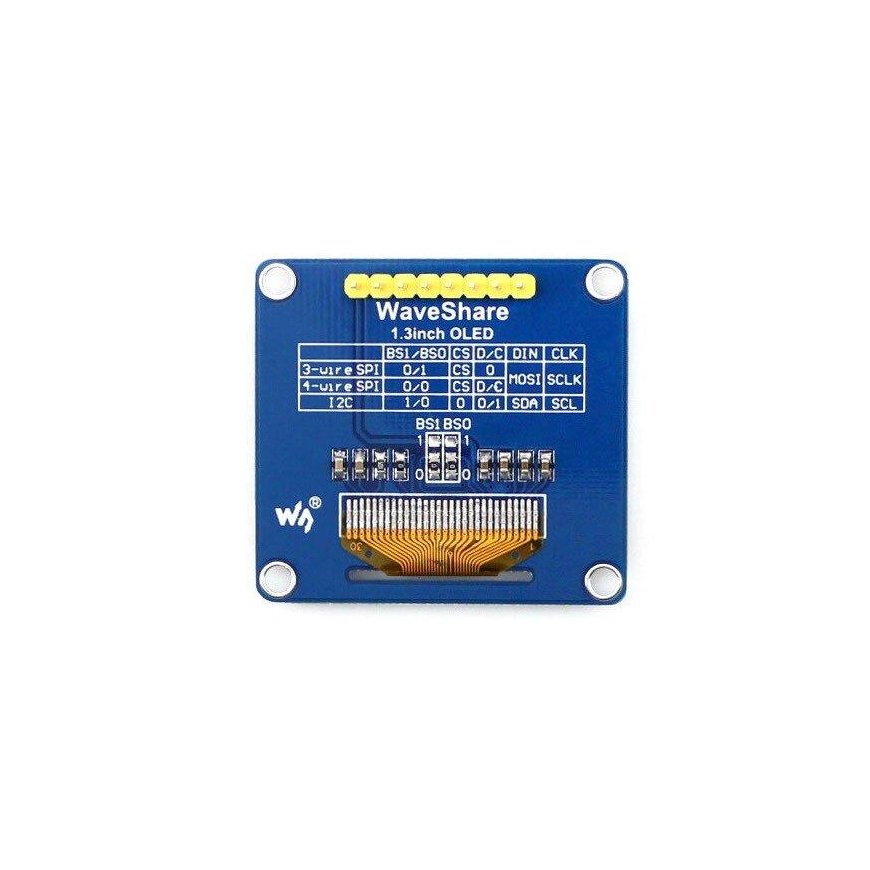

- Operating mode selection using jumpers BS0 and BS1
- Display type: OLED
- Diagonal: 1.3"
- Resolution: 128x64px
- Color: blue
- Viewing angle: over 160°
- Operating temperature: -20 °C to 70 °C
- Solder gold pin connectors - 2.54 mm

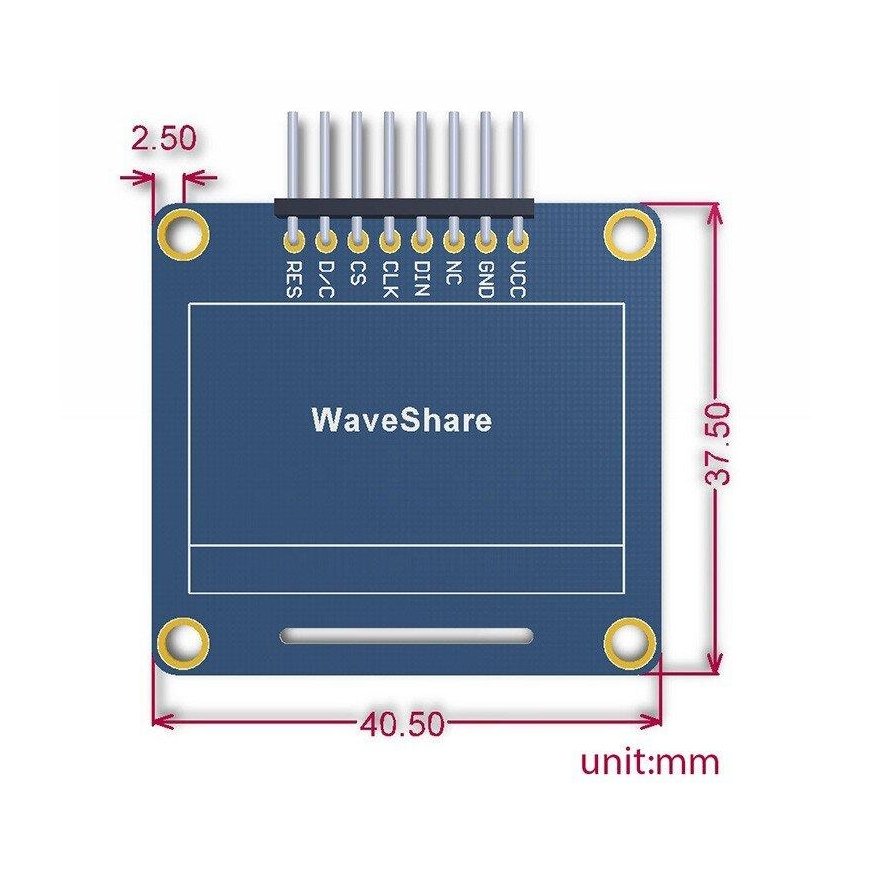

- Dimensions: 40.5 x 37.5 mm
