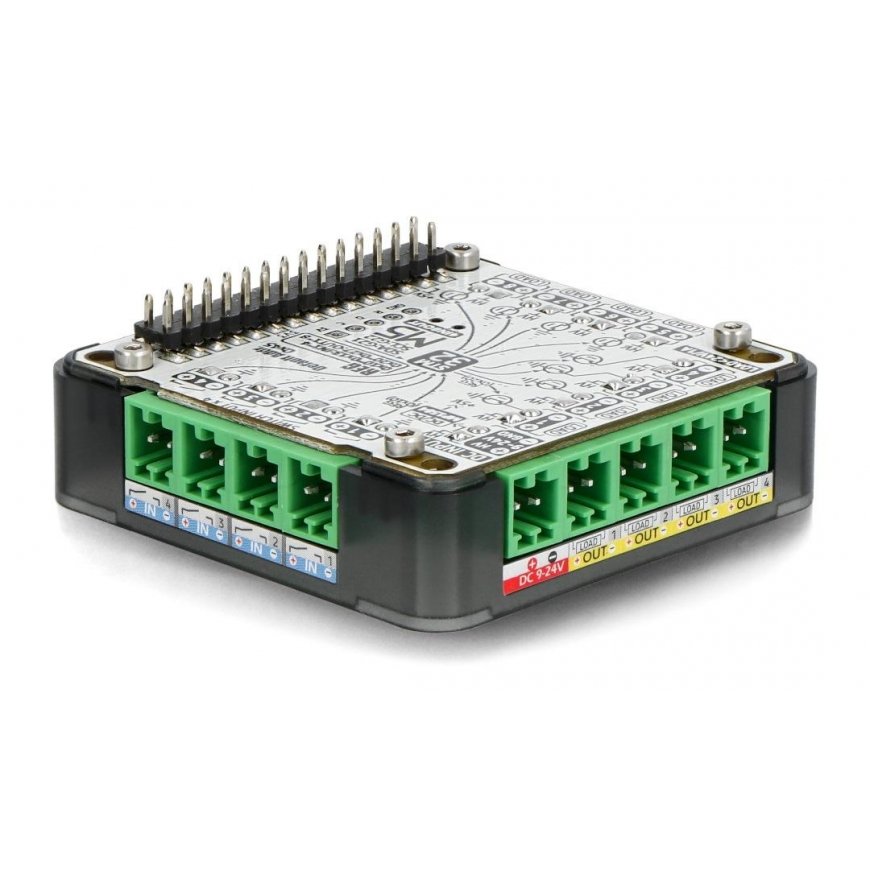

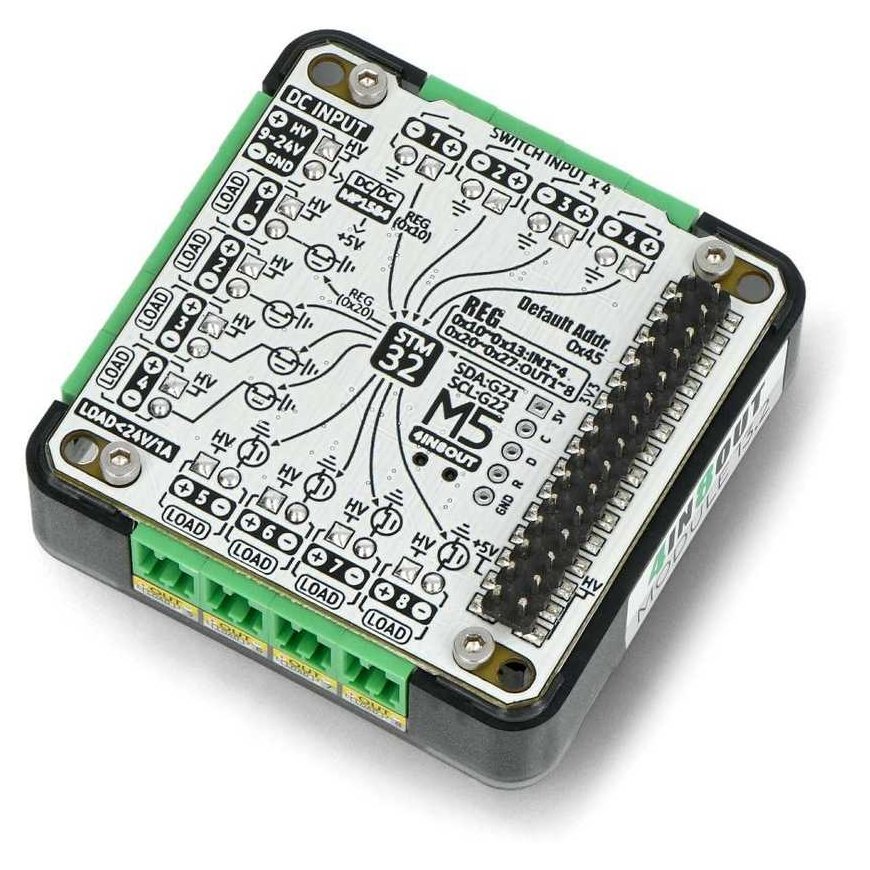

Multi-channel 4IN8OUT DC controller - STM32F030 - M5Stack M122
39.00 €
Monthly payment from 1,90 €
3677109 AN-21969
6972934173683
Shipping 11-18 b.d.
You are interested in this product?
All about the product

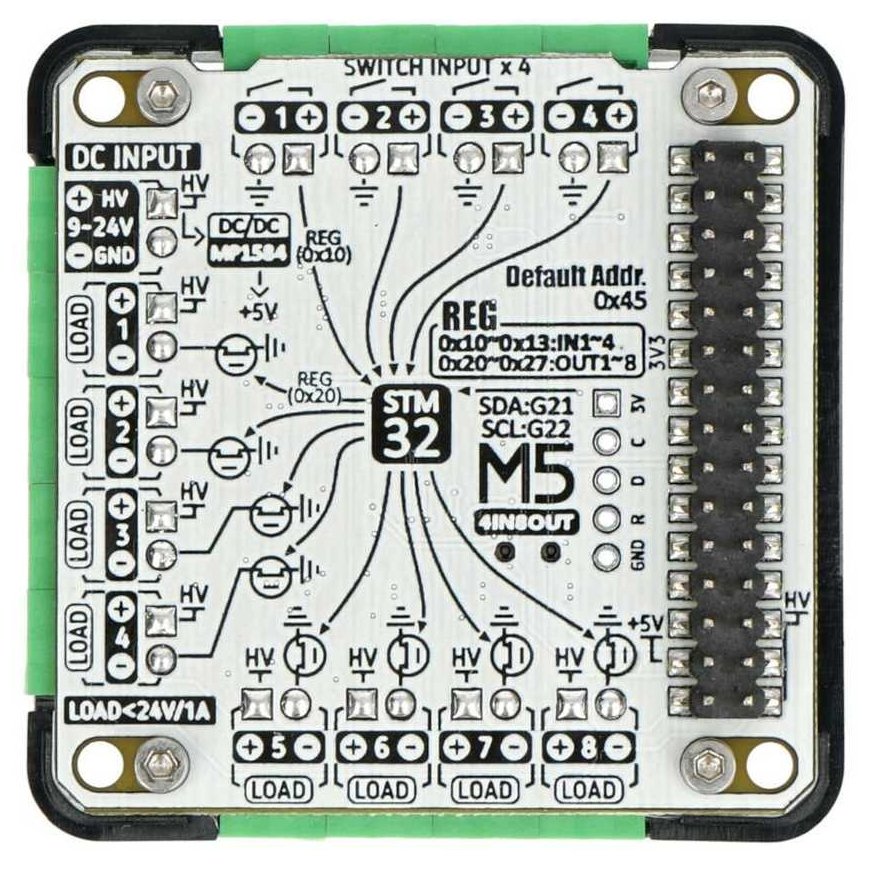

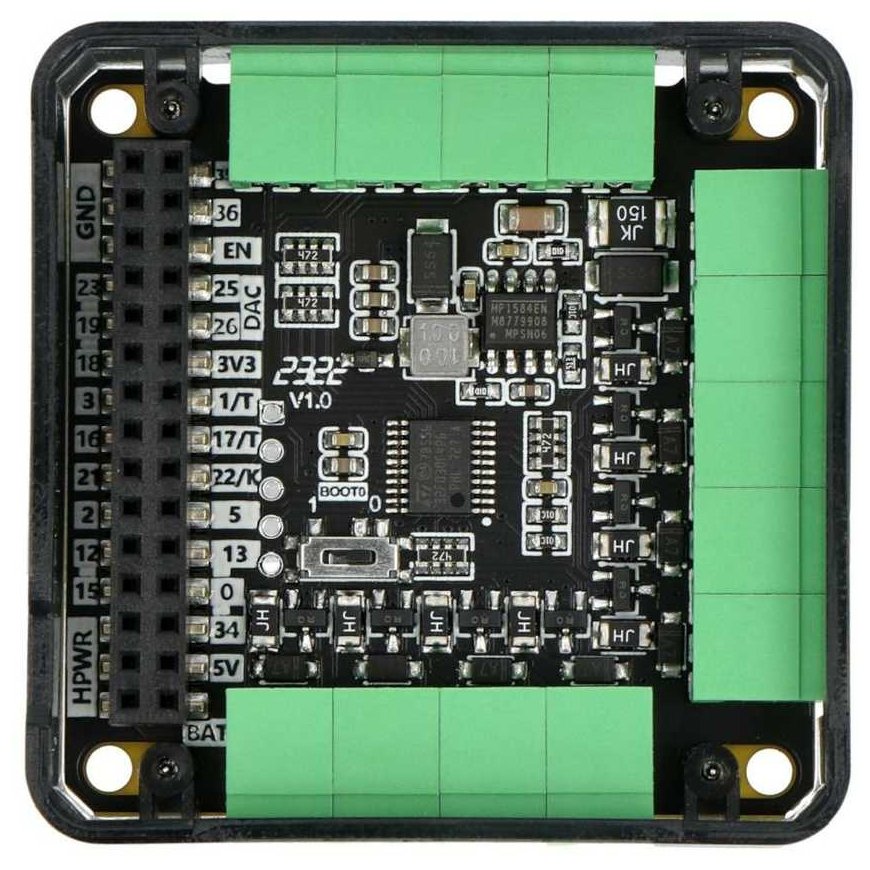

4IN8OUT is a multi-channel DC controller with an STM32F030 chip. The user is offered as many as 4 input channels that can act as switches, and as many as 8 MOS output channels. The add-on is powered by a 9-24 V DC voltage, and there is also a DC/DC converter inside the system that reduces the voltage to 5 V. The multi-channel 4IN8OUT is an expansion for the M5Stack Core Basic, M5Stack Fire and M5Stack Core2 development modules. The kit also includes screw connectors for easy connection of peripherals.Main features:
- Compatible with M5Stack Core Basic, M5Stack Fire and M5Stack Core2 development modules
- Integrated STM32F030 as an I/O chip, I2C communication with the ability to change the address
- Has an internal MP1584 voltage converter, from 9 V to 24 V -> 5 V DC/DC
- Output load < 1 A per channel
- Equipped with as many as 12 channels - 4 inputs and 8 outputs
- Used as a multi-channel controller, such as a relay, valve, single-phase motor, single LED
- Input voltage range: 9 V to 24 V
- Number of channels: 12
- Number of inputs: 4
- Number of outputs: 8
- Output load: < 1 A per channel
- Interface: I2C bus
- Interface address: default 0x45, can be changed by changing the 0xF0 register
- Module dimensions: 54 x 54 x 13 mm
- Weight: 21.9g
- Multichannel 4IN8OUT - multichannel DC controller - STM32F030 - 1 pc.

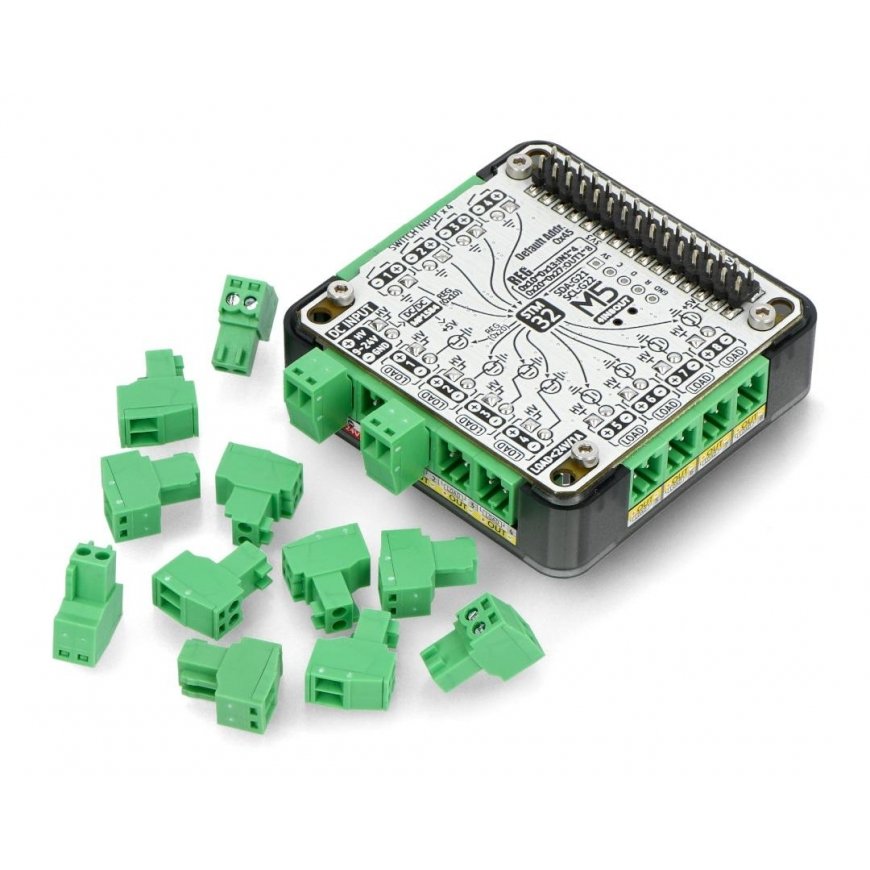

- 2-pin screw terminals - 13 pcs.
