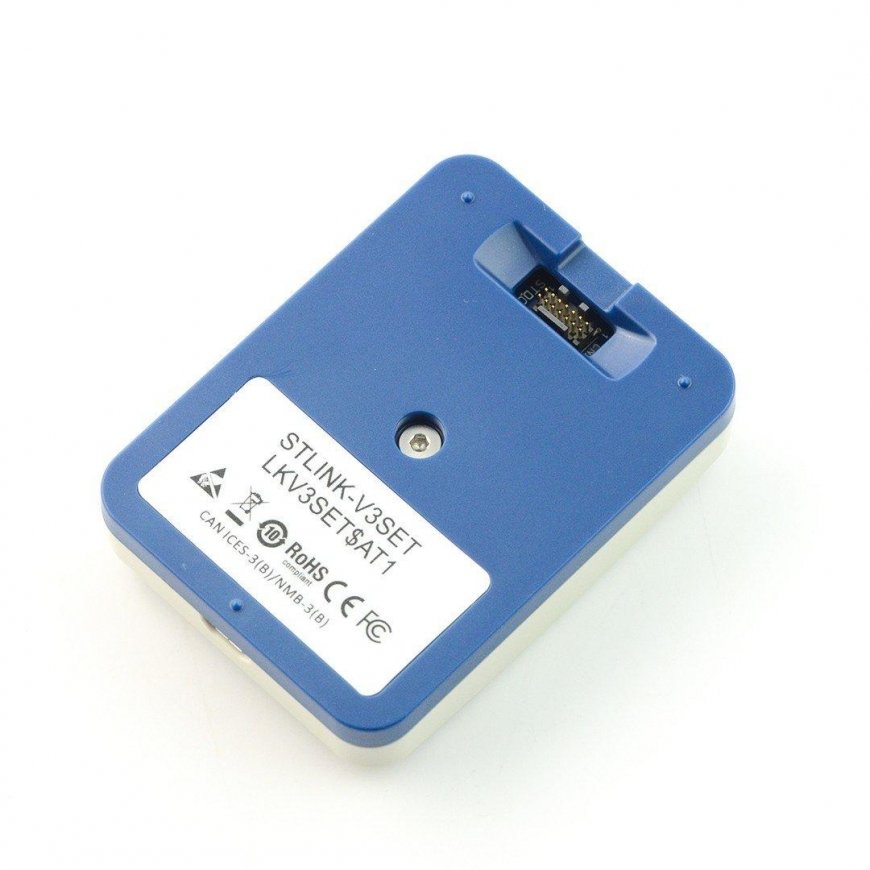

Stmicroelectronics STLINK-V3SET - circuit debugger/programmer
99.00 €
Monthly payment from 3,45 €
3675534 AN-14282
5904422322021
Shipping 11-18 b.d.
You are interested in this product?
All about the product

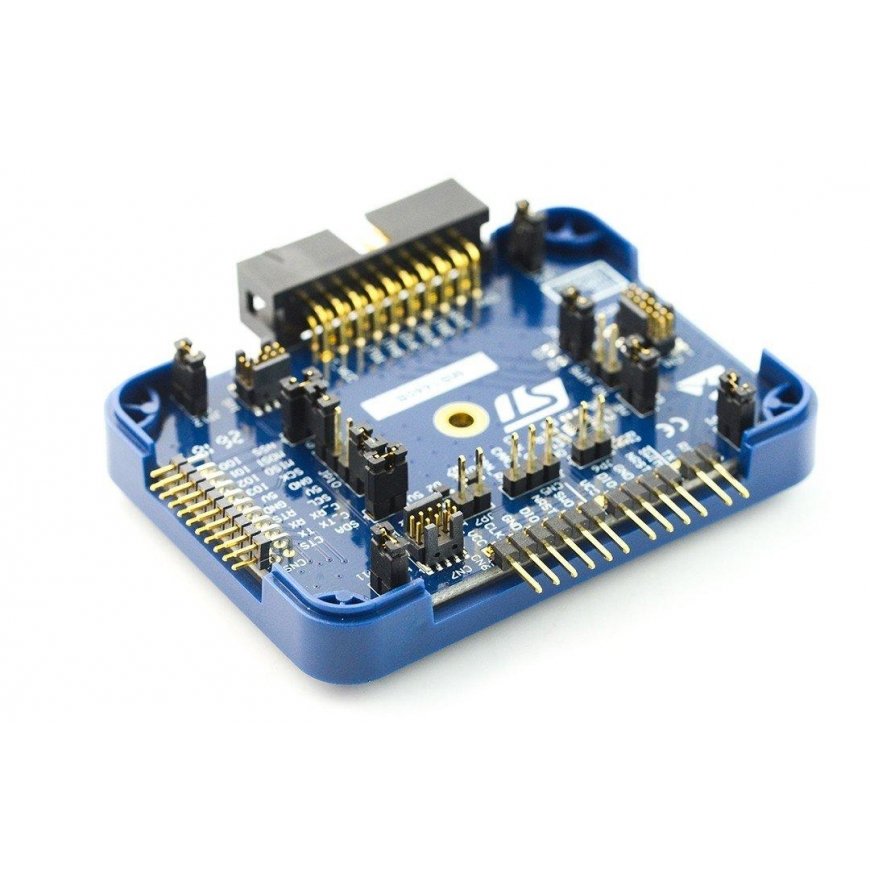

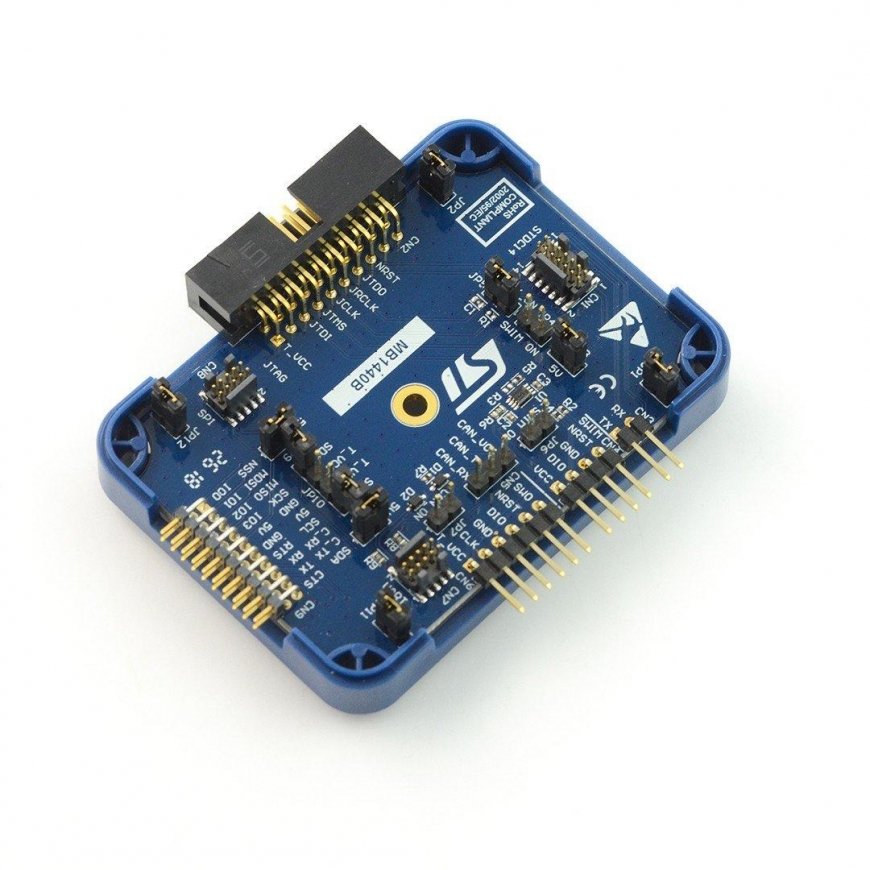

Modular debugger and programmer for STM8 and STM32 microcontroller families. It consists of a main module and an expansion board adapter. A virtual COM port connects the computer to the microcontroller via a UART interface and a bridge (SPI, I2C, CAN, GPIO). The modular architecture of ST-Link-V3Set allows you to expand its basic functions with additional modules, for example, adapter boards.
Specifications:
- Drag and drop FLASH programming
- VCP frequency up to 15 MHz
- Supports 3V to 3.6V supply voltage for UART interface and 5V tolerant inputs
- Low and high speed SWIM supported
- Communication support JTAG
- Direct Firmware Update Support (DFU)
- USB 2.0 interface
- Powered via microUSB connector (microUSB B)
- Probe with extensions
- Signal LEDs

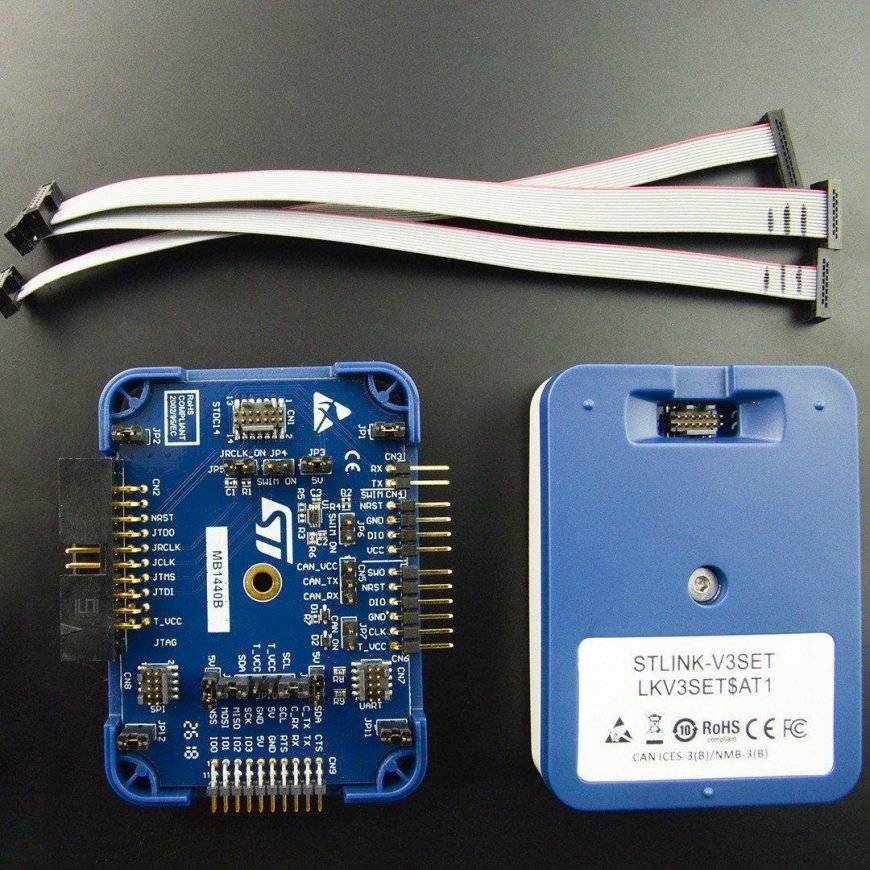

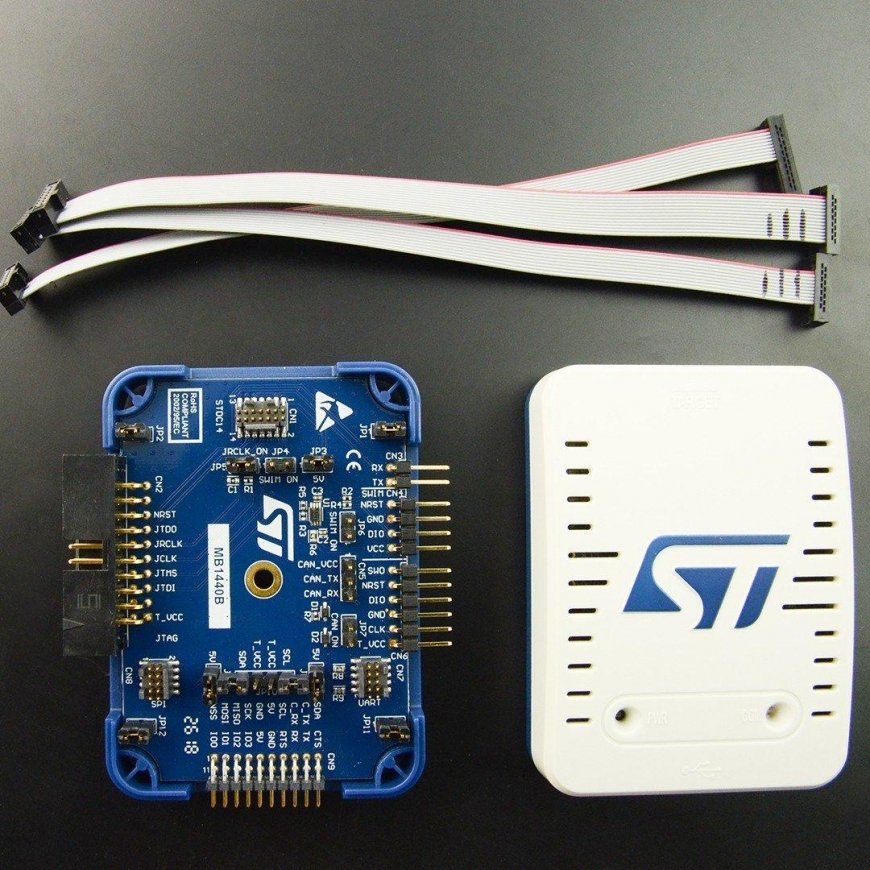

Included:
- STLINK-V3Set
- Expansion board with mounting elements
- JTAG cable
