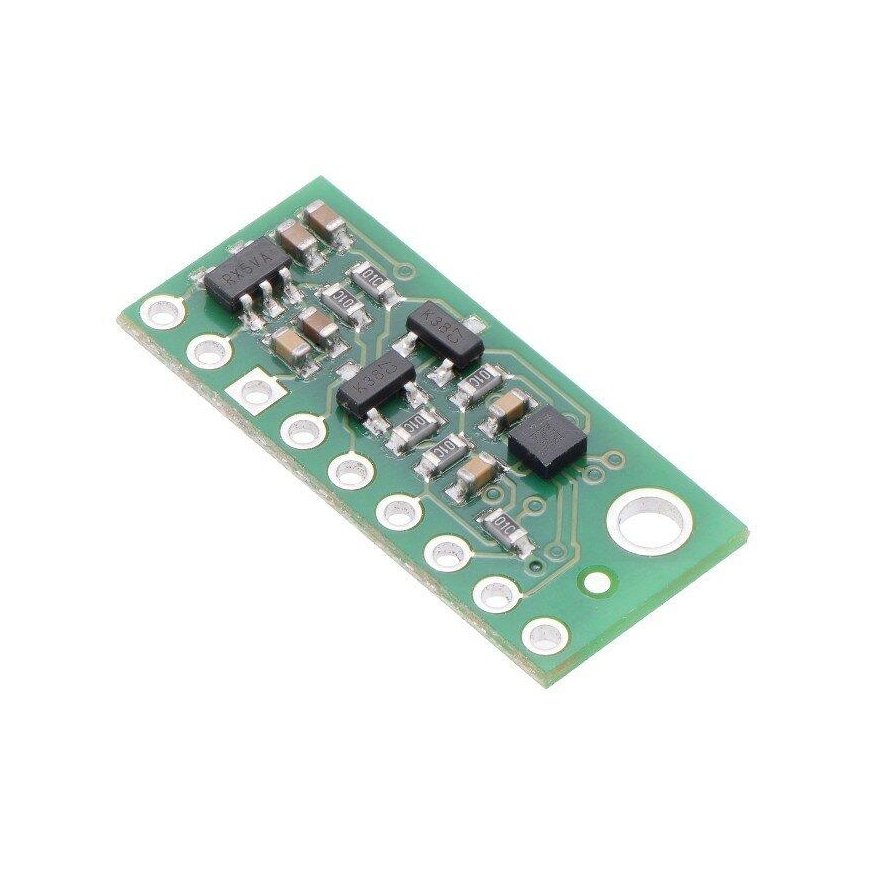

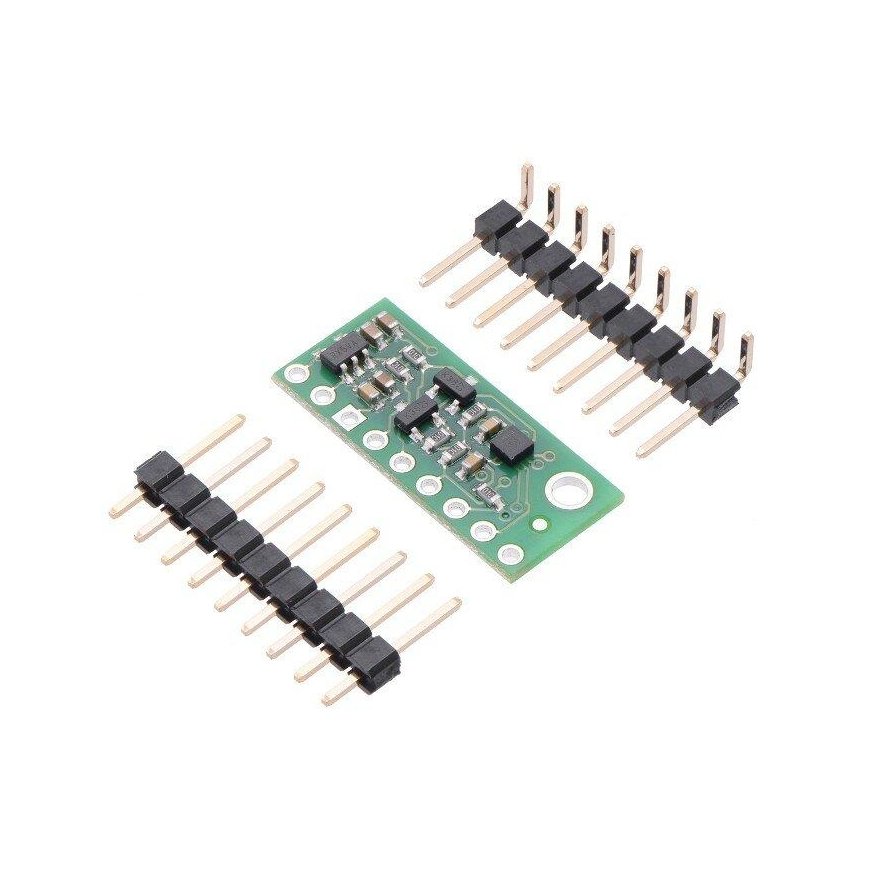

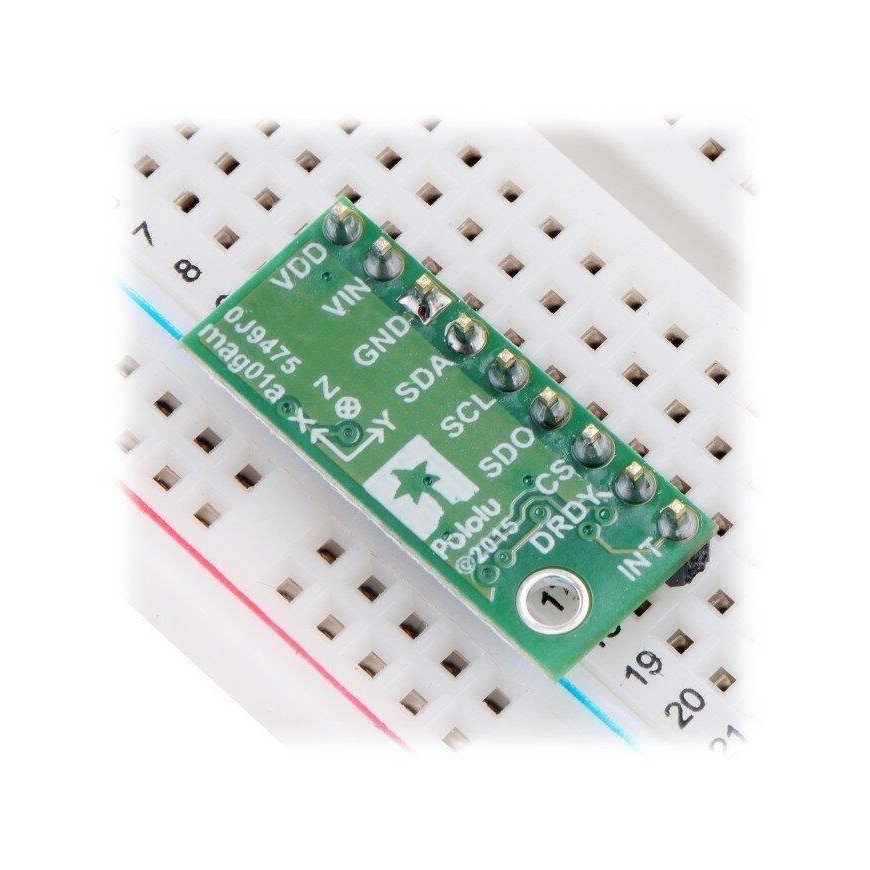

LIS3MDL 3-axis digital magnetometer I2C/SPI, Pololu 2737
29.00 €
3674778 AN-05330
5904422367329
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Sensor for measuring magnetic fields in three axes from ± 4 gauss to ± 16 gauss. The supply voltage is from 2.5 V to 5.5 V, the sensor is characterized by small size, low power consumption and ease of use. Communicates via I2C or SPI bus.
Specifications:
- Supply voltage: 2.5 V to 5.5 V
- Current consumption: 3 mA
- Three axes: X, Y, Z

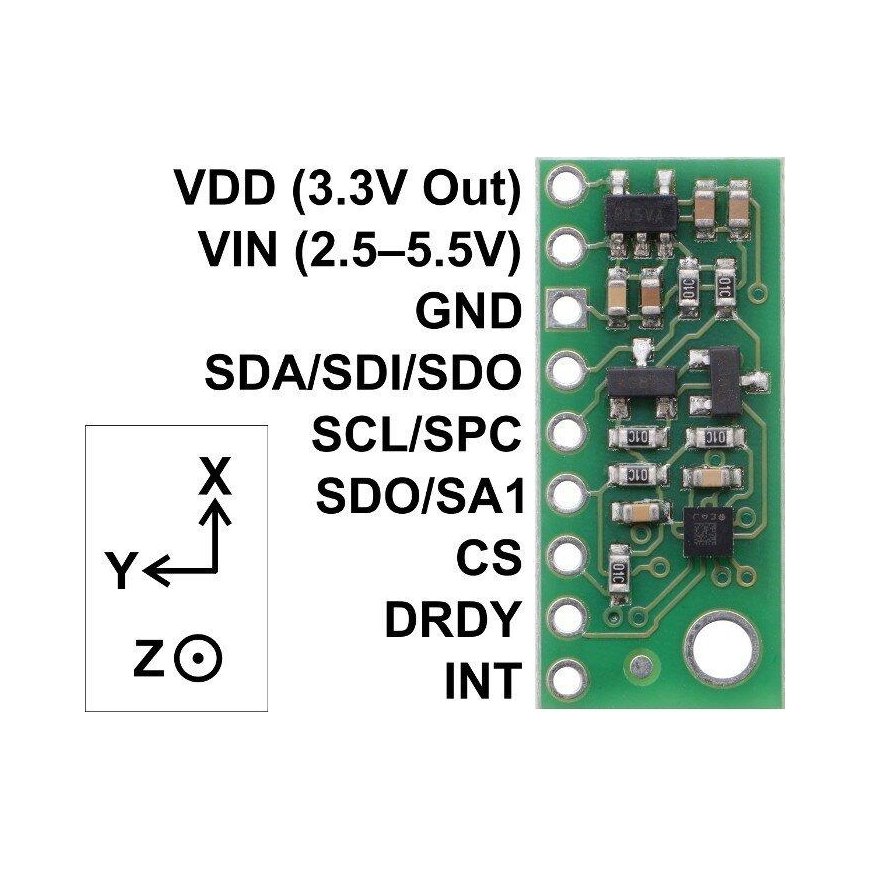

- Interface:
- I2C - address: 0011110b or 0011100b
- SPI
- Resolution: 16 bits per axis
- Measuring range (customizable): ±4, ±8, ±12, ±16 gauss

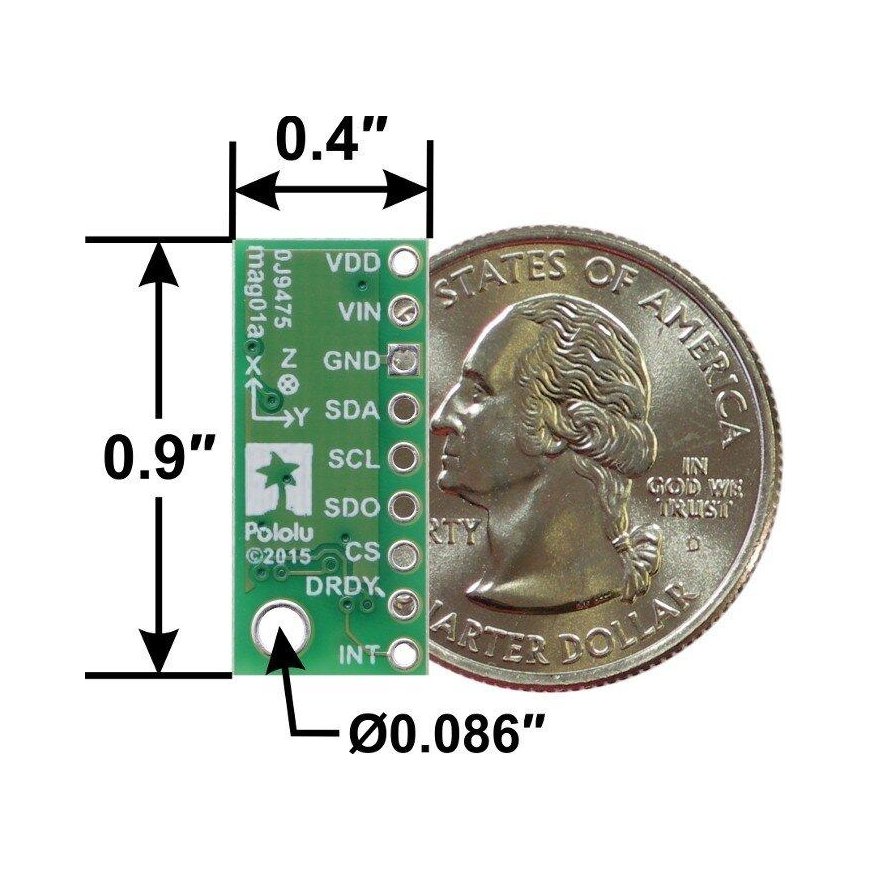

- Plate dimensions: 23 x 10 mm
Links:
Manufacturer's page
