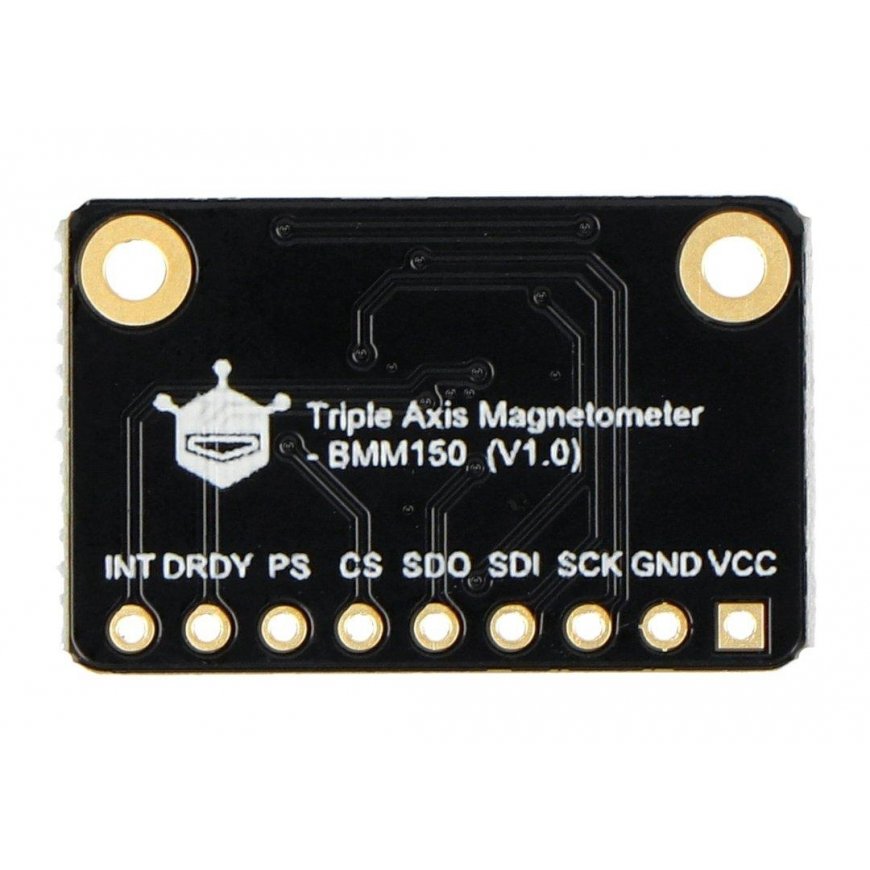

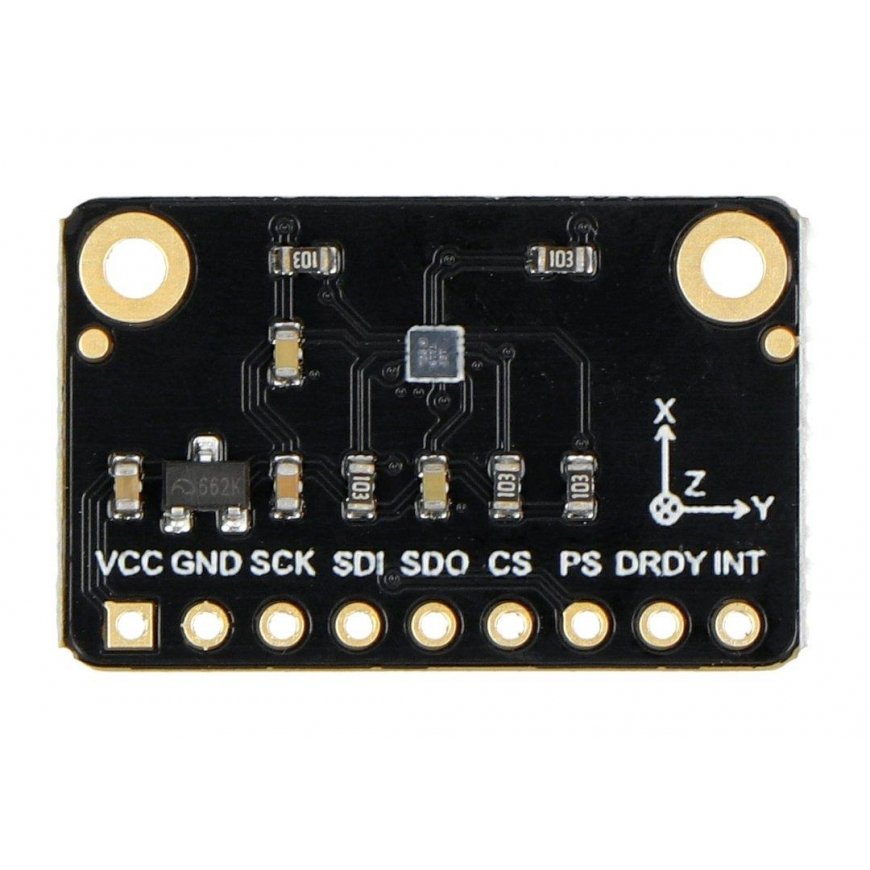

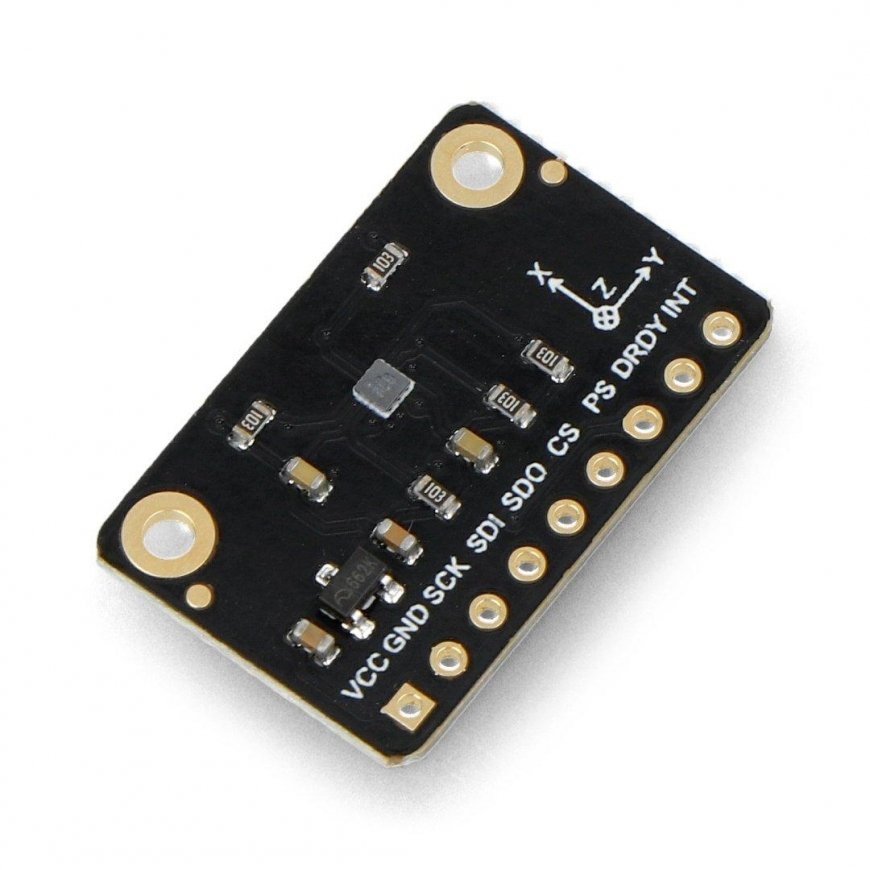

Fermion - 3-axis magnetometer - BMM150 - I2C/SPI - DFRobot SEN0419
19.00 €
3674469 AN-20994
6959420921553
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The module with a three-axis magnetometer from DFRobot, equipped with the Bosch BMM150 system based on FlipCore technology. It allows you to measure the magnetic field in the range of ± 1300 uT (X and Y axis) and ± 2500 uT (Z axis) with a measurement resolution of 0.3 uT. The module provides information about the absolute orientation with high measurement accuracy.Specifications:
- Supply voltage: 3.3V
- Measurement range: ± 1300 uT (X, Y axis), ± 2500 uT (Z axis)
- Measurement resolution: 0.3 uT
- Accuracy: 30 uT
- Zero B offset: ±40 uT / ±2 uT
- Nonlinearity: <1% FS
- Magnetometer heading accuracy: horizontal component of the geomagnetic field 30 uT, ± 2.5°
- Interface: I2C or SPI
- I2C bus address: 0x13
- Current consumption: from 170 uA to 500 uA
- Dimensions: 25 x 15 mm
- Fermion - 3-axis magnetometer - BMM150 - I2C/SPI - DFRobot SEN0419 - 1 pc
- 1x9 gold pin strip - 2.54 mm pitch - 1 pc.
