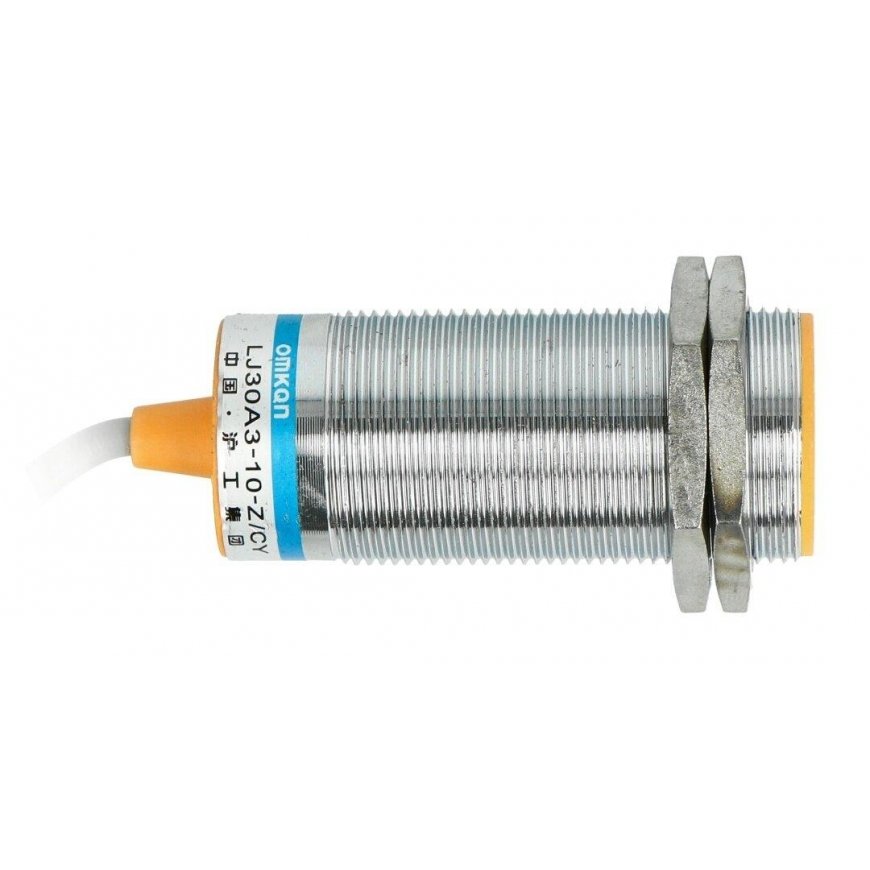

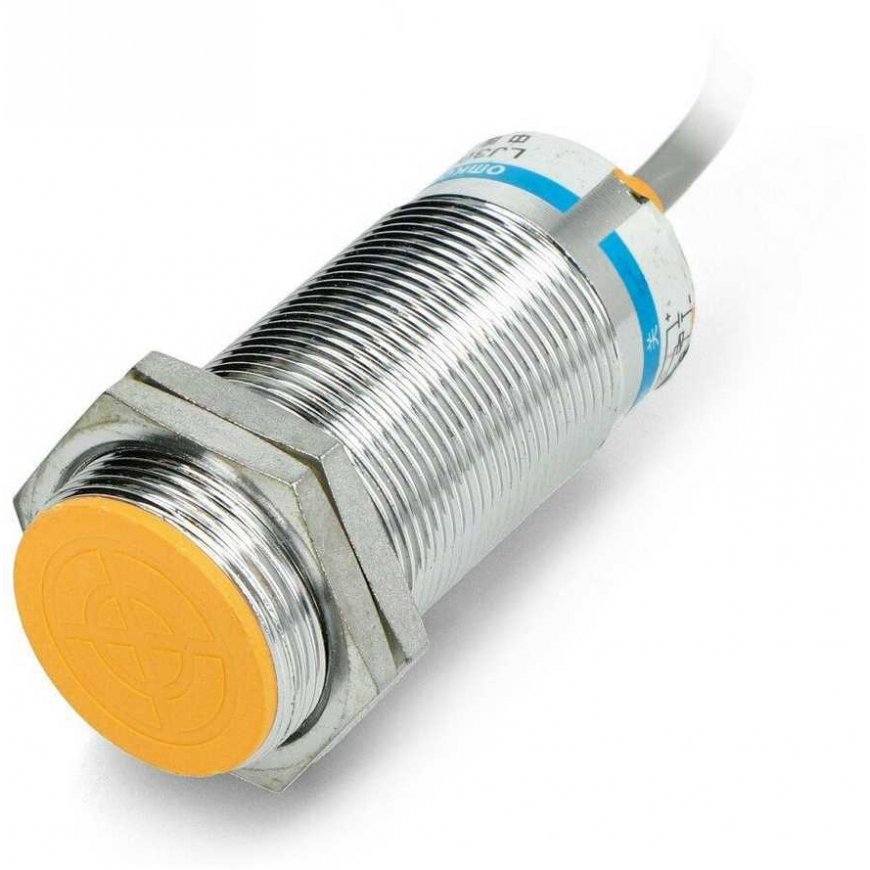

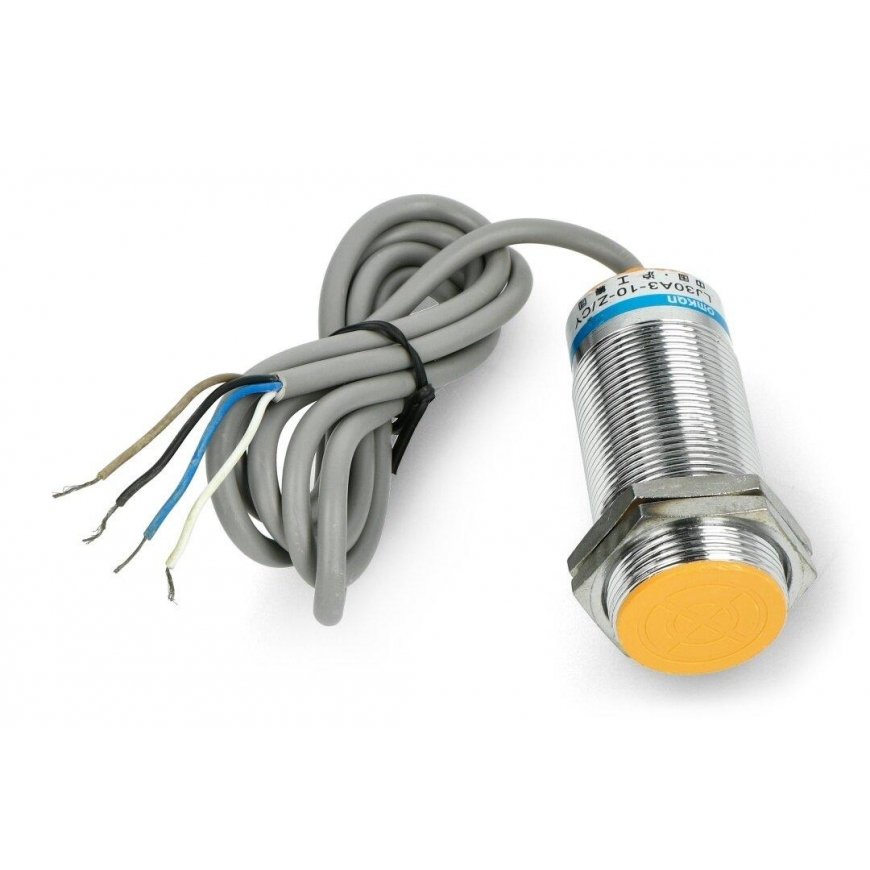

Oem Inductive distance sensor LJ30A3-10-Z/CY 10mm 6-36V
19.00 €
3674445 AN-18408
5904422379032
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Inductive digital distance sensor with 100 cm cable and nuts for easy installation. It detects metal up to 10 mm away. Object detection is signaled by a high state at the output. Powered by voltage from 6 V to 36 V.Specifications:
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0-10 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- Output type: PNP - NO+NC
- LED indicating object detection
- Detection object: metal
- Response time: less than 2ms
- Operating temperature: -30 °C to 65 °C
- Diameter: 12 mm
- Sensor length: 56 mm
