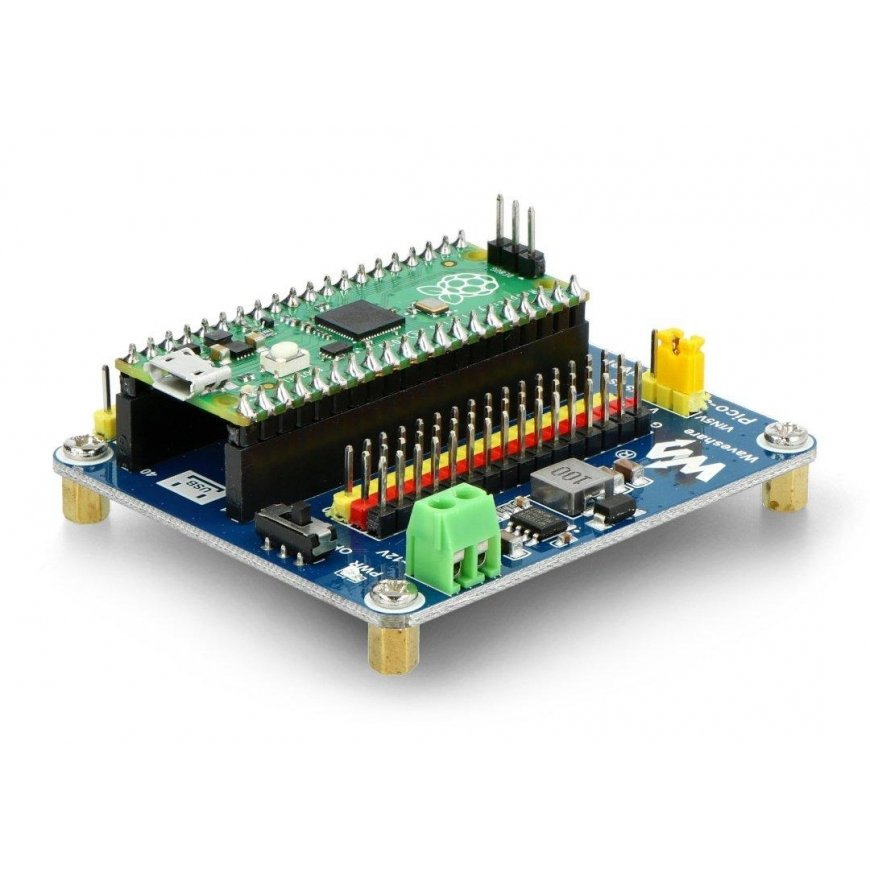

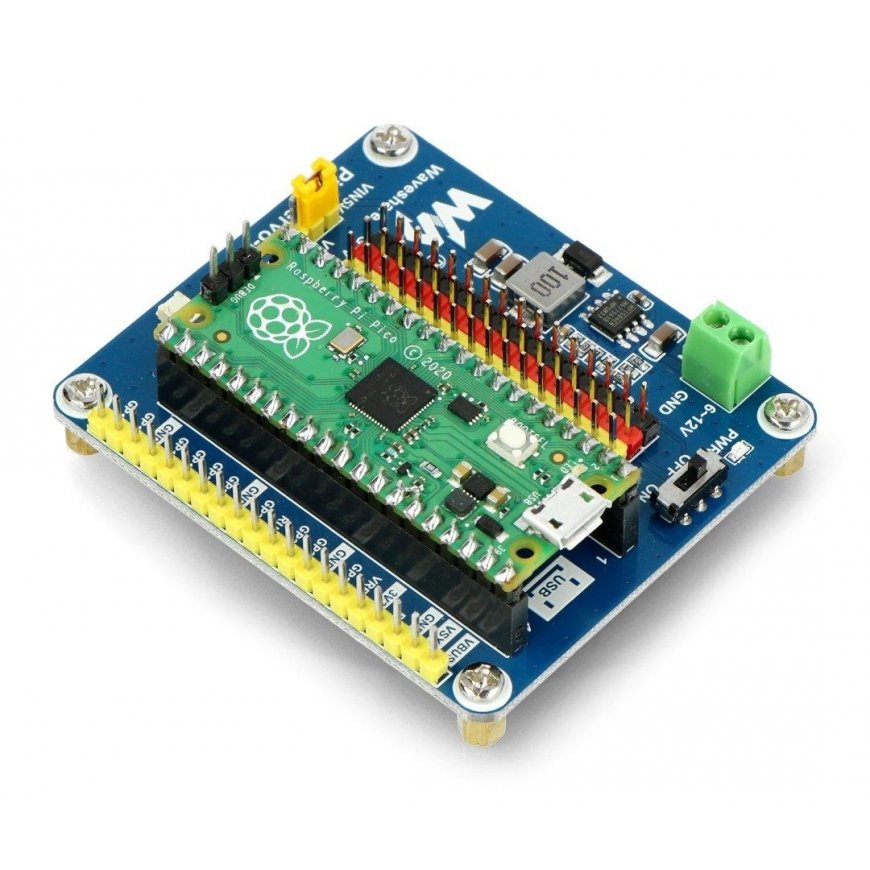

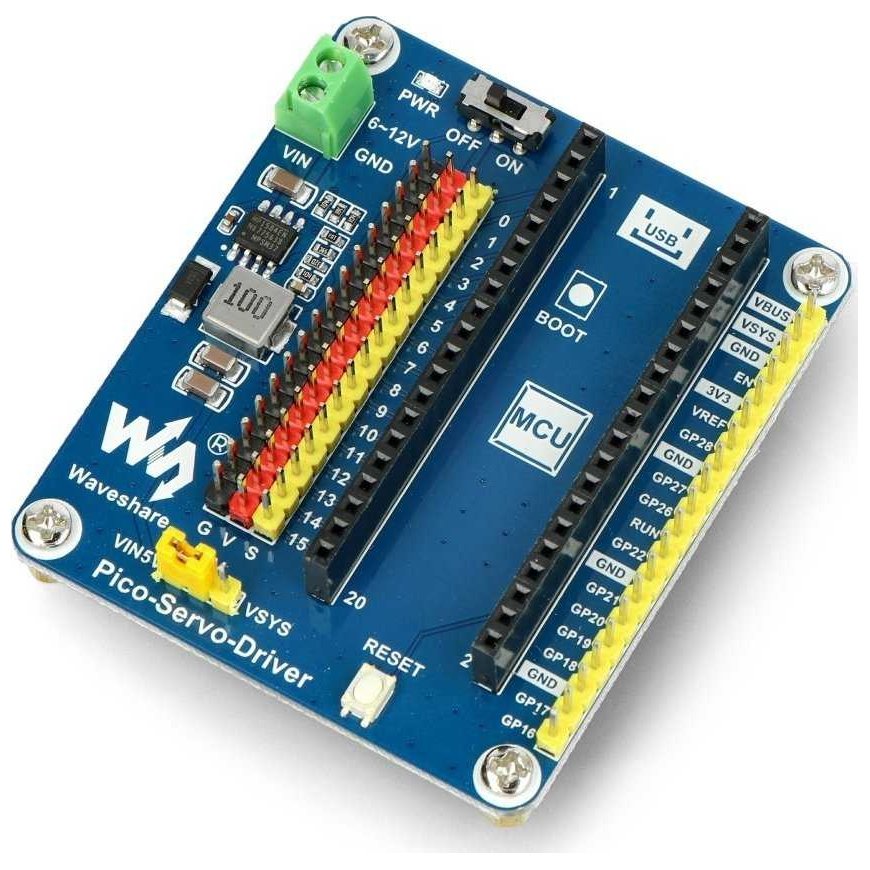

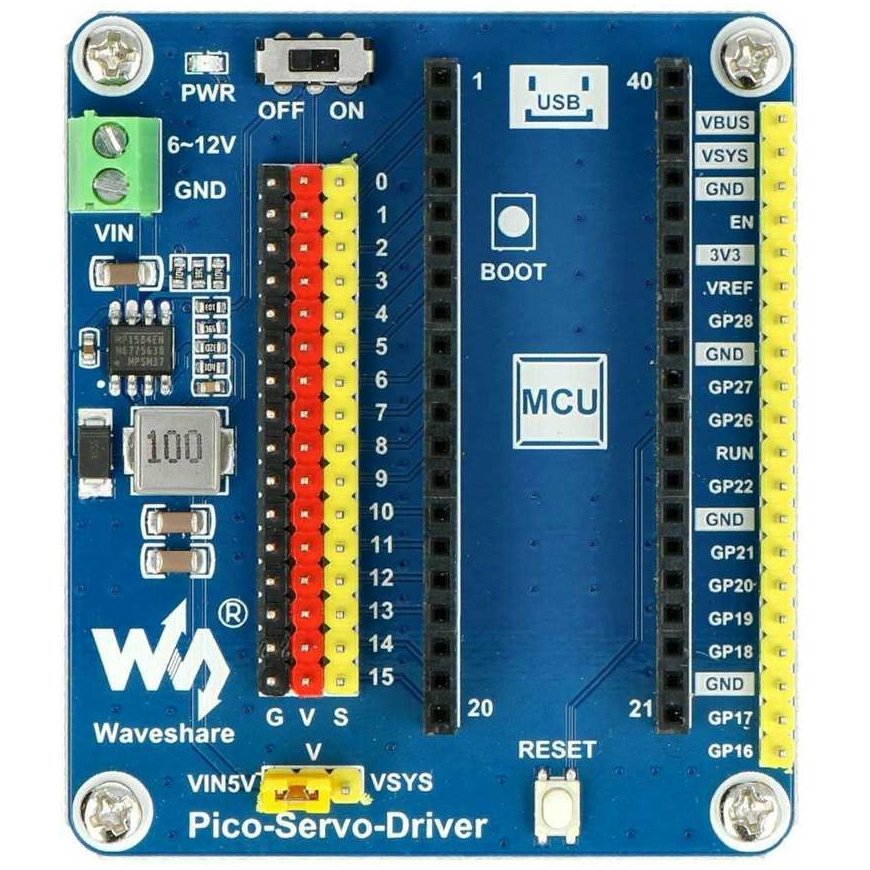

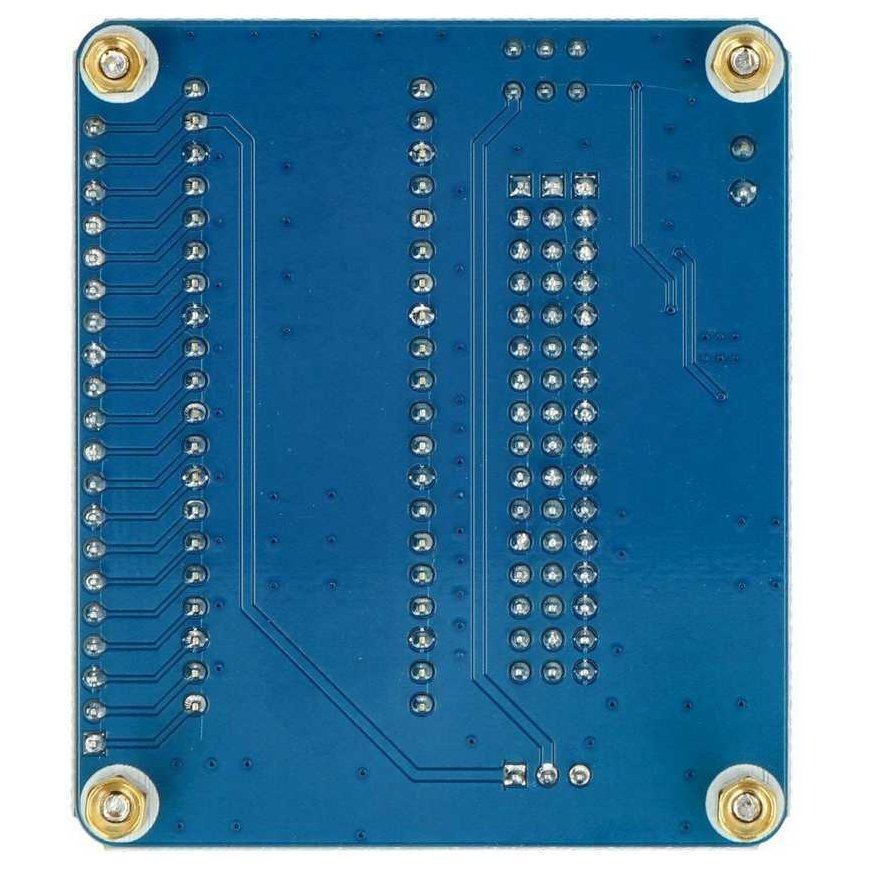

Servo controller 16 channels, 16-bit PWM, for Raspberry Pi Pico, Waveshare 19767
22.85 €
3673608 WSR-19721
5904422347277
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Raspberry Pi Pico expansion module for controlling 16 servos with 16-bit resolution. A PWM interface is used for interaction. The module also has a 5 V / max. 3 A output allowing battery power to be supplied via the VIN pin.Main features:
- Standard Raspberry Pi Pico connector
- 16-channel servo/PWM, 16-bit resolution for each channel
- Built-in 5V voltage regulator, maximum output current 3A, allows battery powering via VIN pin
- Standard servo interface
- Unused GPIO pins on the gold pin
- Supply voltage: 5 V (Pico) or 6 V to 12 V (VIN connector)
- Logic voltage: 3.3 V
- Servo logic voltage: 5 V
- Control interface: GPIO
- Mounting holes: 3 mm
- Dimensions: 65 x 56 mm
