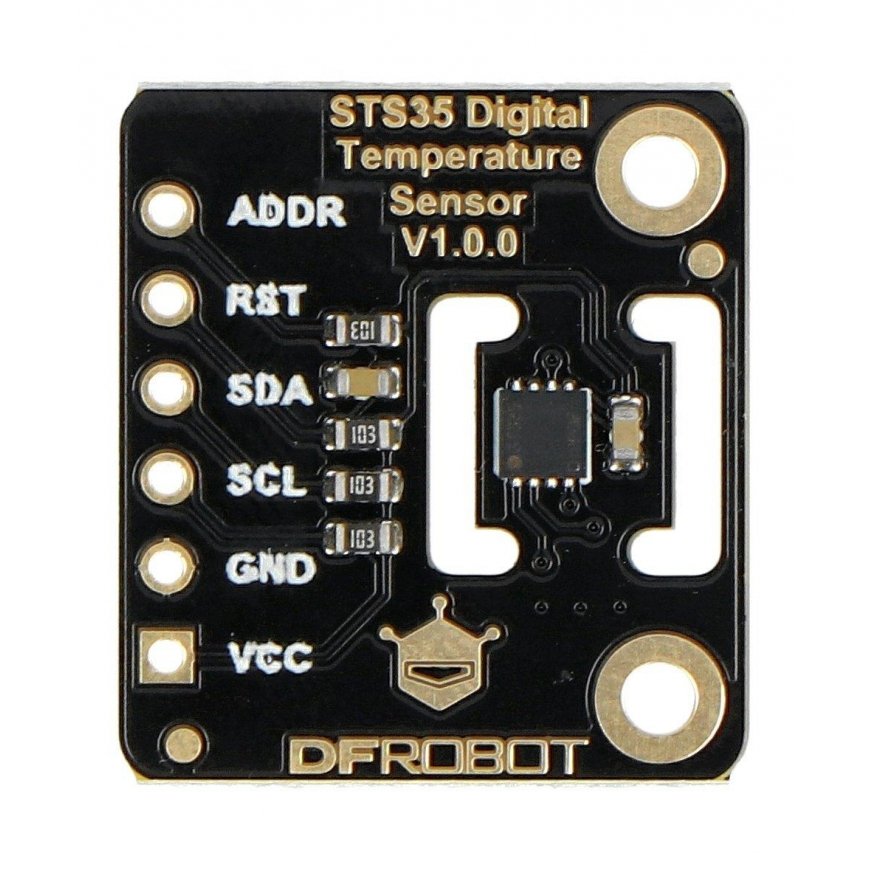

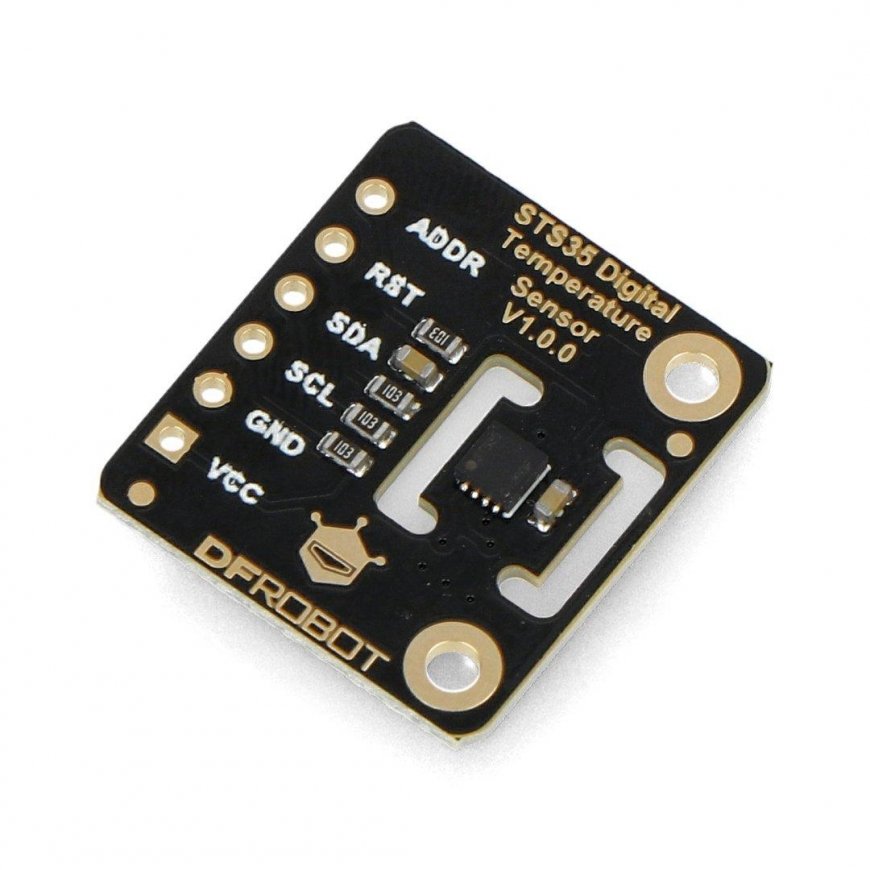

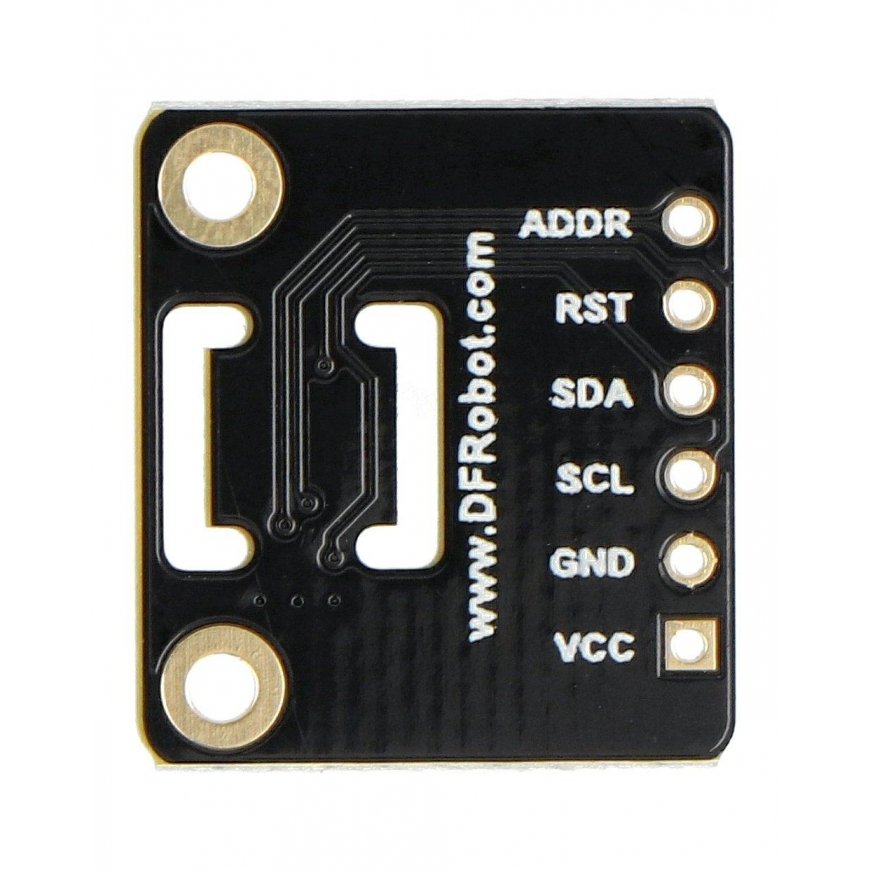

Fermion High Precision Temperature Sensor - STS35 - DFRobot SEN0434
21.18 €
3673231 AN-21228
6959420921973
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Temperature sensor with built-in STS35 system. This allows you to measure temperatures from -40 °C to 125 °C with a high measurement accuracy of ± 0.1 °C. The resolution of the resulting measurement is 0.01 °C. The module is characterized by reliability and durability, as well as low power consumption.Main features:
- Factory calibrated, with I2C signal output
- Wide temperature measurement range from -40°C to 125°C
- High measurement accuracy with 0.01 °C resolution and maximum error of ± 0.1 °C
- High reliability, long-term stability
- Type: High-precision temperature sensor
- Integrated chip: STS35
- Operating voltage range: 2.15 V to 5.5 V DC
- Power consumption: from 3.6 mW to 33 mW
- Interface: I2C bus
- I2C address:
- default - 0x4B
- configurable - 0x4A
- Measurement range: -40 °C to 125 °C
- Measurement accuracy: ± 0.1 °C
- Measurement resolution: 0.01 °C
- Response time: > 2s
- Communication speed: up to 1 MHz
- Operating temperature: -40 °C to 125 °C
- Outputs: soles
- Dimensions: 20 x 17.5 x 2 mm

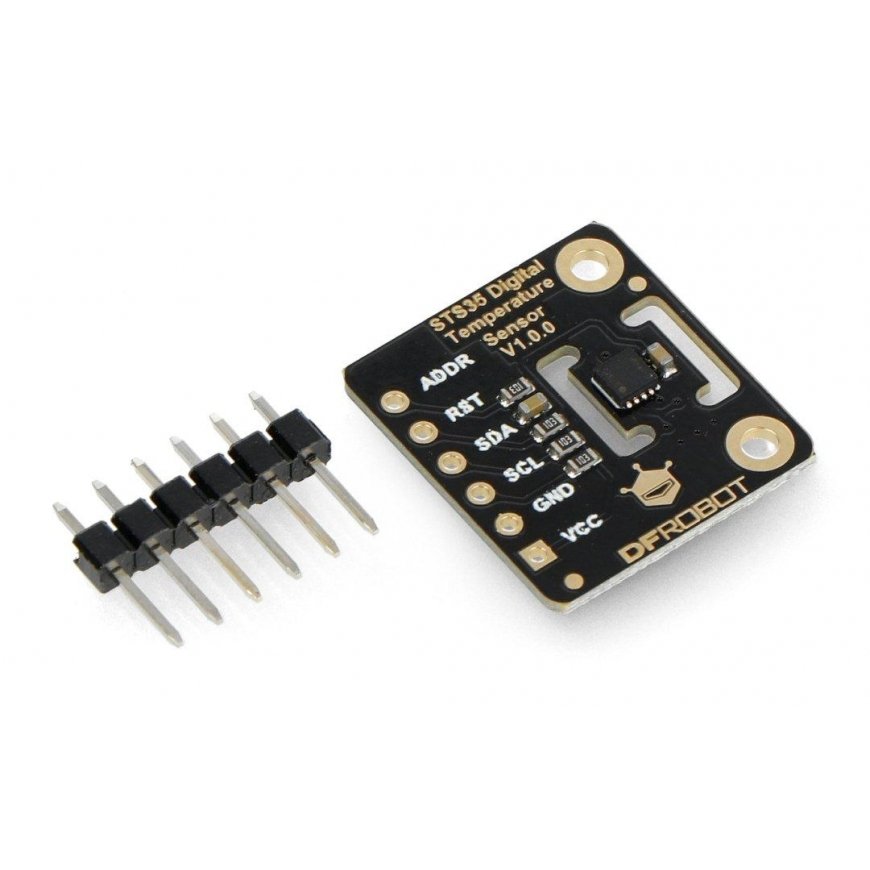

- Fermion - high-precision temperature sensor - STS35 - DFRobot SEN0434 - 1 pc.
- Gold pin strip 1x6 - 2.54 mm pitch - 1 pc.
