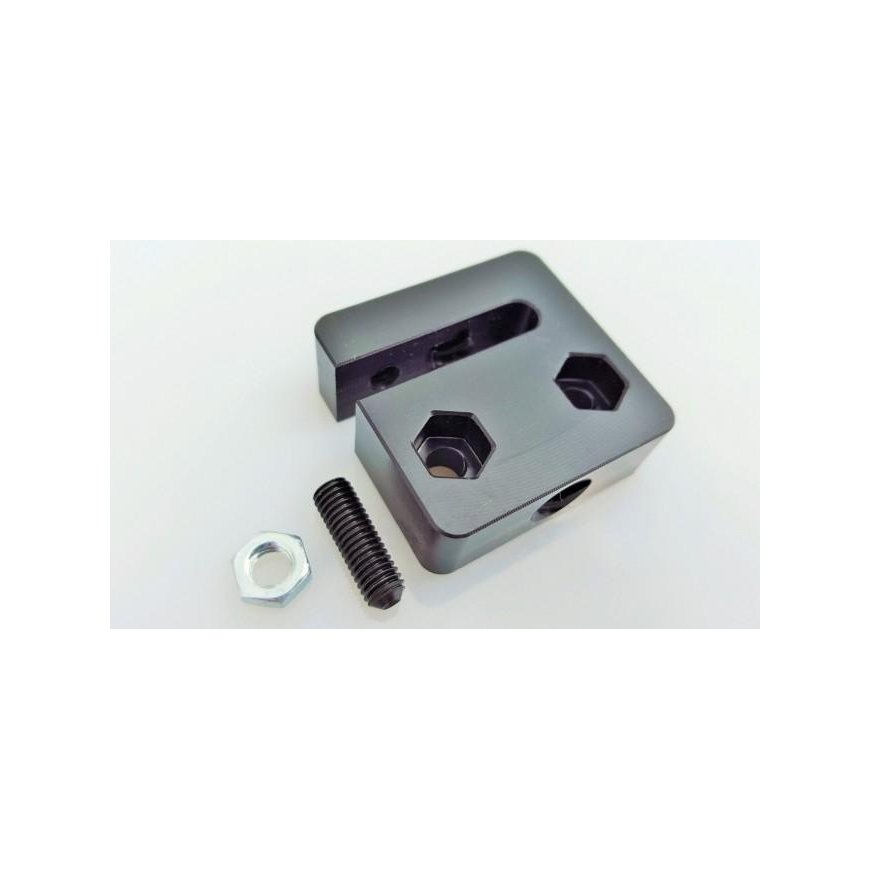

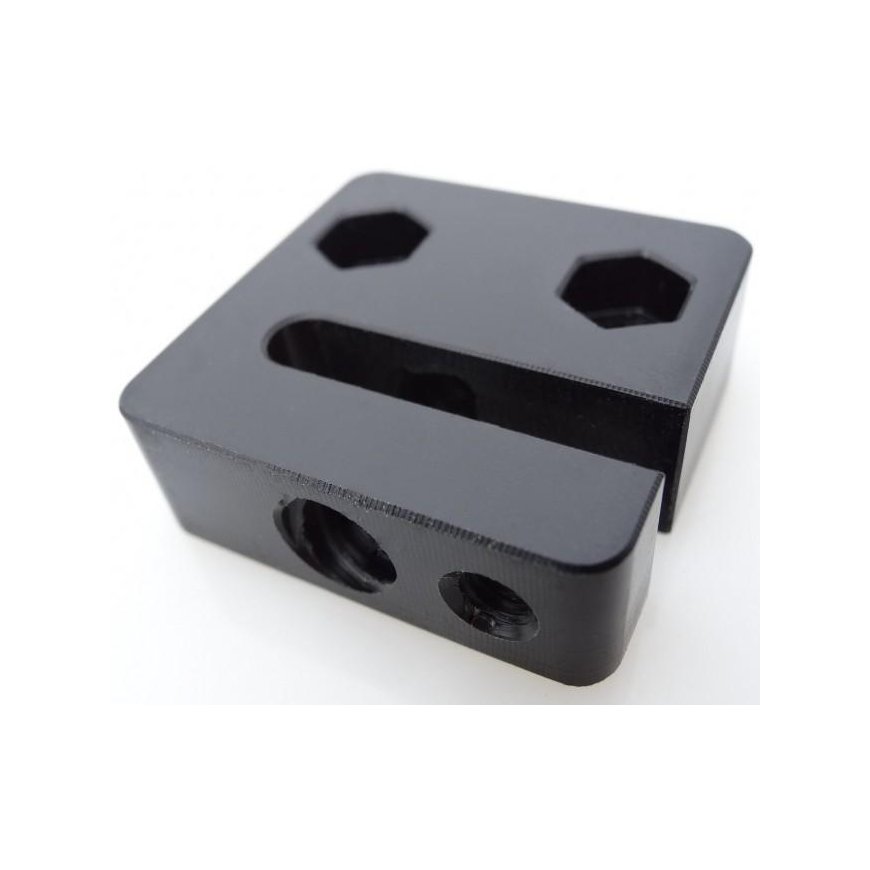

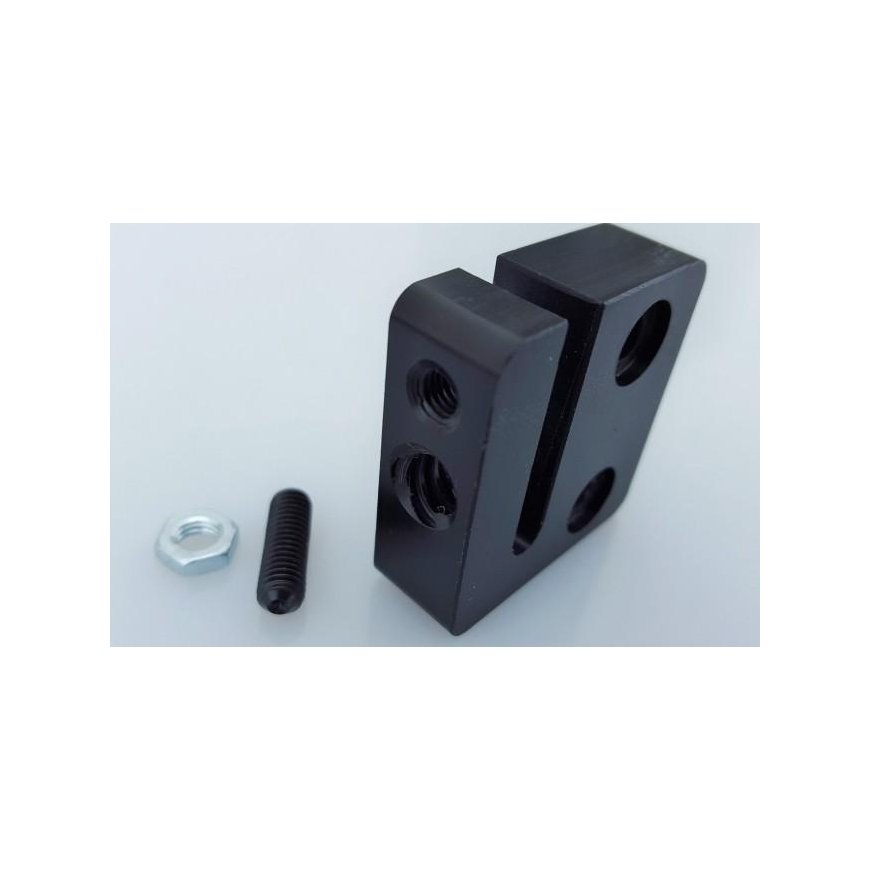

Drill Nut block for ACME threaded rod TR8x8
3673162 HW1021GC
4772164001624
Shipping 8-12 b.d.
All about the product
This high-quality 8mm Acme nut block with anti-loosening protection is a great choice for many projects that require linear motion with a screw.

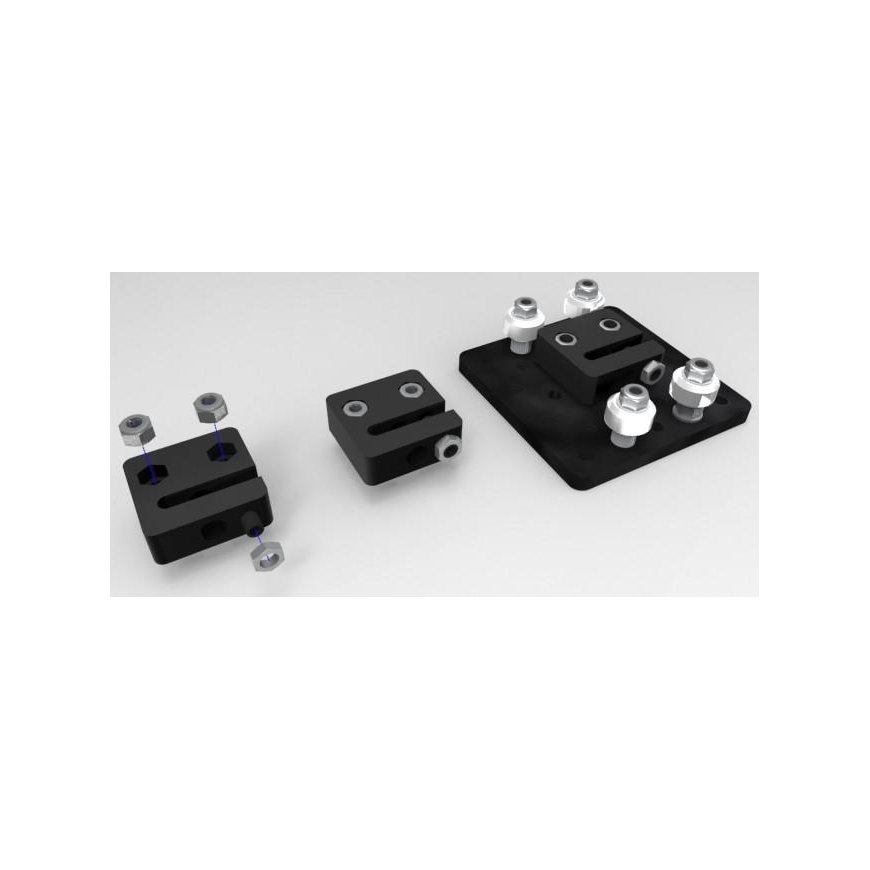

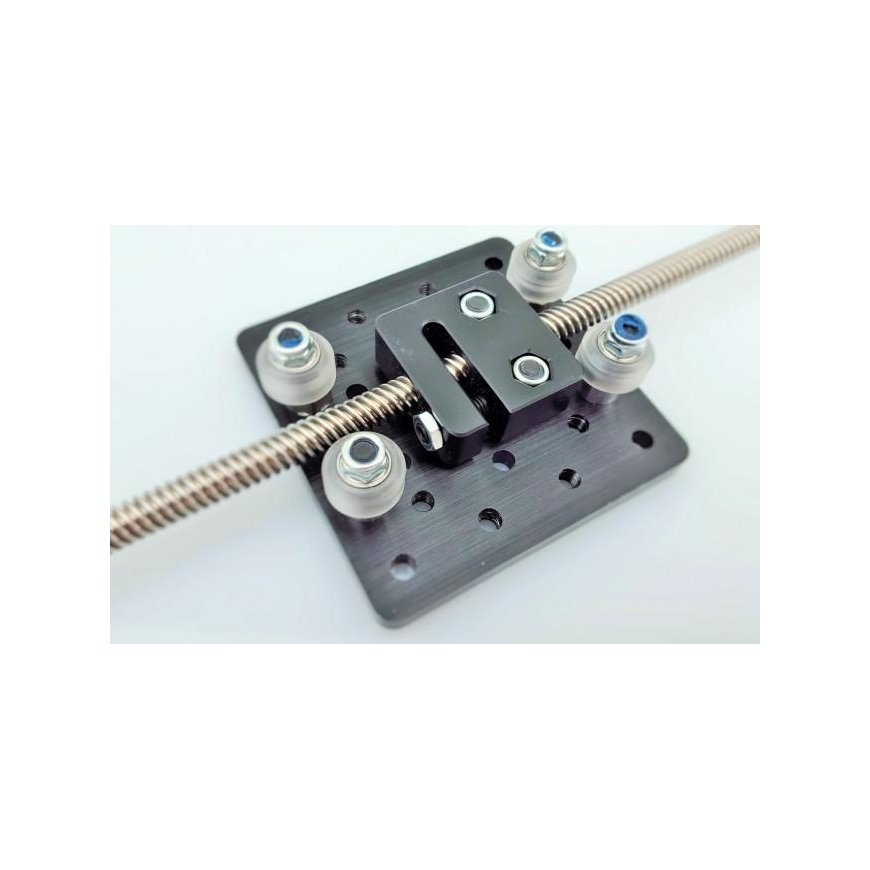

It can be mounted to the bottom of a 3mm / 1 / 8" plate using M5 nylon nuts with insert and 15mm M5 screws, or mounted directly to a V-Slot using two channels with 15mm M5 low profile screws and two tri-nuts. These mounting options allow for a wide range of modular machines. You can mount this block along any length of V-Slot to create linear motion.
Specifications:
- Material: POM
- Size: 12*33*34mm
- Color: black
- Tr8x8 (p2) Metric Acme Tap
- Pitch: 2 mm
- Start: 4
- Lead: 8 mm
- Use with 8mm metric lead screw.
