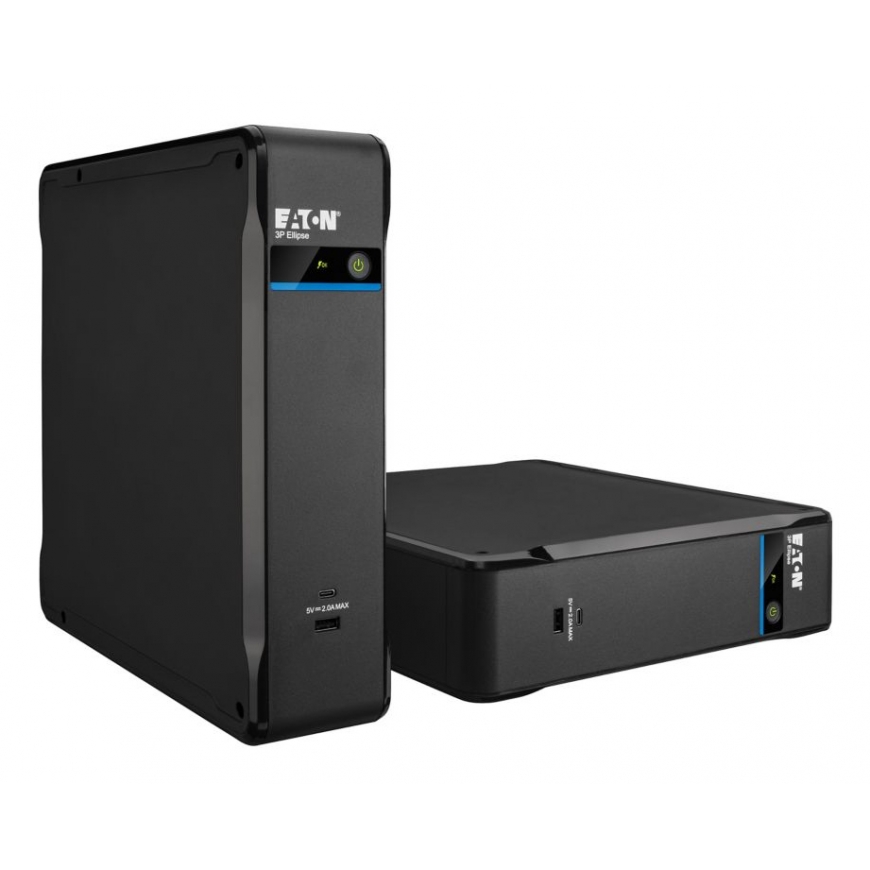

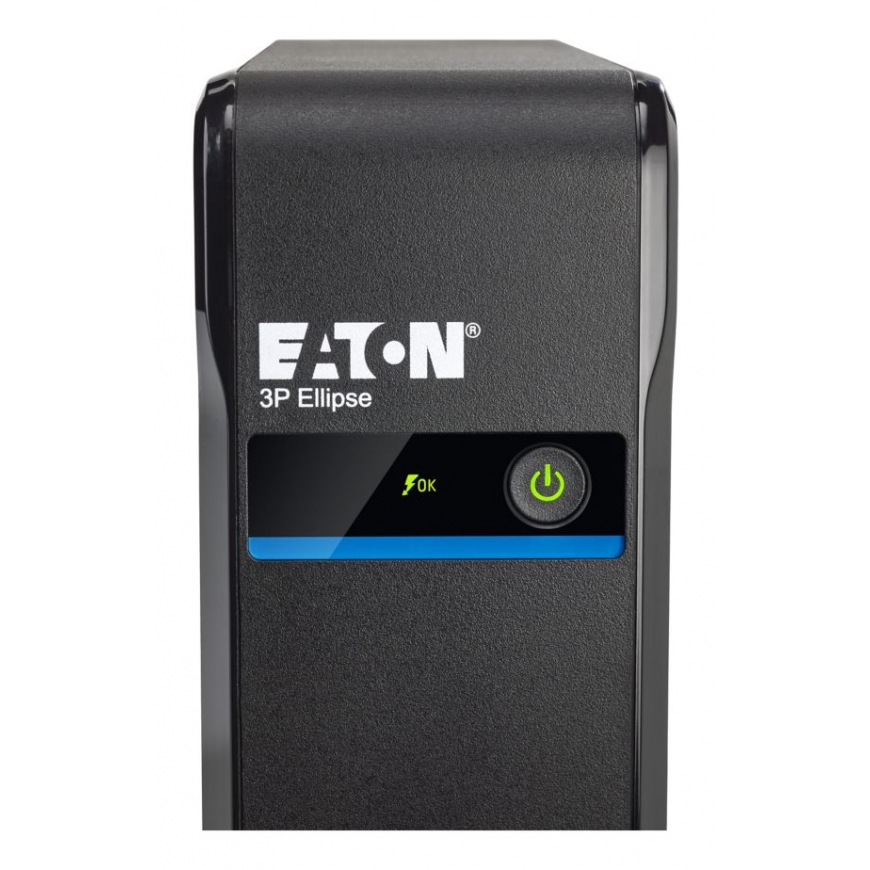

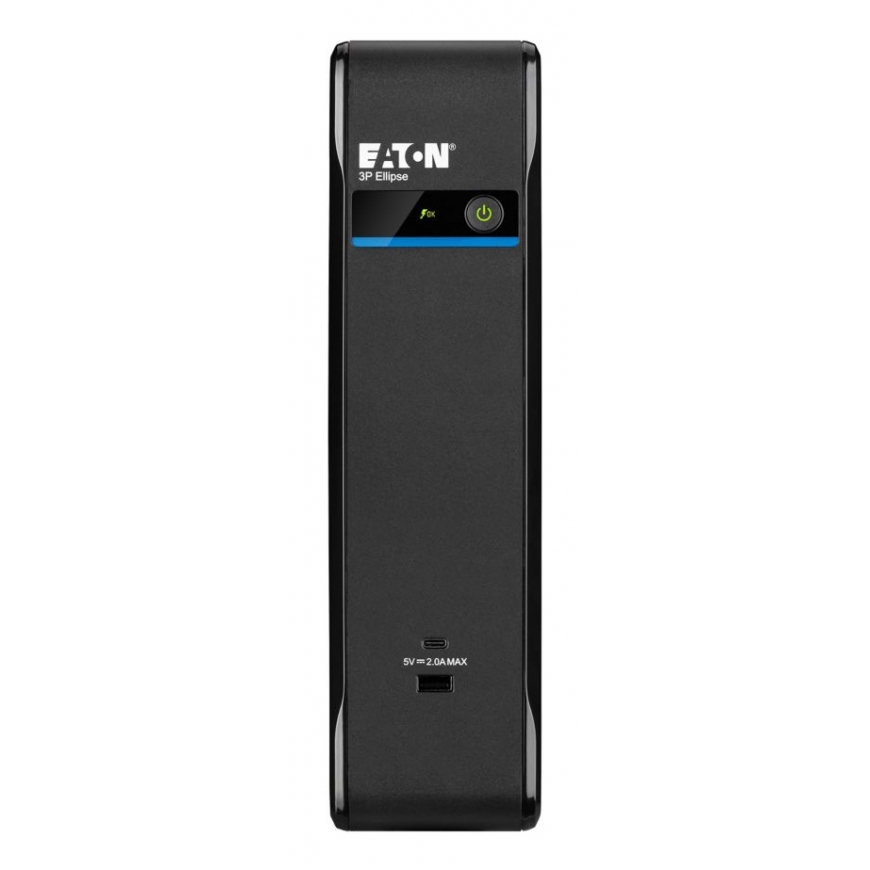

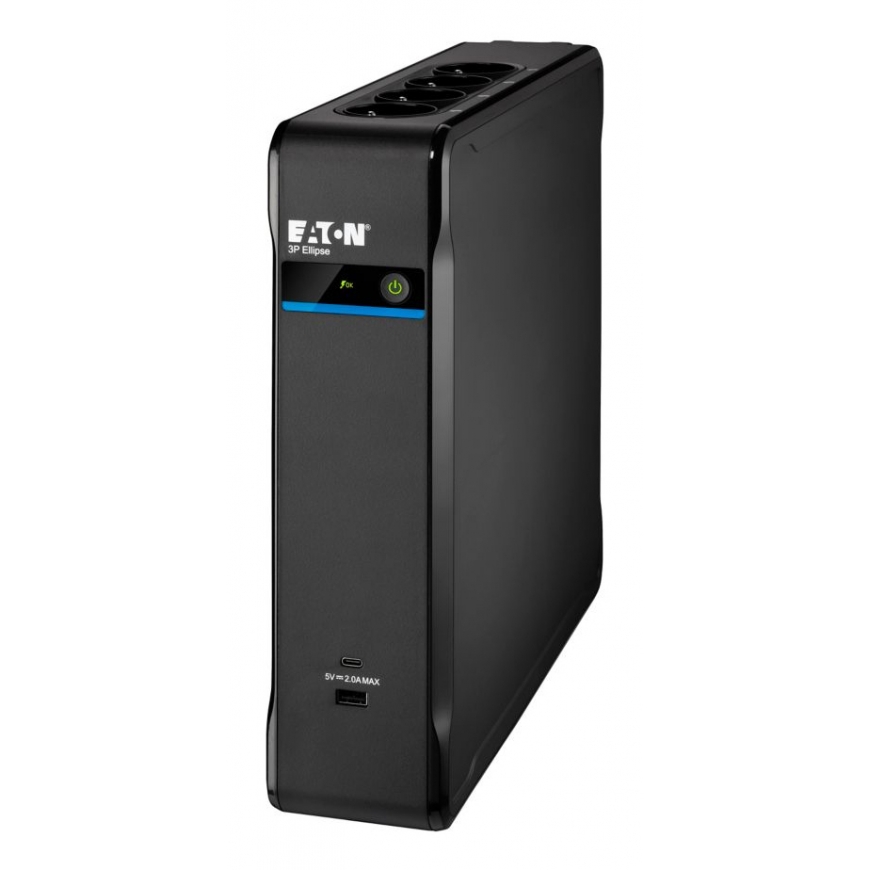

Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
288.99 €
Monthly payment from 8,34 €
3671262 3P1300UD
3553340621390
Shipping 3-7 b.d.
You are interested in this product?
All about the product

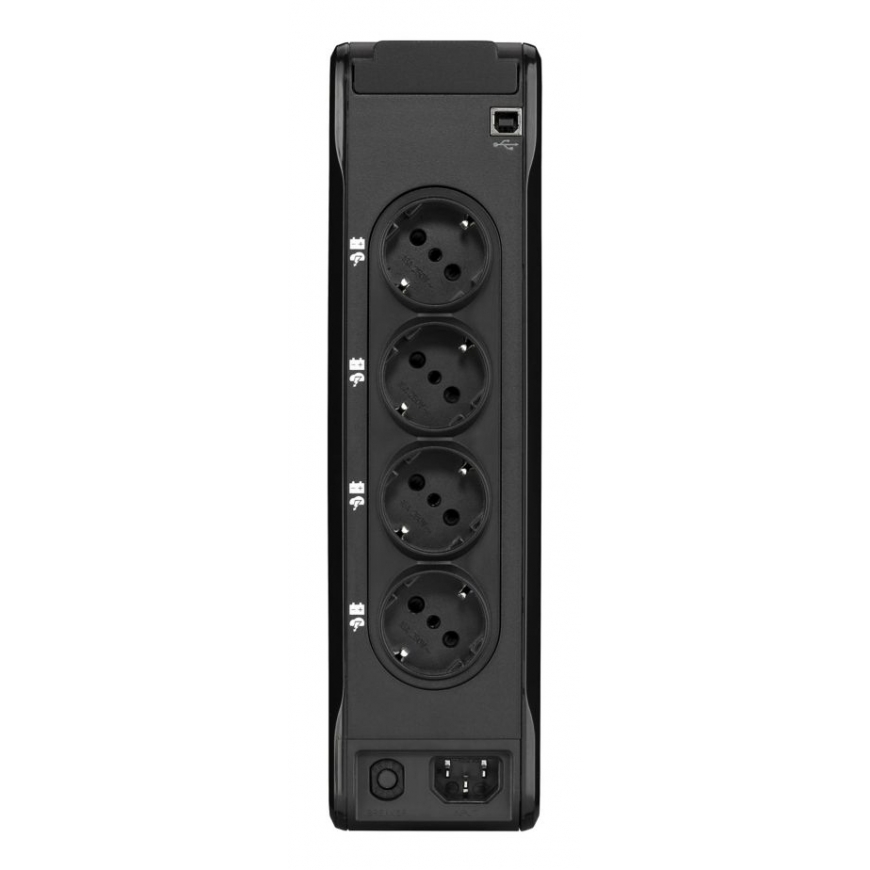

Eaton 3P Ellipse UPS USB DIN, 1300 VA, 840 W, Input: C14, Outputs: (4) Schuko, (4) Schuko surge only, USB charge, TowerFeatures
| Product colour | Black |
| USB 2.0 ports quantity | 2 |
| Display type | LED |
| USB port | Yes |
| Form factor | Tower |
| Weight | 7 kg |
| Width | 81 mm |
| Depth | 312 mm |
| Height | 305 mm |
| Cables included | USB cable |
| Package type | Box |
| Certification | CE; UKCA; IEC/EN 62040-1; IEC/EN 62040-2; IEC/EN 62040-3; Cm; Ukr |
| Operating temperature (T-T) | 0 - 40 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Quick installation guide | Yes |
| Control type | Buttons |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Efficiency | 97% |
| Noise level | 25 dB |
| AC outlets quantity | 8 AC outlet(s) |
| Surge protection | Yes |
| Output power | 840 W |
| Relative humidity | 0 - 95% |
| Power consumption (average operating) | 26 W |
| UPS topology | Standby (Offline) |
| Output power capacity | 1.3 kVA |
| Waveform | Stepwise |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Input frequency | 46/70 Hz |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| AC outlet types | C13 coupler |
| Nominal input voltage | 220-240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Input connection type | C14 |
| Efficiency (ECO mode) | 97% |
| Number of output phases | 1 |
| Output power factor | 0.6 |
| Auto shut-off | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE; RoHS; WEEE; CB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
Design | |
| Product colour | Black |
| Display type | LED |
Power | |
| Battery voltage | 12 V |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 81 mm |
| Depth | 312 mm |
| Height | 305 mm |
| Weight | 7 kg |
Packaging data | |
| Package type | Box |
Other features | |
| Input frequency | 46/70 Hz |
| Form factor | Tower |
Certificates | |
| Certification | CE, UKCA, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, Cm, Ukr |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details | |
| Compliance certificates | CE, RoHS, WEEE, CB |
Packaging content | |
| Cables included | USB cable |
| Quick installation guide | Yes |
