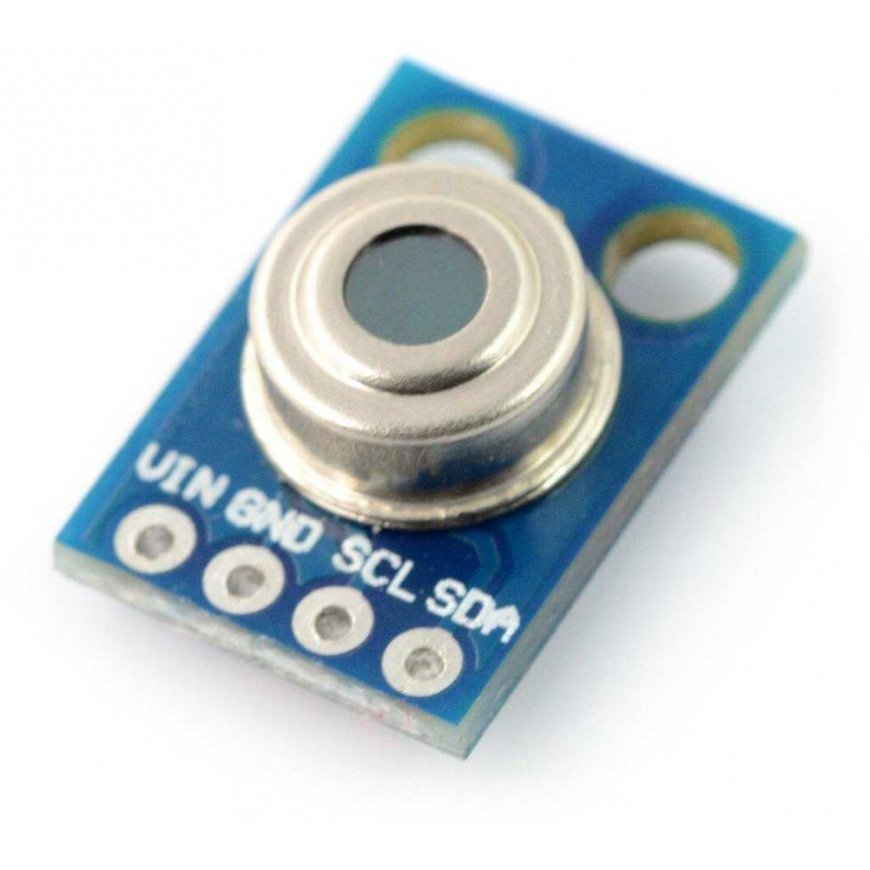

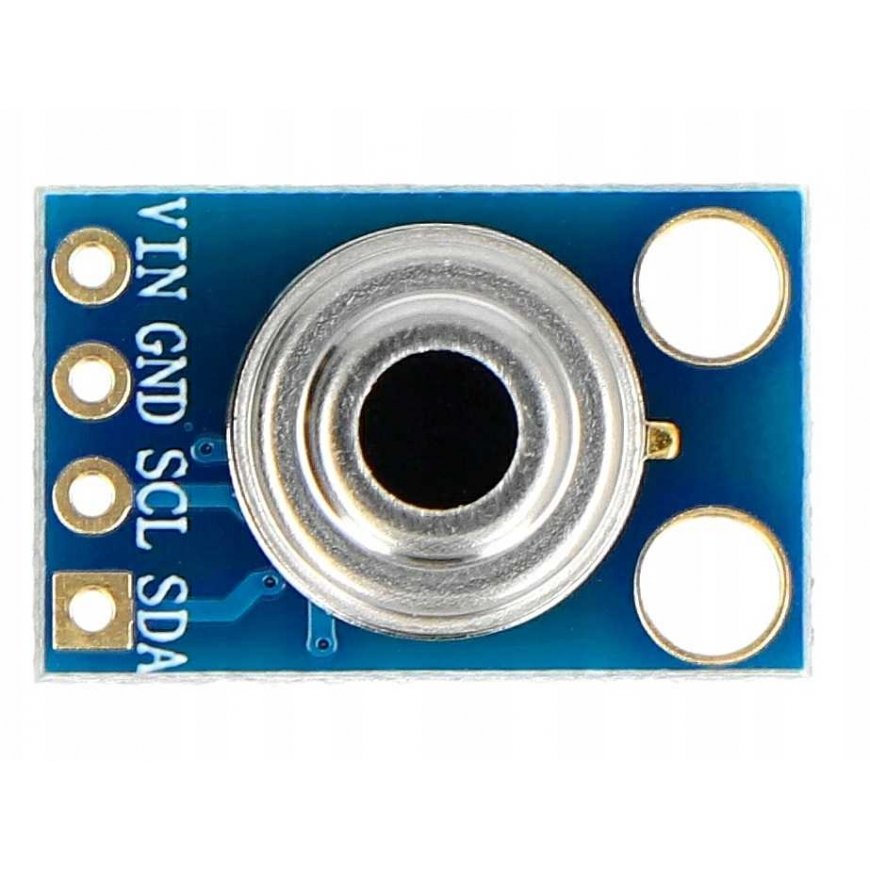

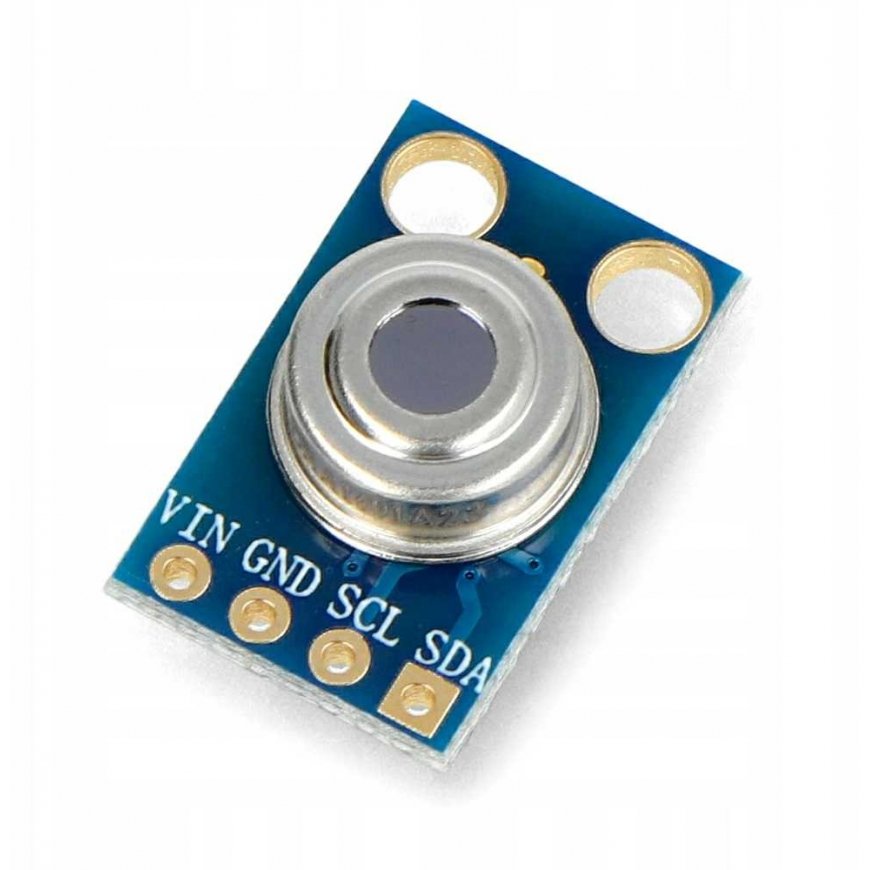

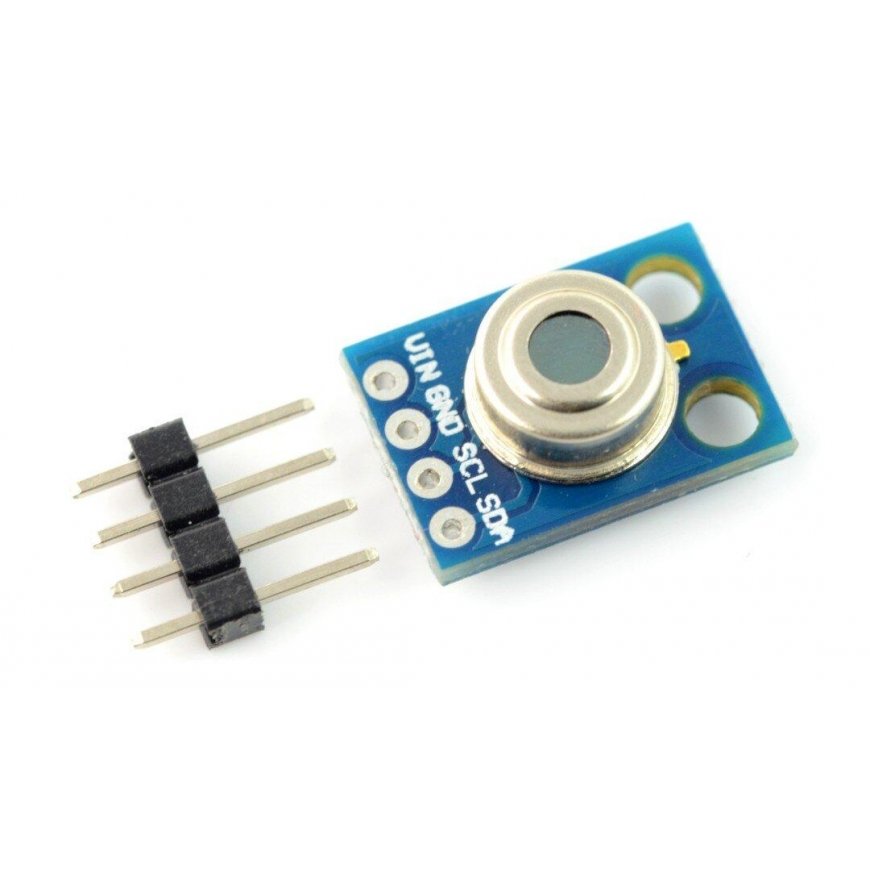

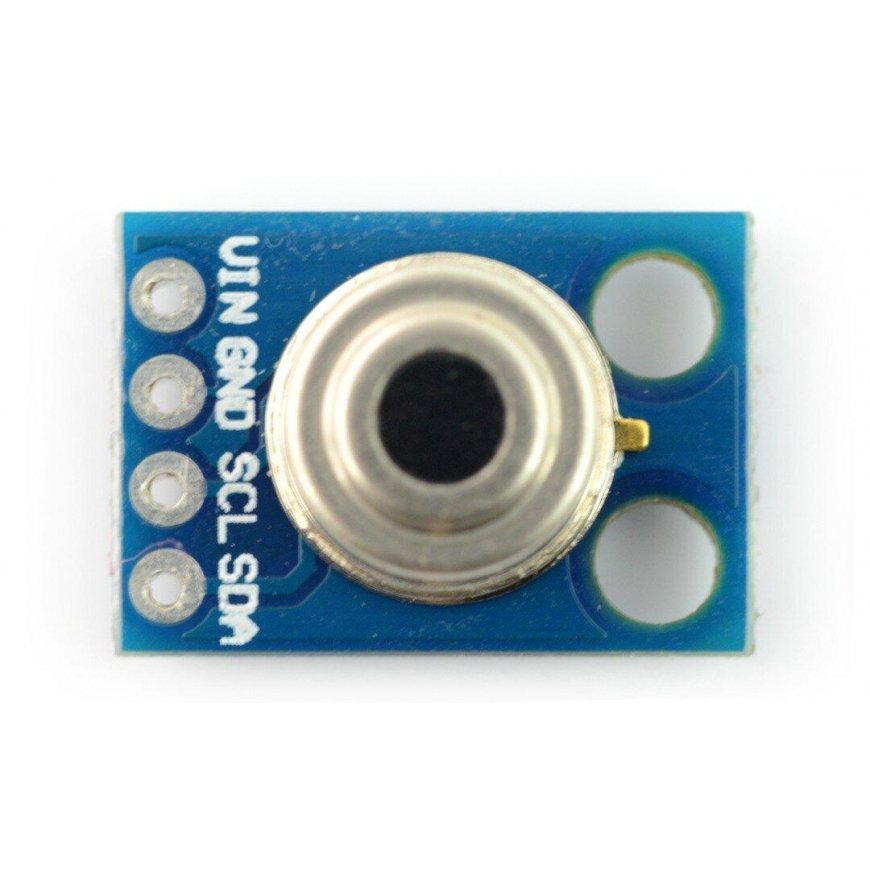

Oem Module with digital temperature sensor MLX90614ESF-BAA-000-TU-ND
32.50 €
3670930 AN-13443
5904422320676
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A sensor that uses IR to measure temperature. It operates in a range of -70°C to 380°C object temperature or -40°C to 85°C sensor temperature. It communicates via the I2C bus. The supply voltage ranges from 3.0V to 5V.Specifications:
- Version: MLX90614ESF-BAA-000-TU-ND
- Supply voltage from 3.0 to 5 V
- Measuring range:
- from -70 °C to 380 °C object temperature
- -40 °C to 85 °C sensor temperature
- Resolution:
- 0.02 °C for I2C, SMBus, TWI interface
- 0.14 °C for PWM interface
- Interface: PWM or I2C (SMBus, TWI)
- Accuracy: up to 0.5 °C in the range from 0 to 50 °C
