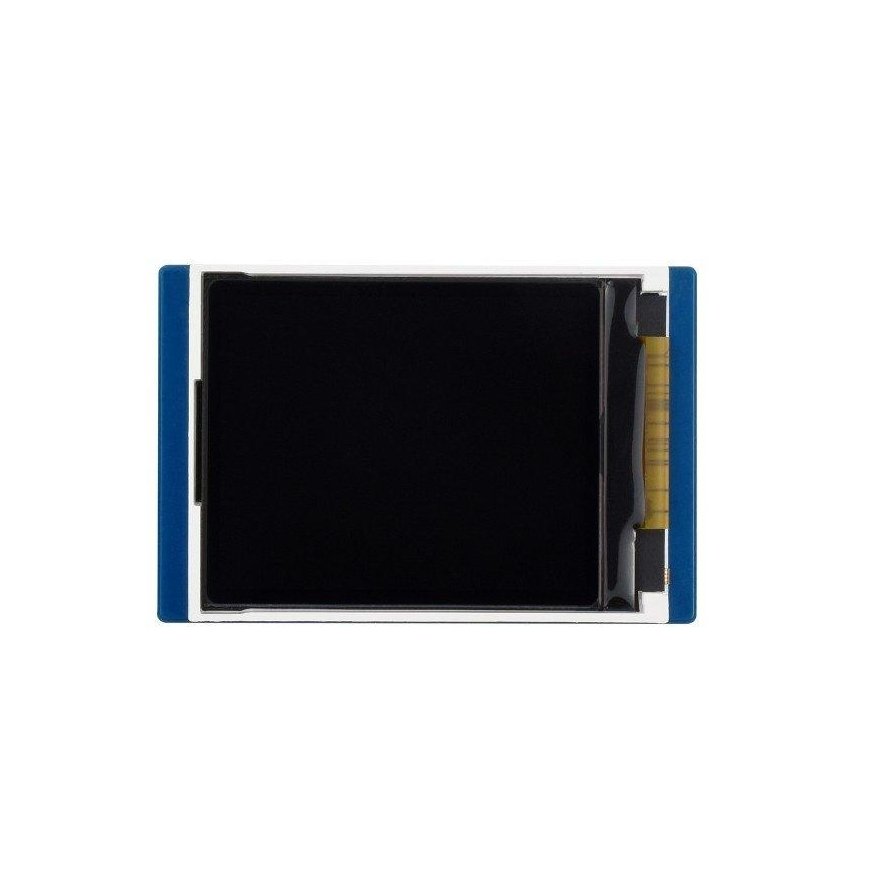

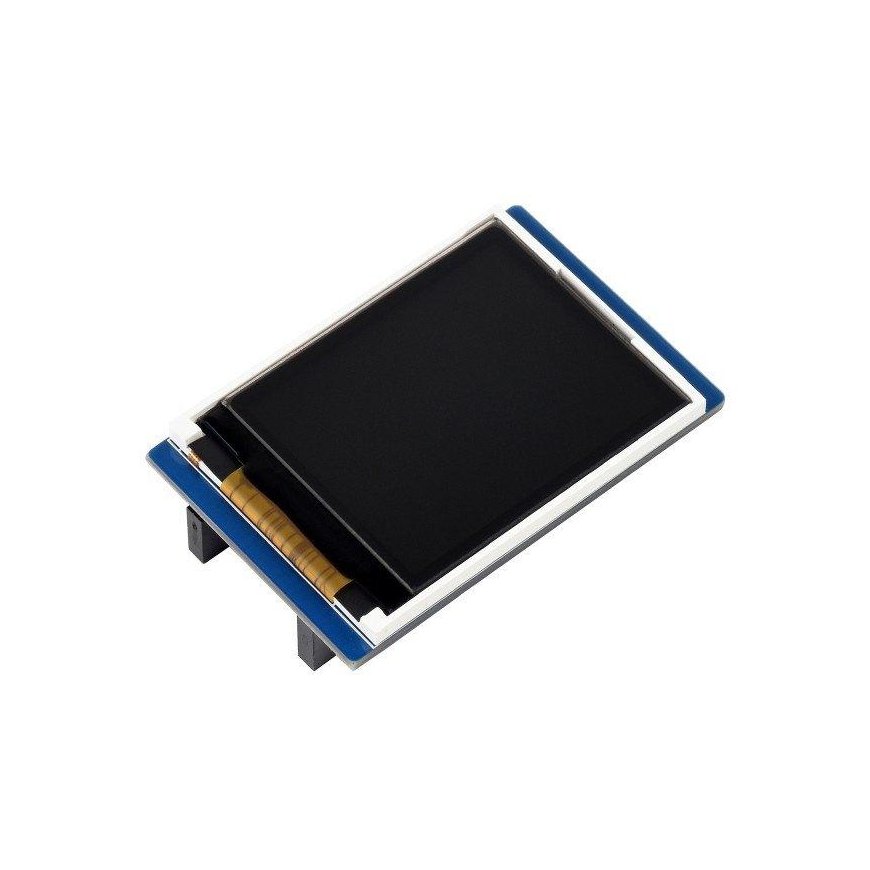

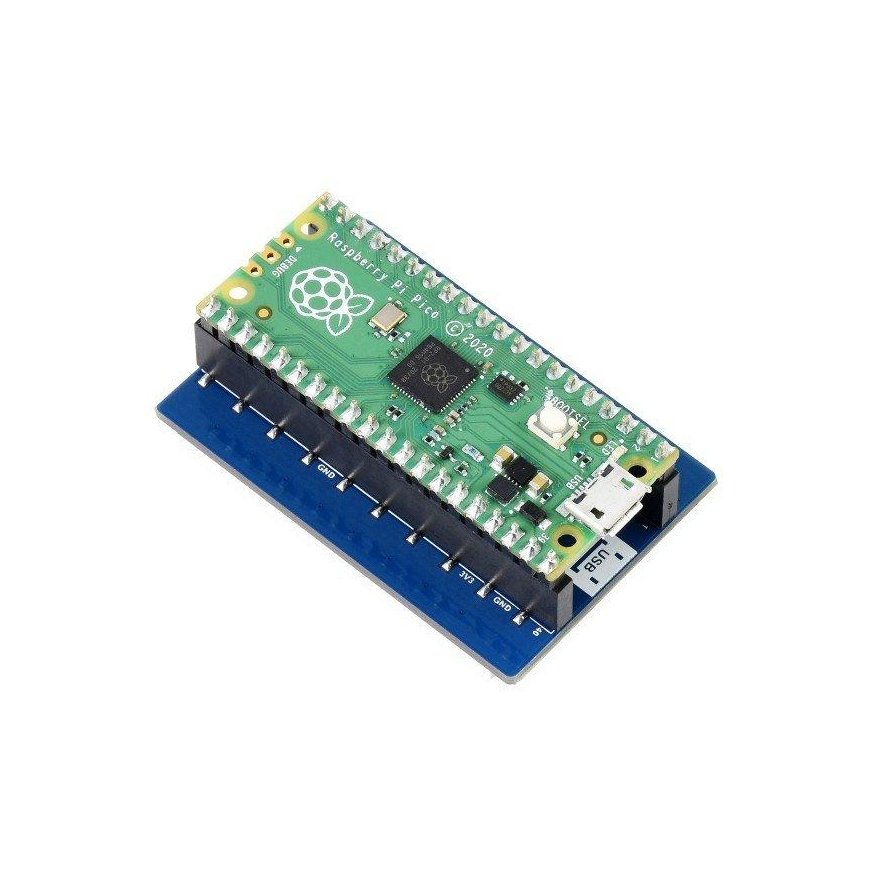

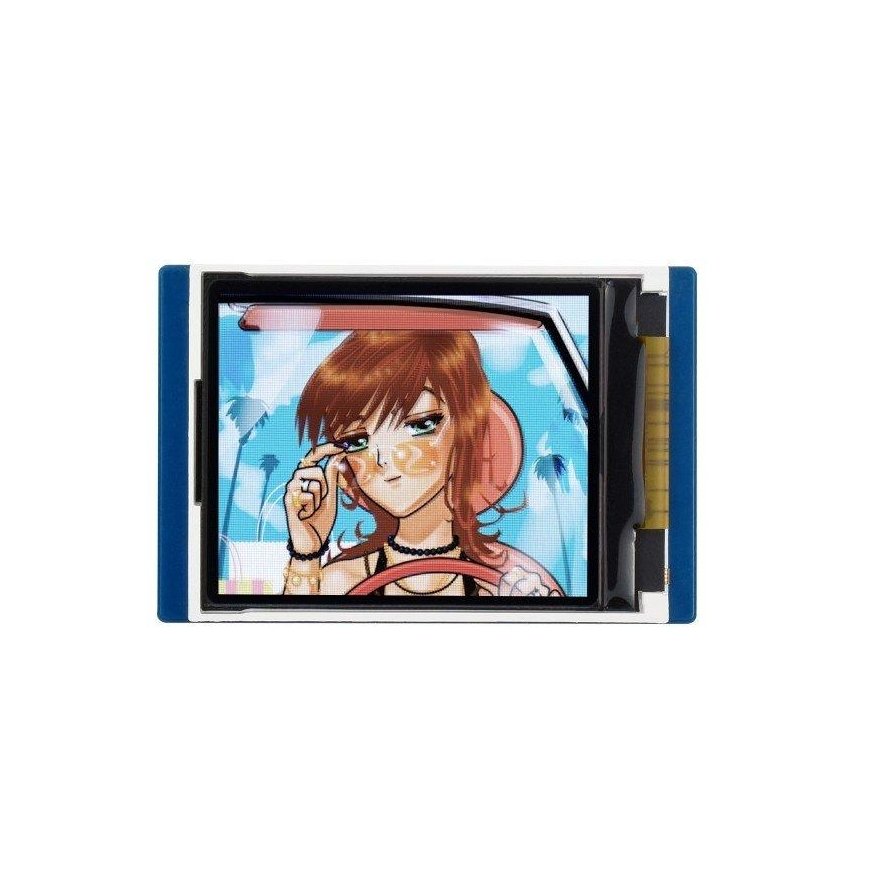

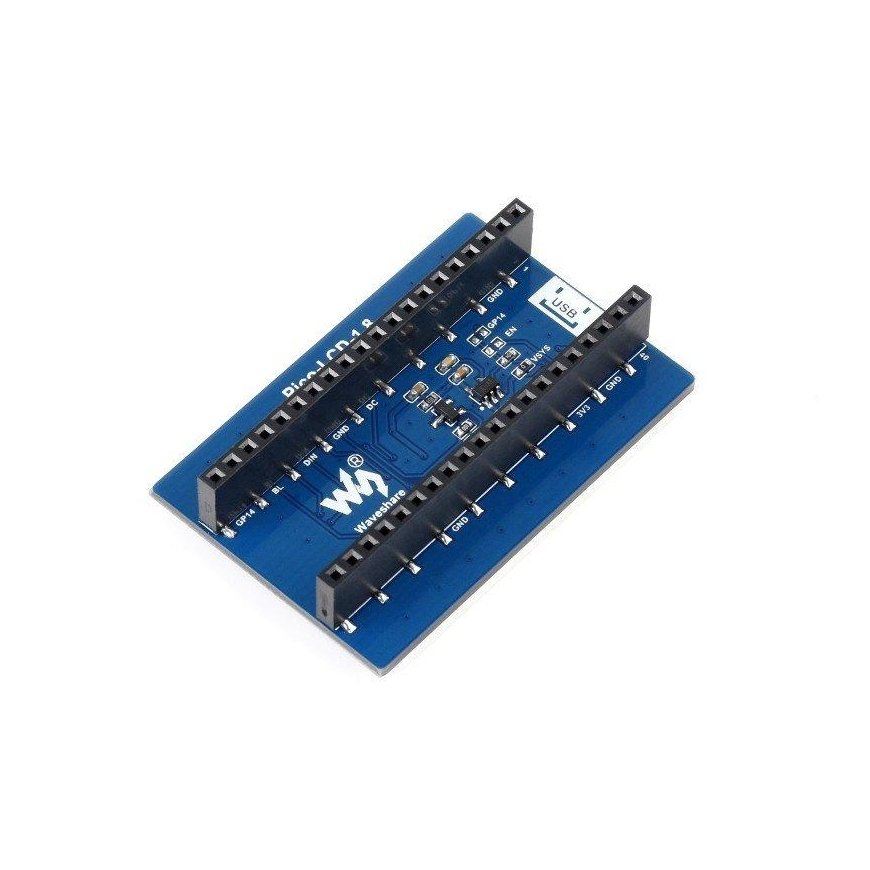

LCD TFT display 1.8" 160x128px, SPI, 65K RGB, for Raspberry Pi Pico, Waveshare 19579
20.61 €
3670216 AN-19542
5904422371906
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The display is designed for the Raspberry Pi Pico minicomputer. It has an ST7735S controller, uses a 4-wire SPI bus to interact with the main module. The display resolution is 160x128px, and the diagonal is 1.8". The image presented on the display is displayed in 65 thousand colors, which are part of the RGB gamut. The size of one pixel is 0.219 × 0.219 mm.Specifications:
- For Raspberry Pi Pico version
- Type: TFT LCD screen
- Interface: 4-wire SPI
- Screen size: 1.8"
- Screen resolution: 160x128px
- Pixel size: 0.219 x 0.219 mm
- Display colors: 65K RGB
- Supply voltage: 2.6 V to 5.5 V
- Programming language: C / C++ / MicroPython
- Embedded controller: ST7735S
- Screen dimensions: 35.04 x 28.03 mm
- Module dimensions: 52.0 x 34.5 mm
