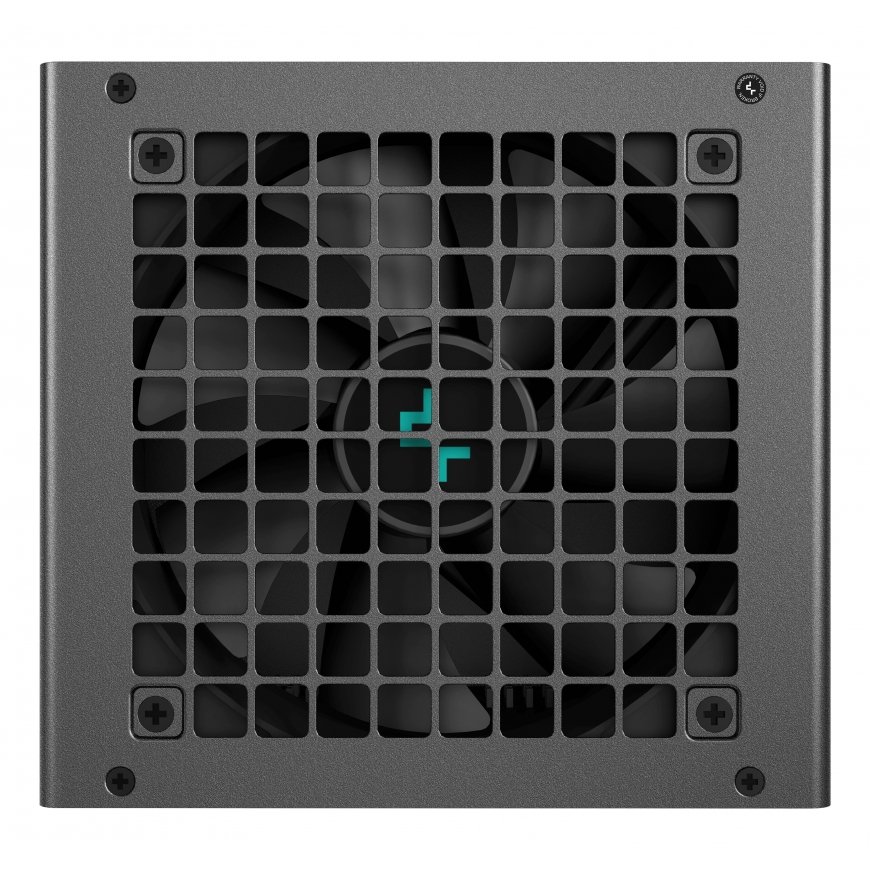

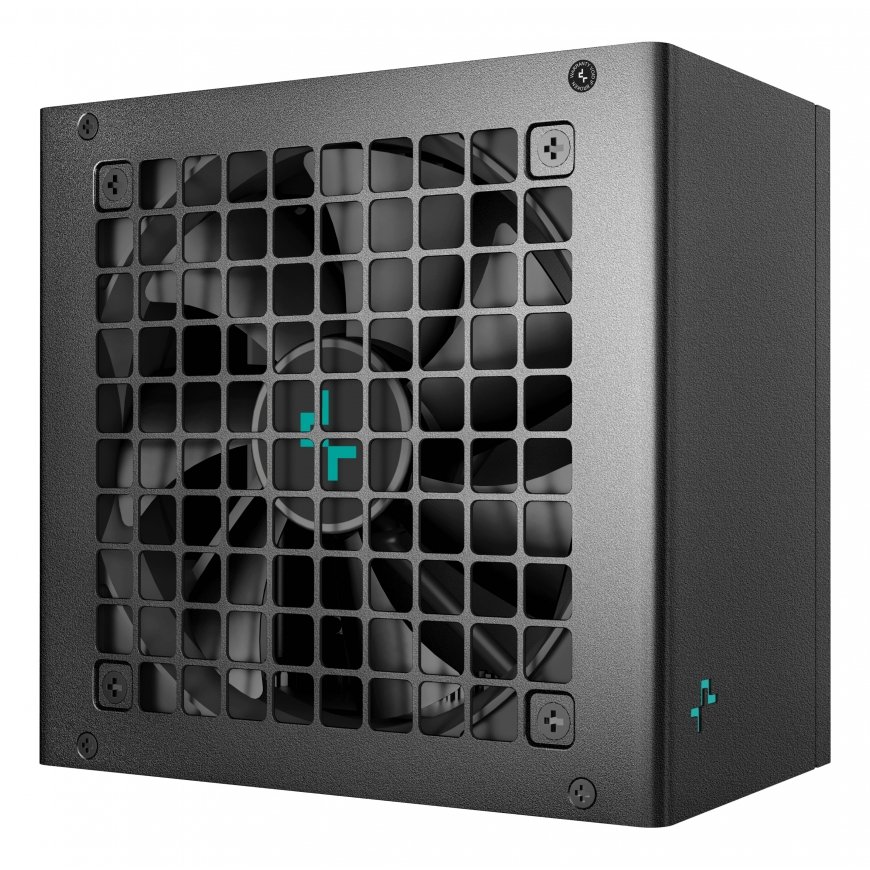

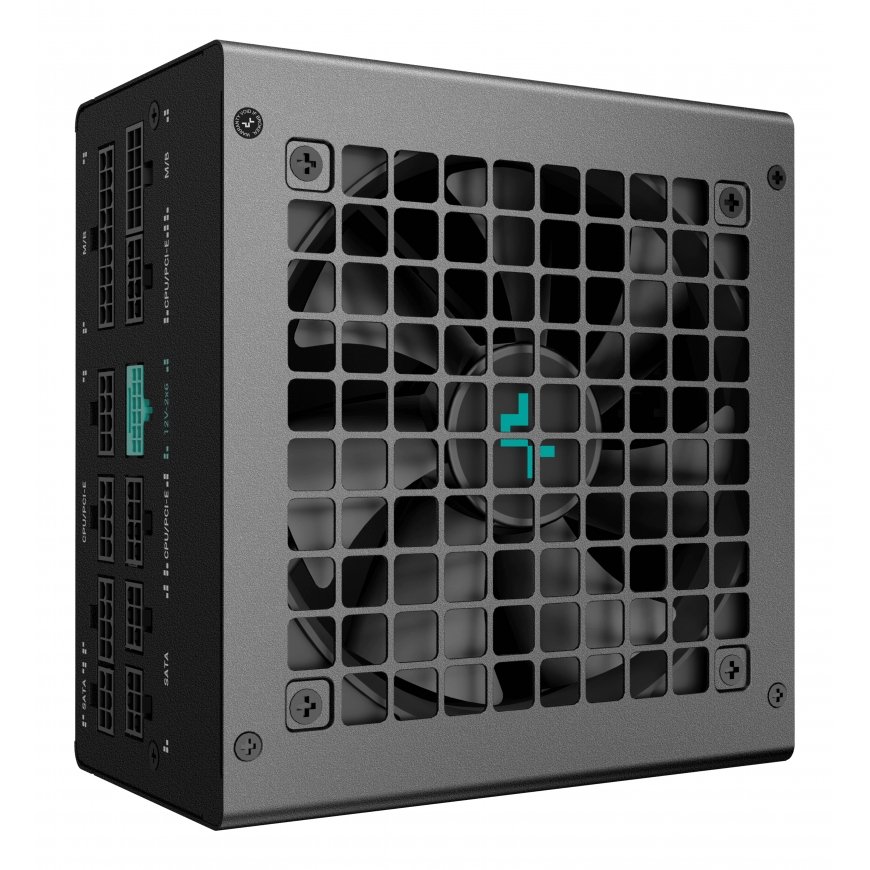

Gamer Storm PN750M power supply unit 750 W 20+4 pin ATX ATX Black
129.00 €
Monthly payment from 4,22 €
3667296 R-PN750M-FC0B-JGEU
6933412740889
Shipping 3-5 b.d.
You are interested in this product?
All about the product
PN750MThe DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
PN750M
NATIVE ATX3.1
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN750M provides up to 450W for modern GPUs.
SLEEVED CABLES
The PN750M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN
The PN750M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN750M will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN750M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
EXCELLENT COVERAGE
The PN750M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 10 - 5 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge protection, No load operation, Surge & inrush protection (SIP) |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450, 570, 690, 810 |
| Peripheral (Molex) power cable length | 930 mm |
| CPU power cable length | 70 cm |
| PCI Express power connectors (16-pin) | 1 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP, Triman |
Packaging data | |
| Package type | Box |
Logistics data | |
| Warranty period | 10 year(s) |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
| Cable tie(s) included | Yes |
Certificates | |
| Compliance certificates | CE, RoHS, WEEE, Federal Communications Commission (FCC), EAC, RCM, CCC |
