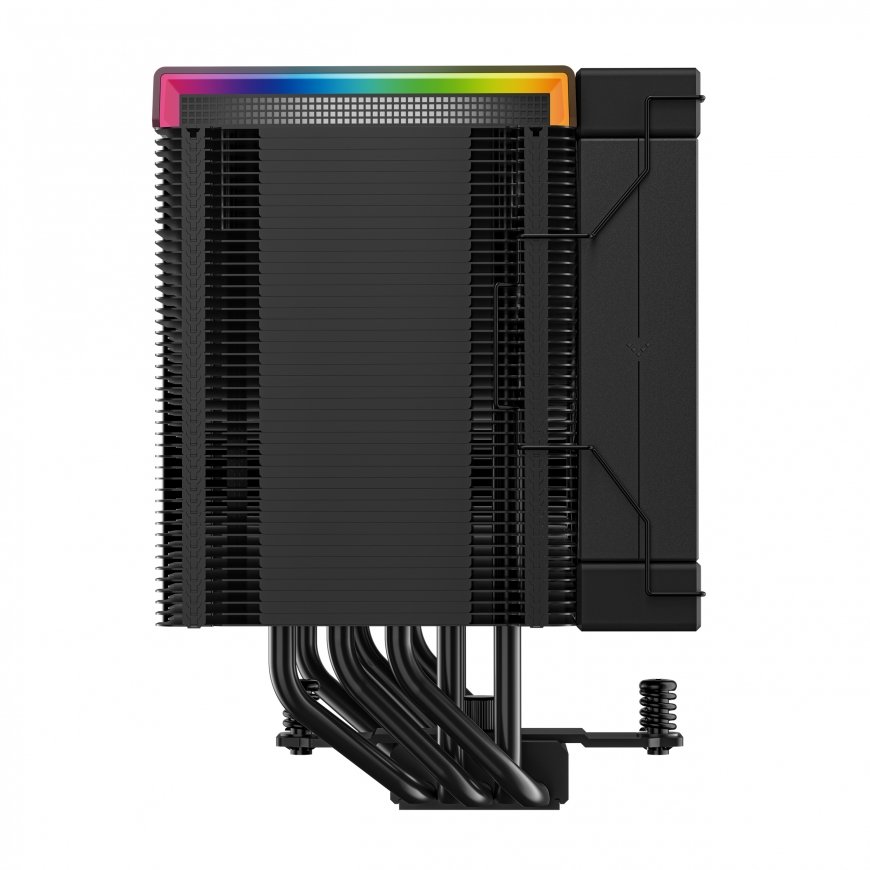

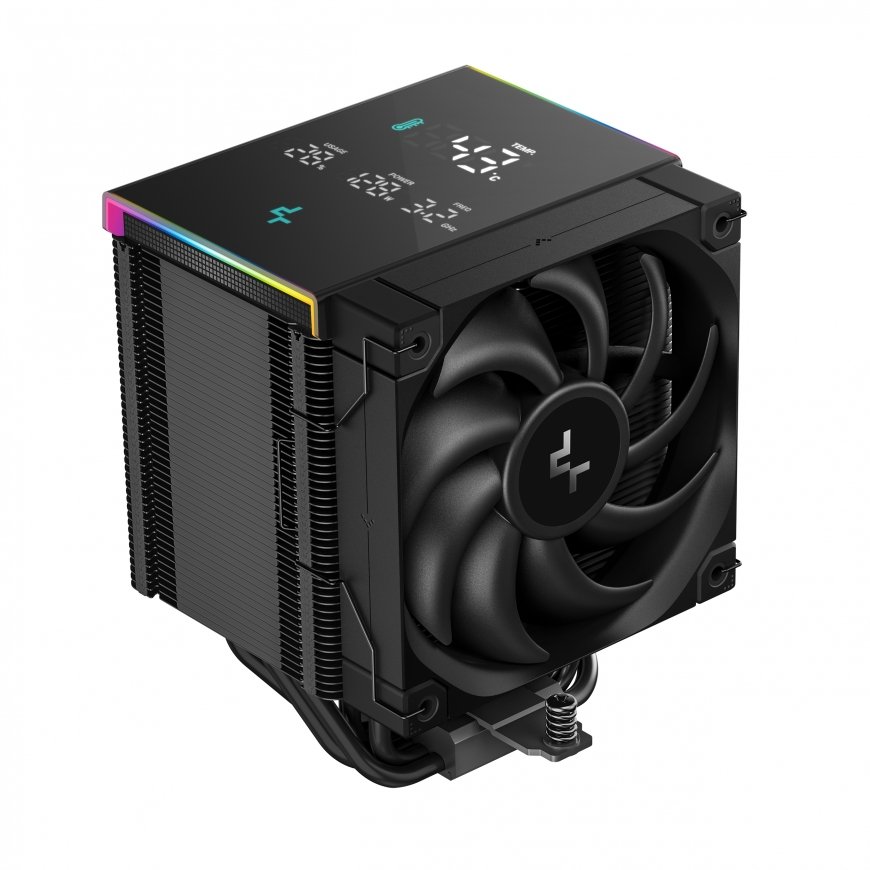

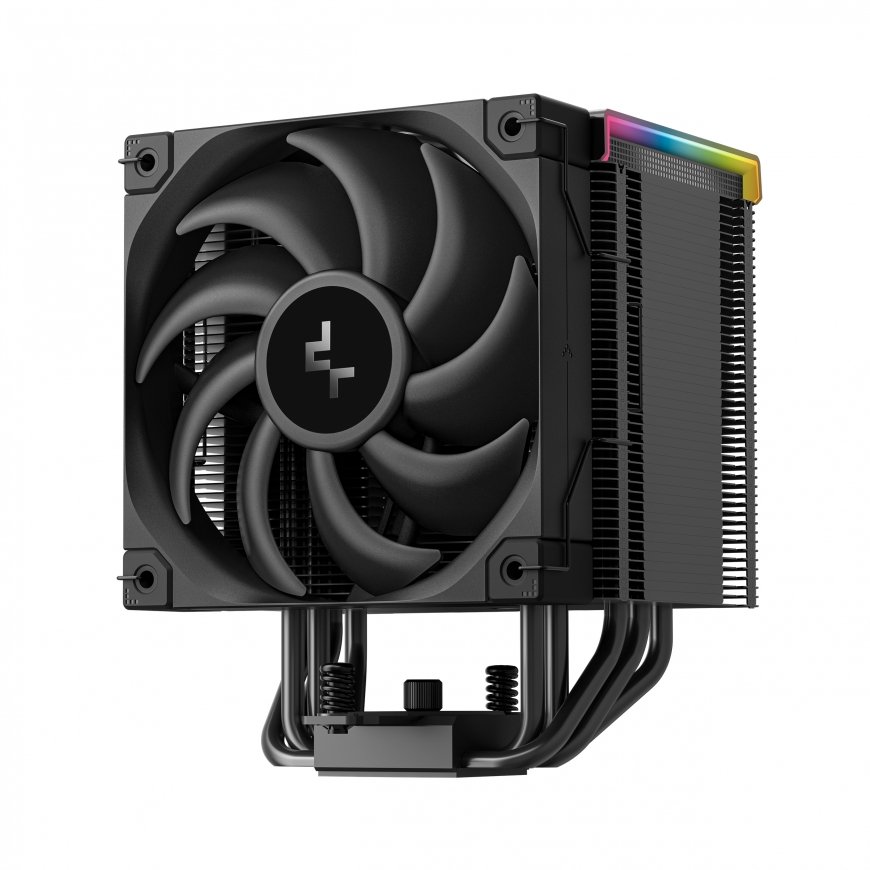

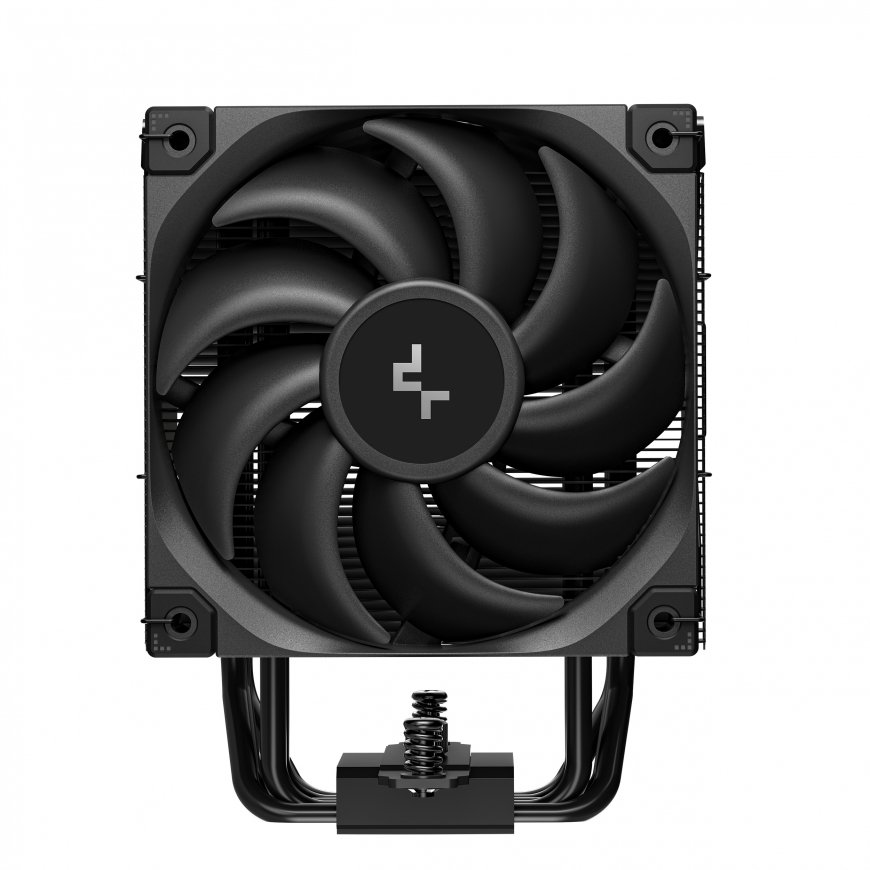

DeepCool AK500 Digital Pro Processor Air cooler 12 cm Black 1 pc(s)
88.99 €
Monthly payment from 3,19 €
3667235 R-AK500-BKAPMN-G
6933412729181
Shipping 12-13 b.d.
You are interested in this product?
All about the product
AK500 DIGITAL PROThe AK DIGITAL air coolers have gone pro with their newest iteration. The AK500 DIGITAL PRO has been upgraded in many aspects, including a multi-data point screen, visual color temperature warnings, and CTT 2.0 heatpipe technology. A very worthy step up in not just aesthetics but cooling performance.

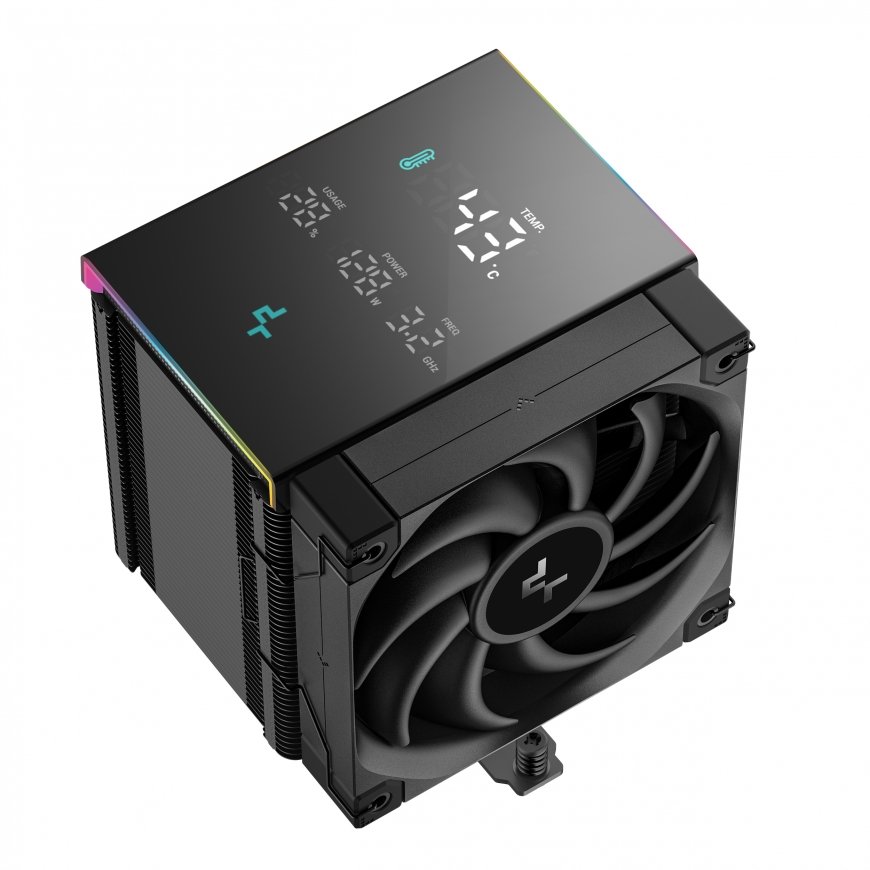

ENHANCED CPU STATUS SCREEN
The sleek and shiny screen of the AK500 DIGITAL PRO has been enhanced to show more than just the temperature; usage, wattage, and frequency have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
VISUAL TEMPERATURE ALERTS
The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
IMPROVED FOR EASE
The magnetic top panel of the AK500 DIGITAL PRO has also been upgraded with a pogo pin and pad contact point, greatly simplifying the installation of DeepCool's best-selling cooling beast.
OPTIMIZED COOLING
An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
PROVEN AK ZERO DARK DESIGN
An all-black variation of the dominant AK500 high-performance CPU cooler. The same premium-quality materials, featuring five advanced copper heat pipes, a dense matrix pattern tower heat sink, and a silent FDB fan, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.
KEEP YOUR COOL
Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.
A HINT OF ARGB LIGHTING
Subtle ARGB strips at two of the top panel edges add an understated glow that can be easily synced to compatible ARGB headers of your motherboard.
SIMPLIFIED MOUNTING
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155
AMD
AM5/AM4
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), Socket AM4, LGA 2011-v3 (Socket R), LGA 2066, LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 1700, Socket AM5, Intel LGA1851 |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Maximum airflow | 60.89 cfm |
| Maximum air pressure | 2.91 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1750 RPM |
| Fan noise level (max) | 25 dB |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 5 |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Number of fan blades | 9 |
| LED connector type | 9-pin USB 2.0 + 3-pin |
Power | |
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Fan power consumption | 3 W |
| LED power consumption (fan) | 5 W |
| LED power consumption (pump) | 5 W |
Weight & dimensions | |
| Weight | 1.35 kg |
| Height | 162 mm |
| Width | 117 mm |
| Depth | 129 mm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 9 cm |
| Radiator depth | 12.7 cm |
| Radiator height | 15.3 cm |
Packaging content | |
| Thermal pad included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
Other features | |
| Built-in display | Yes |
