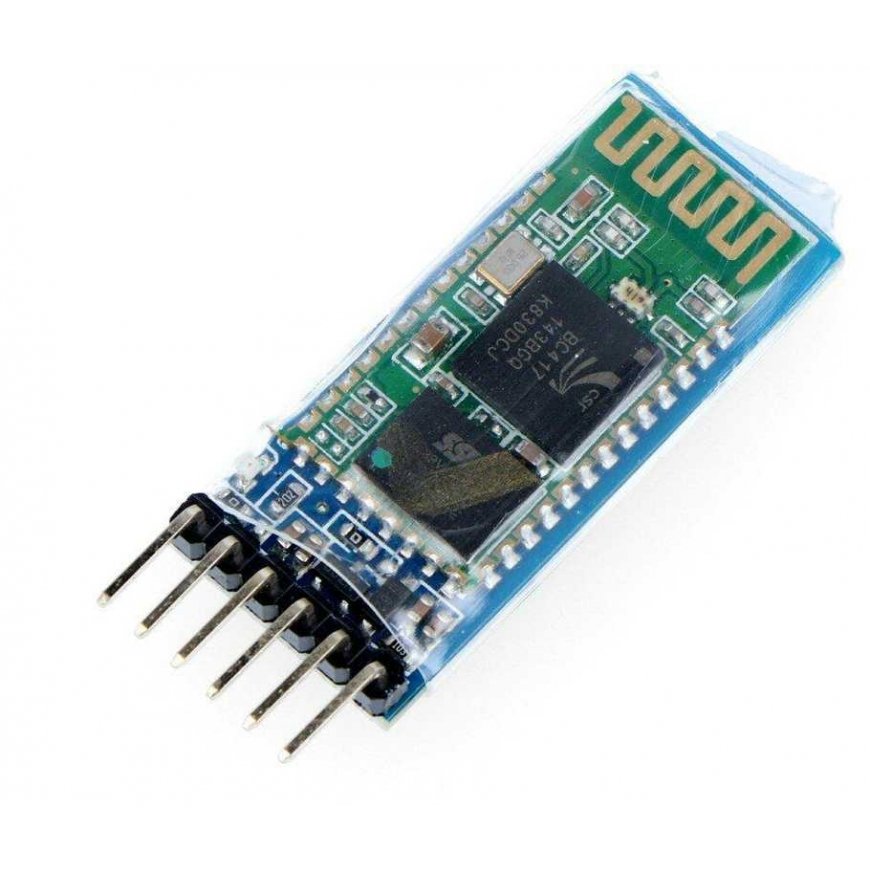

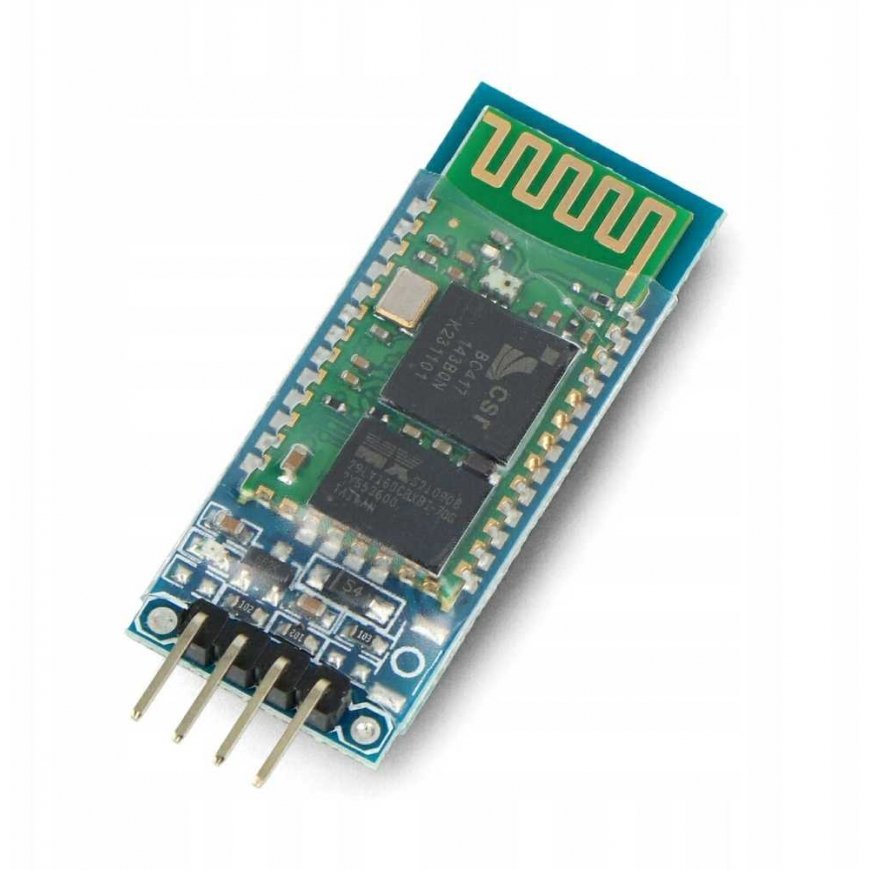

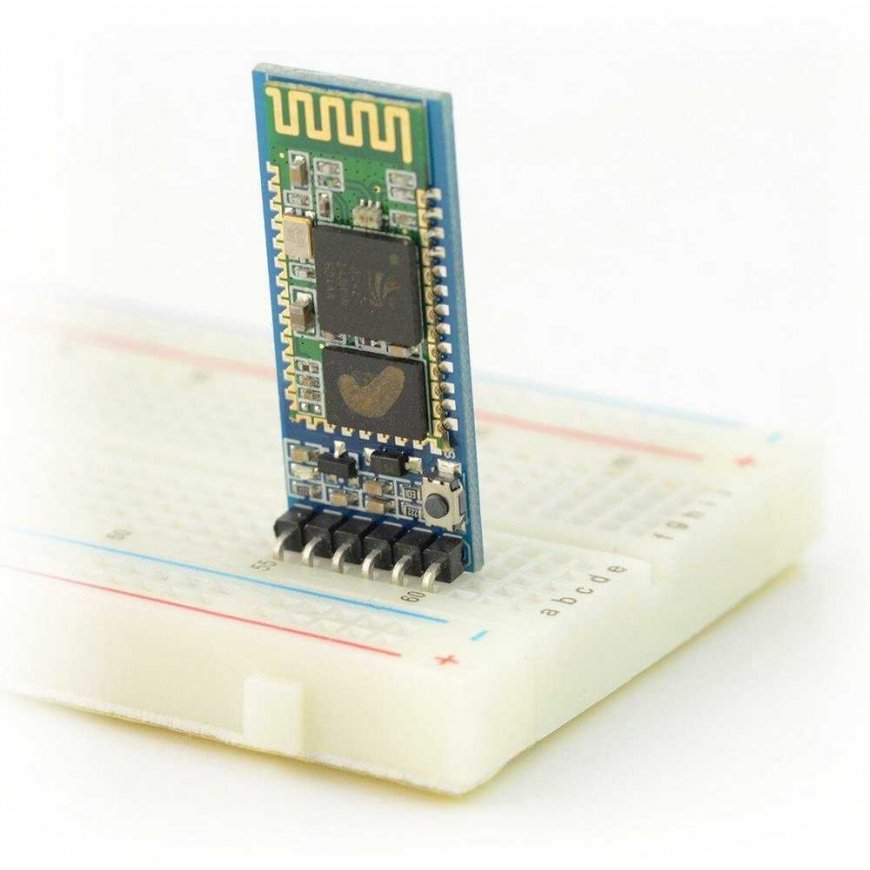

Openplatform Bluetooth module HC-05
24.32 €
3666011 AN-02570
5903351241311
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Bluetooth v2.0 + EDR, Class 2 module. Operates at 3.3 V and supports interaction via serial UART interface (RX, TX), supports AT command. Maximum transmitter power is +4 dBm, receiver sensitivity is -85 dBm.
Specifications:
- Voltage: 3.6V-6V, connected to VCC pin
- Communication cables operate at 3.3 V (5 V tolerant)
- Current consumption: approx. 50 mA
- Class 2 - maximum transmitter power +4 dBm
- Range: up to 10 m
- Pairing password: 1234
- Standard: Bluetooth 2.0 + EDR
- SPP profile with the ability to configure using AT commands

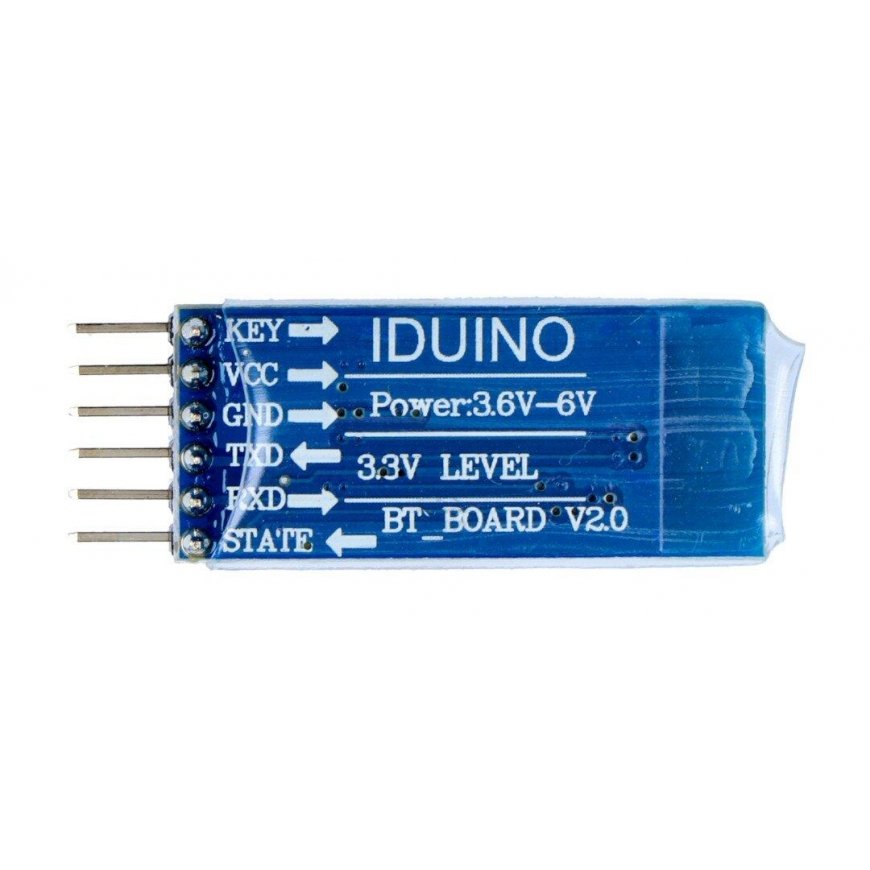

- Interface: UART (RX, TX)
- Small dimensions: 37 x 16 mm
