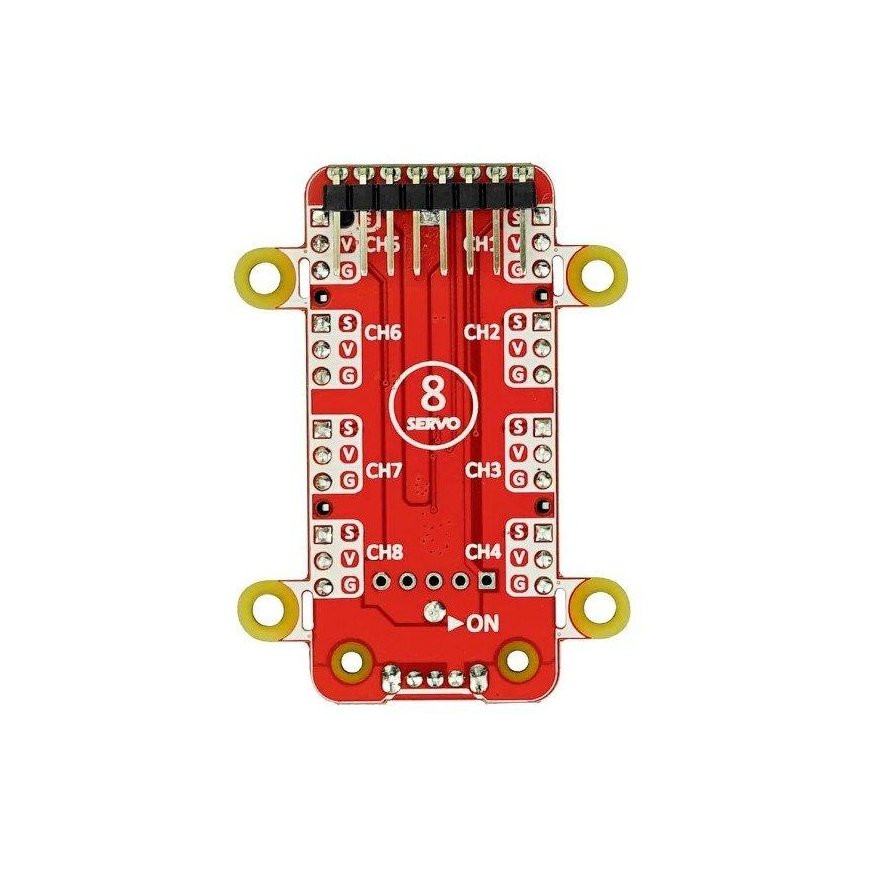

M5StickC 8-channel servo controller add-on V1.1 - M5Stack U076-B
21.32 €
3665963 AN-21273
6972934173522
Shipping 11-18 b.d.
You are interested in this product?
All about the product
M5Stack add-on for M5StickC and M5StickC Plus development modules. It has a built-in STM32F030F4 system, thanks to which up to 8 servos can be controlled simultaneously. Servo operation is controlled by pulse width modulation, i.e. according to the PWM signal. The maximum load on all channels simultaneously is 4.2 V / 1.3 A. The kit is powered by a 16340 lithium battery with a capacity of 700 mAh.Specifications:
- Compatible modules: M5StickC / M5StickC Plus
- Type: servo controller
- Number of channels: 8
- Control: PWM
- Integrated chip: STM32F030F4
- Module version: V1.1
- Maximum load for 8 channels: 4.2 V DC / 1.3 A
- Interface: I2C bus
- Interface address: 0x36
- Power source: 16340 lithium battery with a capacity of 700 mAh
- Integrated power control circuit to control servo on/off
- Integrated protection against reverse battery connection
- Equipped with 4 M3 mounting holes
- Dimensions: 52 x 38 x 19 mm
- Weight: 28.3 g

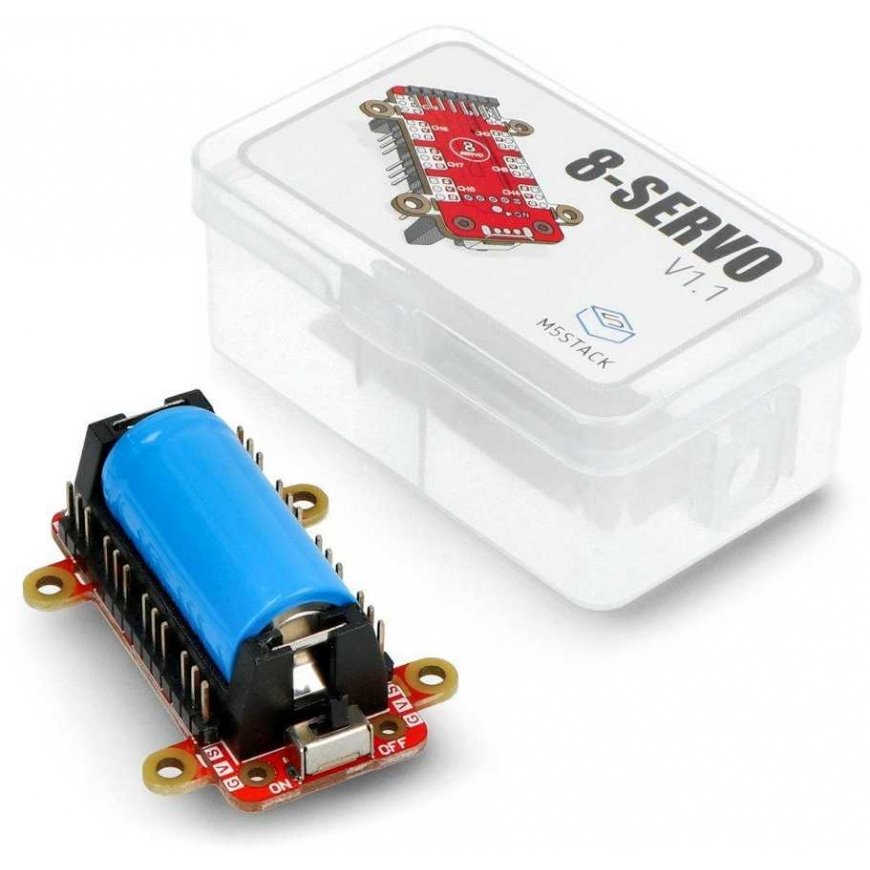

- M5StickC 8-channel servo controller add-on V1.1 - M5Stack U076-B
- 16340 battery with a capacity of 700 mAh
