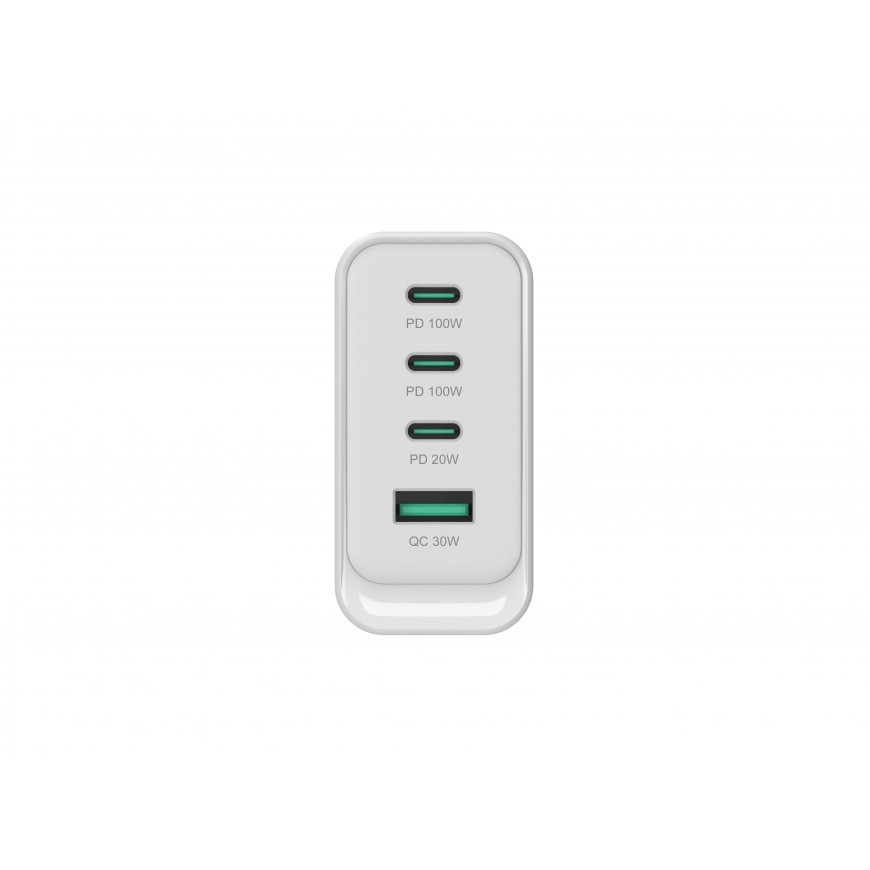

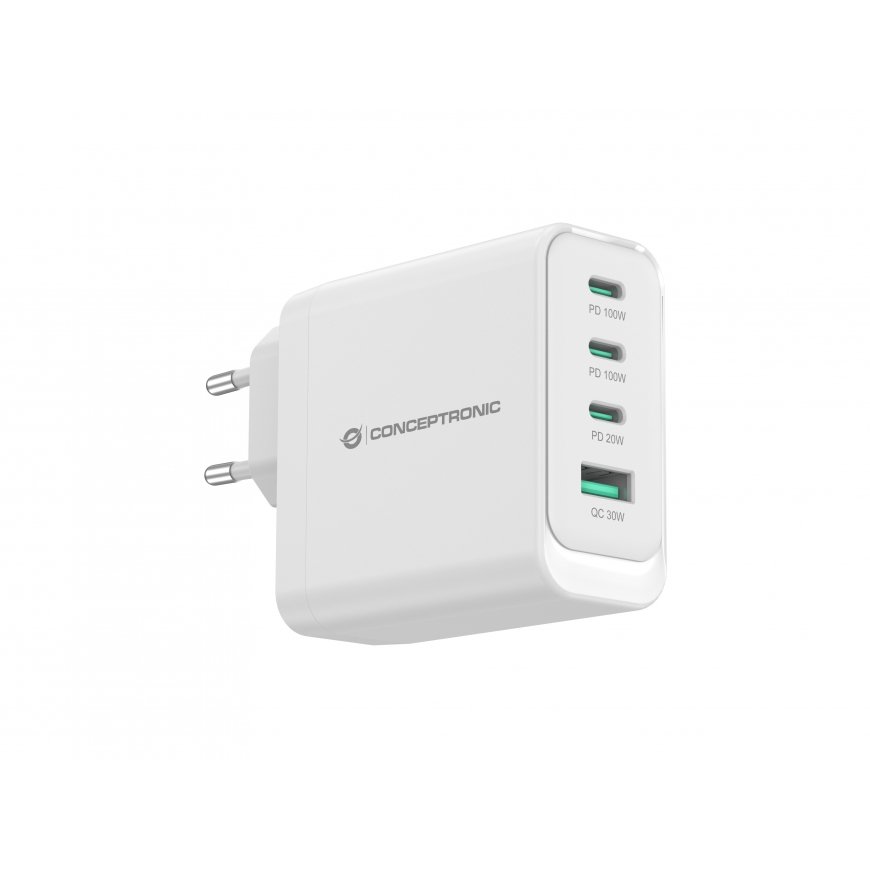

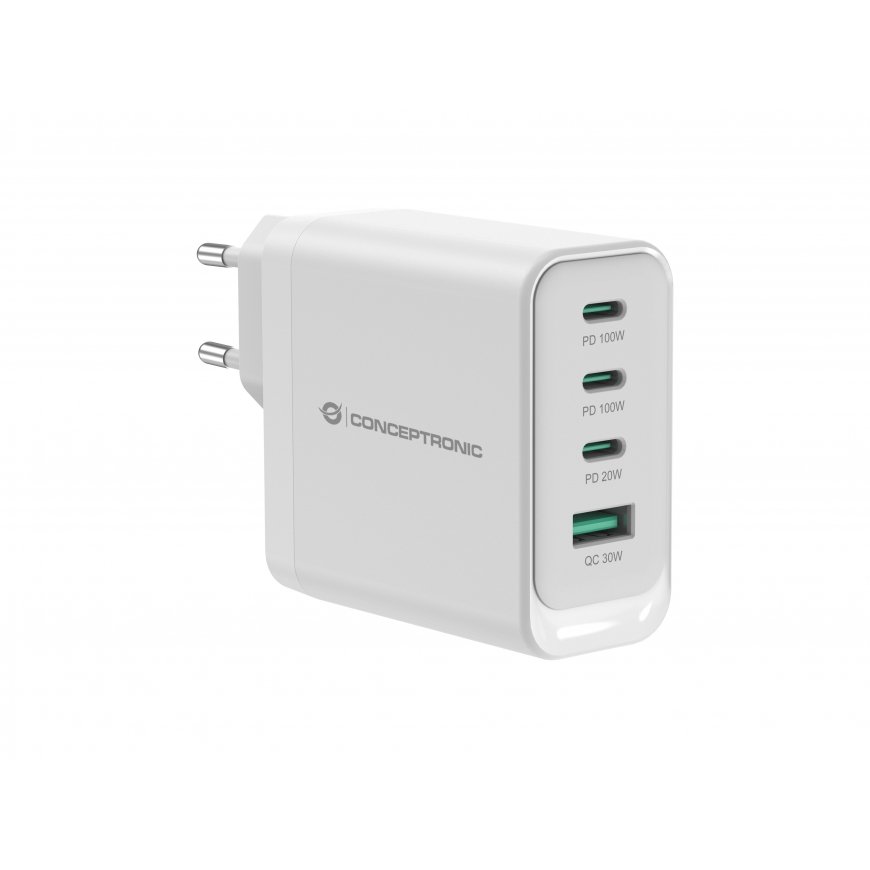

Conceptronic ALTHEA22W100 4-Port 100W GaN USB PD Charger, USB-C x 3, USB-A x 1, QC 3.0, PPS, PD 3.0
49.00 €
Monthly payment from 2,16 €
3665008 ALTHEA22W100
4015867240731
Shipping 4-6 b.d.
You are interested in this product?
All about the product
This charger harnesses cutting-edge Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring exceptionally fast and efficient charging. It features a versatile port selection with 4 ports: 3 USB-C ports supporting Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This configuration allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging and features Programmable Power Supply (PPS) compliance to optimize charging efficiency while minimizing heat generation.Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| Charger type | Indoor |
| Power protection features | Overload, Overheating, Short circuit |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0, Adaptive Fast Charging, Power Delivery 3.0, Programmable Power Supply (PPS), Hisilicon FCP |
| USB Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Programmable power supply (PPS) | Yes |
| Number of simultaneously connected devices (max) | 4 |
Design | |
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
| Housing material | Polycarbonate (PC) |
Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 100 W |
| Input current | 2.2 A |
| Port 1 output current | 4.5 A |
| Port 2 output current | 4.5 A |
| Maximum output voltage | 20 V |
| Minimum output voltage | 3.3 V |
| Port 3 output current | 3 A |
| Port 4 output current | 3 A |
Packaging data | |
| Package weight | 247.4 g |
| Package depth | 94 mm |
| Package height | 35 mm |
| Package width | 127 mm |
| Package type | Hanging box |
Weight & dimensions | |
| Weight | 191.4 g |
| Depth | 65 mm |
| Height | 32 mm |
| Width | 68.5 mm |
Technical details | |
| Master (outer) cases per pallet | 64 pc(s) |
Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 272 mm |
| Master (outer) case height | 210 mm |
| Master (outer) case gross weight | 10.4 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 183.2 cm |
| Customs product code (TARIC) | 8504408390 |
| Harmonized System (HS) code | 850440 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 25 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates | |
| Compliance certificates | CE, RoHS |
