Dfrobot DFRduino Nano V3.1, Arduino compatible
20.34 €
3662532 AN-03035
5904422331443
Shipping 11-18 b.d.
You are interested in this product?
All about the product

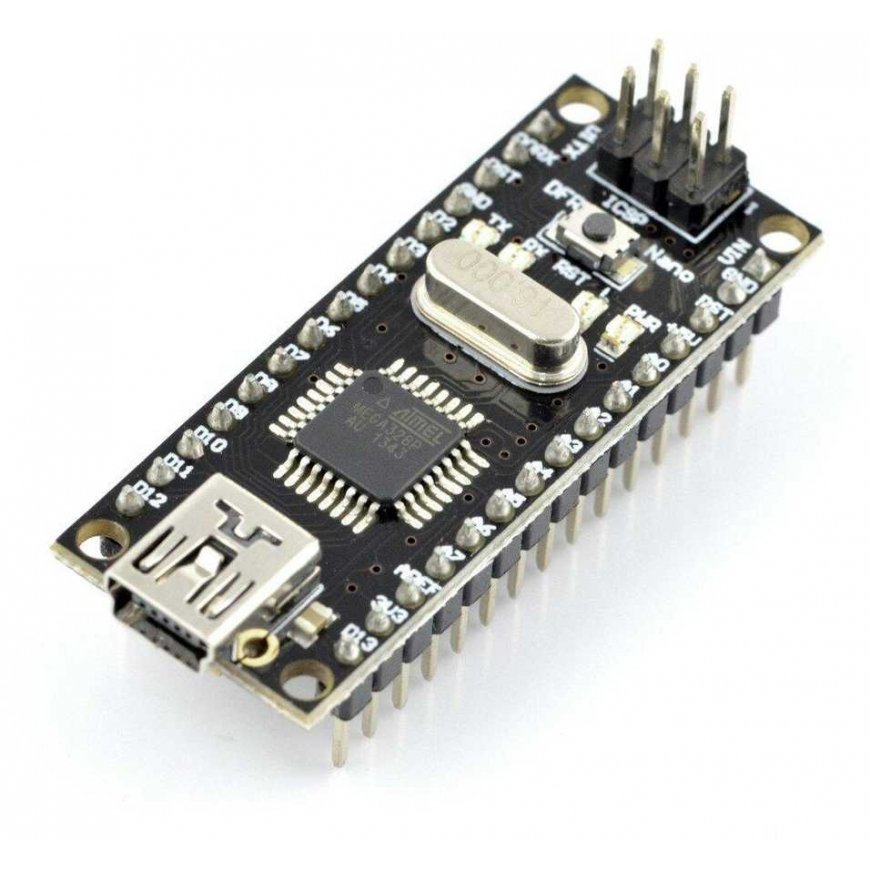

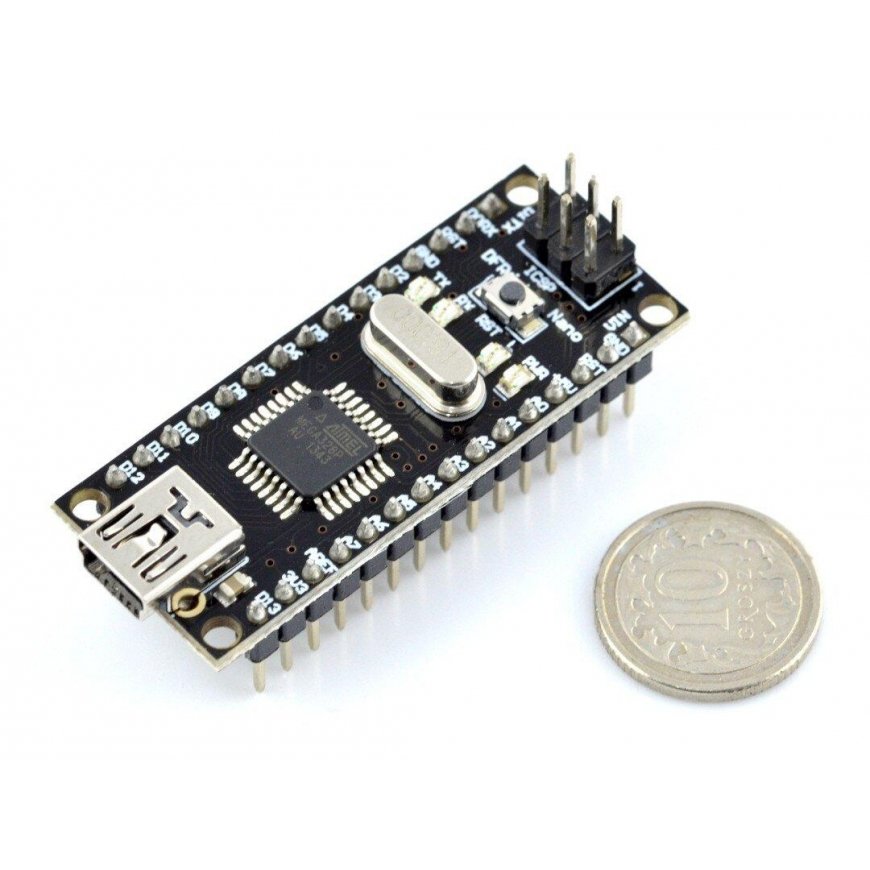

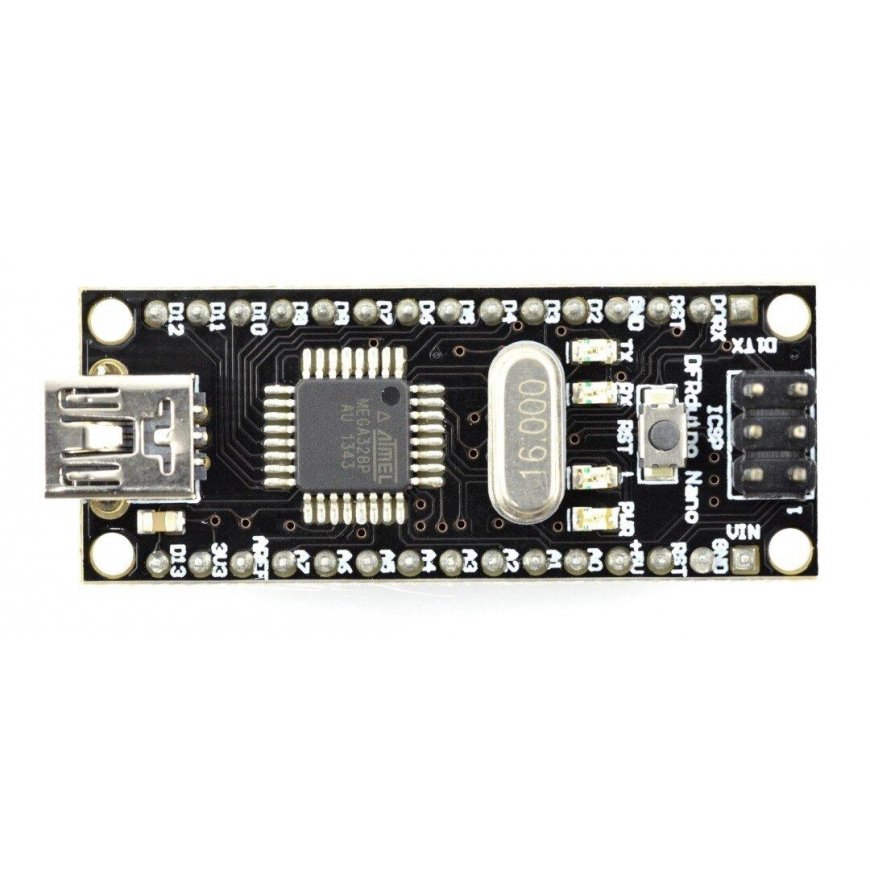

The DFRobot module contains an Atmega328-20AU microcontroller, compatible with Arduino Nano. It has 14 digital inputs/outputs, 6 PWM channels, 8 analog inputs, as well as popular communication interfaces. A characteristic feature of this board is its small size: 45 x 18 mm.
Specifications:
- Supply voltage: 7 V to 12 V
- Fully compatible with Arduino Nano
- Microcontroller: Atmega328-20AU
- Clock frequency: 16 MHz
- SRAM: 2KB
- Memory: 32 KB (4 KB for bootloader)
- EEPROM: 1 KB
- Input/output ports: 14
- PWM outputs: 6
- Number of analog inputs: 8 (A/C converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: micro USB type B socket (USB cable not included)
- Power supply from USB port
- Automatic power source selection
- Soldered ISP connector
- Dimensions: 45 x 18 mm
- Weight: 30 g
