Fermion - analog gas sensor NO, NO2, H2 - MEMS MiCS-2714 - DFRobot SEN0441
21.60 €
3662168 AN-20679
5904422382216
Shipping 11-18 b.d.
You are interested in this product?
All about the product

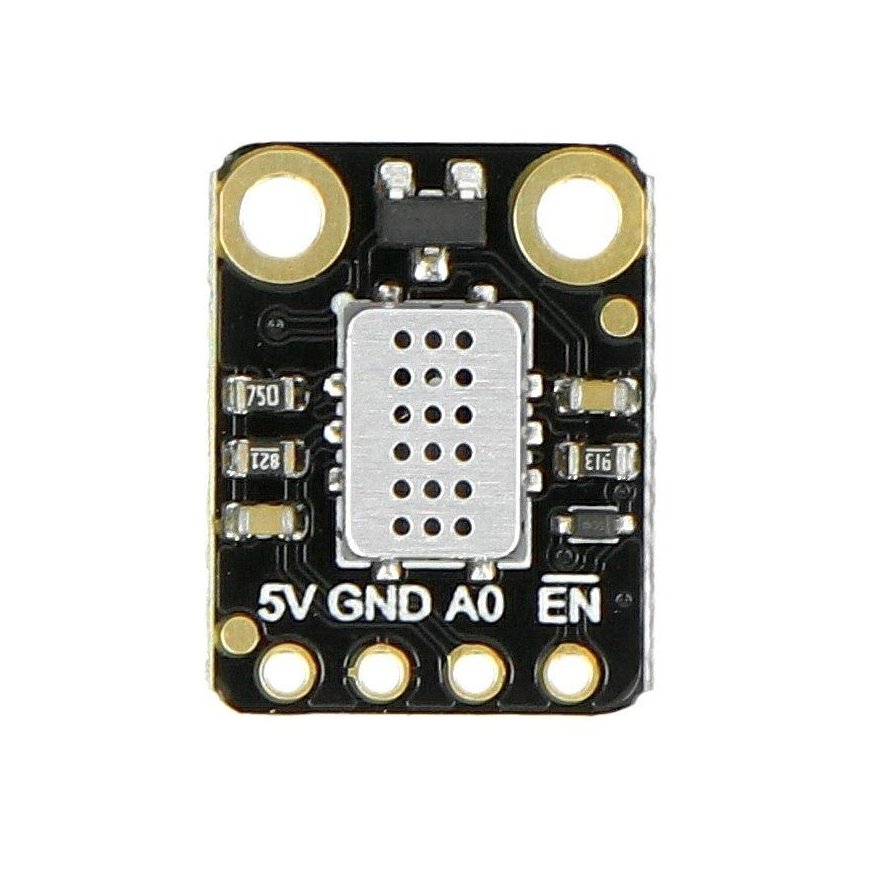

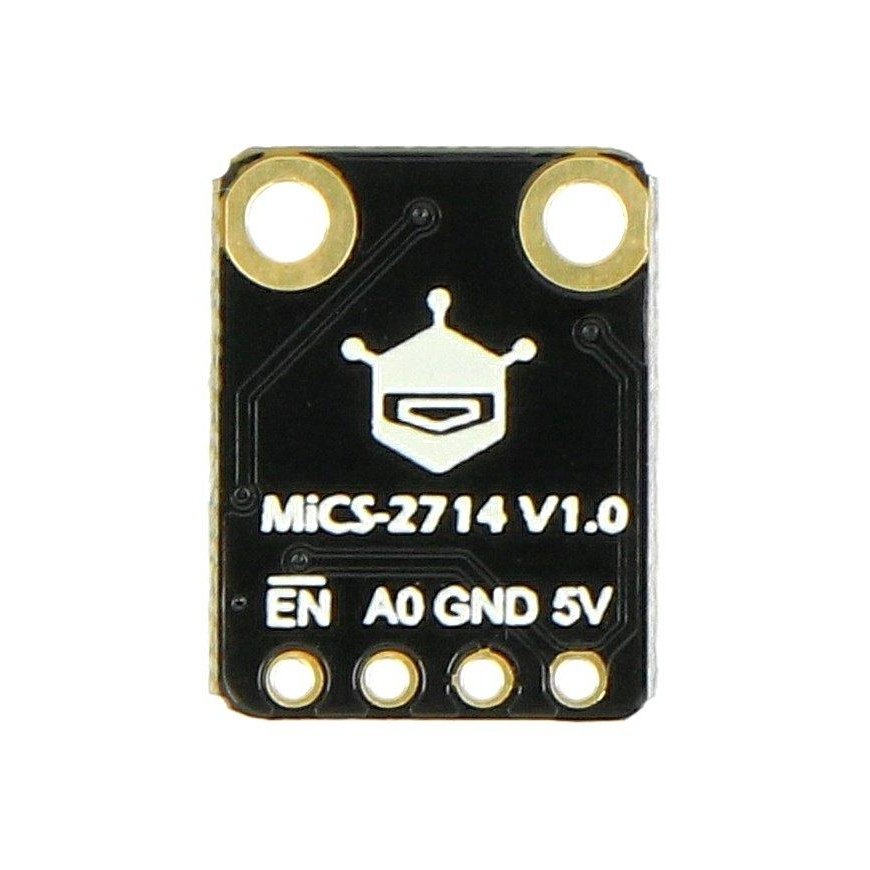

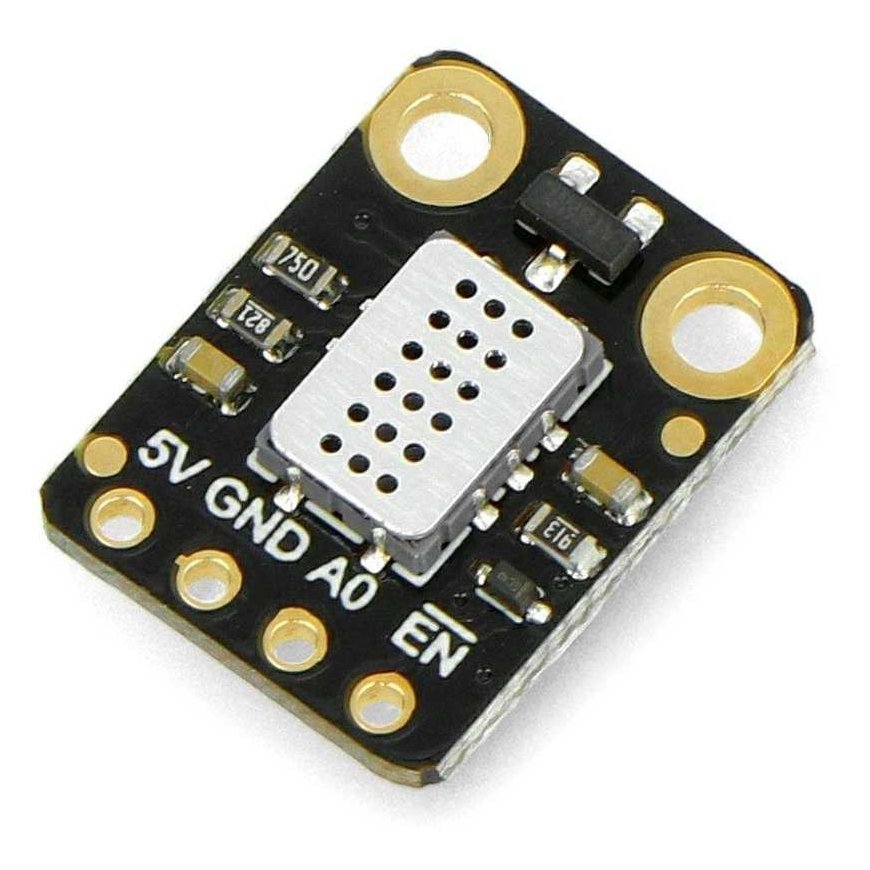

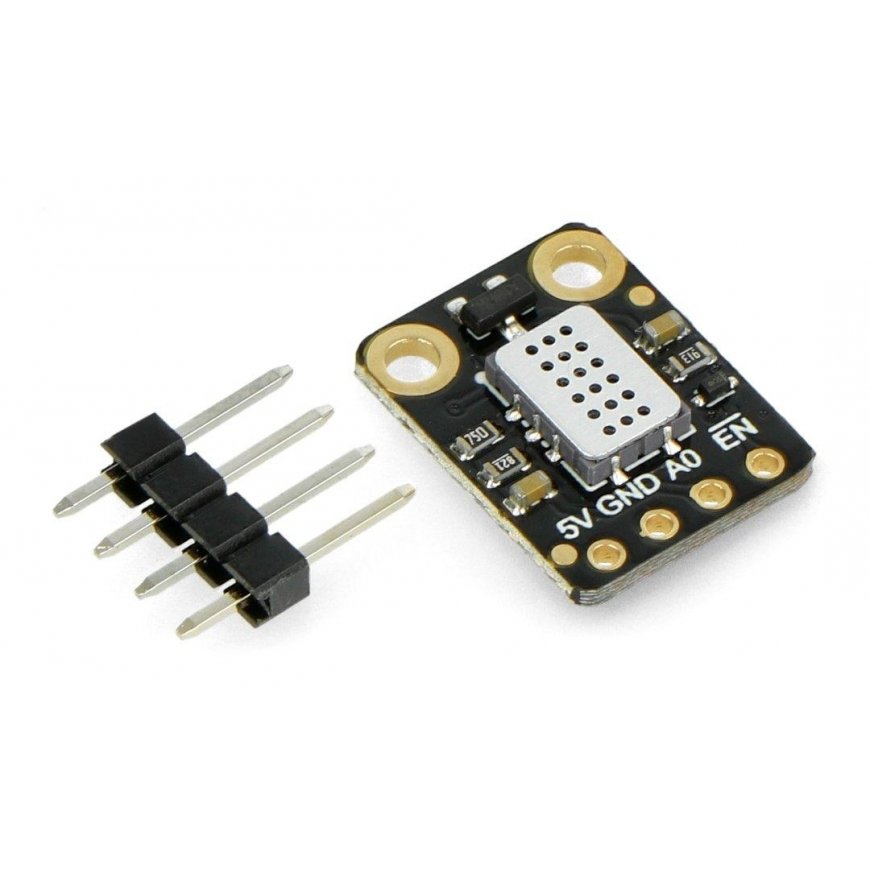

DFRobot has developed an analog NO, NO2, and H2 gas sensor. The MiCS-2714 MEMS sensor module can measure hydrogen and nitrous oxide concentrations. It detects hydrogen (H2) from 1 ppm to 1000 ppm and nitrogen dioxide (NO2) from 0.05 ppm to 10 ppm. The board is powered by 5 V, has an analog voltage output, and an enable EN pin for low power consumption.Main features:
- Detects NO, NO2 and H2 gases
- Integrated calculation formulas for different gases
- Low energy consumption
- Analog interface
- Compatible with 5V microcontrollers
- Detectable gases: H2, NO2, NO
- Supply voltage: 4.9 V to 5.1 V
- Power consumption: 0.45 W
- Output signal: analog quantity
- Measuring range:
- H2: 1 ppm to 1000 ppm
- NO2: 0.05 to 10 ppm
- Operating temperature: -30 °C to 85 °C
- Operating humidity: 5% to 95% relative humidity
- Storage temperature: -40°C to 85°C
- Service life: more than two years (in the air)
- Mounting hole diameter: 2 mm
- PCB dimensions: 12 x 16 mm
- Weight: 7 g
