The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Thermalright TP 1000 power supply unit 1000 W 20+4 pin ATX ATX Black
159.01 €
Monthly payment from 4,99 €
3661438 TR-TP 1000
0814256016100
Shipping 9-12 b.d.
You are interested in this product?
All about the product
Thermalright TP 1000. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PATA, PCIe, SATAPower | |
| Input current | 13 - 6.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 1000 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| On/off switch | Yes |
| Built-in display | No |

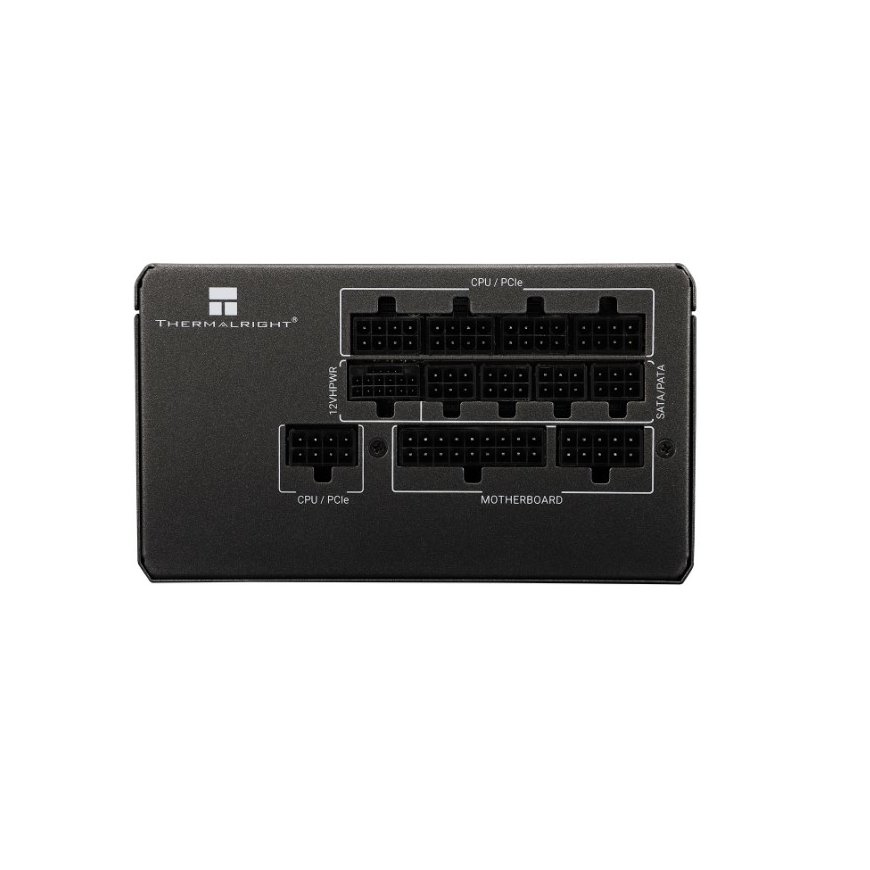

Ports & interfaces | |
| Number of SATA power connectors | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Number of PATA power connectors | 1 |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 450, 600, 750, 900 |
| PCI Express power cable length | 80 cm |
| CPU power cable length | 60 cm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Logistics data | |
| Warranty period | 7 year(s) |
Packaging content | |
| Cables included | SATA, CPU, PCIe, PATA |
