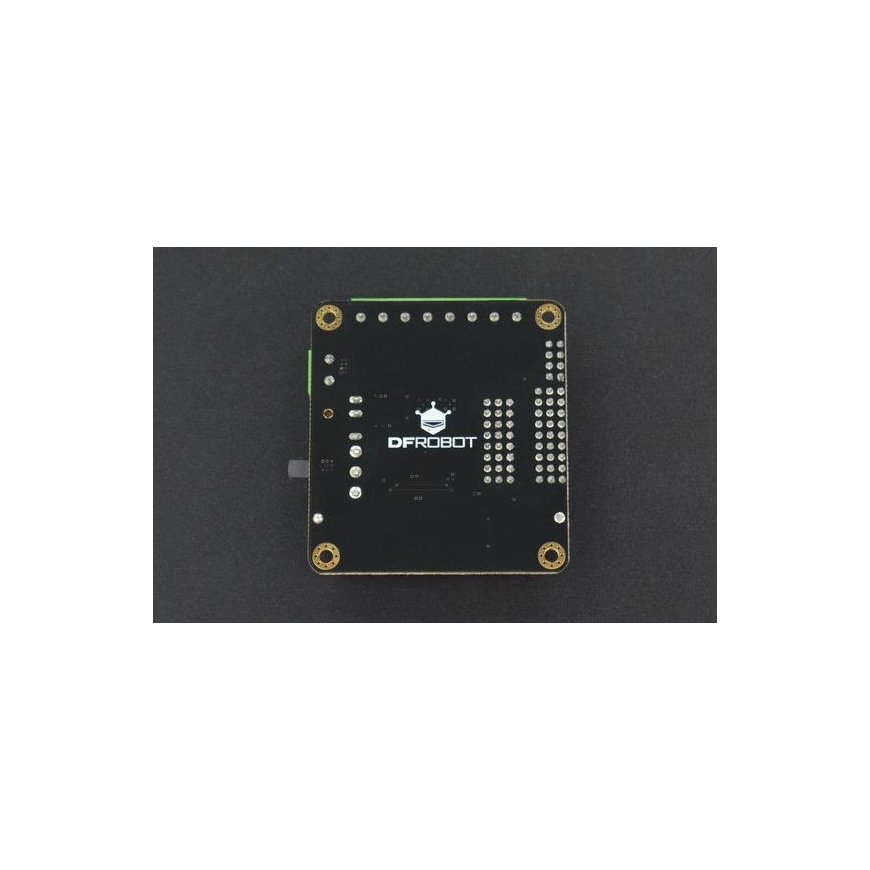

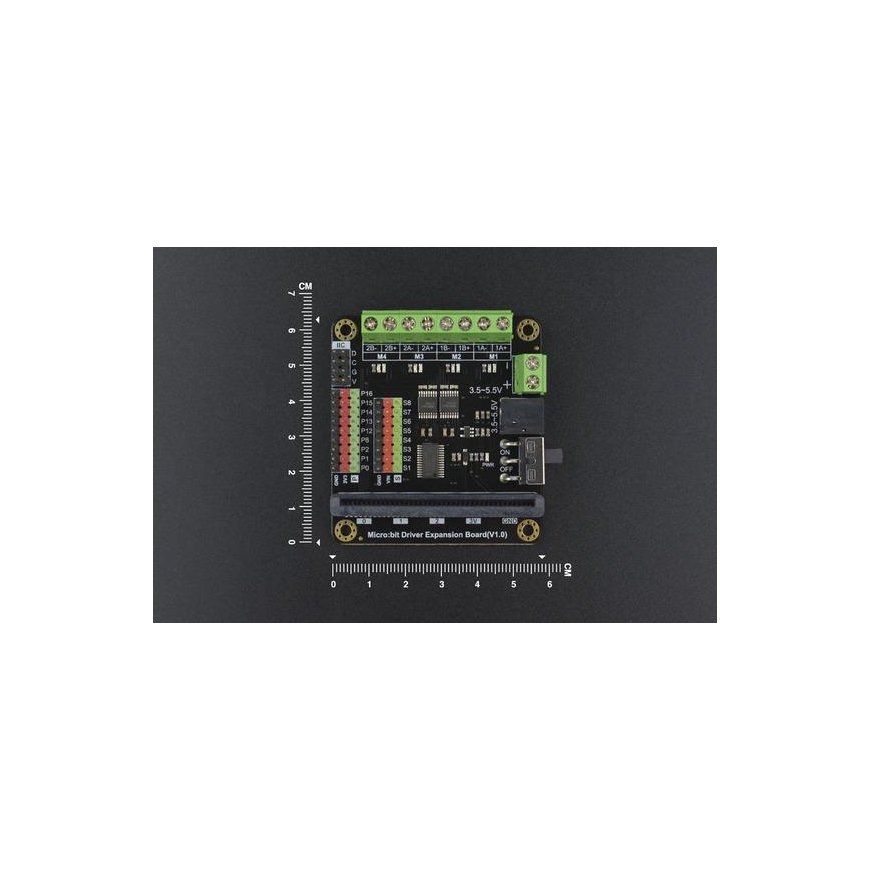

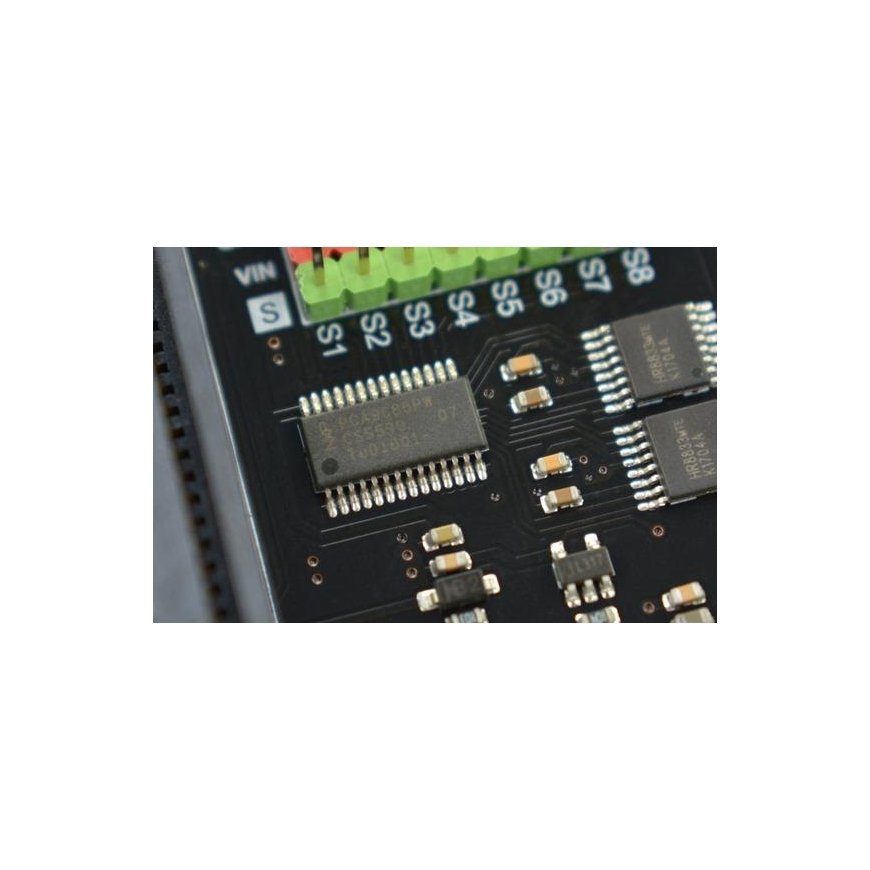

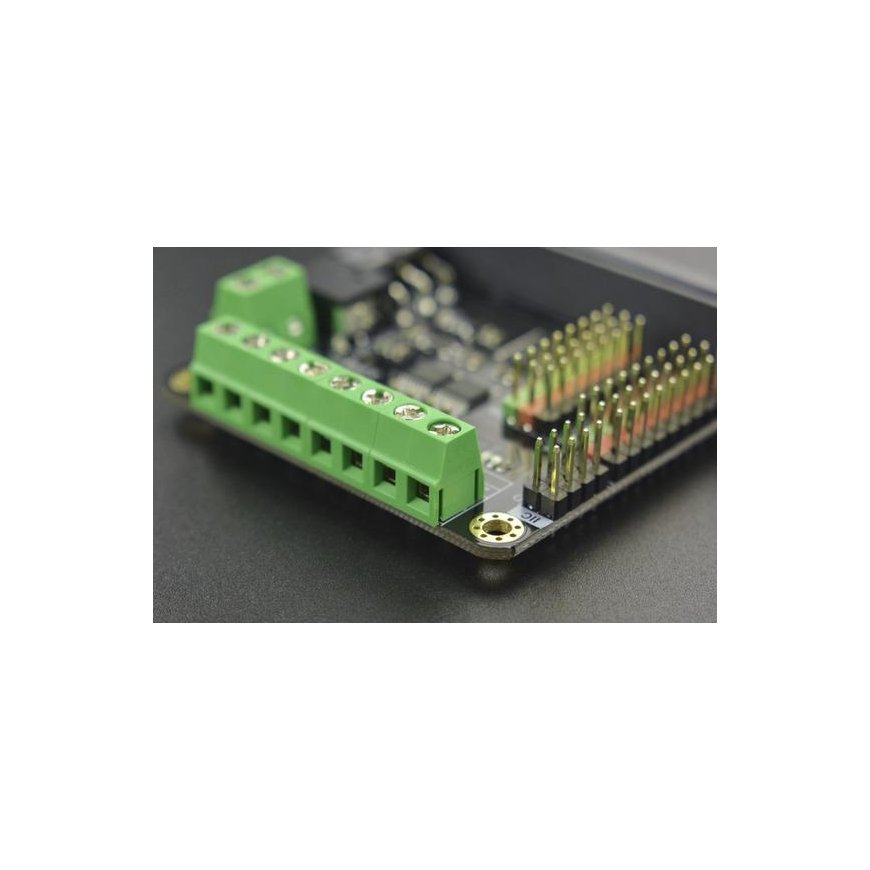

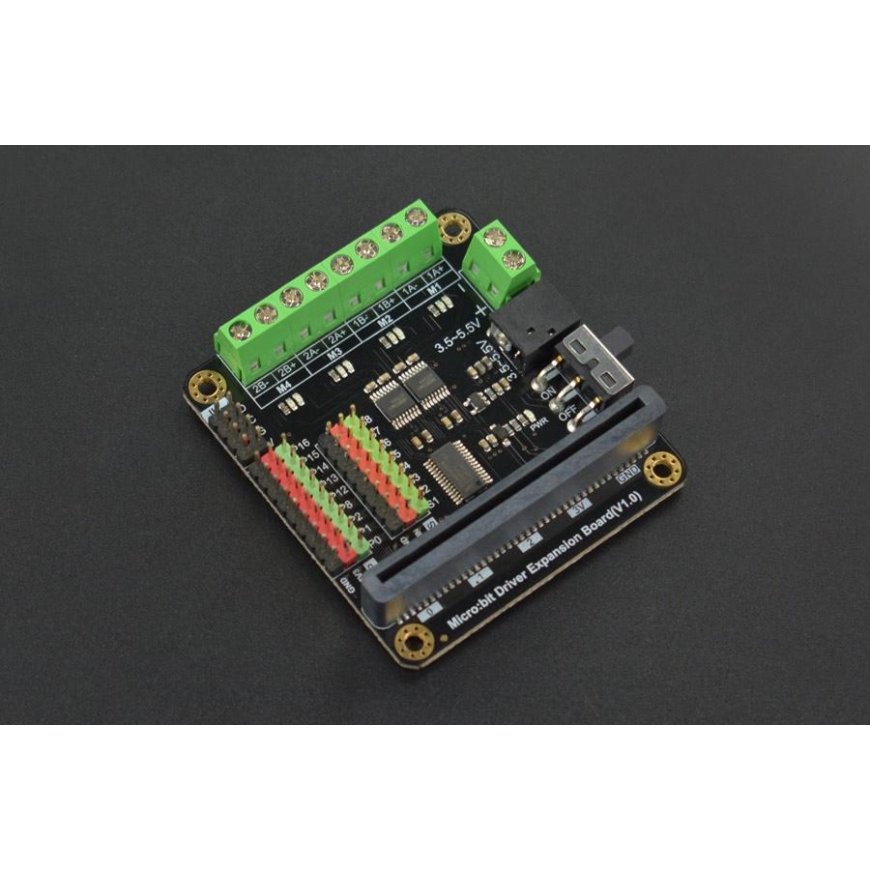

DFRobot – four-channel 5.5V/1.5A motor control module for BBC micro:bit
29.00 €
3658818 AN-12359
5904422319069
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Micro:bit overlay that allows you to control four DC motors, two stepper motors and eight servos (5.5V/1.5A). In addition, the module has 9 Micro:bit I/O pins.
Specifications:
- Output voltage: 0V to 3.3V
- Supply voltage: from 3.5V to 5.5V
- Maximum current: 1.5A
- Servo interfaces: 8
- Motor interfaces: 4x DC / 2x stepper
- Micro:bit interfaces: 9
- Dimensions: 63x58mm
