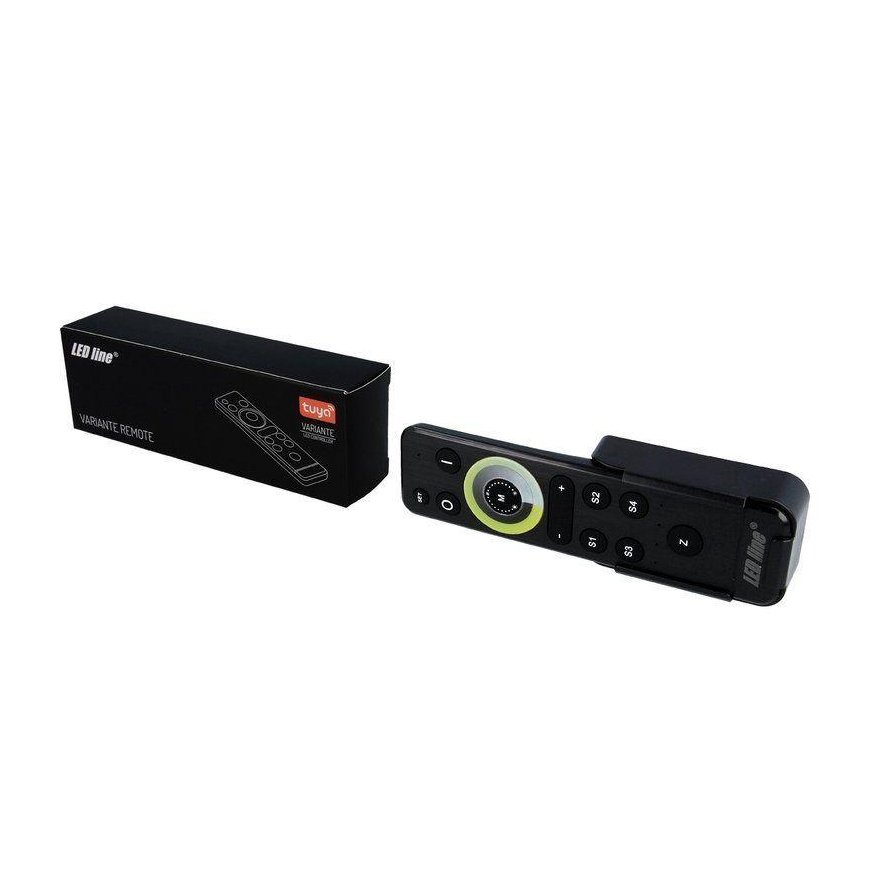

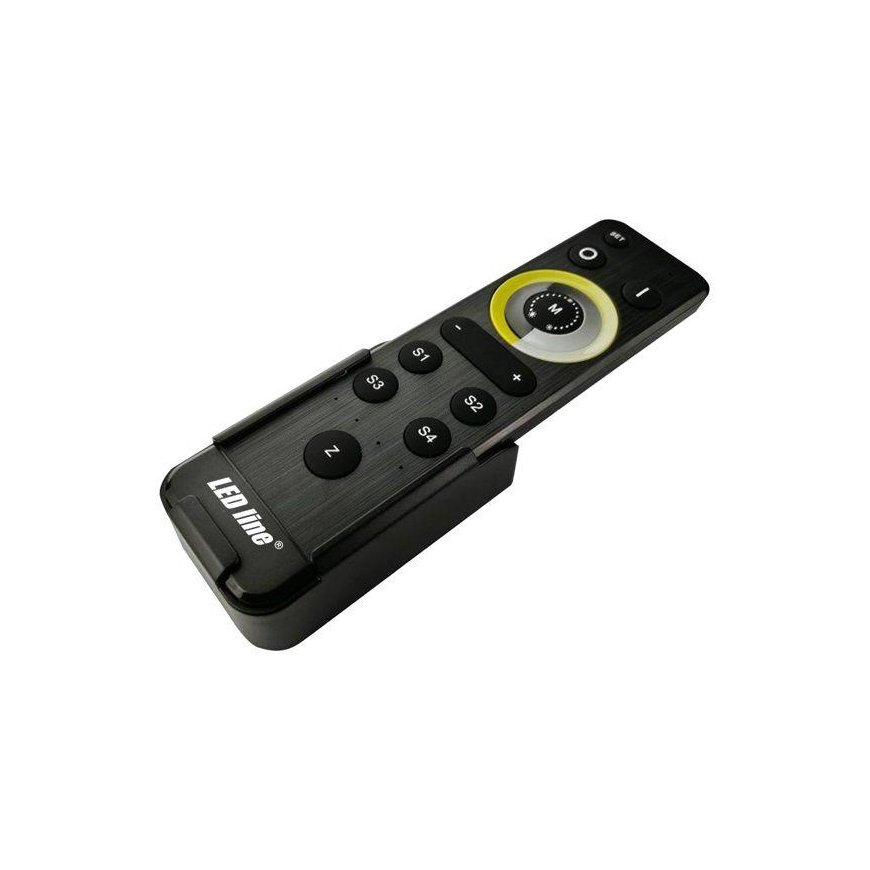

Remote control for LED controllers CCT/PWM, VARIANTE +RF, LED LINE
3657499 471321
5907777471321
Shipping 7-12 b.d.
All about the product
The VARIANTE DIM / CCT remote control is designed to control VARIANTE DIM and VARIANTE CCT controllers.
Unlimited control grouping options
The VARIANTE remote control has a unique interface and is very easy to use. It can control up to 4 different zones (individually defined by the user), and thanks to the grouping function, you can assign any number of VARIANTE DIM or CCT controllers to each zone.
Your favorite lighting scenes always at your fingertips
The remote control can program 4 customized user lighting scenes, which can be later activated using buttons S1-4. The light intensity can also be controlled by touch using the adjustment circle.
Precise control
Using the - and + buttons, you can precisely set one of the 1024 possible brightness levels of the LED strip. With a long press, the brightness will change smoothly and quickly.
Security
Each VARIANTE remote control is paired with the controller using a unique code. This prevents accidental interference.
The kit includes a convenient wall mount for mounting the remote control.
Technical data:
| Transmission frequency RF | 2.4GHz |
| Supply voltage | 3V DC (2 x AAA batteries) |
| Power consumption | <60mW |
| Current | <20mA |
| Standby power consumption | 75uW |
| Standby current | 25uA |
| Number of zones | 4 |
| Operating distance | 20m |
| Working temperature | -20 - 60℃ |
| Dimensions | 148mm x 39mm x 21.2mm |
| Weight | 106g |
