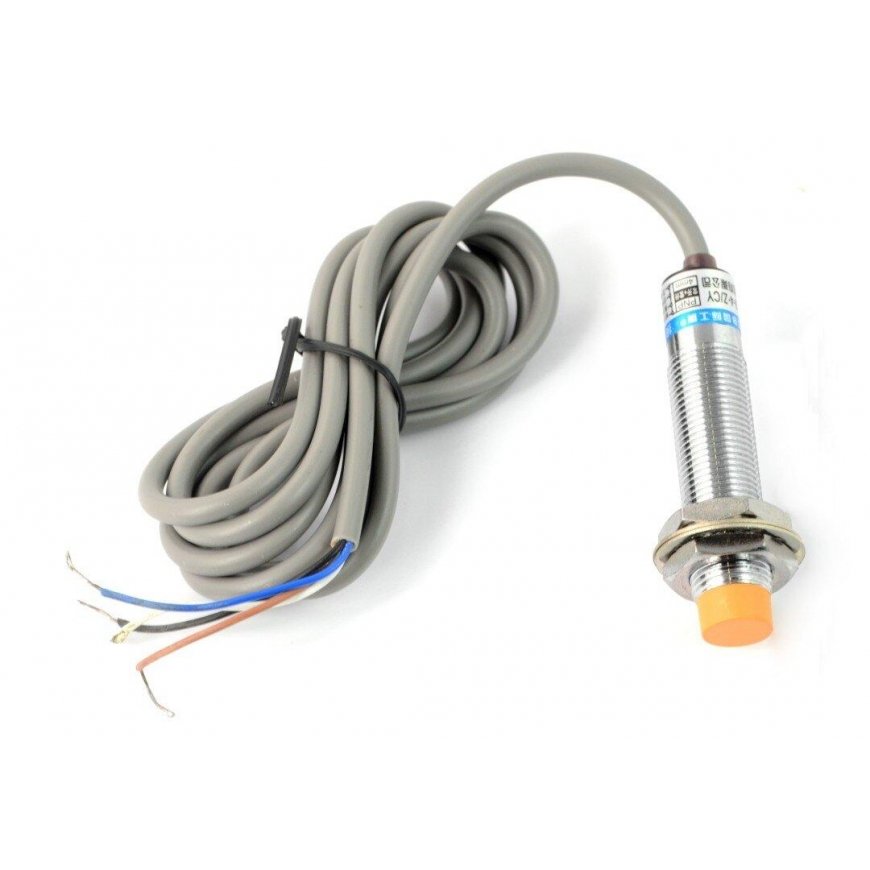

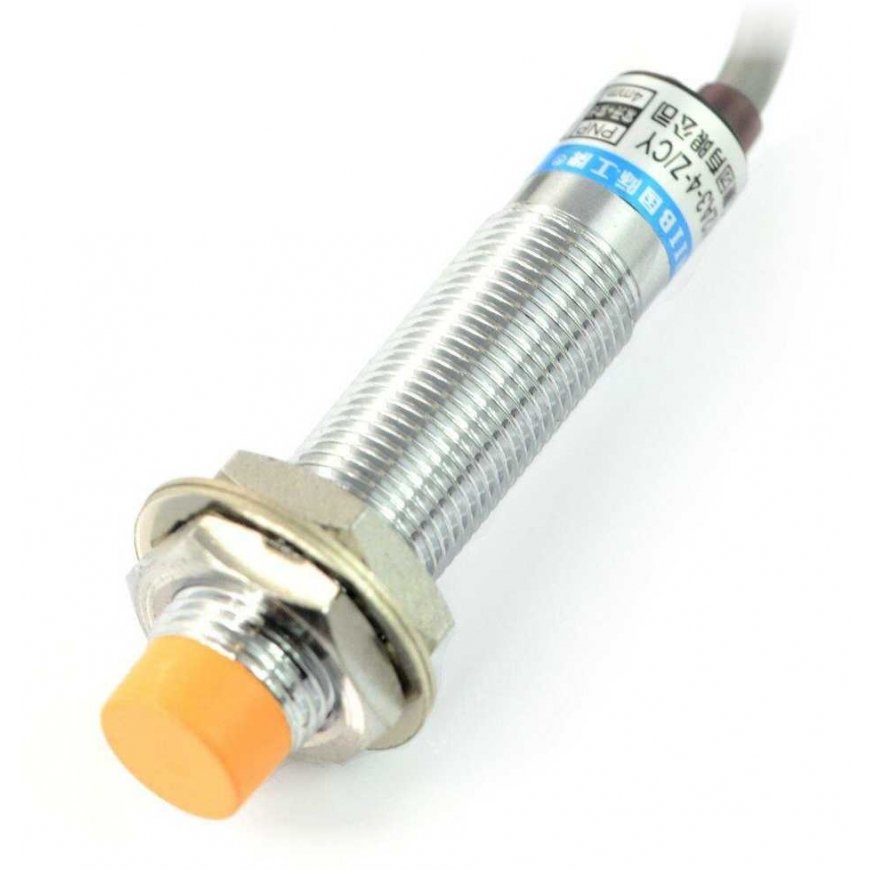

Oem Inductive distance sensor LJ12A3-4-Z/CY 2mm 6-36V - PNP
19.00 €
3657155 AN-11863
5903351247498
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Inductive digital distance sensor with 100 cm cable and nuts for easy installation. It detects metal up to 4 mm away. Object detection is signaled by a high state at the output. Powered by voltage from 6 V to 36 V. Type: PNP.
Specifications:
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0-4 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- Output type: PNP
- LED indicating object detection
- Detection object: metal
- Response time: less than 2ms
- Operating temperature: -30 °C to 65 °C
- Diameter: 12 mm
- Sensor length: 56 mm
