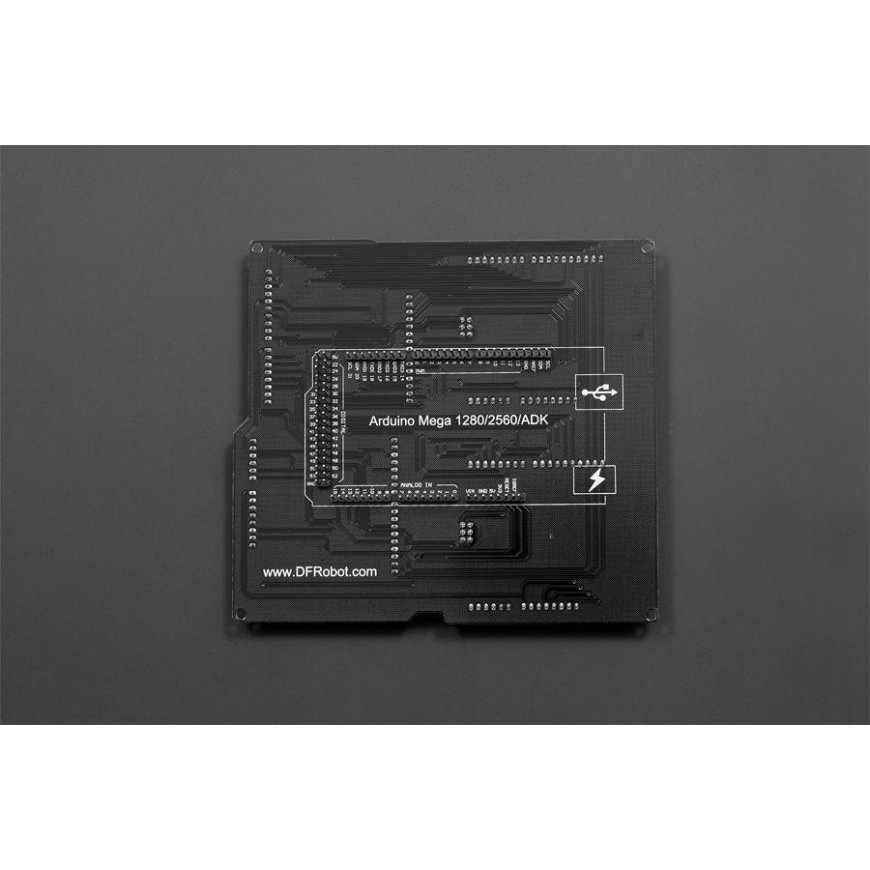

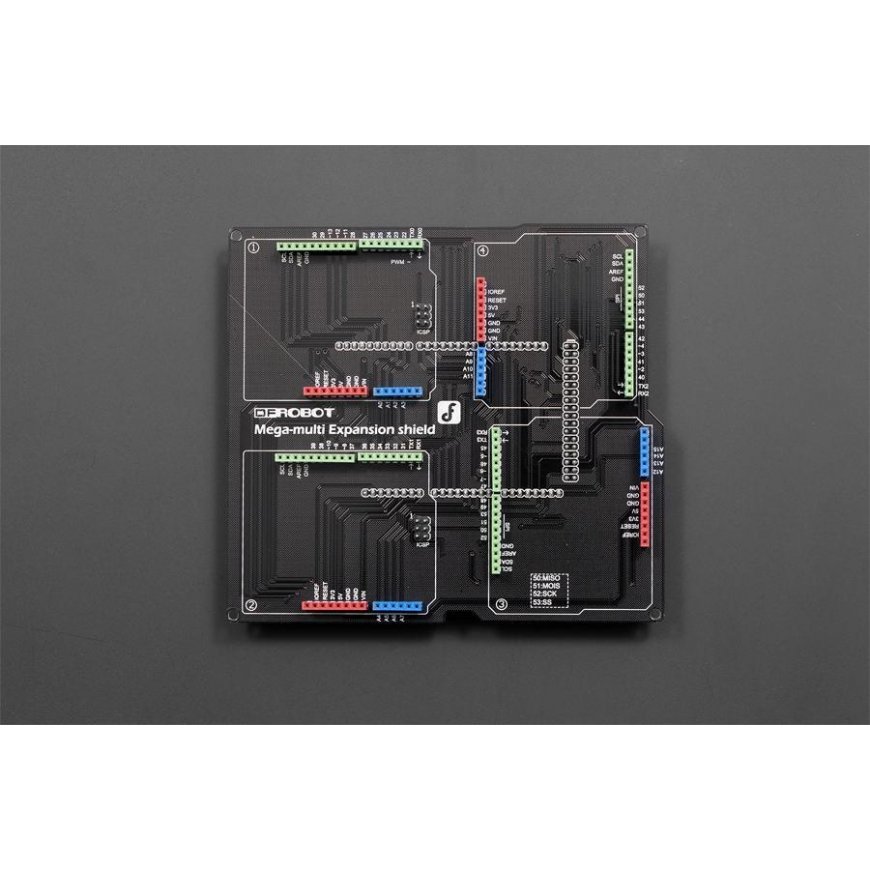

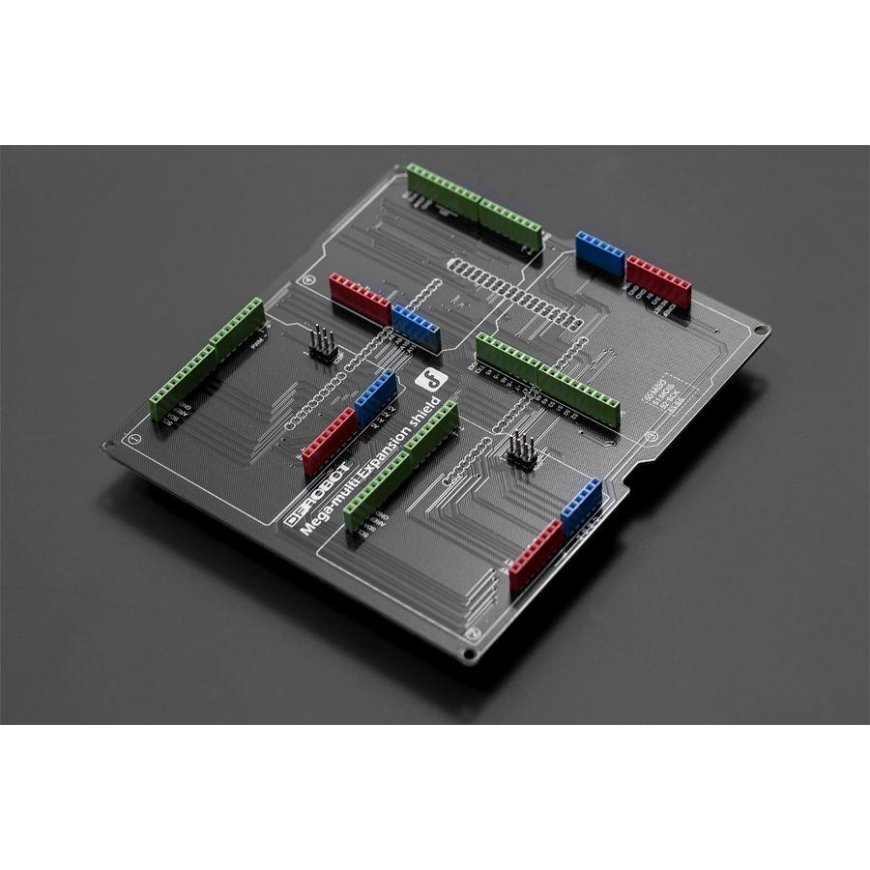

DFRobot Multi IO Output Expansion Board
3656034 AN-07183
5904422361440
Shipping 11-18 b.d.
All about the product

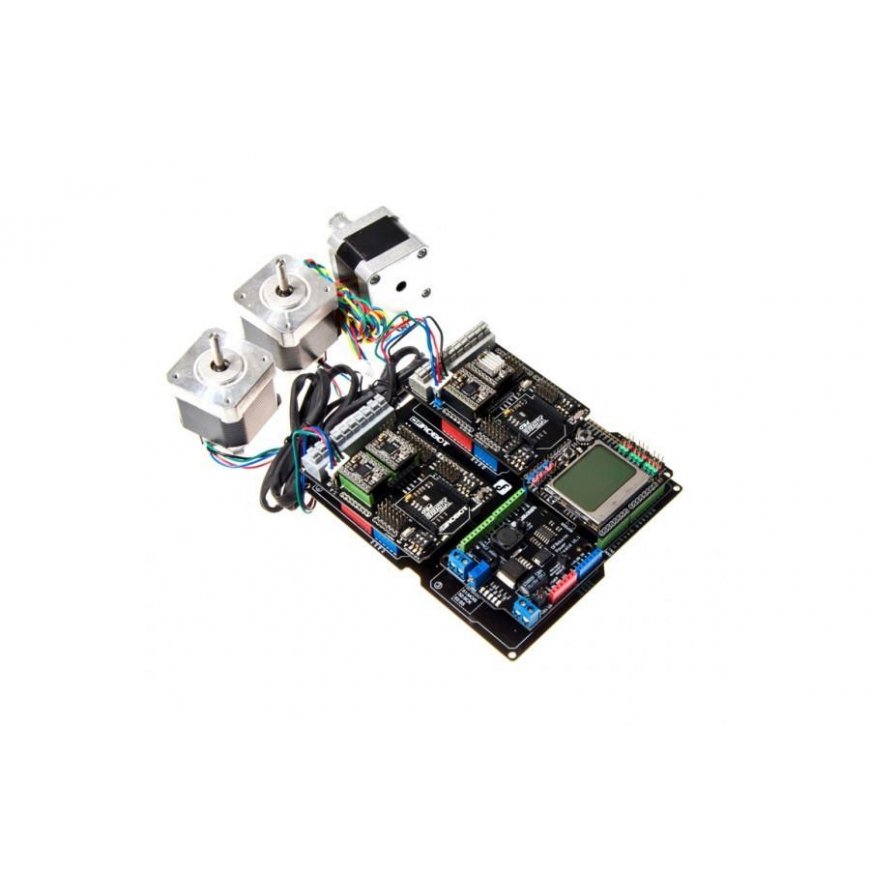

Do you want to use Arduino Uno headers for your Arduino Mega project without any mismatched connectors? This Arduino Mega header DFRobot Multi IO is for you. It allows you to use all the Arduino Mega connectors for headers and not worry about mismatched Mega and Uno connectors. The Mega header holds 4 Uno headers, and allows you to place them side by side, making your projects look much neater and the connectors much easier to access. No soldering is required to connect them.
Technical data:
● Suitable for: Arduino Mega, ADK, DUE and other similar microcontrollers
● Supports 4 Uno set-top boxes simultaneously
● Size: 14.4 x 13 cm
References and application:
● WIKI page
● Connection layout
